Autel Maxisys Ultra EV

Autel MaxiSys Ultra EV New Energy Car Diagnostics Scanner is a new generation of full system diagnostics for electric, hybrid, gas, and diesel vehicles. The Ultra EV provides a comprehensive analysis of electric and hybrid vehicles with expanded topology mapping and battery pack analysis that can be performed via OBD or directly with included specialty cables and jumpers. The Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing. The 12.9-inch Ultra EV touchscreen tablet comes equipped with the MaxiFlash VCMI (5-in-1) measurement device, Bluetooth-enabled vehicle communication interface and J2534 pass-thru programming device, and a dedicated EVDiag box. The MaxiSys UltraEV combines Autel's MaxiSys Ultra with the MaxiSYS EV Diagnostics Upgrade Kit.

Autel Ultra EV Top Highlights

Autel MS Ultra EV (1000 less than purchasing Ultra and EV Box separately) adds an EVDiag Kit to Ultra, making the scanner possible to diagnose new energy vehicles, including Tesla, BMW, VW, Au-di, etc. This automobile diagnostic scanner combines together almost every high-end diagnostic feature you can think of, bringing repair stores more orders.

• EV Vehicle Diagnostic - The EV Diagnostics Upgrade Kit includes EVDiag Box and adapters for specific electric vehicles to perform battery pack analysis, it also can work with gasoline vehicles.
• Advanced VCMI 5-In-1 Device - The VCMI of advanced car scan tool Autel MaxiSys Ultra EV is integrated with VCI functions + Oscilloscope + Waveform Generator + Multimeter + CAN BUS CHECK, which making the tool has never been so powerful.
• Advanced ECU Coding & Programming - Program,rewrite,code, and match new ECU after new module replacement. Code cars to unfold hidden features and activate high-end functions to improve vehicle performance.
• Topology Mapping - Provides a color-coded topology display for all vehicle systems' relationship on one page, helping you better analyze the system faults.
• High-voltage System Diagnostics - Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data.
• Unmatched 10000+ Coverage, Works With OE Tools - Top Full System Scanner Autel Ultra EV supports D-PDU/SAE J2534/RP1210/DoIP/CAN FD protocols, Wide coverage of 99.99% vehicle in the market,which makes Autel UltraEV compatible with oe factory tools and peform further services and programmings. Eg: it supports OE diagnostic tools for Land Rover, Jaguar, Volvo, Toyota, GM, Honda, Nissan, BMW, BENZ, VW, Hyundai, Kia, Mazda, Mitsubishi, Chrysler, etc.
• Extensive Reset Services - This TOP car diagnostic scanner Autel Maxisys Ultra EV supports the most comprehensive services on the widest vehicles. Services include Oil Reset, EPB Reset, SAS Calibration, DPF Regen, Battery Reset, Throttle Reset, ABS Bleed, Injector Coding, Power Balance, Key Coding, Suspension Calibration, EGR, VGT Turbo Calibration, Transmission, Headlamps, Window Door Roof etc.
• Top Hardware - Ultra EV With a winning combination of solid hardware and software, the Autel MaxiSys Ultra EV ensures you a smooth and efficient diagnostic experience. Android 7.0 OS, Samsung octa-core processor, 4GB RAM & 256GB memory, 16MP Rear/5MP Front Camera. 12.9 inch TFT-LCD touch screen,  18000mAh 3.8 V battery, etc.
• NO IP Limitation - Autel Maxisys Ultra EV (Global Version) is not affected by IP restrictions and can be used worldwide.

EV Diag Box & Adapters for Battery Pack Diagnostics

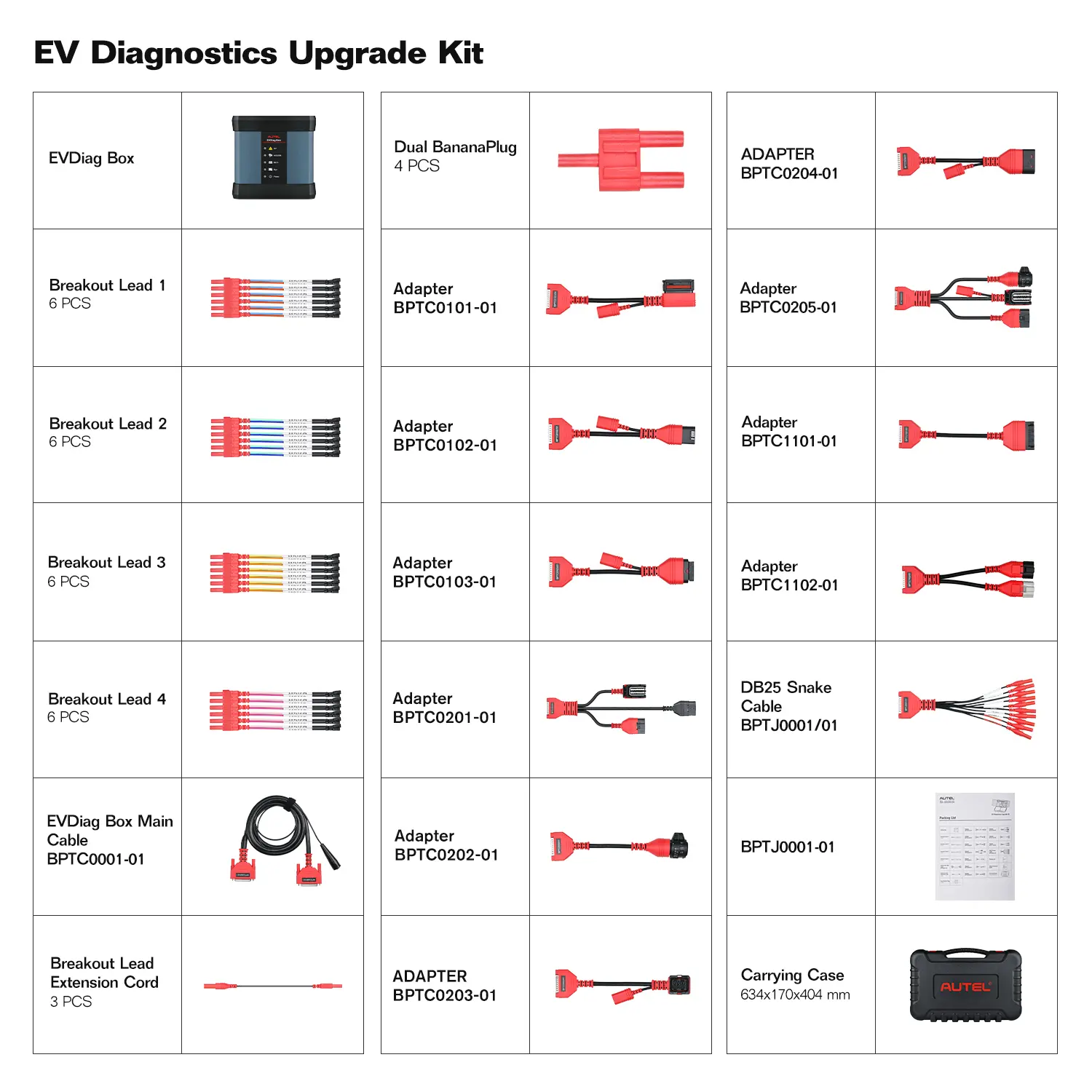

The EV Diagnostics Upgrade Kit includes EVDiag Box and adapters with a carrying case for specific electric vehicles to perform battery pack analysis. The EVDiag Box is compatible with the MaxiSys Ultra, MaxiSys Ultra ADAS, MaxiSys MS919, and MaxiSys MS909 tablets. EVDiag Box connects to MaxiFlash VCI or VCMI.

• Includes EVDiag Box, Adapters for BMW, VW and Breakout Leads
• Includes Carrying Case
• Compatible with Ultra series products to perform Battery Pack diagnostics
• State of Charge and State of Health analysis for true battery condition
• For customers who already bought MS909 or MS919EV or MaxiSys Ultra can just buy EV box to upgrade their device to MS909EV、MS919EV and MaxiSys Ultra EV.
• The methods to active EV box on MS909/MS919/ MaxiSys Ultra: to imput EV box SN on tablets portal directly to upgrade. EV Diagnostics Upgrade Kit - $895

High-Voltage Diagnostics & Offline Battery Pack Diagnostics

High-voltage system diagnostics allow for reading/ clearing codes and displaying the SOC, SOH, voltage, and battery pack status with one click, helping locate the fault. EV provides a high-voltage system block diagram, parts diagram, plug-in diagram, disassembly guide, etc., making operation easier. The scan tool also provides offline battery package diagnostics to ensure the efficient completion of each battery installation.

Advanced 5-IN-1 VCMI

The VCMI of advanced car scan tool Autel MaxiSys Ultra is integrated with VCI functions + Oscilloscope + Waveform Generator + Multimeter + CAN BUS CHECK, which making the tool has never been so powerful.

1. VCI Connection (Wi-Fi / BT / USB) - Support Dual Wireless Mode, the new host and communication box are connected through Wi-Fi, Wi-Fi communication transmission speed is faster\more stable\strong anti-interference ability, the actual test wireless distance is more than 50m, and the diagnosis speed is more than 30% faster.
2. Oscilloscope - VCMI integrated oscilloscope, through 4 major technologies: Large Bandwidth, High Sampling Rate, Deep Storage, Massive Preset Cases, supports 2 major features: Zoom & Playback, Advanced Triggering, improving the efficiency of solving complex faults.
3. Waveform Generator - Supports multiple signal modes, including DC voltage, square wave, square wave (X+Y), triangle wave, actuator drive and arbitrary waveform. Simulate the signals of various sensors and ECU modules, you can intuitively judge whether it is a hardware problem without changing parts.
4. Multimeter - The Multimeter is mainly used to measure voltage, current, resistance, frequency, diode, duty cycle, pulse width and connectivity.
5. CAN BUS Check - By detecting the signal of the OBD interface, you can quickly determine whether the communication status is normal. If the signal is normal, the indicator light will flash; if there is no signal, make sure the pins are set correctly.

Newest Topology Module Mapping

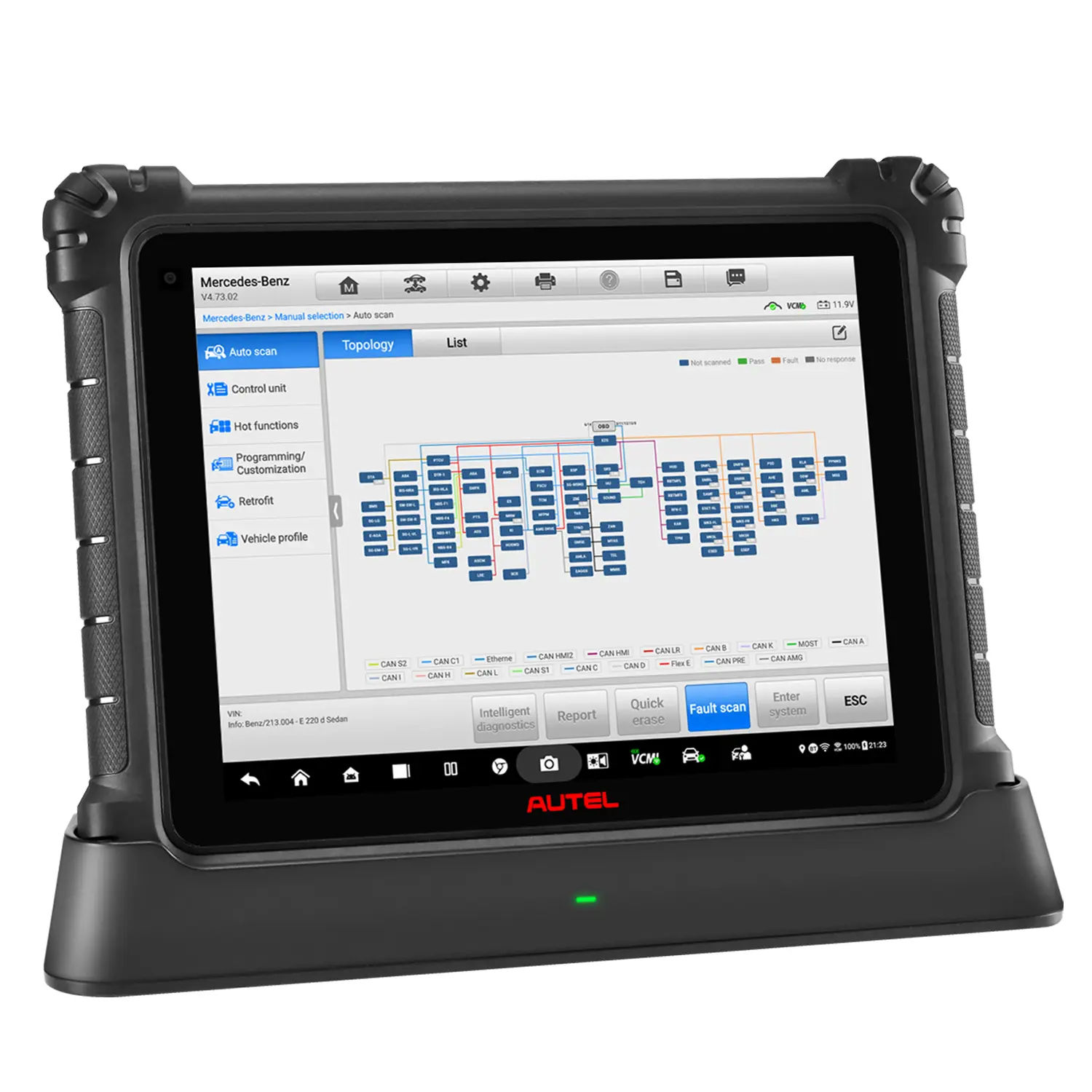

The new Topology Module Listing CAN BUS Tree, specially designed for the OEM diagnostic tools, shows all available control units of the test vehicle in different colors, helping users get to know the numbers of systems, the scanned systems, and the scan results at a glance.

• Intuitively display the current module status (includes whether there’s a DTC in a specific module, and the number of DTCs);
• Systematically show the communication structure between the modules;
• Directly display the fault code and enter the system execution function;
• Clearly view the color coded module status tree by zooming in and out;
• Compatible with BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW, etc.

OE-Level All Systems Diagnostics

Autel Ultra EV offers comprehensive OE-level full system diagnostics, enabling in-depth analysis of vehicle systems. It provides detailed topology mapping and battery pack analysis, supporting high-voltage system diagnostics and component-level troubleshooting

Full Bi-directional Control (Active Test)

Autel Maxisys Ultra EV automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.

40+ Hot Reset Services

Autel Ultra EV supports over 40 reset services, including oil reset, EPB, DPF, SAS, and more. This advanced functionality ensures comprehensive vehicle maintenance, offering precise control and reset of crucial systems. Ideal for professionals, it enhances efficiency and ensures accurate service resets for electric vehicles.

Online ECU Coding

Autel diagnostic scanner Ultra EV comes with J2534 ECU programming device BMW Ethernet Cable(For F-Series Coding Programming), which is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new Benz / BMW ECUs and fixing software-controlled drivability issues and emission issues, update the computer software on the vehicle to the latest version.
Note: ECU Programming only for BMW / Mercedes Benz

Online ECU Programming

Autel Ultra EV supports online ECU programming for Benz and BMW vehicles, enabling advanced diagnostics and reprogramming of electronic control units (ECUs). This feature allows technicians to update software, resolve drivability issues, and enhance vehicle performance by adapting or reprogramming ECUs.

VAG Guided Functions

Autel Ultra EV supports VAG Guided Functions, as similar models, which simplifies diagnostic processes by reducing manual steps like security codes and channel numbers . This function streamlines workflows, enhancing efficiency in vehicle diagnostics.

FCA Auto Auth

After logging into AutoAuth account (registered on official website), UltraEV offers full system diagnostic, ECU programming, calibration etc for FCA in/ after 2018 (for Chrysler, Dodge, Jeep, Fiat).

Pre-Scan & Post-Scan

Pre&Post Scan reports help expedite insuran-ce company approval of repair estimates. After all issues are troubleshooted, directly generate total comparison repair report as maintenance eviden-ce.

Unmatched 10000+ Coverage, Works With OE Tools

Top Full System Scanner Autel Ultra EV supports D-PDU/SAE J2534/RP1210/DoIP/CAN FD protocols, Wider vehicle coverage for 99.99% makes in the market,which makes it compatible with oe factory tools to peform further services and programmings. Covers more than 80 US domestic, Asian and European models, including supercar, light duty and some medium duty.

Autel Maxisys Ultra EV Specification List

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 256GB On-board Memory
Display	12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity	WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)	366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight	2.18kg (4.81 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

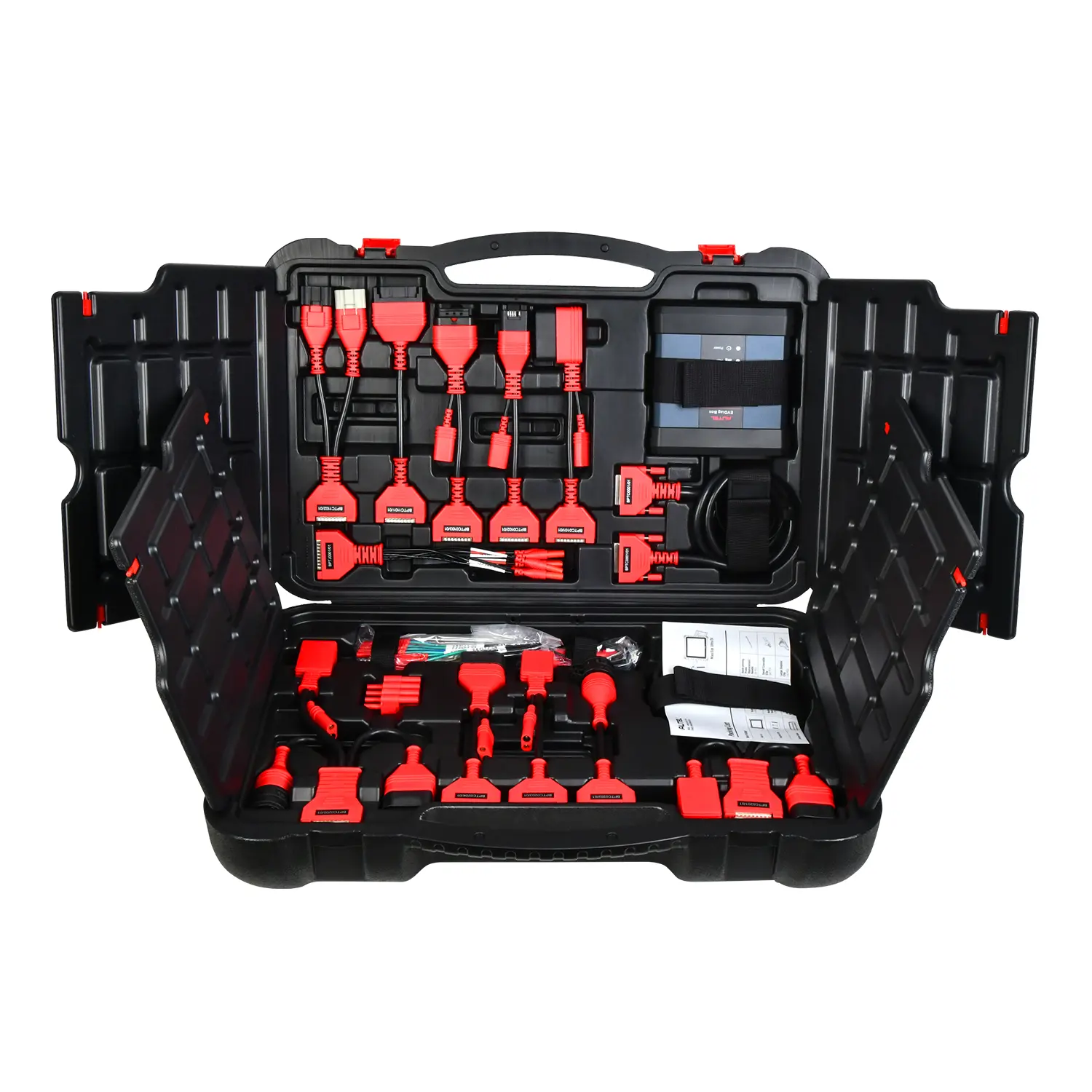

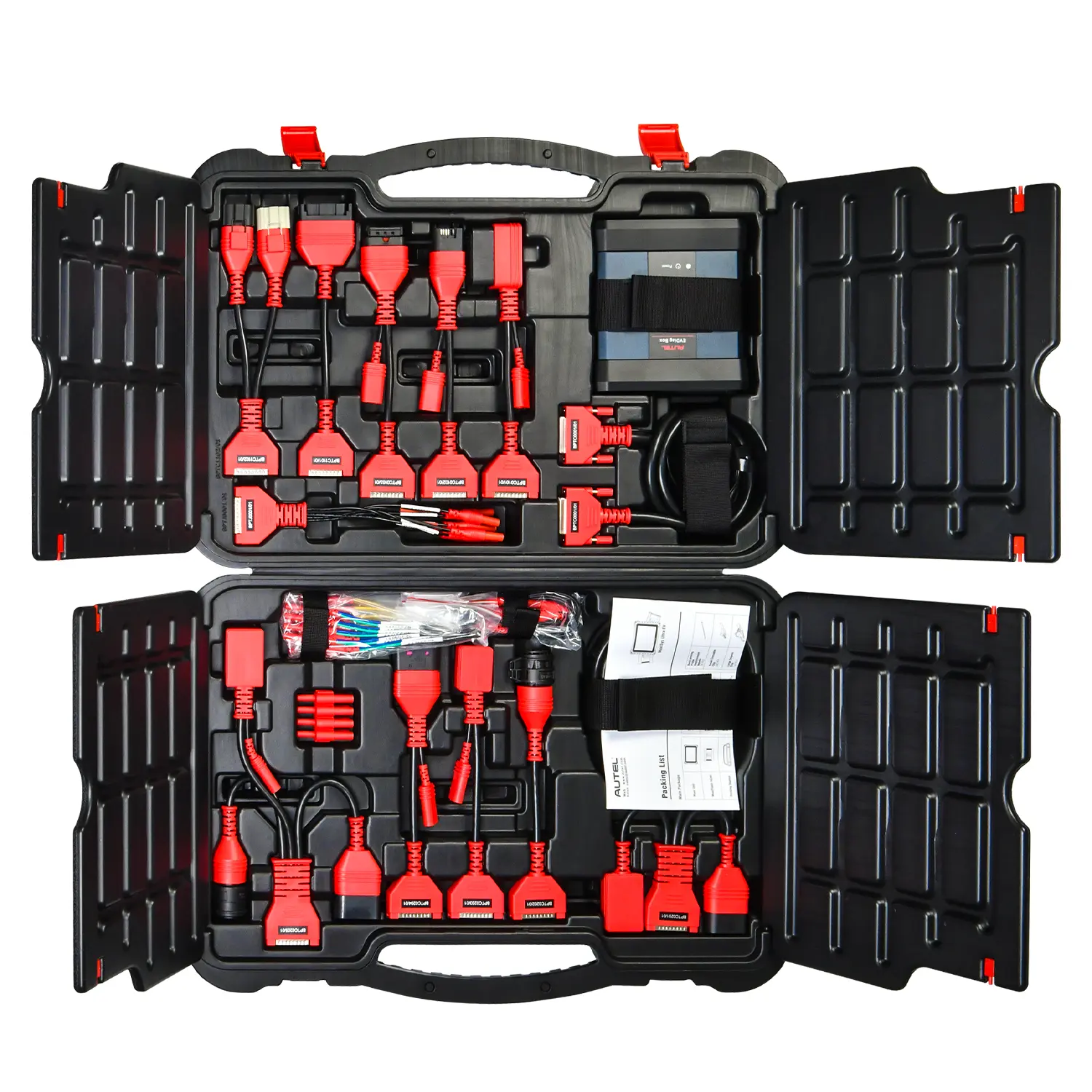

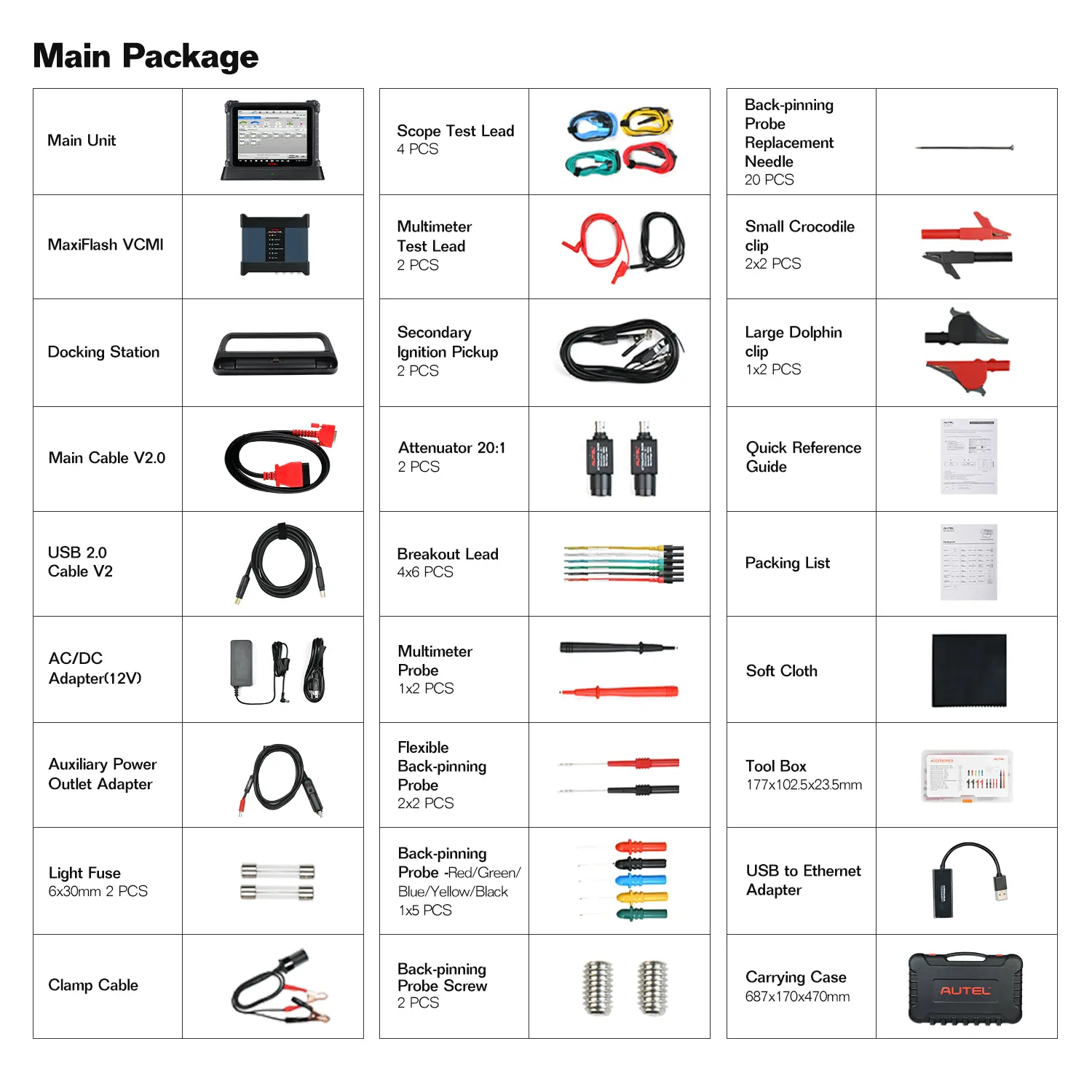

Autel Maxisys Ultra EV Packing List
