Autel MaxiSys MS909CV Heavy Duty Scanner

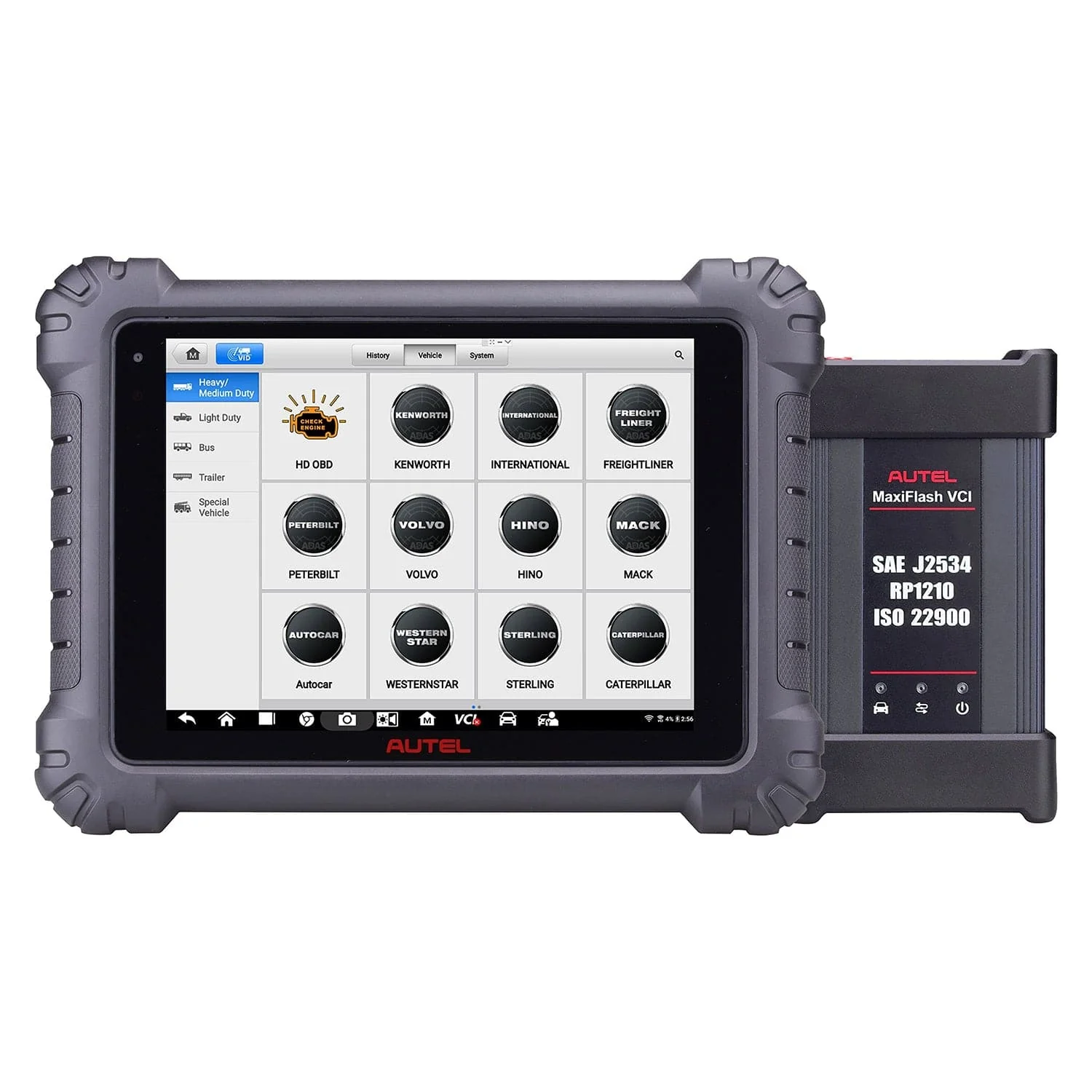

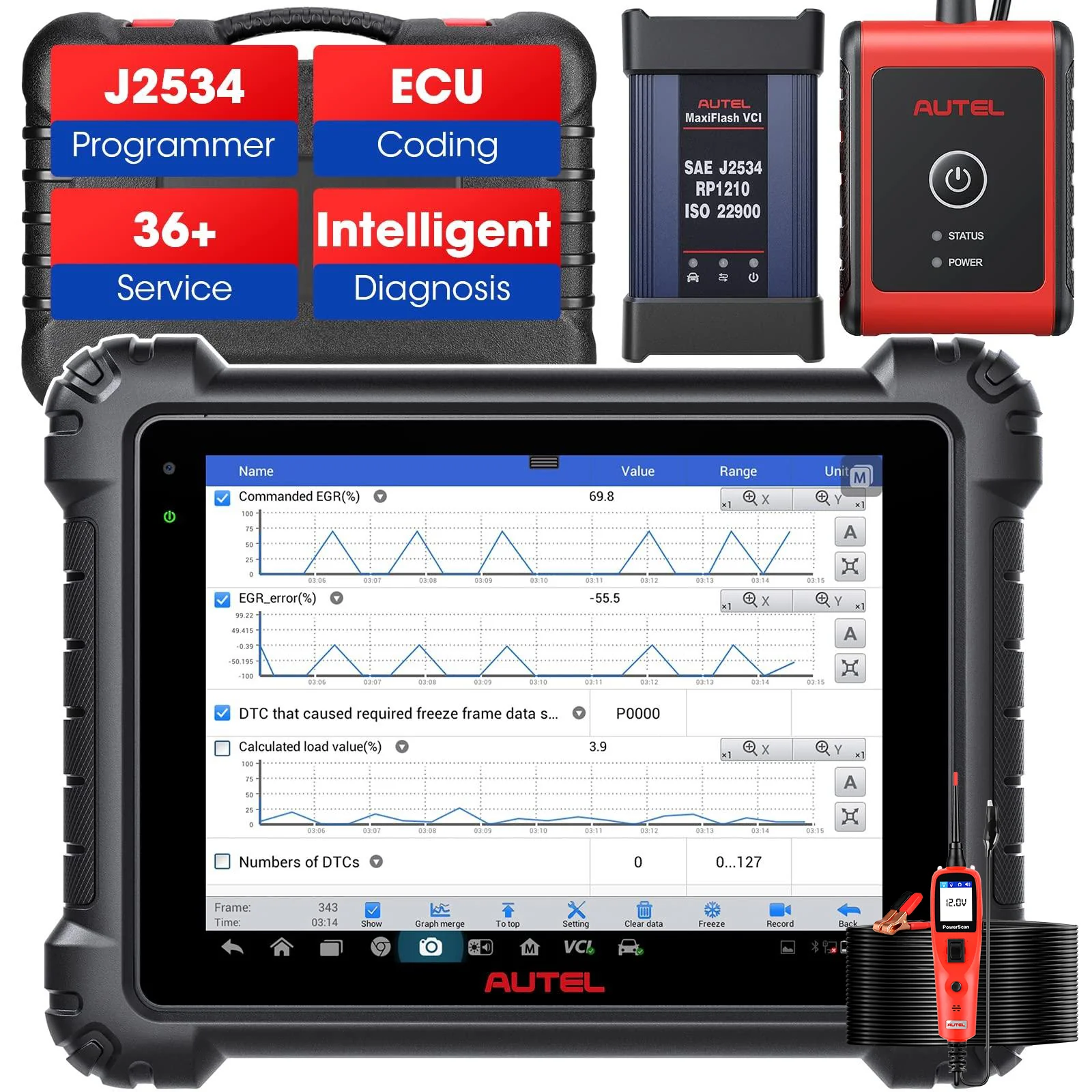

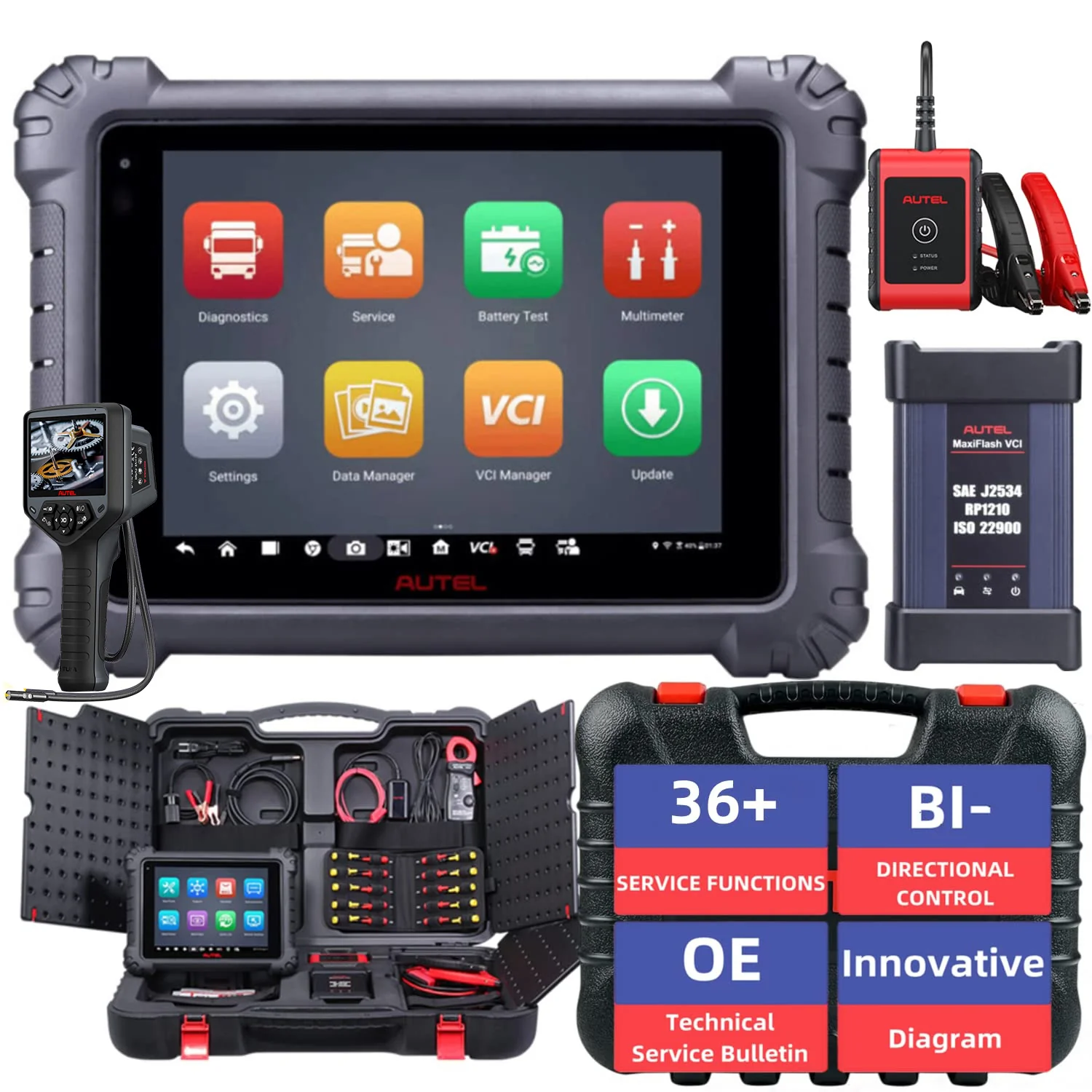

The Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tool that is compatible with more than 80 models of light, medium and heavy duty vehicles. The 9.7-inch wireless Android-based truck scanner performs extensive vehicle diagnostics including the ability to read/erase codes, view, and graphs live data, and perform active tests. The MS909CV scanner includes a Bluetooth-enabled vehicle communication interface (VCI)/J2534 pass-thru programmer, the MaxiBAS B200 battery, starting and charging system test device and alligator clamps, and a multimeter and amp clamp. It also includes ADAS Calibration Software for Class 3-5 vehicles and Class 6 to 8 Vehicles with Dynamically Calibrated Systems.

Autel MS909CV includes one year limited warranty and a year of free software updates.

MS909CV Scanner Highlights

• MaxiSYS MS909CV performs enhanced all system diagnostics on more than 80 models of light, medium, and heavy duty commercial vehicles
• Upgraded Octa-Core processor and 128GB storage and 9.7-inch Wireless Android-Based Touchscreen and the whole-new MaxiFlash VCI (J2534 Pass thru programming device ) to deliver smooth operation
• Intelligent Diagnostics with Topology Module Mapping and Enhanced AutoSCAN / VINScan and DTC Analysis / Repair Guided Assist

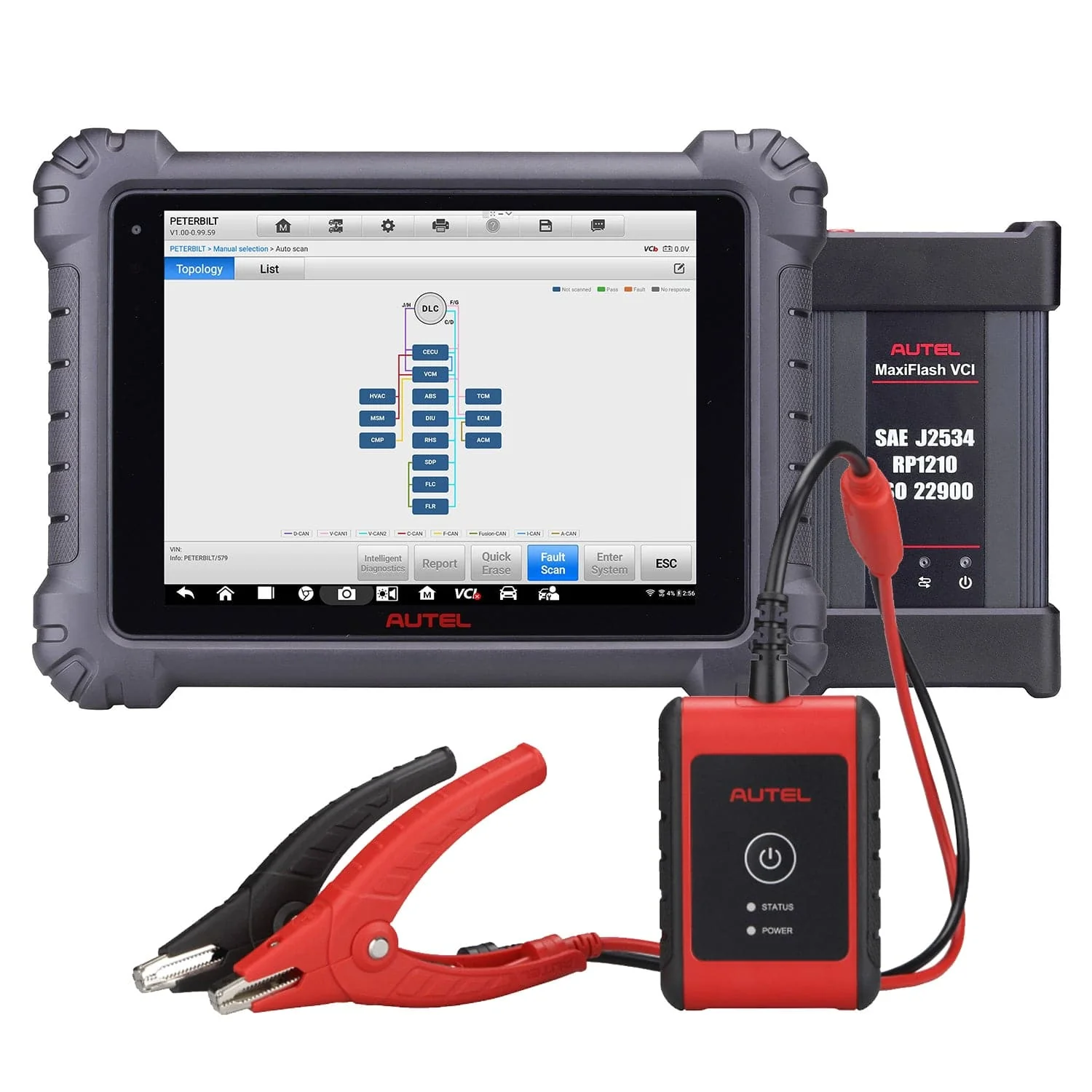

• Support heavy Duty Battery Test & Health Report with included MaxiBAS B200 tester with alligator clamps
• Includes Multimeter & Amp Clamp
• ADAS Calibration Software for Class 3-5 vehicles and Class 6 to 8 Vehicles with Dynamically Calibrated Systems
• One Year Limited Warranty and a year of Free Software Updates

Motor TruSpeed Repair[Optional]

Autel CV scanner Maxisys MS909CV supports in-depth diagnosis on all the available system of over 80+ trucks, buses, and heavy duties. Comprehensive diagnostics includes: ECU information, reading fault codes, clearing fault codes, reading freeze frames, display live data, and performing active tests.

• OE TSB (OEM Information): contains matches the selected fault code with relevant vehicle manufacturer TSBs.
• DTC Analysis: repair assistance and information related to the fault codes, including the fault description, condition, fault influence, possible cause, and possible solution.
• Repair Assist: prioritizes possible reasons for DTCs and provide effective resolutions accordingly
• Repair Tips: provide step-by-step repair steps guidance
• Relevant Case: offers relevant repair cases for reference in text or video

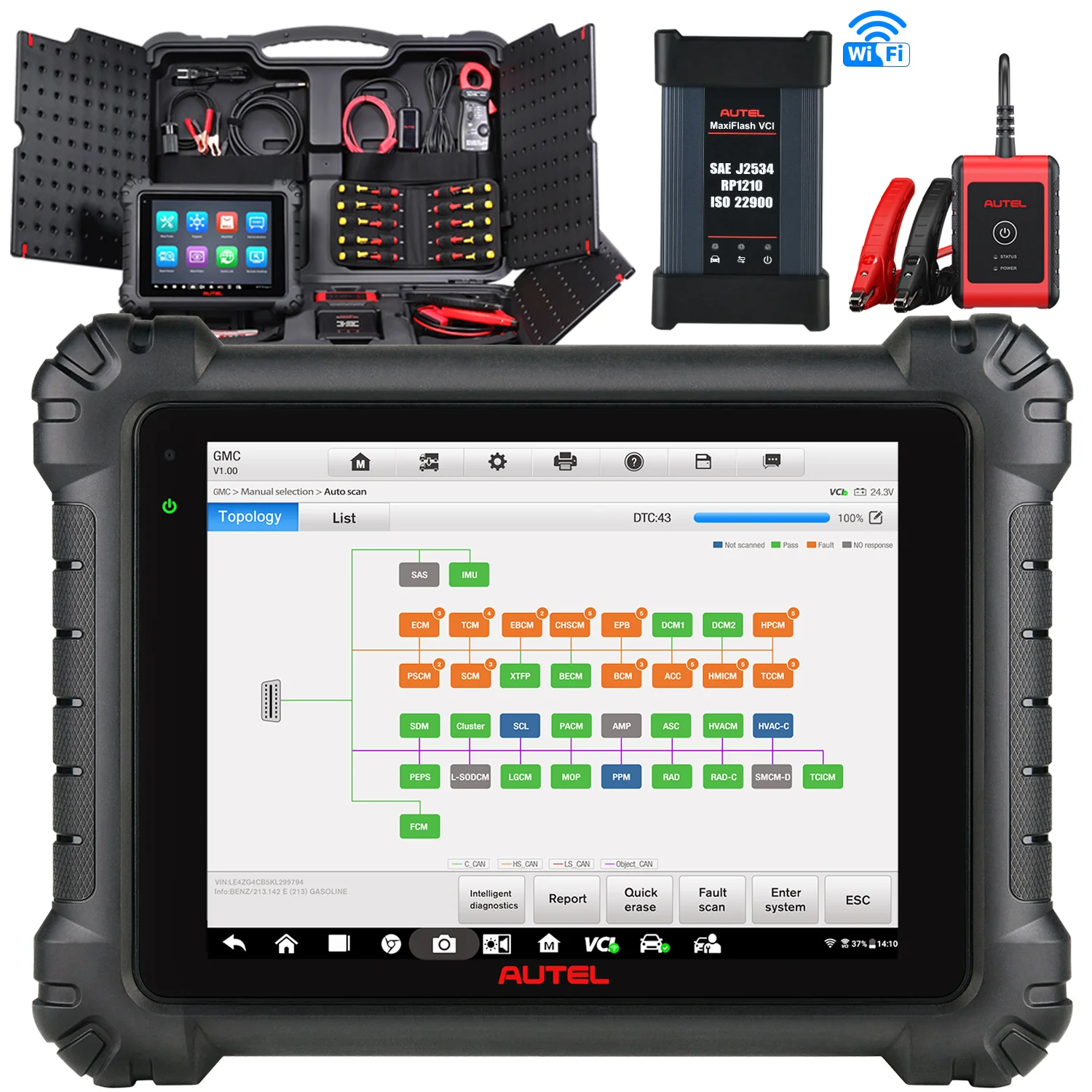

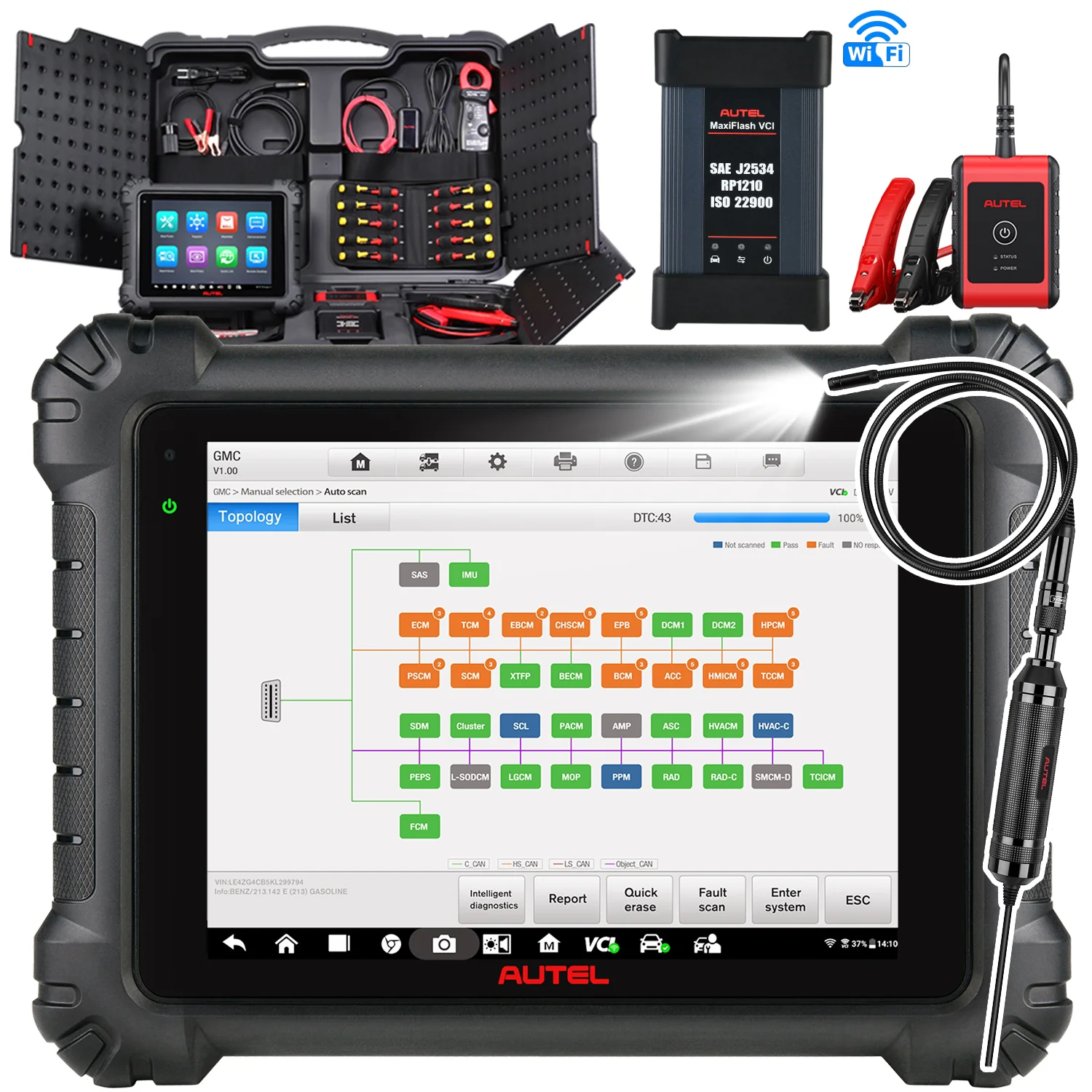

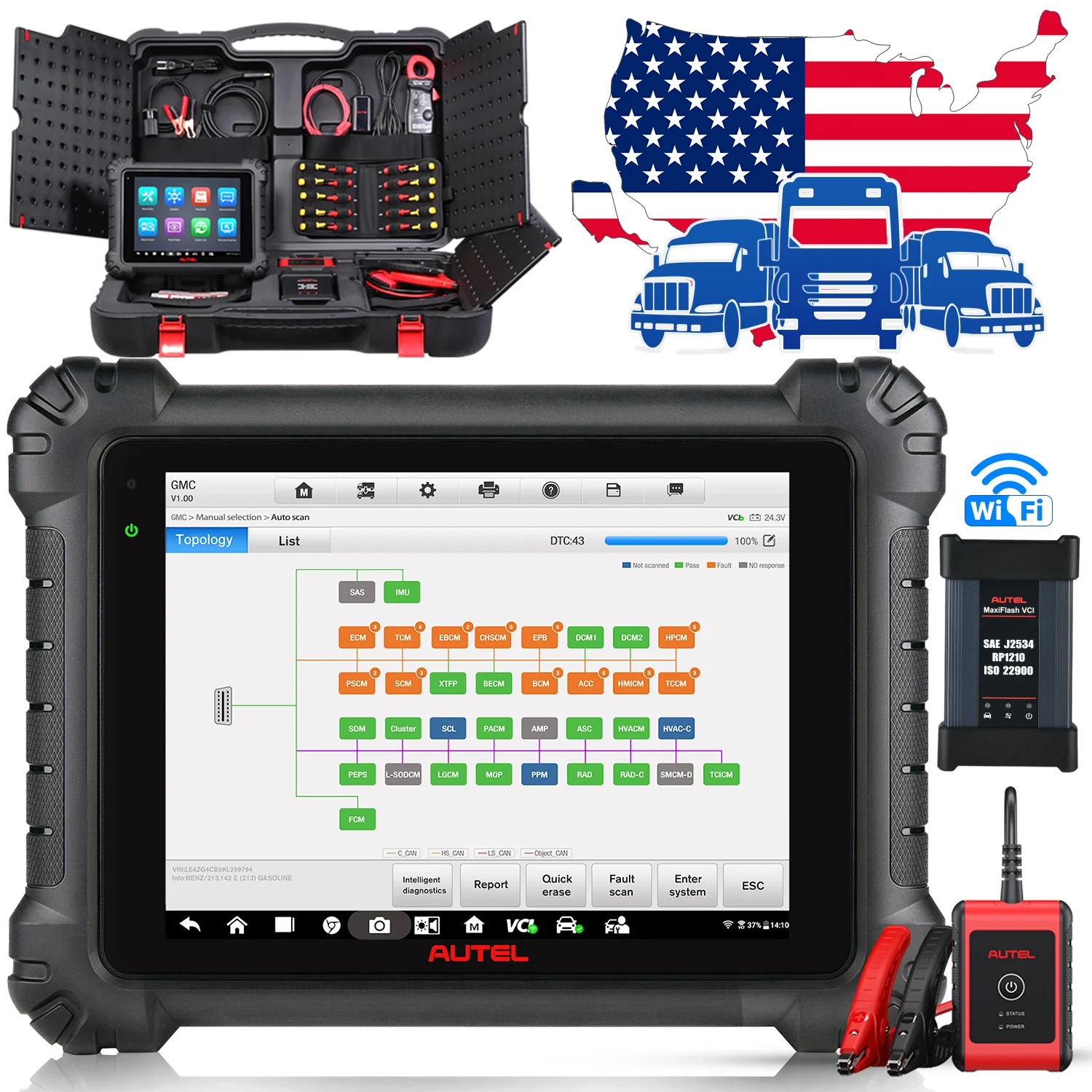

Intuitive Topology Mapping

• Display each module's status and the number of DTCs in one page
• Show the communication structure between the module, easy to understand wiring schematics for on-highway trucks
• Tap to enter the systems or modules with fault codes
• Zooming in and out to check the color coded modules

J2534 ECU Programming

Autel Maxisys MS909CV supports online ECU programming, offering advanced diagnostic and customization features for vehicles. It enables technicians to update or program new ECUs, customize hidden functions, and enhance vehicle performance through online coding. This tool is designed for professional use, supporting 40+ services and providing bi-directional control for various systems .

Advanced ECU Coding

Autel Maxisys MS909CV features advanced ECU coding that average diagnostic tools don’t support. Performing just like an OE tool, Autel MaxiSys CV MS909CV can:

• Re-code adaptive data into the ECU after replacement
• Update the vehicle's on-board system to the latest
• Fix the issues such as drivability, power loss, emission
• Improve fuel efficiency and durability of mechanical parts
• Change the default setting and make your customized functions
• Unlock Hidden Functions

OE-Level All Systems Diagnostics

Autel MS909CV supports comprehensive full-system diagnostics, covering over 99% of vehicles with advanced features like D-PDU, DoIP, and CAN FD protocols. It offers real-time data analysis, bi-directional control, and in-depth DTC analysis, making it an essential tool for efficient and accurate repairs

Bi-directional Control (Active Test)

Maxisys MS909CV supports bi-directional control, also known as active test, which allows users to send commands to a vehicle's electronic control units (ECUs) and monitor the operation of actuators. This feature enables technicians to perform functional tests on various components, such as ABS motors, windows, doors, solenoids, relays, and more, without needing to physically remove parts. It helps in quickly identifying and locating issues by interacting with the vehicle's systems

36+ Special Service Plus 23+ Adaption

Auel advanced truck scanner MaxiSys MS909CV comes with 30+ Serivces and 23 Adaptation functions to meet most daily maintenance needs, with the professional diagnostic tablet for HD and trucks, you can do the adaptations without going to the local workshop and save you a wealth. Or if you were an owner of a HD car workshop, Autel diesel truck scanner MS909CV will be a gold-earner and help boost your business to a new level.

The Most Daily Used Functions such as:

• DP-F Regeneration: Clear particulate matter from the DP-F filter through continuous combustion oxidation mode to stabilize the filter performance, Autel MS909CV is developed DP-F system diagram, allowing customers to know about the status of the sensor during regeneration process.
• ABS Bleeding: Bleed air out of the brake system to restore its braking sensitivity.
• BMS Reset: Reset the monitoring unit of the car battery after replacing battery or battery monitoring sensors.
• Complete Battery Health Check: battery load test, cranking analysis, generator test with B200
• Brake Reset: After or before changing the brake pads, the tool can help you reset the brake sensor.
• Injector Coding: Match the new injectors to vehicle ECU after replacement.
• Oil Reset: Set zero to the oil light and set the next service mileage after changing oil.
• Air Suspension: to adjust the height of the vehicle body.
• Throttle Matching: Initialize the throttle actuators so that the learned values stored on ECU are returned to the default state.

Guided Function

Designed for VW light truck only, Autel scanner MS909CV provides OE-level guidance and allows you to follow the screen instructions step by step to complete some complex service operations.

Advanced Extension Functions

Aiming to ease of use, and simplified the operation process. Customer-oriented Autel scanner MS909CV developed some useful and powerful functions to improve the users' experience. Several extended functions makes MS909CV even more functional

Exclusive Preconditions Checklist Function

Compared with other scan tool, MS909CV Exclusive Preconditions Checklist designed for special function can pre-check vehicle status and show maintenance conditions for smooth repairing.For example, when regenerate the D-P-F, Preconditions Checklist will show your the satisfied and unsatisfied values Intuitively, and the next step can be performed only after unsatisfied values be sloved. No need to upload log for help all the time. Save your time!

Exclusive D-P-F System Diagram

For the most commonly-used D-P-F function, Autel MS909CV provides Exclusive D-P-F System Diagram to visually observe the status of the sensor.

Auto VIN technology allow MS909CV automotive diagnostic scan tool to identity your vehicle’s make, model, and year information with one click. Auto Scan can automatically scan all vehicle’s ECUs at one touch and find out fault codes. Pre&Post Scan can generate diagnostic report.

WiFi Printing

This is a very convenient function. No need to connect to PC, you can to any printer via WiFi and click the "Print" from your MS909CV and you'll get the report right away! Save your time!



Autel Maxisys MS909CV Specifications List

Operating   System	Android 7.0
Processor	Samsung   Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz   Quad-core A53)
Memory	4GB   RAM & 128GB On-board Memory
Display	9.7-inch   TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	WiFix2   (802.11 a/b/g/n/ac 2x2 MIMO)
	BT v.2.1 + EDR
	GPS
	USB 2.0 (TWO USB HOST Type A, ONE USB mini   device)
	HDMI 2.0
	SD Card (Support up to 256GB)
Camera	Rear:   16 Megapixel, Autofocus with Flashlight
	Front: 5.0 Megapixel
Sensors	Gravity   Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone
	Dual Speakers
	3-Band 3.5 mm stereo/standard headset jac
Power and Battery	15000mAH   3.8V lithium-polymer battery
	Charging via 12V AC/DC power supply with the   temperature between 0°C and 45°C
Input Voltage	12V/3A   Adapter
Operating Temperature	0   to 50°C (32 to 122°F)
Storage Temperature	-20   to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4   mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg   (3.66 lb.)
Protocols	DoIP,   PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire   Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141,   ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda   Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART   with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708,   SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

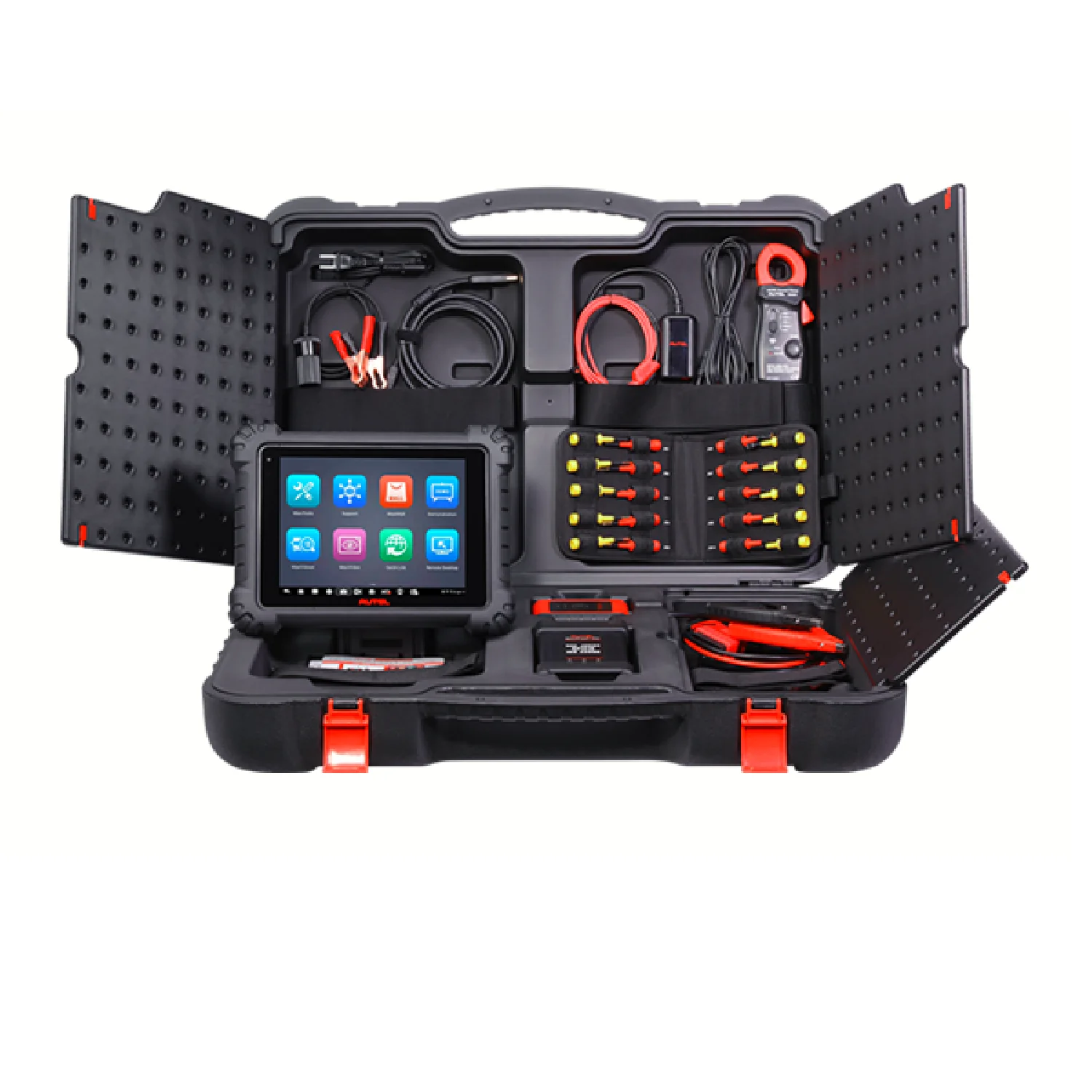

Autel Maxisys MS909CV Packing List
