Autel MaxiSys MS909

The Autel MaxiSys MS909 is a professional-grade automotive diagnostic tablet engineered for speed, precision, and reliability. Featuring a 9.7-inch HD touchscreen and powered by a 2.3GHz Octa-core processor, this Android 7.0-based tool delivers lightning-fast diagnostics, component testing, and repair verification for modern vehicles. The MS909 features the new MaxiFlash VCI, a combination VCI and vehicle communication tool providing faster dual Wi-Fi vehicle and network communications. The MS909 features front and rear cameras and a rechargeable Lithium battery providing 8 hours of continuous use to ensure you always have the power to scan.

Motor TruSpeed Repair

Th Autel Motor TruSpeed Repair feature revolutionizes vehicle diagnostics by combining AI-powered analysis with OEM-level repair intelligence. Designed for professional technicians, this optional upgrade accelerates troubleshooting by tripling diagnostic speed through smart fault code prioritization and guided solutions.

Key Features of Motor TruSpeed Repair

• AI-Powered Fault Prioritization: Automatically ranks detected DTCs using OE-TSB data, Repair Assist, and Preset Repair Instructions.
• Relevant Repair Case Integration: Access curated repair cases matching your vehicle’s symptoms for faster, data-backed solutions.
• Streamlined Workflow: Reduce guesswork with step-by-step guidance for coding, calibrations, and component testing.
• Exclusive US/Canada Availability: Functionality is restricted to IP addresses in the US and Canada for compliance.

Pricing & Accessibility

• Subscription Cost: $650/year (optional add-on to compatible Autel tools).
• Target Users: Ideal for independent shops and dealerships tackling complex drivability, electrical, or ADAS repairs.

Topology Map 2.0

The Autel MaxiSys MS909 diagnostic tool features Topology Map 2.0, a groundbreaking system that replicates factory-grade circuit diagrams and network architectures to simplify complex vehicle troubleshooting.

• Factory-Accurate Circuit Diagrams: Display real-time vehicle network layouts, including ECU connections, CAN bus systems, and wiring paths, mirroring OEM schematics.
• Instant Fault Isolation: Visually map relationships between ECUs, sensors, and circuits to pinpoint issues like short circuits, communication errors, or power failures.
• Broad Vehicle Coverage: Compatible with 95% of vehicles, including BMW, Volkswagen, Audi, GM, Ford, Chrysler, Nissan, Honda, Toyota, and more.

Note: ECU Programming and Online Coding are model-specific and primarily available on BMW and Mercedes-Benz. Some features may require additional subscriptions or manufacturer accounts.

3000+ Active Tests

The Autel MaxiSys MS909 diagnostic scanner empowers technicians with advanced bidirectional control to test actuators, reset modules, and perform critical adaptations across 100+ vehicle systems.

Key Functions & Applications

• Comprehensive Actuator Testing: Verify component functionality (e.g., fuel injectors, throttle bodies, turbochargers) by sending commands directly to ECUs.
• Essential Service Resets:
  • Oil Reset, EPB, SAS, BMS: Reset maintenance lights, calibrate steering angles, and reprogram battery management systems.
  • ABS Brake Bleeding & Suspension Calibration: Perform brake system service and air suspension adjustments with guided workflows.
• Performance & Emission Fixes:
  • Injector Coding, Turbo/VGT Calibration: Resolve drivability issues and optimize engine output.
  • Transmission Adaptation, Throttle Relearn: Fix shift delays, harsh engagement, or idle instability.

38+ Services & VAG Guided Function

The Autel MaxiSys MS909 diagnostic scan tool is equipped with over 38 essential maintenance and service functions, making it an all-in-one solution for both routine services and advanced automotive repair needs. Designed for professionals, it helps save time and boosts workshop productivity.

Popular Service & Reset Functions

• Oil Reset – Reset engine oil life system after oil changes.
• EPB Service – Perform electronic parking brake calibration, maintenance, and release.
• TPMS Reset – Relearn TPMS sensors, program new sensors, and clear TPMS faults.
• BMS Reset – Register and reset battery parameters after battery replacement.
• ABS Brake Bleeding – Activate and bleed ABS system components.
• Injector Coding – Program fuel injectors for precise fuel delivery.
• Throttle Adaptation – Relearn throttle position to ensure smooth engine response.
• Suspension Calibration – Calibrate air suspension height and reset system modules.
• SAS Calibration – Recalibrate the steering angle sensor for accurate steering input.
• Transmission Adaptation – Relearn transmission shift points and adaptation values.
• IMMO Functions – Basic immobilizer and key matching for supported vehicles.
• Cam/Crank Relearn – Synchronize camshaft and crankshaft position sensors.
• Power Balance Test – Evaluate cylinder performance to diagnose misfires and power loss.

VAG Group (VW, Audi, Skoda, Seat) Special Function Support

For Volkswagen Auto Group (VAG) vehicles, the Autel MS909 provides:

• Step-by-step guided diagnostics
• Fully automated procedures with detailed explanations
• Smart access to advanced functions including adaptations, coding, and learning procedures

VAG Group (VW, Audi, Skoda, Seat) Special Function Support

For Volkswagen Auto Group (VAG) vehicles, the Autel MS909 provides:

• Step-by-step guided diagnostics

• Fully automated procedures with detailed explanations

• Smart access to advanced functions including adaptations, coding, and learning procedures

This significantly simplifies complex diagnostic operations and eliminates guesswork, even for less experienced technicians.

2025 New Added Functions

The Autel MaxiSys MS909 has been upgraded with a full suite of 2025 enhancements, ensuring your workshop is equipped for every challenge. Key additions include:

• Comprehensive EV Diagnostics
  – Full electric-vehicle support when paired with the EVDiag Box (MS909EV), covering battery management, drive-motor testing, and high-voltage system checks.

• Ultra-High-End Brand Coverage
  – Specialized protocols for McLaren and Tesla, offering OE-level access to unique systems and proprietary modules.

• Expanded Secure Gateway Access
  – Direct diagnostics on FCA SGW-protected vehicles and VAG SFD-secured models, with AutoAuth support for seamless authentication.

• VIN & License Plate Scanning
  – Quickly capture vehicle identification data via built-in camera or optional scan-gun for accurate record-keeping.

• Pre-Scan & Post-Scan Reports
  – Automatically generate detailed diagnostic reports before and after service, ideal for customer presentations and shop records.

• Remote Expert Assistance
  – Live screen-sharing with Autel technical experts to troubleshoot complex faults in real time.

• Cloud Report Management
  – Centralize all scan logs, technician notes, and customer histories in the Autel Cloud for instant retrieval and collaboration.

• Wi-Fi Printing
  – Print service reports and wiring diagrams directly to networked printers without leaving the bay.

• Integrated Battery Testing
  – Add the BT506 tester to measure cranking amps, CCA, and conduct health diagnostics on 12V and 24V batteries.

• Engineered Inspection Scope
  – Pair with the MV105S/MV108S endoscope for borescope inspection of cylinders, intake manifolds, and hard-to-reach areas.

With these 2025 updates, the MS909 keeps you synchronized with the latest OEM protocols and emerging vehicle technologies—maximizing shop efficiency and diagnostic accuracy.

MaxiSYS MS909 Specifications:

Operating System:	Android 7.0
Processor:	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory:	4GB RAM & 128GB On-board Memory
Display:	9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity:	• Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO) • BT v.2.1 + EDR • GPS • USB 2.0 (TWO USB HOST Type A, ONE USB mini device) • HDMI 2.0 • SD Card (Support up to 256GB)
Camera (rear):	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5.0 Megapixel
Sensors;	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output:	• Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery:	15000mAh 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage:	12V/3A Adapter
Operating Temp.:	0 to 50°C (32 to 122°F)
Storage Temp.:	-20 to 60°C (-4 to 140°F)
Dimensions:	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66lb.)
Protocols:	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

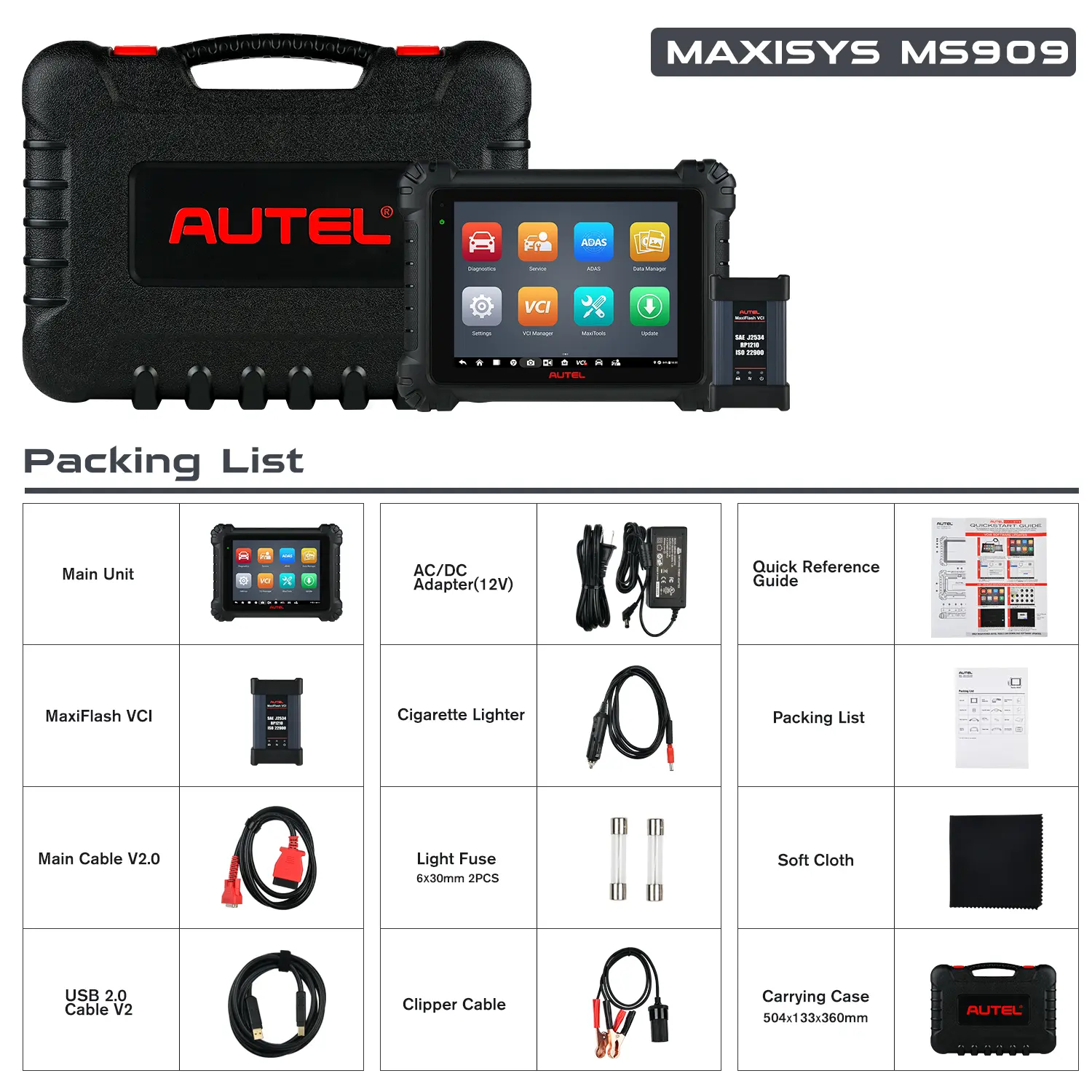

MaxiSYS MS909 Package List:
