Autel Maxisys Ultra

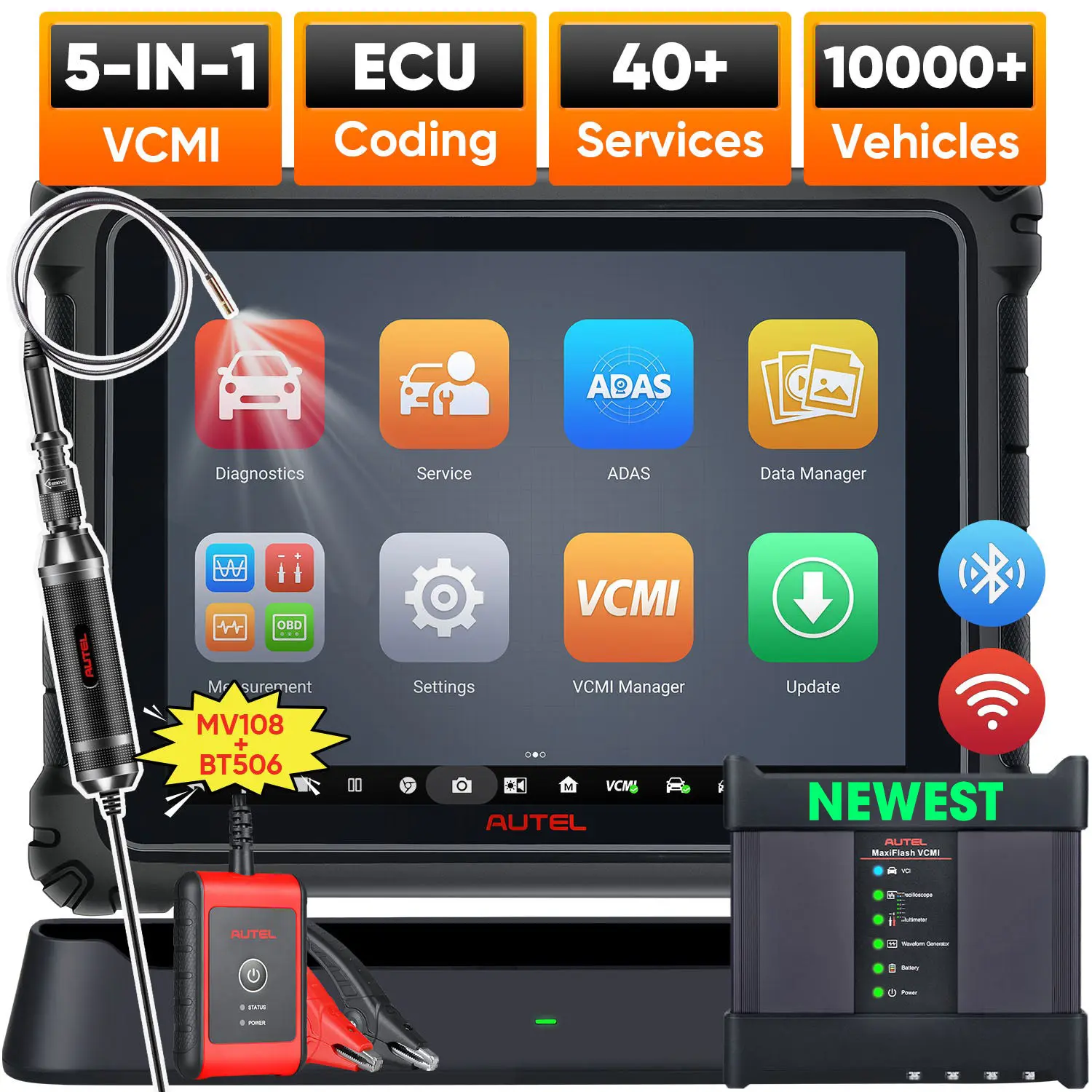

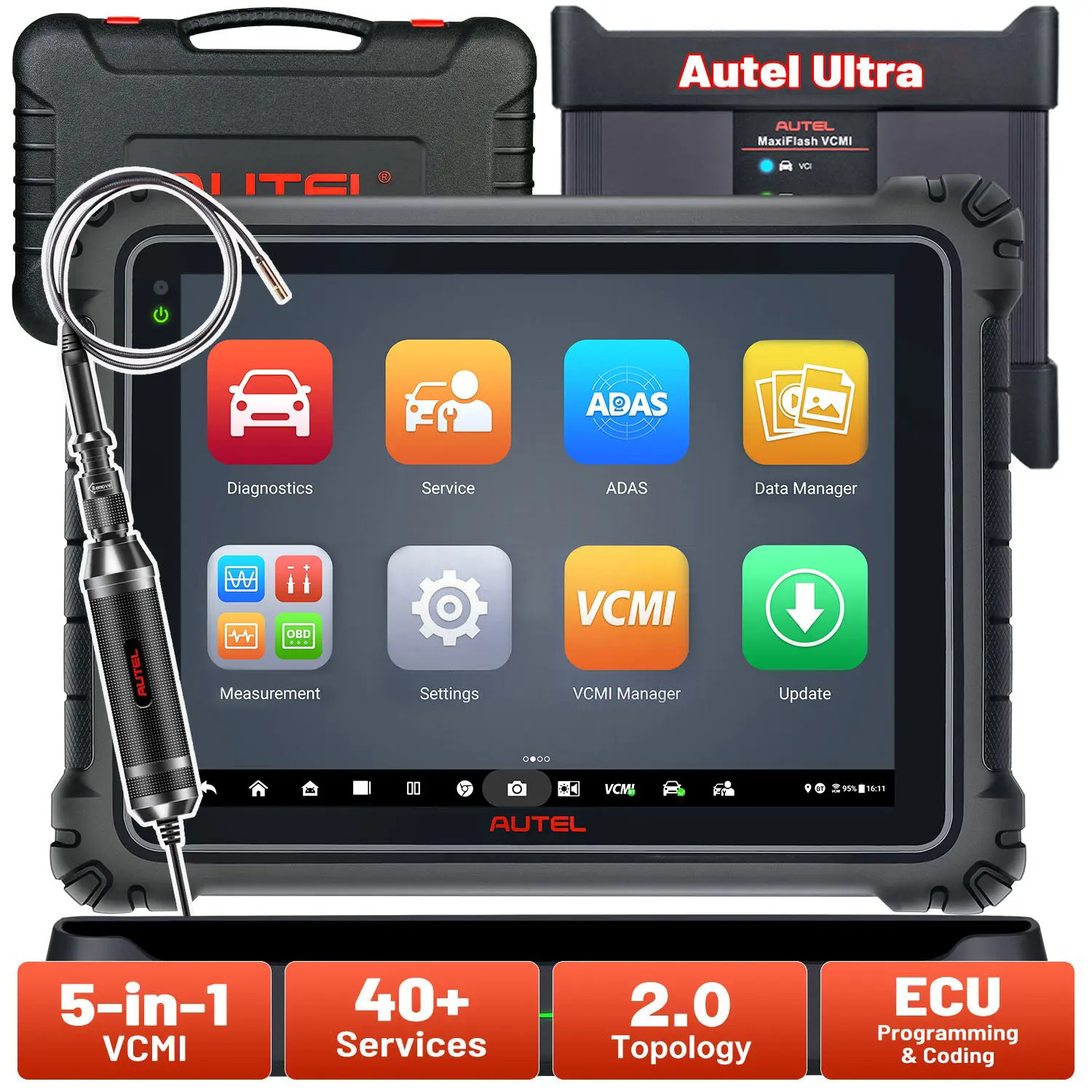

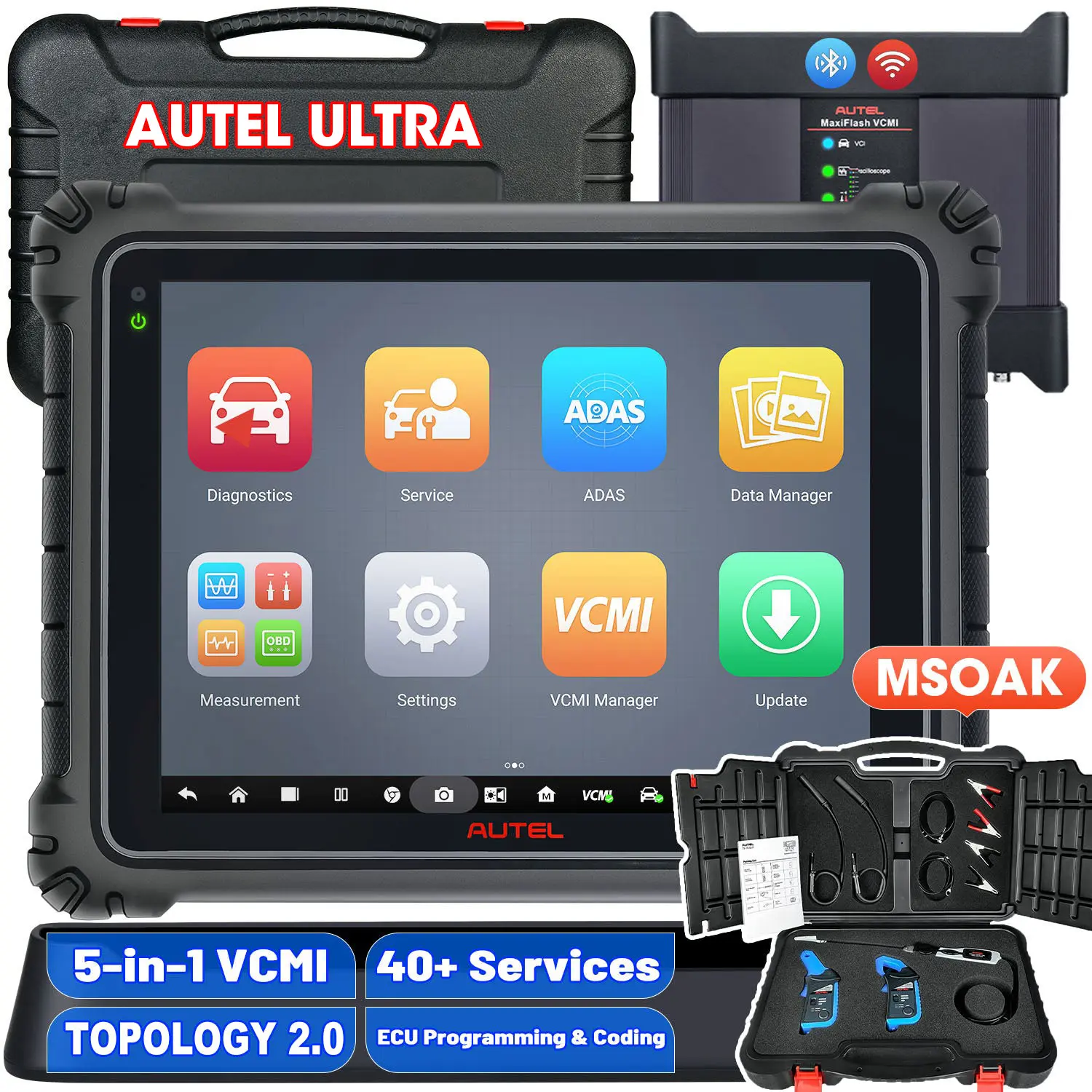

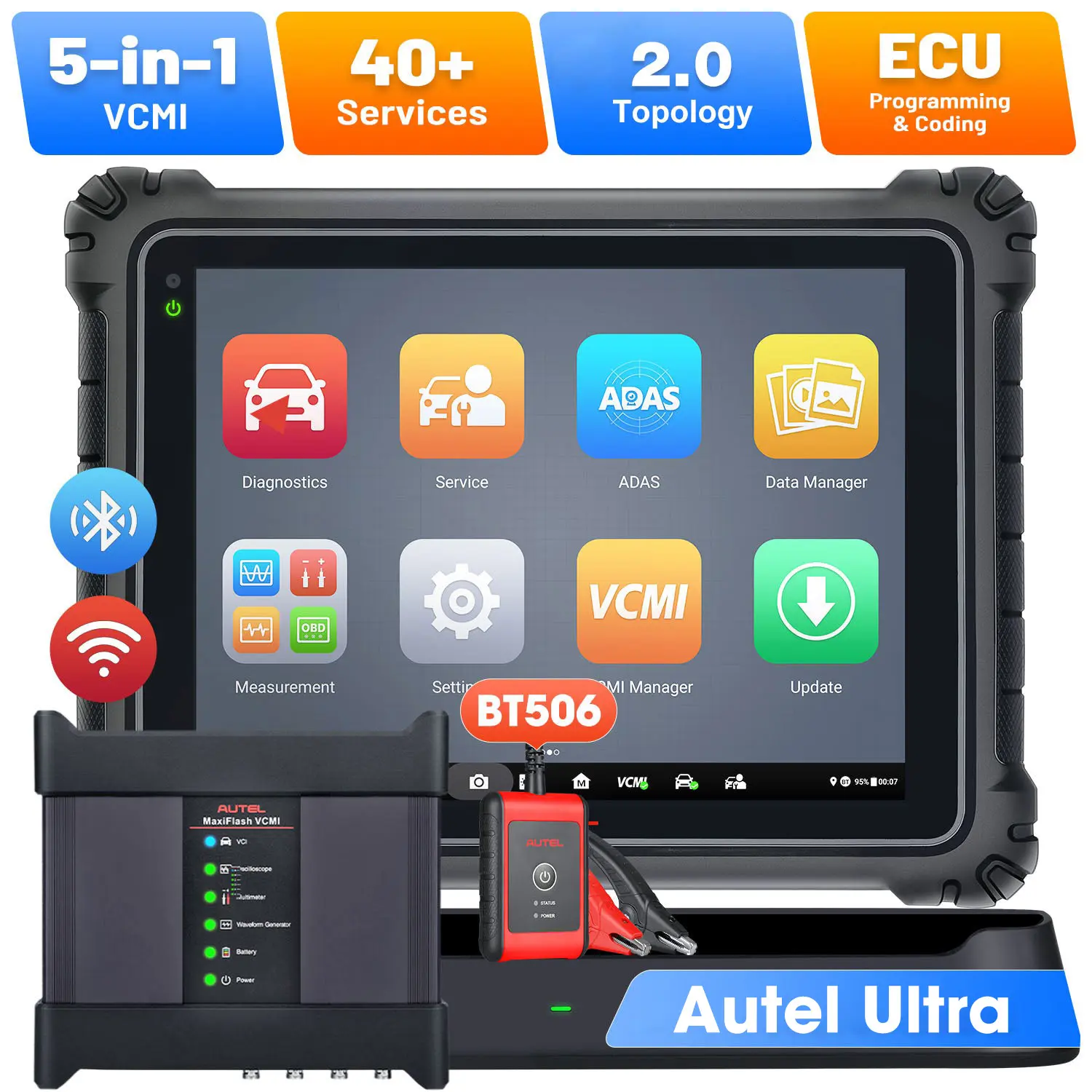

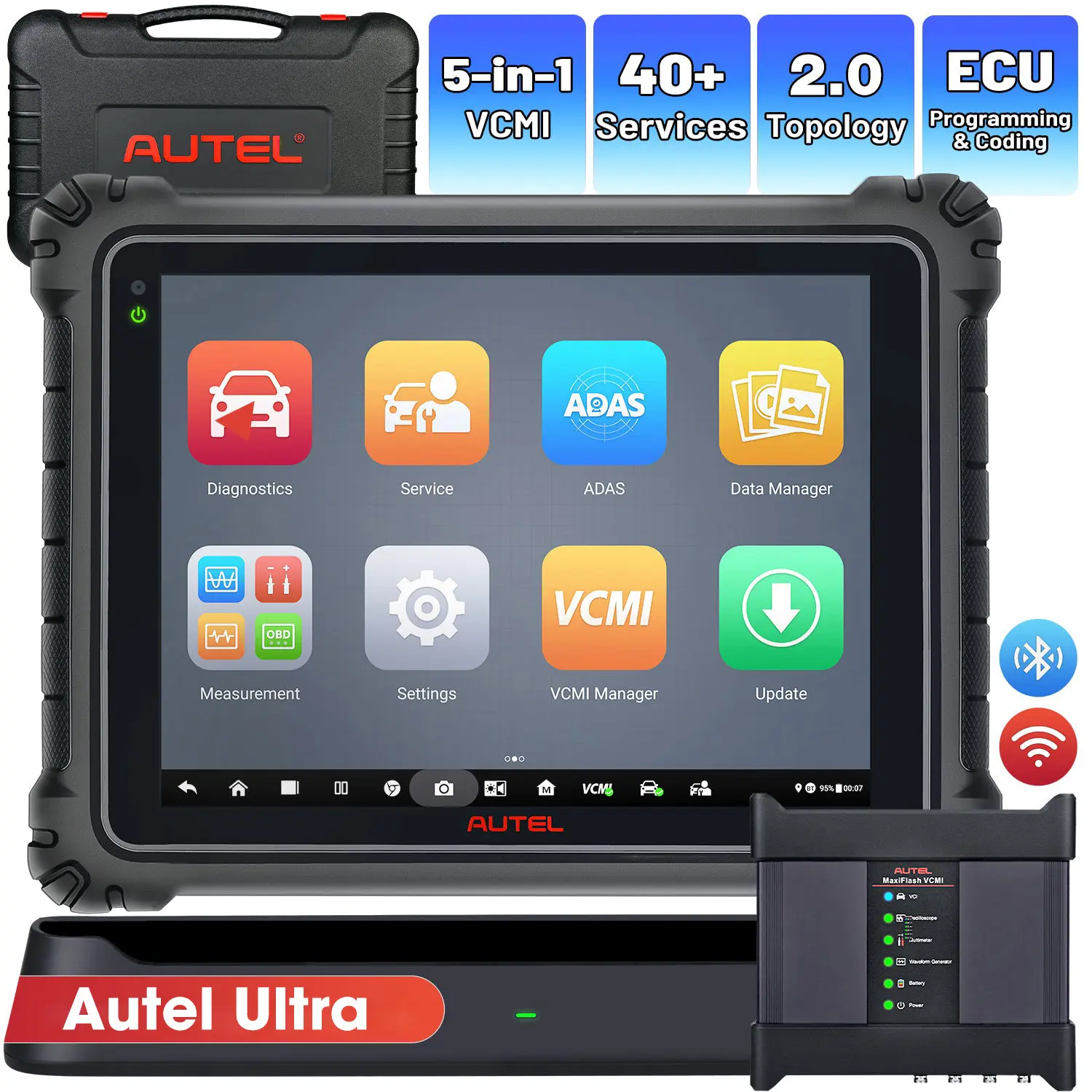

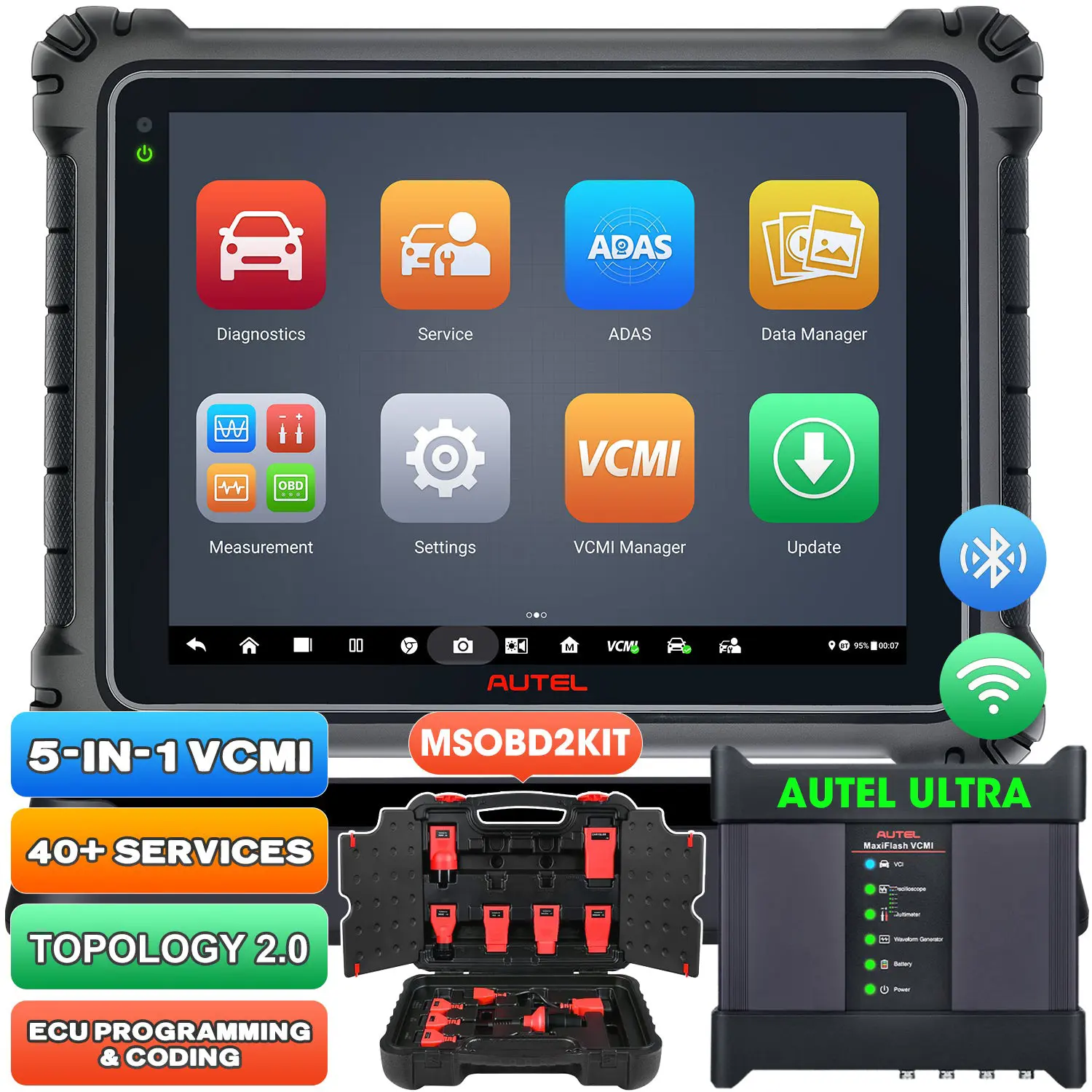

MaxiSys Ultra is Autel’s most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 13-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor, substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.

Why Autel Maxisys Ultra?

1. NO IP Limitation - More advanced and powerful diagnostic tools are not affected by IP restrictions and can be used all over the world.
2. Cloud-based Data Manager - saves customer and vehicle records, scanner data and technician notes.
3. Exceptional OE-Level functionality - from comprehensive OBDII diagnostics & 40+ services to advanced Bi-Directional Control, ECU coding, and programming
4. 99% & Newer Vehicle Coverage - The MS ultra supports the latest D-PDU/SAE J2534/RP1210/DoIP/CAN FD protocols to cover more high-end cars, supercars & newer vehicles.
5. Split-screen multi-applicatio - Work seamlessly across apps, greatly improving your work efficiency.
6. Advanced 5-in-1 VCMI - The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.
7. Top Hardware - Android 7.0 OS, 8-core processor, 4GB + 256GB memory, 12.9’’ 2732x2048 display, 18000mAh battery, 5X faster than MS919/ MS909.
8. 1-Year Free Software Update - After you register and log in, you can enjoy a free software upgrade for one year. After one year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device

Autel Maxisys Ultra Features:

• Large 12.9" Touchscreen (2732 x 2048) / Android 7.0
• 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
• Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
• Oscilloscope Preset Guided & Component Tests / Waveform Library
• New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
• Split Screen Multi-Application Function / Dual Wi-Fi Connection
• Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
• Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
• Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
• Code-Related Technical Service Bulletins (on select vehicles) / License Plate Reader
• ScanVIN: Barcode or Text Recognition with Camera
• Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account

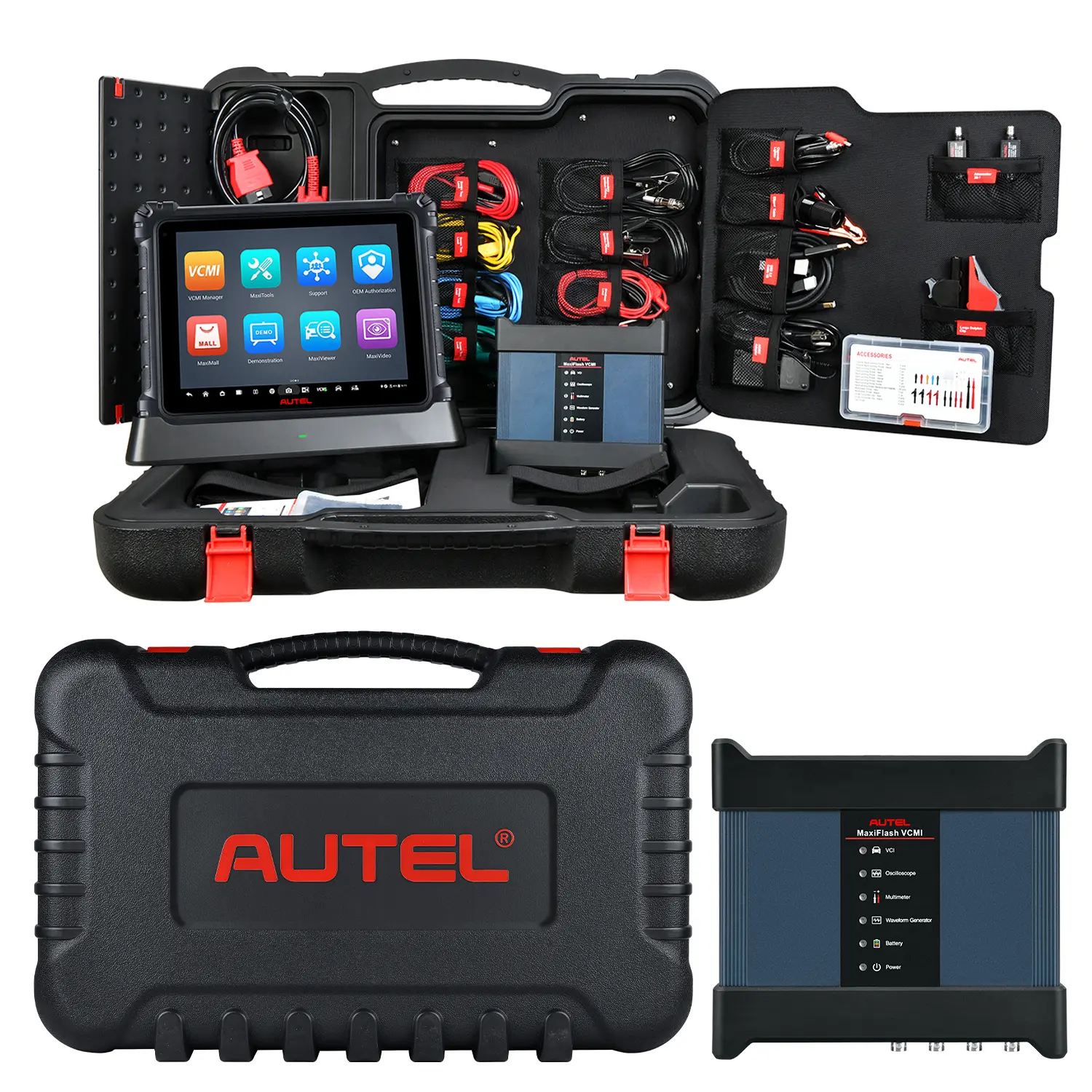

• Includes Docking Station, Cables, Scope Connectors, Carrying Case, 1 YR Warranty & Software Subscription
• Enhanced Diagnostic Reports: PreSCAN & PostSCAN
• 18000mAh - 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera

Motor Truspeed Repair (Optional)

Unlock real-time OEM repair data for US vehicles with Autel Ultra's Motor TruSpeed subscription! Get TSBs, wiring diagrams, and ADAS updates within days of release. VIN-based precision, advanced search, and integrated diagnostics slash repair time.

Diagnostics Topology Map 2.0

Autel Ultra's Topology Mapping function provides a visual representation of a vehicle's CAN bus network and module communication, helping technicians diagnose and repair complex systems efficiently. It uses color-coded icons to show normal, faulty, or unavailable components, enabling quick identification of issues. This feature supports real-time data, active testing, and direct access to TSB information, all within the device.

5-in-1 VCMI

Autel Ultra is a powerful diagnostic tool with a 5-in-1 VCMI that combines VCI, oscilloscope, waveform generator, multimeter, and CAN BUS tester. It supports advanced diagnostics, real-time data analysis, and bi-directional control for faster and more accurate repairs.

All Systems OBD2 Diagnostics

Autel Ultra supports comprehensive full-system diagnostics, covering over 99% of vehicles with advanced features like D-PDU, DoIP, and CAN FD protocols. It offers real-time data analysis, bi-directional control, and in-depth DTC analysis, making it an essential tool for efficient and accurate repairs

Bi-Directional Contrl (Active Test)

Autel Ultra supports bi-directional control, also known as active test, which allows users to send commands to a vehicle's electronic control units (ECUs) and monitor the operation of actuators. This feature enables technicians to perform functional tests on various components, such as ABS motors, windows, doors, solenoids, relays, and more, without needing to physically remove parts. It helps in quickly identifying and locating issues by interacting with the vehicle's systems

Reset Services

Autel MaxiSys Ultra supports a wide range of reset services, including oil reset, EPB (Electric Parking Brake), SAS (Steering Angle Sensor), DPF regeneration, brake bleed, IMMO, TPMS, seat calibration, airbag reset, A/F reset, transmission reset, suspension reset, and BMS (Battery Management System) .

• Oil Reset - Reset the oil change calculator in the engine and automatic transmission
• EPB - Replacement of brake pads on vehicles with an electric parking brake
• SAS - Adaptation of the sensor to the angular position of the steering wheel
• DPF - Regeneration of diesel particulate filter
• Brake Bleed - ABS Brake Bleeding
• IMMO - Disable any lost keys and add new keys. *ONLY for vehicles with low-grade anti-theft systems. Compatible with GM, Ford, Toyota, Honda, and other 56 brands or models.
• TPMS - Battery registration and reset
• Seat Calibration - Calibrate the memory in replaced or repaired seats
• Airbag Reset - Resets the airbag data to clear the airbag collision fault indicator
• A/F Reset - Set or learn Air/Fuel ratio parameters
• Gearbox Reset - Help complete the gearbox self-learning to improve gear shifting quality
• Suspension Reset - Adjust the vehicle body height sensor for level calibration
• BMS - Battery registration and reset

Online ECU Coding

Autel Ultra supports online ECU coding, enabling users to perform advanced programming and customization directly on the vehicle's electronic control units. This feature allows for precise adjustments to engine performance, transmission behavior, and other vehicle systems, offering enhanced control and personalization. Users can optimize their vehicles for better efficiency, power, or specific driving conditions, all while maintaining compatibility with a wide range of makes and models.

Advanced Online ECU Programming

Autel Ultra supports online ECU programming, offering advanced diagnostic and customization features for vehicles. It enables technicians to update or program new ECUs, customize hidden functions, and enhance vehicle performance through online coding. This tool is designed for professional use, supporting 40+ services and providing bi-directional control for various systems .

VAG Guided Function

Autel Ultra supports VAG guided functions, which streamline the diagnostic process for vehicles from the VAG Group (including Volkswagen, Audi, Skoda, Seat, and MAN LD) by guiding users through steps such as security access, channel number setup, matching, calibration, and basic settings . This feature is particularly useful for technicians who need to quickly and accurately perform diagnostics without manually entering complex codes or configurations.

Security Gateway Access

Autel Ultra supports FCA and Renault gateway access, enabling comprehensive vehicle diagnostics and programming. It features a 5-in-1 VCMI for advanced communication, including CAN-BUS testing and programming. The device offers OE-level coverage for over 80 brands, including FCA and Renault, with real-time updates and cloud-based data management . Its enhanced topology mapping and dynamic network analysis help identify and resolve complex vehicle issues efficiently

Worldwide Vehicle Coverage

Autel Ultra supports a wide range of vehicles, covering over 15,000+ models from more than 80 brands, including US, European, and Asian vehicles. It is designed for comprehensive diagnostics, programming, and coding, with features like bi-directional control, ECU upgrades, and ADAS calibration. The device also includes a 5-in-1 VCMI for advanced testing and a cloud-based data manager for efficient workshop management

Autel Maxisys Ultra Specification:

Operating System:	Android 7.0
Processor:	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory:	4GB RAM & 256GB On-board Memory
Display:	12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity:	•WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO),BT v.2.1 + EDR,GPS USB 2.0 (Two USB HOST Type A, one USB mini device),HDMI 2.0,SD Card (Support up to 256GB)
Camera:	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Sensors;	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output:	•Microphone, Dual Speakers,3-Band 3.5 mm stereo/standard headset jack
Power and Battery:	18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage:	12V/3A Adapter
Operating Temp.:	0 to 50°C (32 to 122°F)
Storage Temp.:	-20 to 60°C (-4 to 140°F)
Dimensions (W x H x D):	366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight	2.18kg (4.81 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

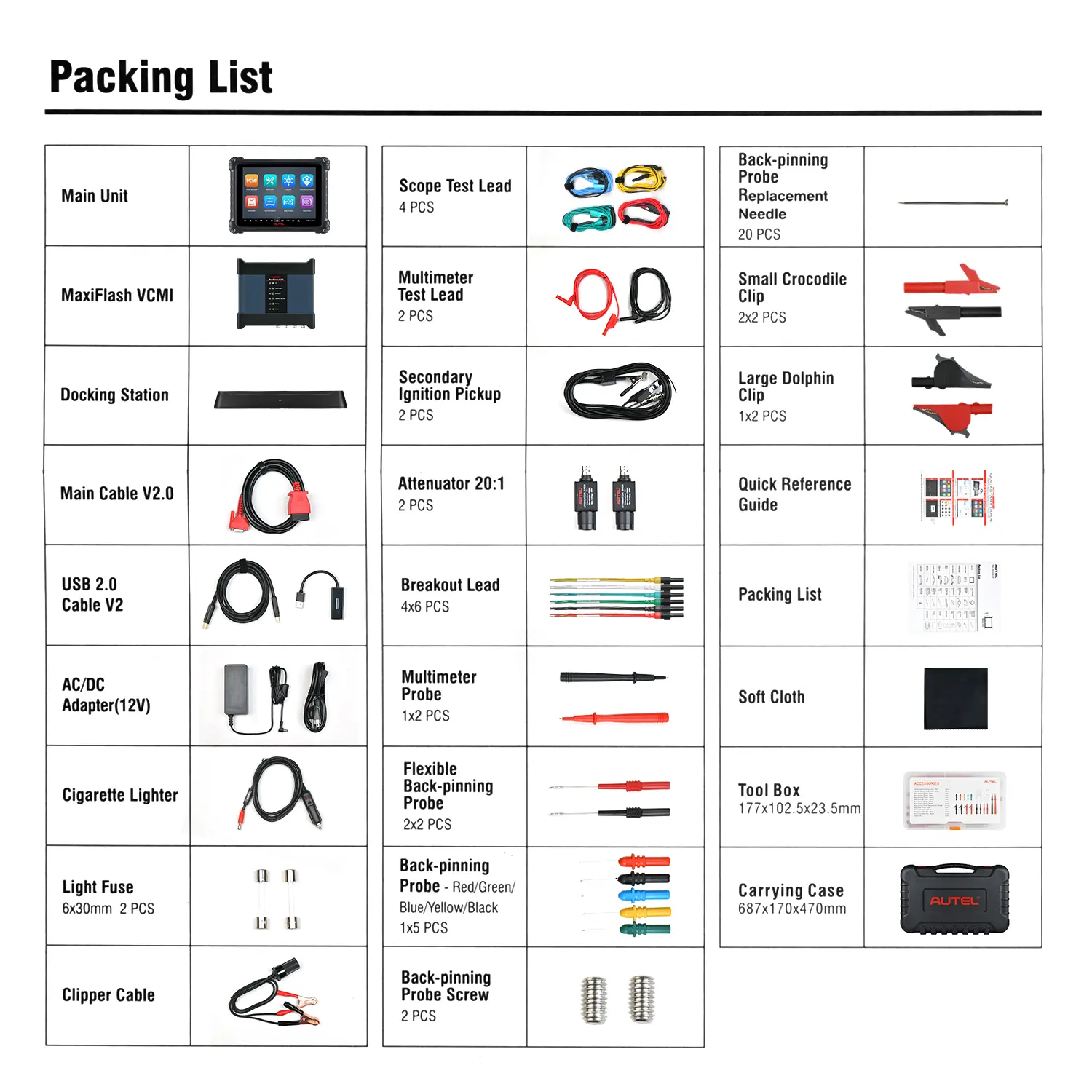

Autel MaxiSYS Ultra Packing List
