Autel Scanner Maxisys MS906S Automotive Diagnostic Scan Tool with ECU Coding, Bi-Directional Control, Active Tests, All System Diagnostic Tool, and 31+ Service (Upgrade of MS906)

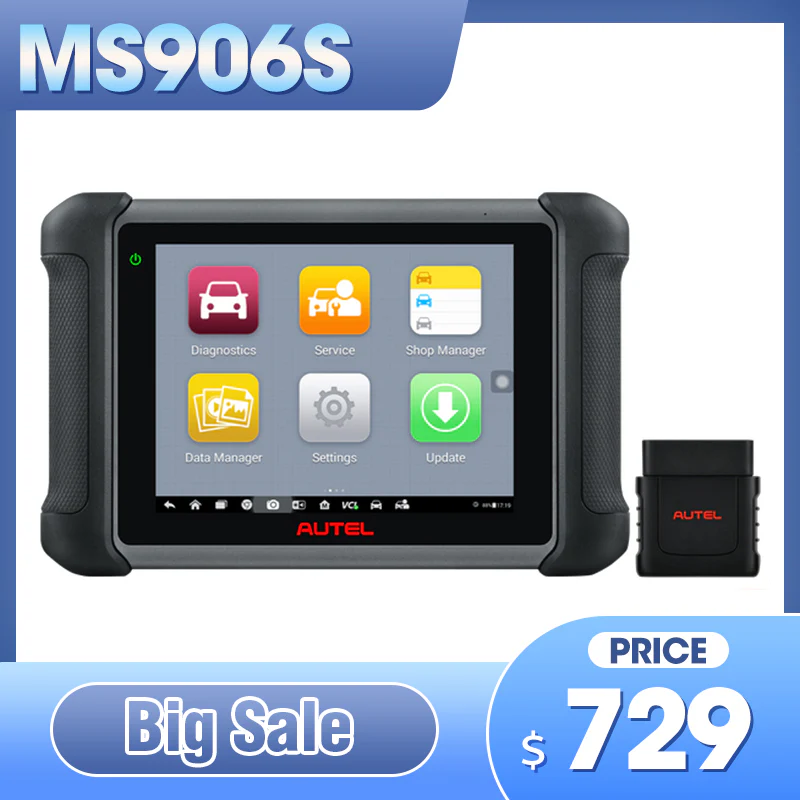

Product image 1
1 / 8

Autel Scanner Maxisys MS906S Automotive Diagnostic Scan Tool with ECU Coding, Bi-Directional Control, Active Tests, All System Diagnostic Tool, and 31+ Service (Upgrade of MS906)

Note ! ! !

Autel MS906S scanner has been discontinued, the MS906 Pro scanner has higher performance than MS906S while having upgraded hardware, if you are looking for MS906S, please choose Autel MS906 Pro!

Autel MS906 ProΒ ScannerΒ πŸ‘‰https://www.obdprice.com/products/autel-scanner-maxisys-ms906pro-car-diagnostic-scan-tool

MaxiSYS MS906SΒ

The Autel MaxiSYS MS906S is an 8-inch touchscreen Android-based advanced diagnostic tablet powered by a Hexa-core processor. It features 64GB memory and the Bluetooth-enabled VCI Mini with an extension for easier OBDII port attachment.

The MS906S diagnostic scan tool features advanced diagnostics including active tests and bi-directional controls. Features include Scan VIN optical VIN/barcode recognition for quick vehicle identification, FCA Secure Gateway Access with AutoAuth subscription, Pre/Post-SCAN customizable reports, and forthcoming Cloud Data management and Repair & Diagnostic Database.

The Maxisys MS906S scanner is packaged in a blow-molded case, includes free technical support, and one-year free software updates with a one-year limited warranty.

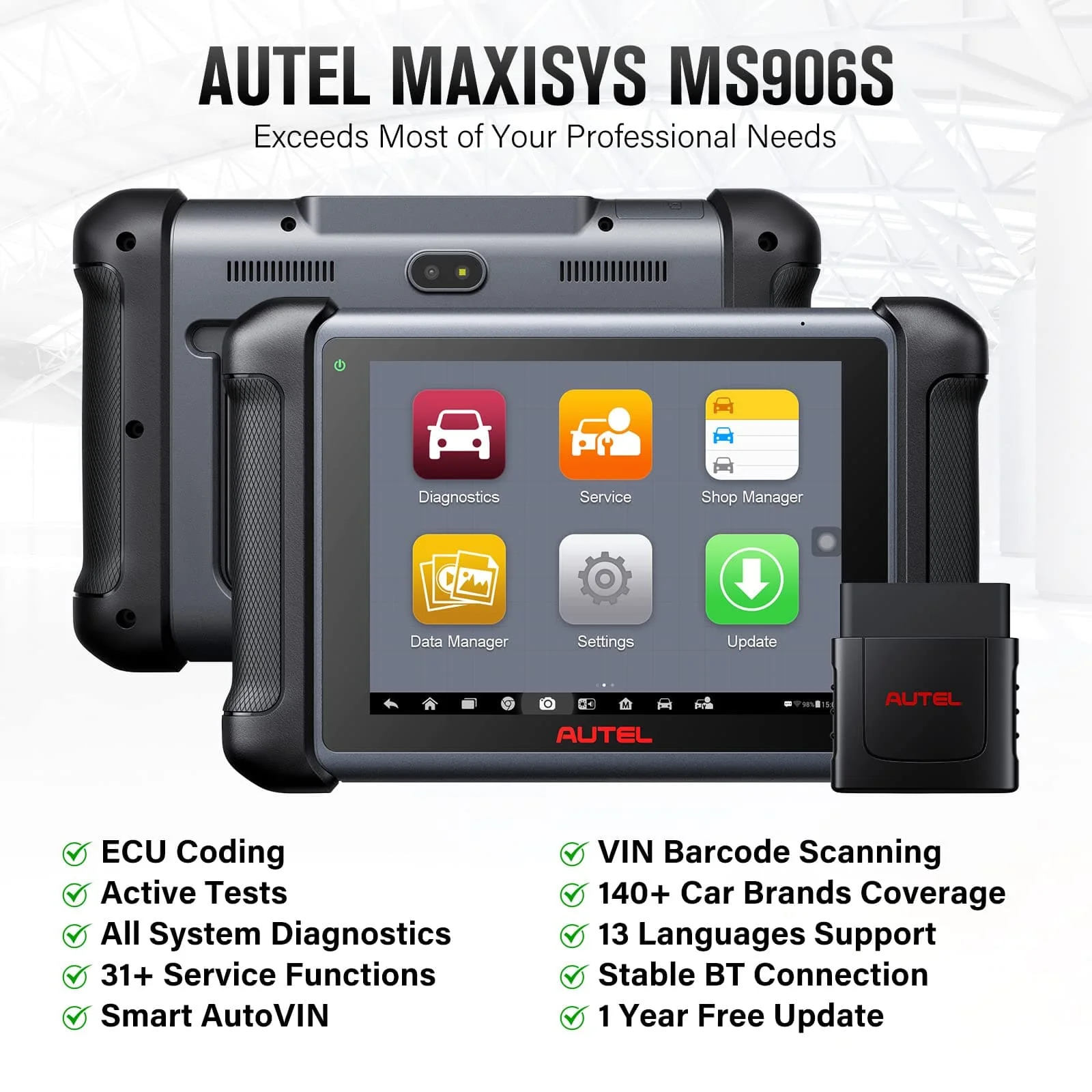

MaxiSYS MS906S Features:

  • 8-inch Wireless Touchscreen Diagnostics Tablet
  • Compatible with U.S., Asian and European Vehicles, 1996 and newer
  • Advanced Diagnostics, Bi-Directional Control and Active Tests
  • Bluetooth VCI Mini with extension for easier OBDII port connection
  • Android 4.4, Hexa-core Processor, 64 GB Memory
  • Expansive Service Function Menu
  • FCA Secure Gateway Access with AutoAuth subscription
  • Pre/Post Scan Reports
  • One-year free software updates with one-year limited warranty

Autel MS906S Specifications:

Operating System: Androidβ„’ 4.4.2 Operating System
Processor: Samsung Exynos 5260 hexa-core（2*A15 1.7G + 4*A7 1GοΌ‰
Memory: 64GB
Display: 8-inch LCD capacitive touchscreen with 1024x768 resolution
Connectivity: Includes Bluetooth VCI Mini
Camera(rea) 8MP Rear Camera
Power and Battery: Rechargeable 10,000mAh Battery

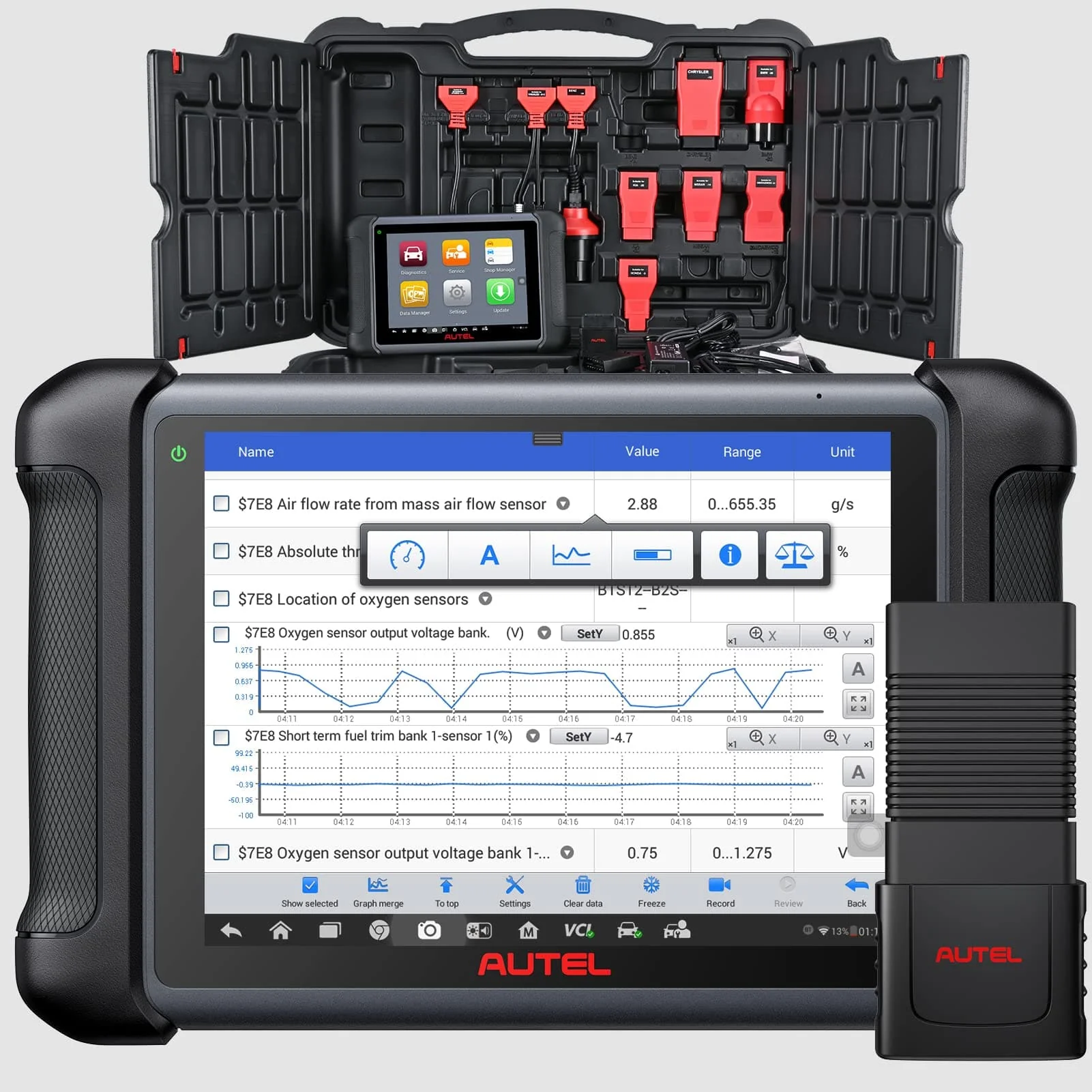

Autel MS906S Package List:

  • 1* Autel MS906S Unit
  • 1* VCI MINI
  • 1* OBD Extension Adapter
  • 1* AC/DC Adapter (12V)
  • 1* Mini USB Cable
  • 1* Cigarette Lighter
  • 2* Light Fuse (60x30mm)
  • 1* Strap
  • 1* Quick Reference
  • 1* Package List
  • 1* Soft Cloth
  • 1* Carrying Case (634x170x404mm)
  • 1* Honda-3 Adapter
  • 1* Nissan-14 Adapter
  • 1* Mitsubishi/ Hyundai -12+16
  • 1* Kia-20 Adapter
  • 1* Benz-38 Adapter
  • 1* BMW-20 Adapter
  • 1* VW/AUDI-2+2
  • 1* GM/ Daewoo-12
  • 1* Fiat-3 (Available in South America and Europe Only)
  • 1* PSA-2 (Available in South America and Europe Only)
  • 1*Β Chrysler-16 (Available in U. S. and South AmericaΒ Only)
  • 1* Benz-14Β (Available in South America and Europe Only)
[comparisons]
Model
MS906S
MS906BT
MK906BT
MS906 Pro
MS906TS
Hardware
CPU Exynox 5260 Exynox 5260 Exynox 5260 Exynos 8895 Exynox 5260
RAM 2GB 2GB 2GB 4GB 2GB
ROM 64GB 64GB 64GB 128GB 64GB
Battery Capacity 10000 mAh 10000 mAh 10000 mAh 11600 mAh 10000 mAh
Android Version Android 4.4.4 Android 4.4.4 Android 4.4.4 Android 7.0 Android 4.4.4
Screen Size 8.0 inch 8.0 inch 8.0 inch 8.0 inch 8.0 inch
Screen Resolution 1024*768 1024*768 1024*768 1920*1200 1024*768
Camera Rear 8.0 Megapixel Rear 8.0 Megapixel Rear 8.0 Megapixel Rear 16.0 Megapixel
Front 5.0 Megapixel		 Rear 8.0 Megapixel
VCI V100 V100 V100 V200 V100
Software
Basic Diagnostic Function √ √ √ √ √
Service √ √ √ √ √
Special Functions √ √ √ √ √
Bi-Directional Control(Active Test) √ √ √ √ √
Online ECU Programming / / / / /
Online ECU Coding / √(BMW, Porsche, VW) √(BMW, Porsche, VW) √(BMW, Porsche, VW) √(BMW, Porsche, VW)
BMW Brush Hidden / √ √ √ √
VW, Audi, Skoda Brush Hidden √ √ √ √ √
VW, Audi, Skoda, Seat, Bently, Man LD Guide function √ √ √ √ √
Extended function
Oscilloscope function (requires MP408) √ √ √ √ √
Endoscope function (requires MV105/MV108) √ √ √ √ √
Battery Test √ √ √ √ √
Remote Expert / / / √ /
Complete TPMS Function
Quick Mode & Advance Mode / / / / √
Activate TPMS sensors / / / / √
Read sensor data / / / / √
TPMS health check / / / / √
Read/clear TPMS DTCs / / / / √
Scan TPMS sensor ID / / / / √
Manual input OE ID into MX-sensor / / / / √
Program MX-Sensor by auto creating sensor ID / / / / √
Read Sensor ID by OBD and copy ID into MX-Sensor / / / / √
Relearn by OBD function / / / / √
Relearn procedure guide on the tool / / / / √
Read TPMS live data / / / / √
Tire Type/Pressure selection / / / / √
Other TPMS special functions / / / / √
Other Features
Remote Desk √ √ √ √ √
DoIP/CAN / / / √ /
D-PDU/RP1210 / / / / /
Pre & Post Scan / / √ √ √
New Features
Language Only English Only English Multi-Language Only English Only English
Autel Cloud Service √ √ √ √ √
Wifi Printer / / / √ /
[accessories] Autel Scanner Maxisys MS906S Automotive Diagnostic Scan Tool Package List [downloads]

Name

 Download

Autel Maxisys MS906S Flyer.pdf
$729.00
