Note ! ! !

Autel 1-Sensor combines both 315MHz + 433MHz frequencies into one TPMS sensor which has the totally same function as a single 315MHz or 433MHz sensor while having a wider vehicle coverage. If you are looking for an Autel 315MHz or 433MHz sensor, please prefer to choose Autel 1-Sensor.

Autel 1-Sensor Metal Version 👉 https://www.obdprice.com/products/4pcs-autel-1-sensor-315mhz-433mhz-2in1-tire-pressure-sensors-tpms-sensor

Autel 1-Sensor Rubber Version 👉 https://www.obdprice.com/products/autel-2in1-sensor-dual-frequency-tpms-sensor-rubber-valve

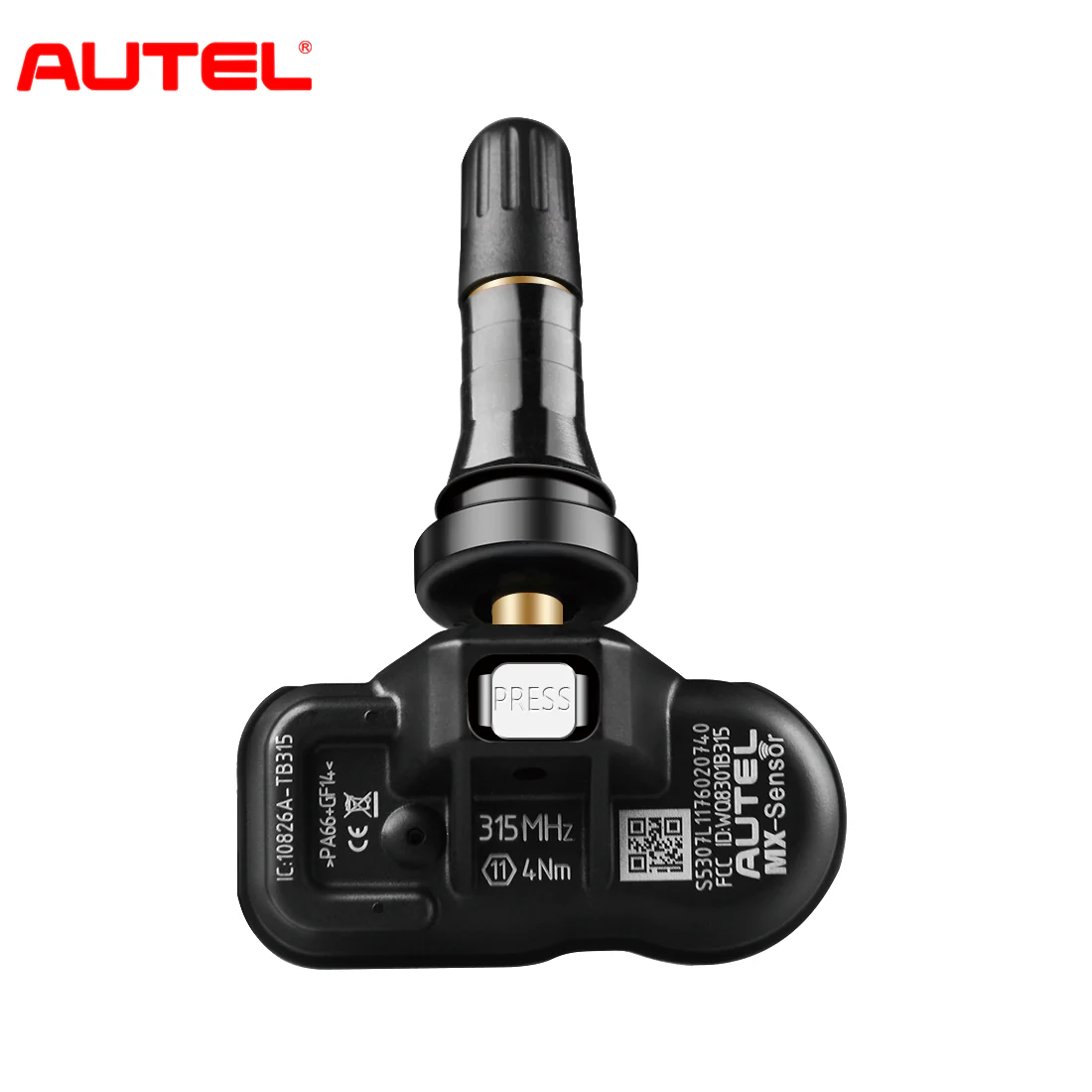

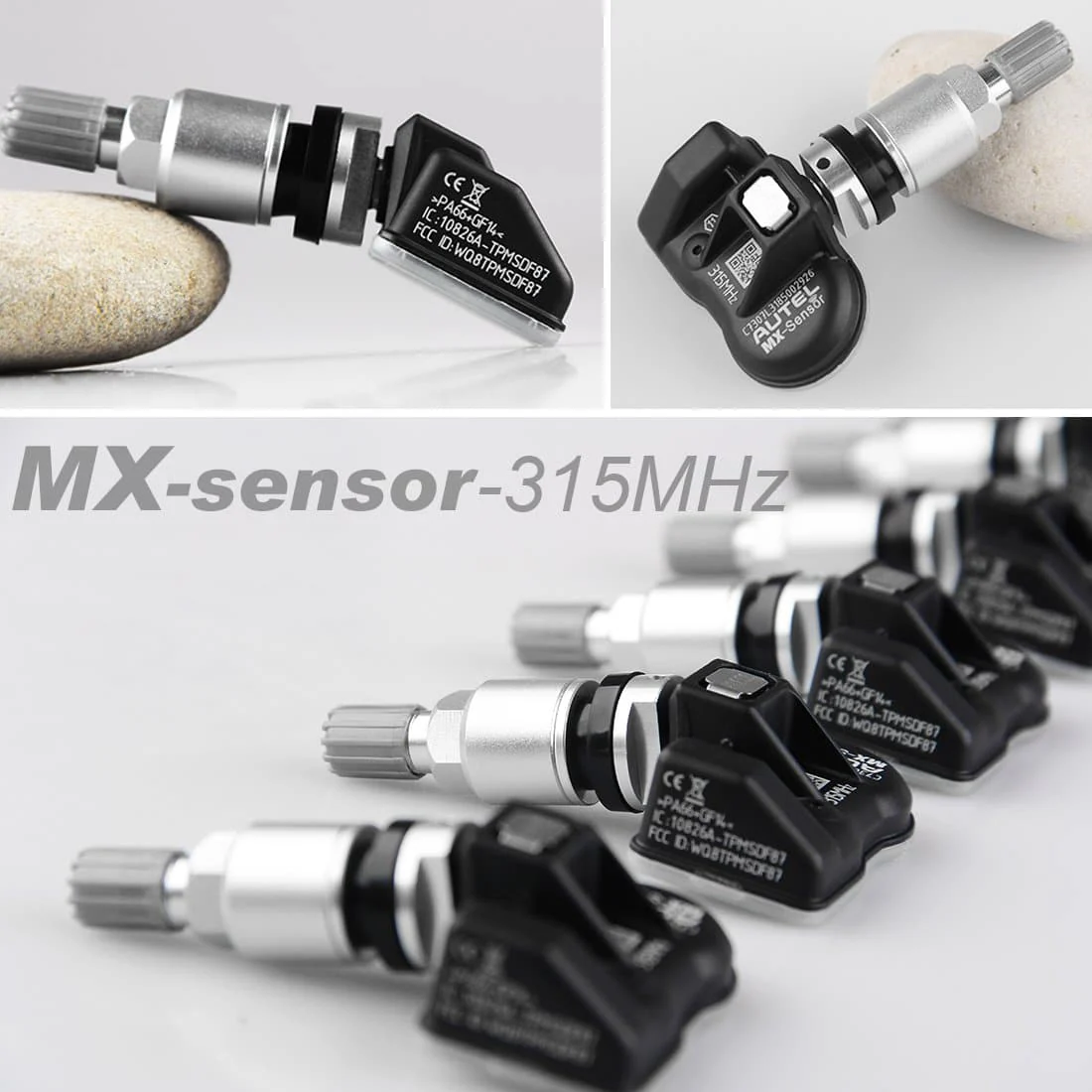

Autel MX-Sensors 315MHz

• Autel Mx-sensors are affordable and easy to use programmable universal TPMS sensors. Autel MaxiTPMS tools can wirelessly activate, diagnose, program, and relearn all the Autel MX-Sensors to quickly and more effectively complete installation projects. Autel guarantees that the sensor is free from material and manufacturing defects for a period of twenty-four (24) months or for 24,000 miles, whichever comes first.

AUTEL VALUE ADVANTAGE

• Covering 98% of all OE sensors on the market
• Wireless sensor programming with Autel TPMS service tools
• 100% ID clone-able sensor with no re-learn required
• Independently tested and certified to meet SAE standard

Autel MX-Sensor 315MHz Features:

• 1. Built to perform like OE sensor, in terms of signal, durability and functionality;
• 2. Automotive battery grade to meet severe weather conditions;
• 3. High-precision air valve to prevent air leakage;
• 4. Replaceable aluminum valve stem is anodized for corrosion resistance;
• 5. Robust clamp-in pivoting stem design allows for 0-35 degree angle adjustment to fit all types of wheels;
• 6. Fast and simple assembly onto any wheels.

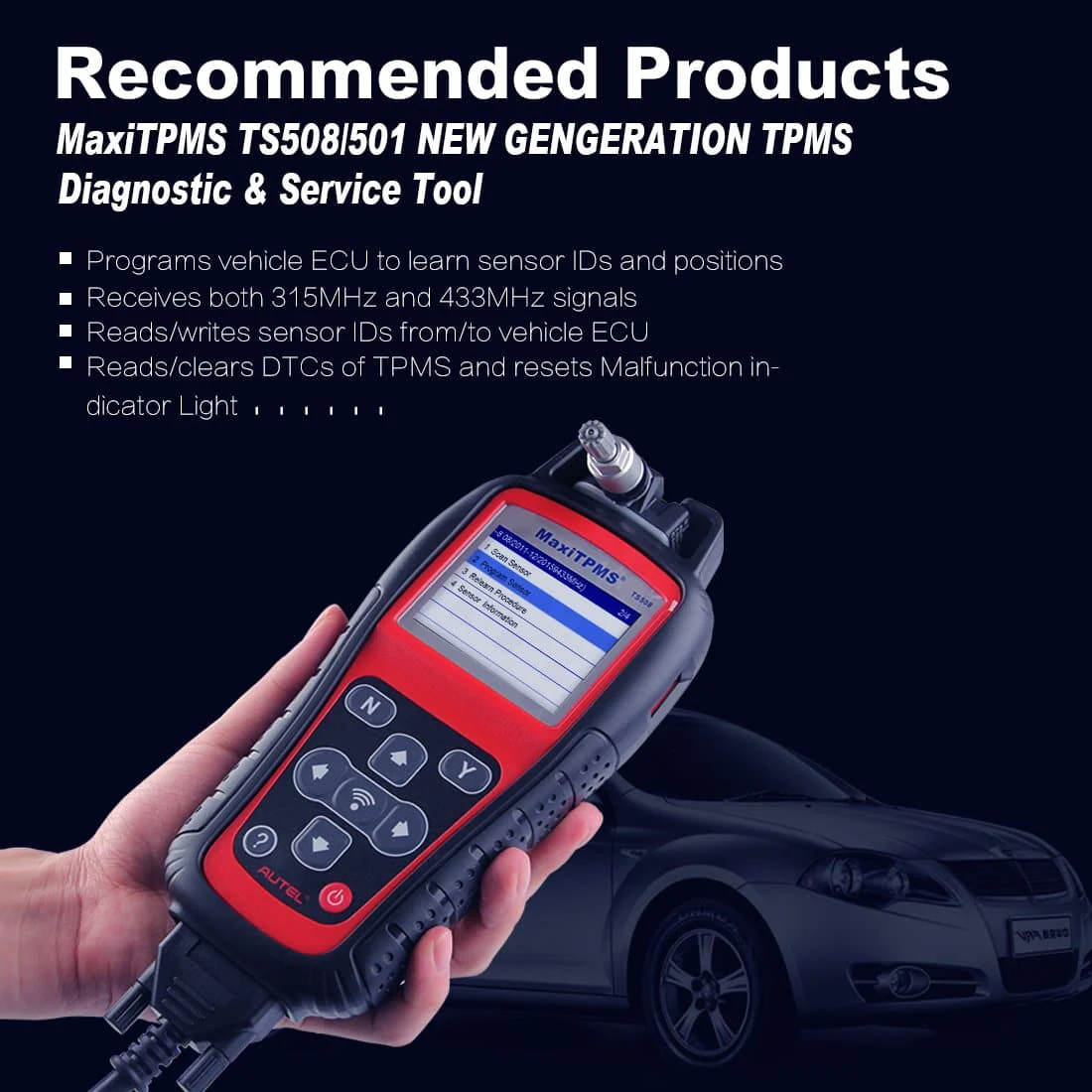

Autel 315MHz Sensor Works with Autel MaxiTPMS TS501 / Autel MaxiTPMS TS508K:

How does Autel MX-Sensor Work?

Autel MX-Sensors Specification:

• Battery Life: ≥5 years
• Operating Temperature：-40°C to +125°C
• Storage Temperature: -40°C to +150°C
• Operating Humidity：90%
• Operating Frequency：315 MHz
• Pressure Monitoring Range：100 to 900 kPa
• Pressure Reading Accuracy：±10 kPa
• Temperature Reading Range：-40°C to +125°C
• Temperature Reading Accuracy：±5°C
• G Sensor Reading Accuracy：±15%
• Transmission Power：5-8 dBm
• Battery: 3.0 V
• Dimensions (W x H x D): 55.1 mm x 29.4 mm x 21.8 mm (Clamp-in Sensor)
• Weight (Without Valve): 18.5 g (Clamp-in Sensor)

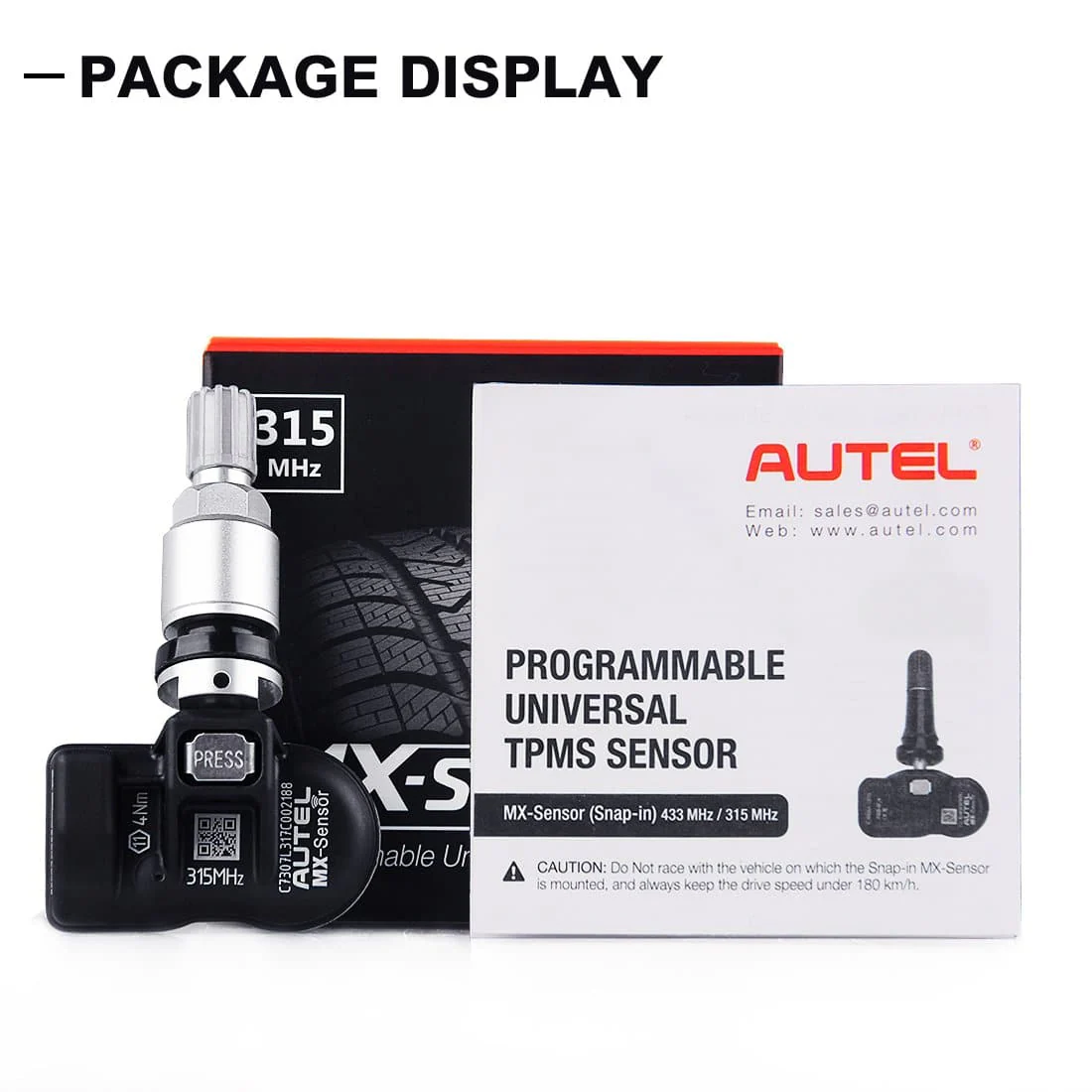

Autel MX-Sensor 315mhz Package List:

• MX-Sensor 315MHz (Qauntity Optional)
