【Auto 5% OFF】Autel Robotics EVO II Pro RTK 6K Drone Rugged Bundle [V2]

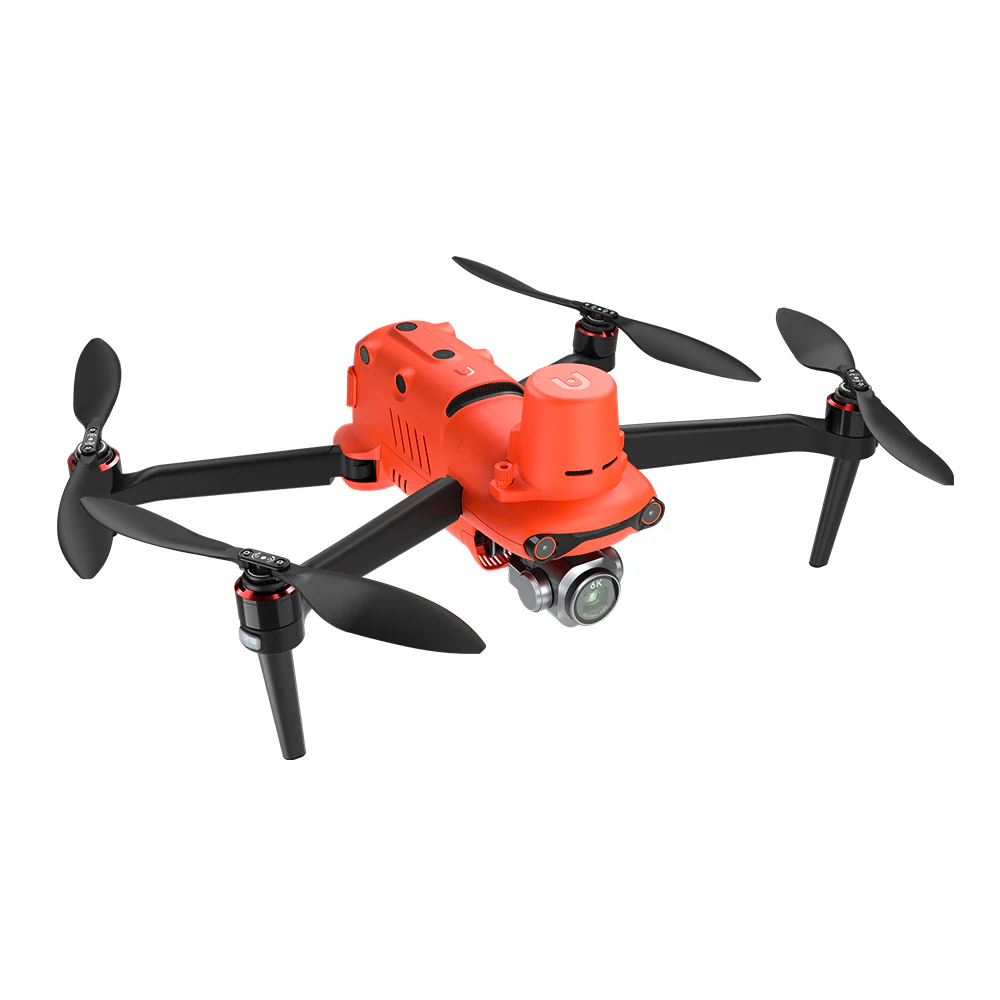

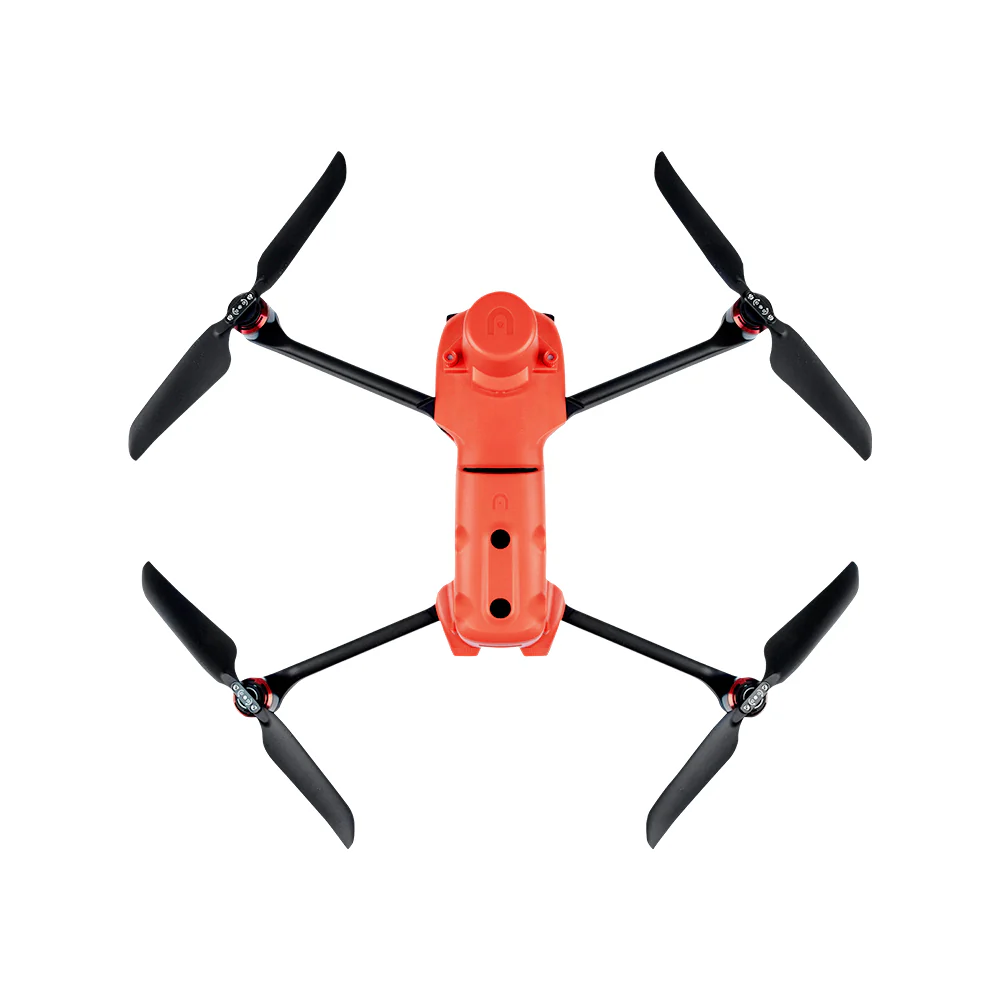

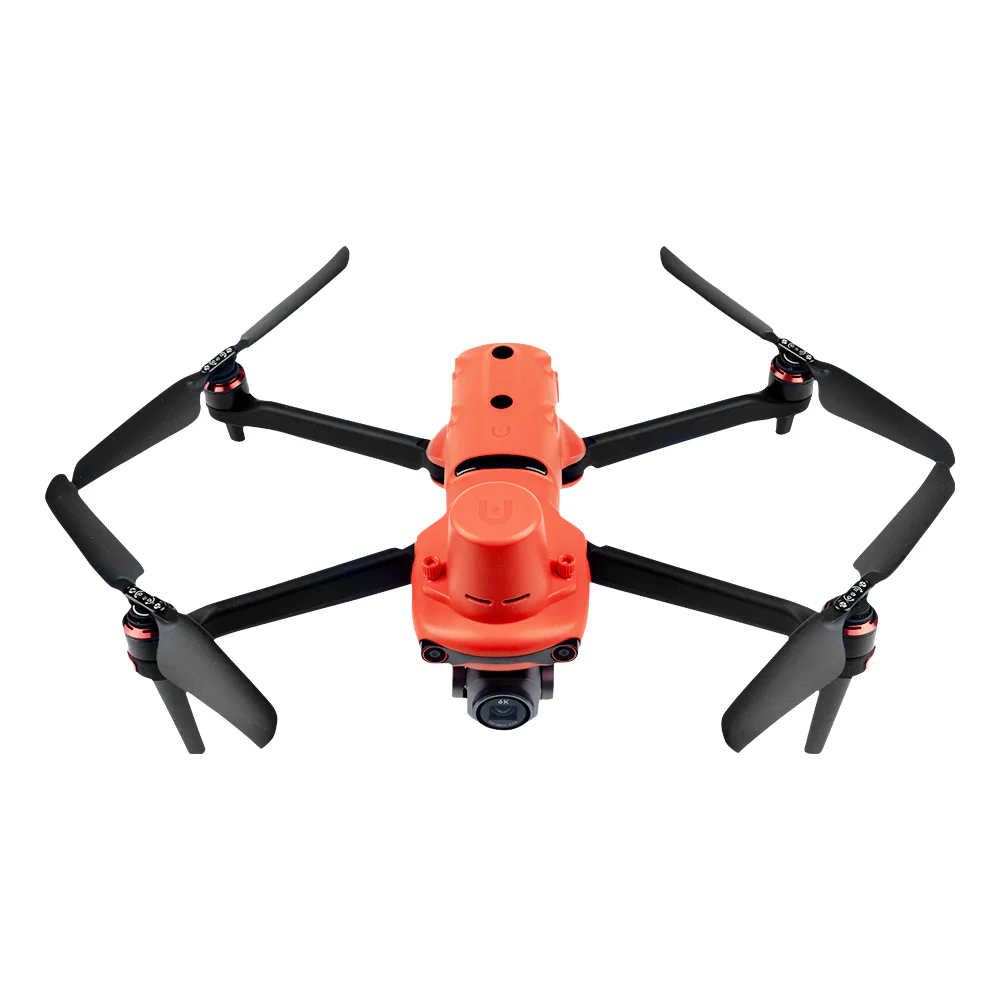

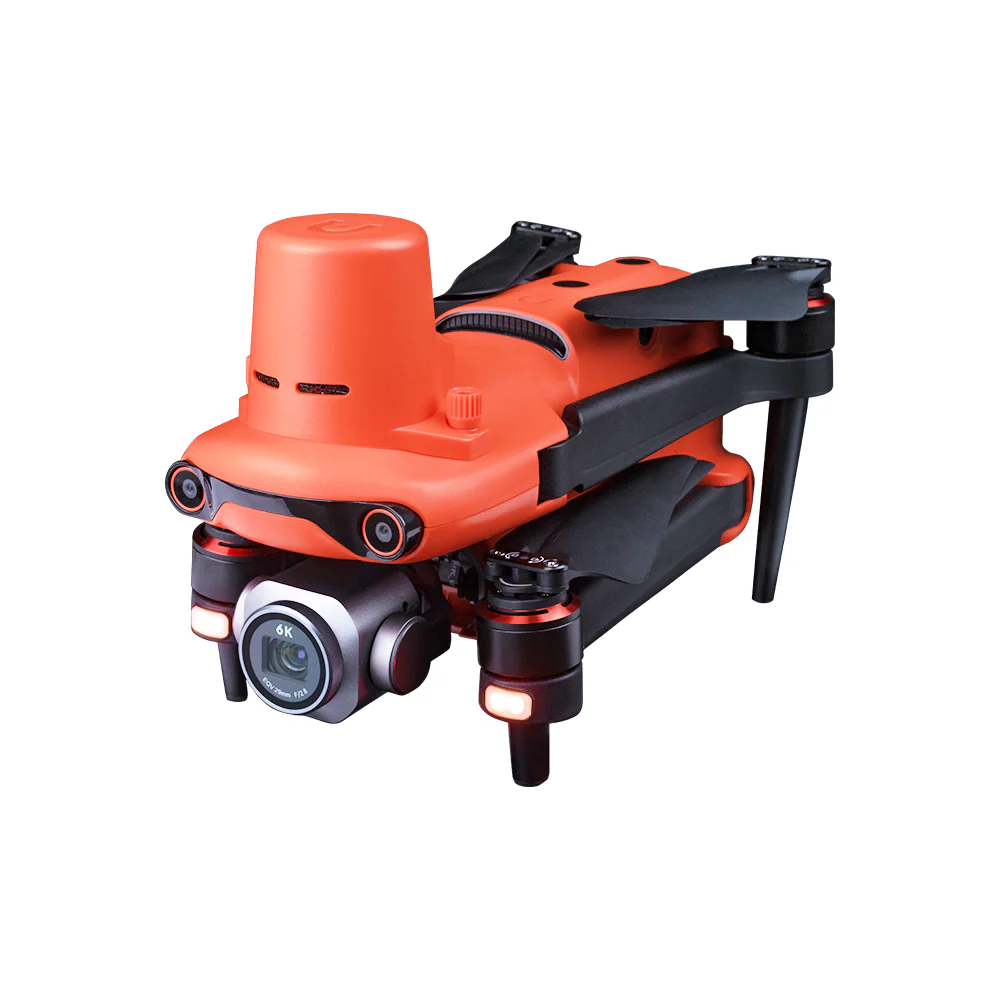

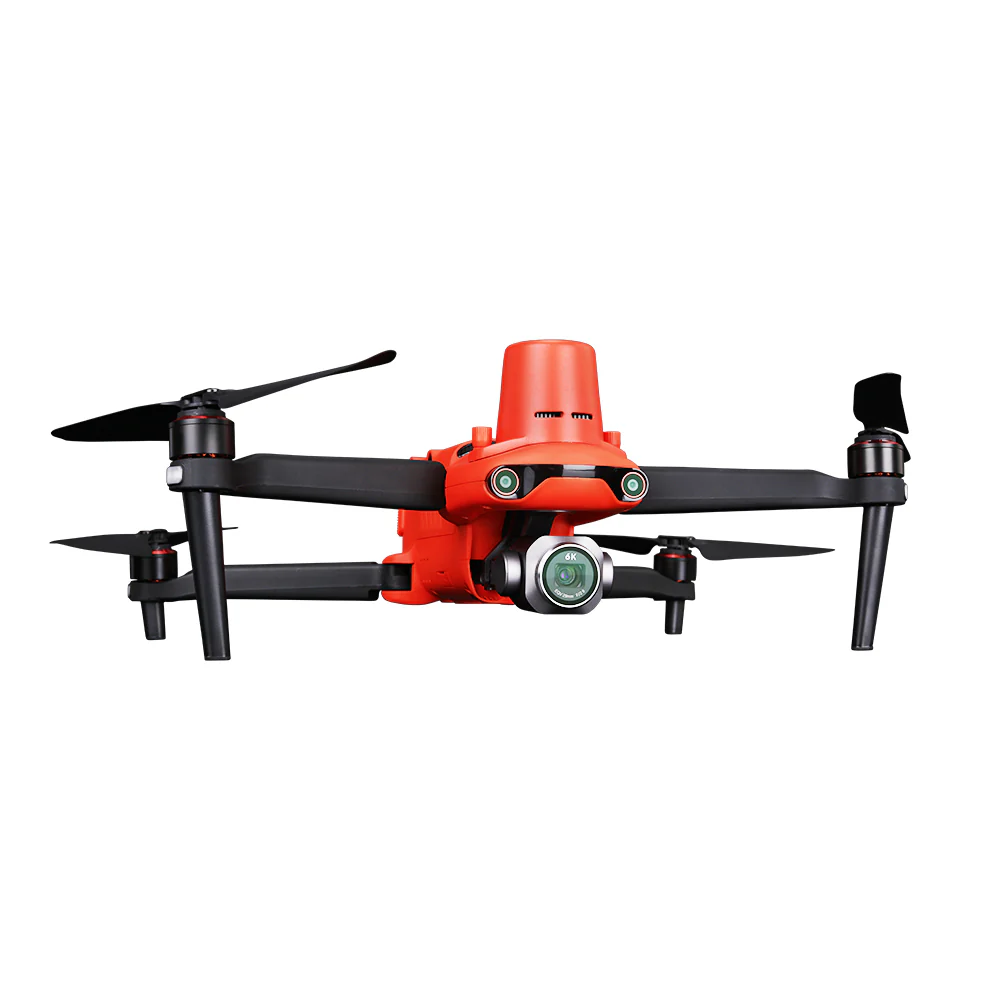

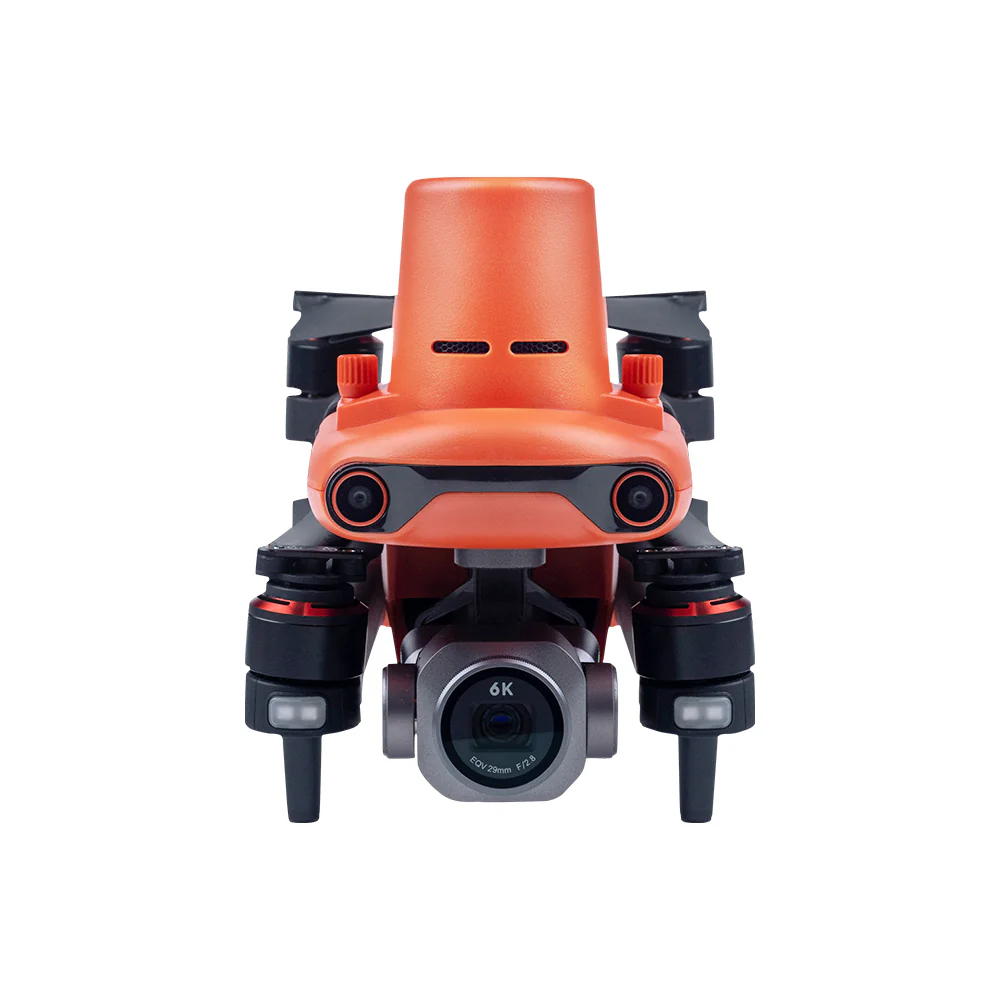

EVO II Pro RTK Drone
The EVO II Pro RTK integrates an entirely new RTK module, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters, and various other data. The positioning system supports an A-RTK base station and RTK network, which help provide stable, accurate data acquisition in complex operating environments.
Capture Every Detail
The EVO II Pro RTK has a high dynamic range and powerful low-light performance, enabling users to capture explicit imagery without missing any detailed information.
6K Ultra HD Video
The 6K resolution ultra-high-definition lens, supported by a 1-inch sensor, makes it easy to achieve professional shooting results.
High-resolution Camera
The 1-inch CMOS sensor coupled with 20 MP and f/2.8 - f11 aperture, gives you the versatility needed to capture the best images in various mission scenarios.
Light. Efficient. Reliable.
The EVO II Pro RTK inherits the foldable design of the original EVO II Series, making it compact, light, portable, and ready to fly in just a matter of seconds. Alongside a 5.5-mile maximum transmission range, the aircraft offers a flight time of up to 36 minutes and can reach a top speed of up to 45 mph, making it the perfect flying companion for your daily missions.
Mission Execution With Advanced Intelligence
The EVO II Pro RTK provides users with a full range of intelligent features and solutions to suit a variety of mission needs. Using advanced flight control and the latest AI technology, the aircraft can significantly improve mission workflows and help reduce operating costs.
RTK / PPK
The Evo II RTK Series supports third-party base stations with NTRIP capability.
Enhanced Dynamic Track
EVO II Pro RTK can model the location and speed of targets simultaneously, predict their trajectory accurately, avoid obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.
360° Obstacle Avoidance
EVO 2 Pro Drone’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.
RTK High-precision GNSS Base Station
The EVO II RTK Series supports RTK high-precision GNSS base station to obtain real-time differential data, which makes it possible to obtain the accurate coordinates of the designated target point.
Application Field
Camera
| Sensor | 1" CMOS Effective Pixels: 20 MP Performance temperature: -10~60°C |
| Lens | FOV: about 82° 35mm Format Equivalent: 28.6 mm @ f/2.8 Aperture: f/2.8–f/11 Focus range: 1m to infinity (with auto focus) |
| ISO Range | Video: 100-6400 Photos: 100-12800" |
| Shutter Speed | Electronic Shutter: 8 ~ 1/8000s |
| Digital Zoom | 1 - 8 times |
| Photo Mode | Single shot; Continuous shooting (AEB/Burst): 3, 5, 3 by default; Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S; Pure night shot: support 4K Jpeg; HDR: Support 4K Jpeg; Long exposure: up to 8s; |
| Photo Resolution | 5472x3648 (3:2) 5472x3076 (16:9) 3840x2160 (16:9) |
| Photo Format | JPG(default); DNG |
| Video Resolution | 6K 5472x3076 p30/p25/p24 5K 4800x2700 p60/p50/p48/p30/p25/p24 4K 3840x2160 p60/p50/p48/p30/p25/p24 2.7K 2720x1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920x1080 p120/p60/p50/p48/p30/p25/p24 |
| Effective Frame | 5472×3648 |
| Video Format | MOV(default); MP4 |
| Codecs | H.264 / H.265 |
| Max Video Bitrate | 120Mbps |
| Support File System | FAT32(≤ 32 GB) exFAT(> 32 GB) |
| Support Memory Card Type | Class4 / Class10 / U3 Capacity：4G / 8G / 16G / 32G / 128G |
Gimbal
| Gimbal | Three-axis stabilization |
| Mechanical Range | Tilt: -135° to +45° Heading: -100° to +100° |
| Controllable Range | Tilt: -120° to +30° Heading: -90° to +90° |
| Maximum Control Speed (Tilt) | 300°/s |
| Angle Jitter | ±0.005° |
Aircraft
| Weight (with propeller and battery) | 1237g±0.5g |
| Wheelbase | 397 mm |
| Maximum Take-off Altitude | 6000 m |
| Max Ascent Speed | 5 m/s（automatic flight） 8 m/s（manual control） |
| Max Descent Speed | 4 m/s |
| Max Horizontal Flight Speed | 72 km/h（positioning mode） |
| Max Tilt Angle | 33°（positioning mode） |
| Max Angular Velocity | 120°/s |
| Max Flight Time | 36 minutes |
| Operating Temperature Range | 0℃ to 40℃ |
| Maximum Resistance to Wind | 39-46 mph (Level 8) |
| Operating Frequency | 2.400 GHz to 2.4835 GHz |
| Transmission Power (2.4G) | FCC：≤26 dBm ISED：≤26 dBm CE：≤20 dBm RCM：≤20 dBm SRRC：≤20dBm |
| Hovering Accuracy | When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m RTK is not enabled: vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS positioning works normally) Level: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS positioning works normally) |
| Image Position Compensation | The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively. |
Sensing System (Obstacle Avoidance)
| Sensing System | Omnidirectional Obstacle Sensing |
| Forward | Precision Measurement Range: 0.5-20 m Detectable Range: 0.5-40m Effective Sensing Speed: <15m/s FOV: Horizontal: 60°, Vertical: 80° |
| Backward | Precision Measurement Range: 0.5-16 m Detectable Range: 0.5-32m Effective Sensing Speed: <12m/s FOV: Horizontal: 60°, Vertical: 80° |
| Upward | Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <6m/s FOV: Horizontal: 60°, Vertical: 50° |
| Downward | Precision Measurement Range: 0.5-11 m Detectable Range: 0.5-22m Effective Sensing Speed: <6m/s FOV: Horizontal: 90°, Vertical: 70° |
| Sides | Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <10m/s FOV: Horizontal: 60°, Vertical: 50° |
| Operating Environment | Above: The surface has rich textures and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment); the surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) Below: The ground has rich textures and sufficient lighting conditions (> 15 lux, indoor fluorescent lamp is normally irradiated by the environment); the surface is made of diffuse reflective material and the reflectivity is> 20% (such as walls, trees, people, etc.) |
Remote Controller and Image Transmission
| Operating Frequency | 2.400 GHz to 2.4835 GHz |
| Max Transmission Distance | FCC：9 km（without interference or obstruction） CE：5 km（without interference or obstruction） |
| Real-time Image Transmission Quality | 720p@30fps / 1080p@30fps |
| Maximum Bit Rate of Real-time Image Transmission | 40Mbps |
| Transmission Power (2.4G) | FCC：≤26 dBm ISED：≤26 dBm CE：≤20 dBm RCM：≤20 dBm SRRC：≤20dBm |
| Display screen | 3.26" OLED 854（W） * 480（H）Pixel Directly preview the video without connecting a mobile phone |
| Remote Controller Battery | 5000mAh |
| Run Time | 3 hours |
| Charging Time | 2 hours fast charge |
| Supported Mobile Device Size | Max Length: 3.30" (84mm) Max Thickness: 0.51" (13mm) |
| Supported USB Port Types | Lightning, Micro USB (Type-B), USB-C |
| Working current/voltage | [email protected] |
Intelligent Flight Battery
| Capacity | 7100 mAh |
| Voltage | 11.55 V |
| Max Charging Voltage | 13.2 V |
| Battery Type | LiPo 3S |
| Energy | 82 Wh |
| Net Weight | 0.81 lbs (365 grams) |
| Charging Temperature Range | 41°F to 104°F (5°C to 40°C) |
| Storage Temperature and Humidity | -10~30℃，65±20%RH |
| Recommended Storage Temperature | 22-28℃ |
| Max Charging Power | 93W |
| Charging Time | 90 minutes |
Intelligent Flight Battery Manager
| Voltage | 13.2 V |
| Charging Temperature Range | 5℃ to 45℃ |
Charger
| Input | 100-240 V, 50/60 Hz, 1.5A |
| Output | 13.2 V = 5 A 5V=3A 9V=2A 12V=1.5A |
| Voltage | 13.2±0.1V |
| Rated Power | 66W |
[accessories]
EVO II Pro RTK Packing List
|
Name |
Download |
|
Autel EVO II Pro Brochure |
|
|
Autel EVO II Drone User Manual |
|
|
Autel EVO II Drone Quick Guide |
|
|
Autel EVO II Drone Explorer App Manual |
