Autel Robotics EVO II Pro [V2] Drone has been discontinued, the Autel Robotics EVO II Pro [V3] Drone has higher performance than EVO II Pro [V2] while having upgraded hardware, if you are looking for EVO II Pro [V2], please choose EVO II Pro [V3]!

Autel Robotics EVO II Pro [V3] 👉https://www.obdprice.com/products/autel-robotics-evo-ii-pro-rugged-bundle-v3

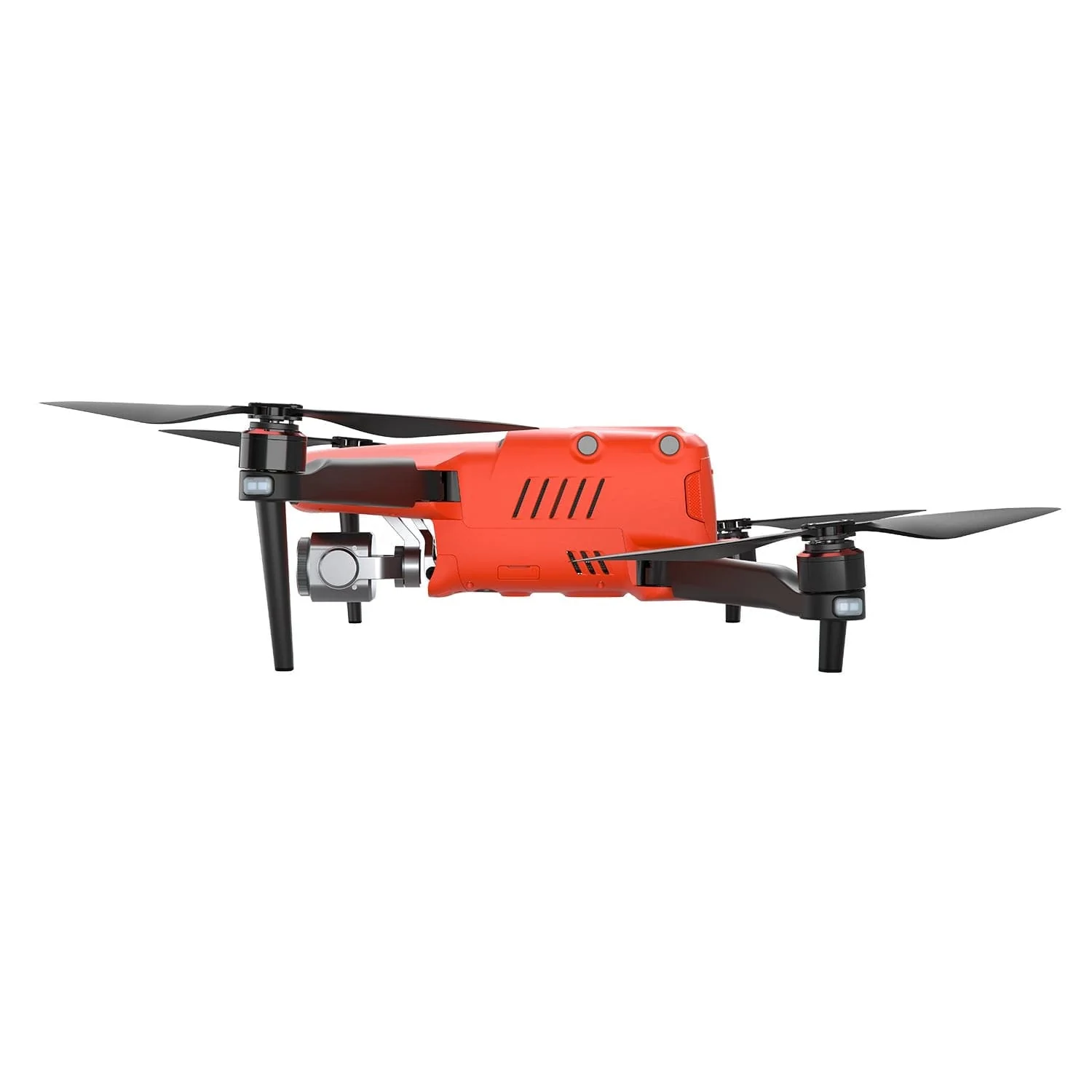

Autel Robotics EVO II Pro

Autel EVO 2 Pro ultra-HD video camera drone featured a 1-inch sensor with 6K video and 20MP photo. Capture stunning detail not previously possible on an aerial platform of this size. An adjustable aperture from f/2.8 - f/11, HDR and intuitive camera controls make this the perfect choice for any aerial cinematographer or mapping pilot.[Autel EVO II Pro V2 drone returns to home automatically without GPS signal at high altitude.]

Autel EVO II Pro 6K Camera

• 1″ CMOS Sensor & F/2.8-F/11 Adjustable Aperture

Autel Robotics EVO II Pro 6K drone camera with 1-inch sensor captures incredibly smooth 6K Ultra HD video and 20MP photos. And An adjustable aperture from f/2.8 to f/11 giving you wide-ranging adjustment over how much light gets into the camera.

As for resolution, the 6K camera can achieve up to 5472 x 3648 in still and 6K/ 30fps, 4K/ 60fps in video. Also with a bit rate of up to 120 Mbps.

• 6K Hyper-lapse photography and More Shooting Modes

The EVO II Pro camera drone support a variety of shooting modes, including Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse (JPEG/RAW format); High-dynamic-range (HDR) imaging; HyperLight; Long exposure

• Capture the night time world

The EVO II Pro camera featured Hyper-light mode for shooting in low-light conditions with 2D and 3D noise reduction smoothing motion blur and reducing noise.

• 10-bit A-Log Color Recording

This mode allows for greater flexibility in post-production for the professional photographer 10-bit allows the EVO II Pro to record up to 1 billion colors. The EVO II Pro retains rich detail in shadows and highlights, allowing greater flexibility in post-production.

• Connect Autel Live Deck to display live video from EVO II on any device

The live video from EVO 2 drone can be displayed on your remote controller or connect with Autel Live Deck to display on any device including computer, TV, Ipad via USB, HDMI, Ethernet, to meet the requirements of projection monitoring and live streaming.

• Adjust field-of-view to any angle from 0° to 90° while flying

EVO II Pro Drone contains a high-precision 3-axis gimbal that keeps the camera steady while the aircraft is flying, ensuring image stability and clarity. Also, You can use the remote control's gimbal pitch dial to adjust the pitch axis to any angle from 0° to 90° at any time.

• Cameras interchangeable

Autel EVO II Series Dones is one aircraft with three camera options. All cameras for Evo II can be purchased separately and are interchangeable!

EVO II - AI Enhanced Dynamic Track

EVO II Pro can model location and speed of targets simultaneously, predict their trajectory accurately, avoiding obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.

360° Obstacle Avoidance

EVO 2 Pro Drone’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards at up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.

Multiple Intelligent Flight Modes

Autel EVO II Drone supports multiple smart Flight Modes includes Dynamic Track, Parallel Track, Tripod Track, Viewpoint, Orbit, Gesture control, VR Flight, Waypoint and more.

Failsafe & Automatically Return Home

EVO 2 Pro will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.

40 Minutes & 5.5 Miles HD Transmission

Autel EVO 2 Pro comes standard with a 7100mAh rechargeable battery. Providing up to 40min of flight time in forward motion to up to 9km (5.5miles) away and 35min at a hover. And top speed up to 45MPH, additionally There is no geofencing or cellular service restrictions on any of EVO II.



[spec]

Autel EVO 2 Pro Specs

Camera

Sensor	1" CMOS Effective Pixels: 20 MP Performance temperature: -10~60°C
Lens	FOV: 82° 35mm Format Equivalent: 28.6 mm @ f/2.8 Aperture: f/2.8–f/11 Shooting Range: 1 m to ∞
ISO Range	Video: 100~3200 (Auto) Video: 100~6400 (Manual) Photo: 100~3200 (Auto) Photo: 100~12800 (Manual)
Shutter Speed	Electronic Shutter: 8 ~ 1/8000s
Digital Zoom	1 ~ 8x (Max. 3x lossless zoom)
Still Image Resolution	5472x3648 (3:2) 5472x3076 (16:9) 3840x2160 (16:9)
Still Image Format	JPEG / DNG (RAW)
Still Photography Modes	Single Shot Burst shooting: 3/5 frames Automatic Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Timelapse:    JPG: 2s/5s/7s/10s/20s/30s/60s    DNG: 5s/7s/10s/20s/30s/60s HyperLight: support (under 4K JPEG format) Long Exposure: Max 8s HDR imaging: (under 4K JPEG)
Video Resolution	6K 5472x3076 p30/p25/p24 5K 4800x2700 p60/p50/p48/p30/p25/p24 4K 3840x2160 p60/p50/p48/p30/p25/p24 2.7K 2720x1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920x1080 p120/p60/p50/p48/p30/p25/p24
Video Format	MOV / MP4
Codecs	H.264 / H.265
Max Video Bitrate	120Mbps

Gimbal

Weight	0.23 lbs (107g)
Mechanical Range	Pitch: -135~45° Roll: -45~45° Yaw: ±100°
Controllable Range	Pitch: -90~0° Yaw: -90~90°
Stabilization	3-Axis (Tilt, Roll, Pan)
Max Control Speed (Tilt)	300°/s
Angular Vibration Range	±0.005°

Aircraft

GEO Fencing	NO
Takeoff Weight	2.6 lbs (1191 g)
Dimensions	Folded: 8.98 x 5.24 x 4.33 in (L x W x H) (228 x 133 x 110 mm) Unfolded: 16.69 x 13.94 x 4.33 in (L x W x H) (424 x 354 x 110 mm)
Diagonal Distance	15.63 in (397 mm)
Max Ascent Speed	Standard mode: 11.18 mph (5 m/s) Ludicrous mode: 17.89 mph (8 m/s)
Max Descent Speed	Standard mode: 6.71 mph (3 m/s) Ludicrous mode: 8.94 mph (4 m/s)
Max Speed (near sea level, no wind)	Standard mode: 33.55 mph (15 m/s) Ludicrous mode: 44.73 mph (20 m/s)
Max Service Ceiling Above Sea Level	22,965 ft (7000 m)
Max Flight Time (no wind)	40 minutes
Max Hovering Time (no wind)	35 minutes
Max Flight Distance (no wind)	15.53 miles (25 km)
Max Wind Resistance	Force 8 wind
Max Tilt Angle	Standard mode: 28° Ludicrous mode: 33°
Max Angular Velocity	120°/second
Operating Temperature Range	14°F to 104°F (-10°C to 40°C)
Transmission Power (EIRP)	2.4~2.4835GHz FCC/ISED: ≤27 dBm SRRC/CE/MIC/RCM：≤20dBm
GNSS	GPS/GLONASS/VIO/ATTI
Hovering Accuracy Range	Vertical: ± 0.78 in (when vision positioning is active) ± 7.87 in (with GPS positioning) Horizontal: ± 0.78 in (when vision positioning is active) ± 3.28 ft (with GPS positioning)
Internal Storage	8 GB
SD Storage	Standard: 32 GB Max Micro SD Card Supported: 256 GB

Sensing System (Obstacle Avoidance)

Sensing System	Omnidirectional Obstacle Sensing
Forward	Precision Measurement Range: 0.5-20 m Detectable Range: 0.5-40m Effective Sensing Speed: <15m/s FOV: Horizontal: 60°, Vertical: 80°
Backward	Precision Measurement Range: 0.5-16 m Detectable Range: 0.5-32m Effective Sensing Speed: <12m/s FOV: Horizontal: 60°, Vertical: 80°
Upward	Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <6m/s FOV: Horizontal: 60°, Vertical: 50°
Downward	Precision Measurement Range: 0.5-11 m Detectable Range: 0.5-22m Effective Sensing Speed: <6m/s FOV: Horizontal: 90°, Vertical: 70°
Sides	Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <10m/s FOV: Horizontal: 60°, Vertical: 50°
Operating Environment	Forward, Backward, Upward and Sides: Surface with clear pattern and adequate lighting (lux > 20) Downward: Surface with clear pattern and adequate lighting (lux > 20) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

Remote Controller and Transmission

Working Frequency	2.4~2.4835GHz
Max Transmission Distance	FCC: 5.59 miles (9 km) CE: 3.10 miles (5 km)
Operating Temperature Range	14°F to 104°F (-10°C to 40°C)
Transmission Power (EIRP)	2.4~2.4835GHz FCC/ISED：≤27dBm SRRC/CE/MIC/RCM：≤20dBm
Real-Time Transmission Quality	720p@30fps / 1080p@30fps
Max Bitrate of Real-time Transmission	40Mbps
Remote Controller Battery	5000 mAh
Weight	0.82 lbs (370g)
Operating Current/Voltage	1.7A @ 3.7V
Charging Temperature Range	32°F to 104°F (0 to 40°C)
Supported Mobile Device Size	Max Length: 3.30" (84mm) Max Thickness: 0.51" (13mm)
Supported USB Port Types	Lightning, Micro USB (Type-B), USB-C
Operating Hours	3 hours
OLED Brightness	330 nit

Battery

Capacity	7100 mAh
Battery Type	LiPo 3S
Battery Energy	82 Wh
Voltage	11.55 V
Max Charging Voltage	13.2 V
Charging Temperature Range	41°F to 104°F (5°C to 40°C)
Max Charging Power	92 W
Net Weight	0.81 lbs (365g)

[video]

Autel EVO II Pro 6K: Review + Flight Footagee

Introducing: EVO 2 Series

Experience: Shot On EVO II Pro 6K Drone

[accessories]

Autel EVO II Pro Advanced Rugged Bundle

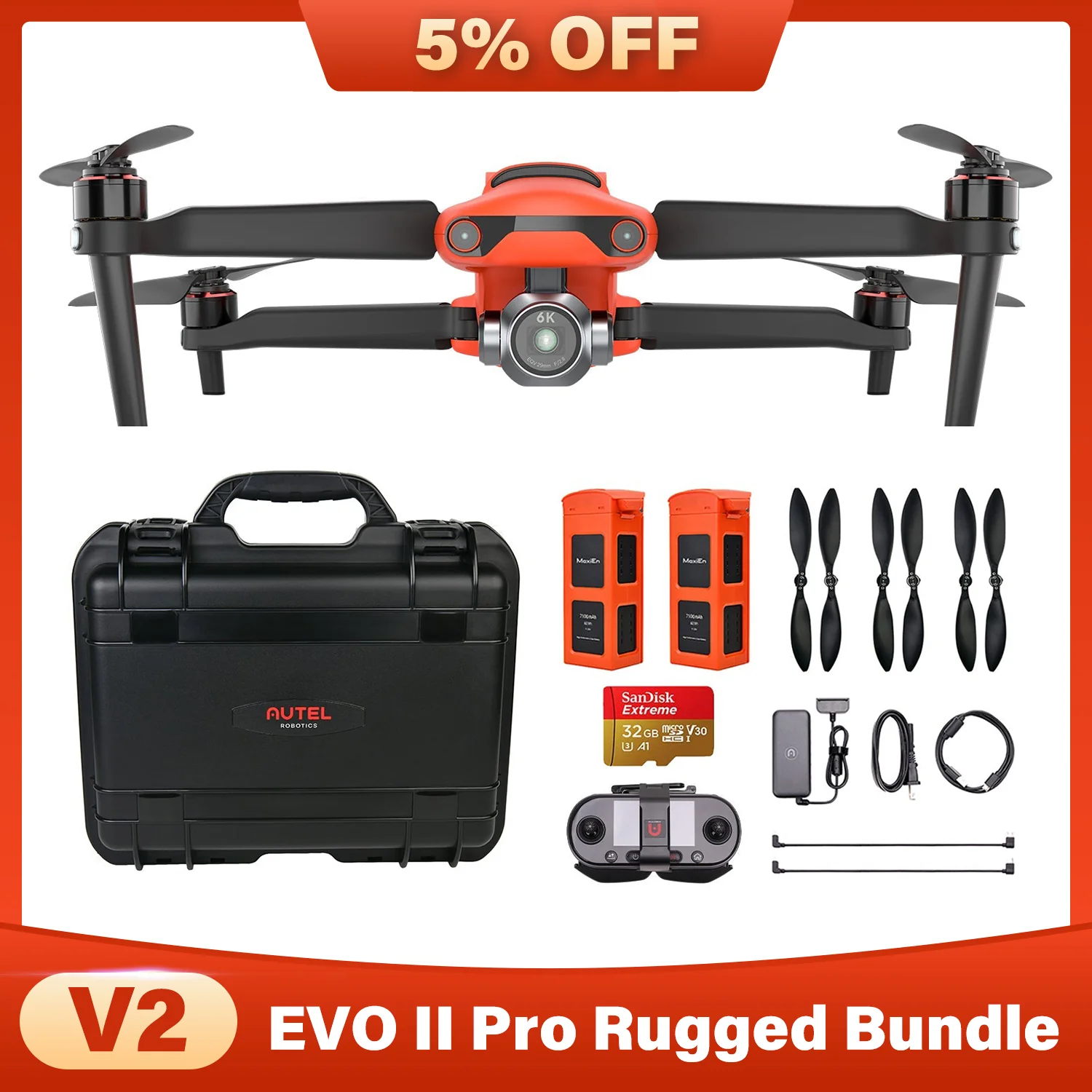

Autel EVO II Pro Rugged Bundle
