Autel Robotics EVO II Dual 640T Infrared [V2] Thermal Drone Enterprise Rugged Bundle, 640*512 Thermal Camera, 42Min Max Flight Time, 360° Obstacle Avoidance
Autel Robotics EVO II Dual 640T Infrared [V2] Thermal Drone Enterprise Rugged Bundle, 640*512 Thermal Camera, 42Min Max Flight Time, 360° Obstacle Avoidance
- In Stock - Ship From The US
- 3-Day Delivery Guarantee
- 640*512 Thermal Imaging Resolution
- 10 Thermal Color Palettes
- 8K Video, Unmatched Clarity
- 360°Obstacle Avoidance
- Maximum Efficiency In All Viewing Conditions

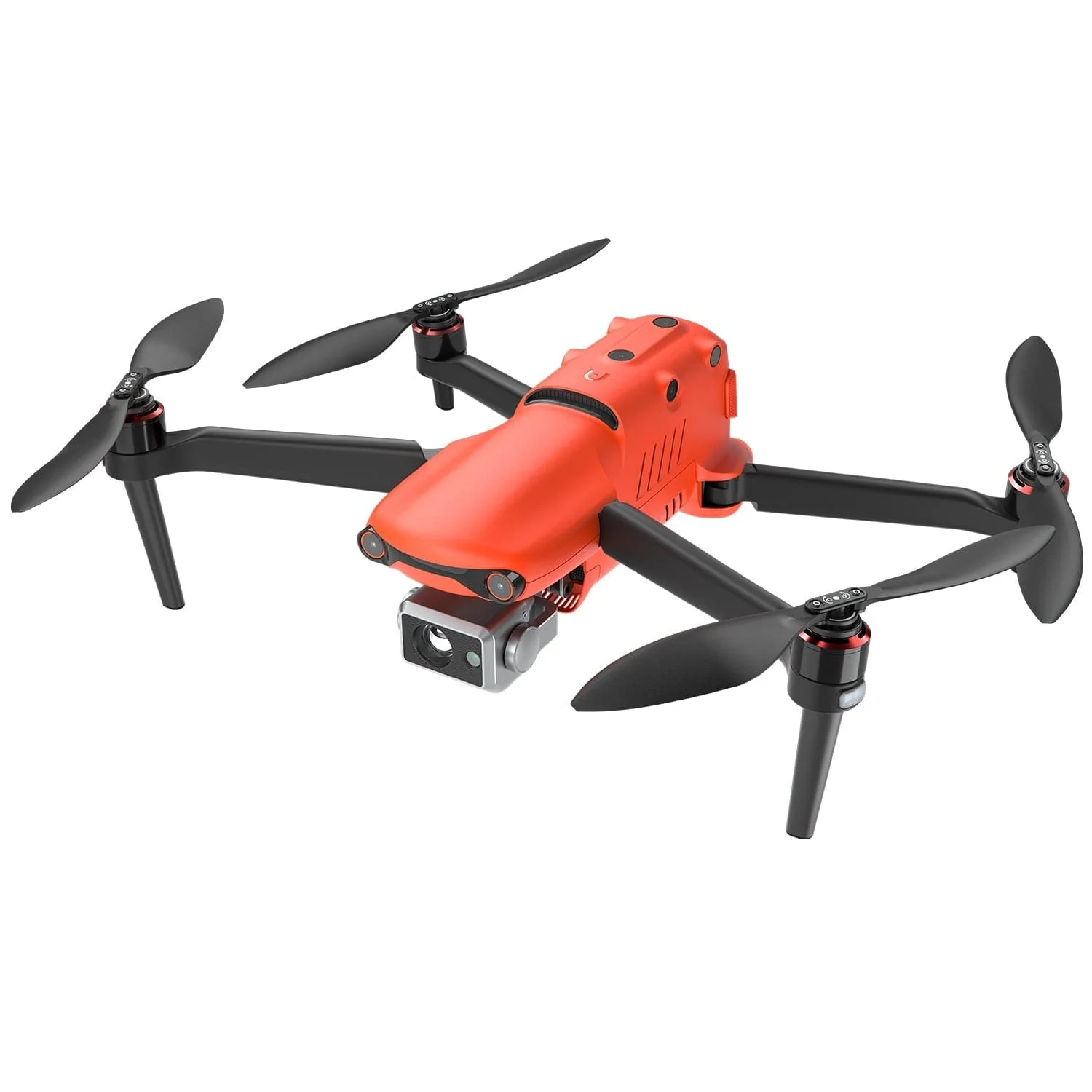

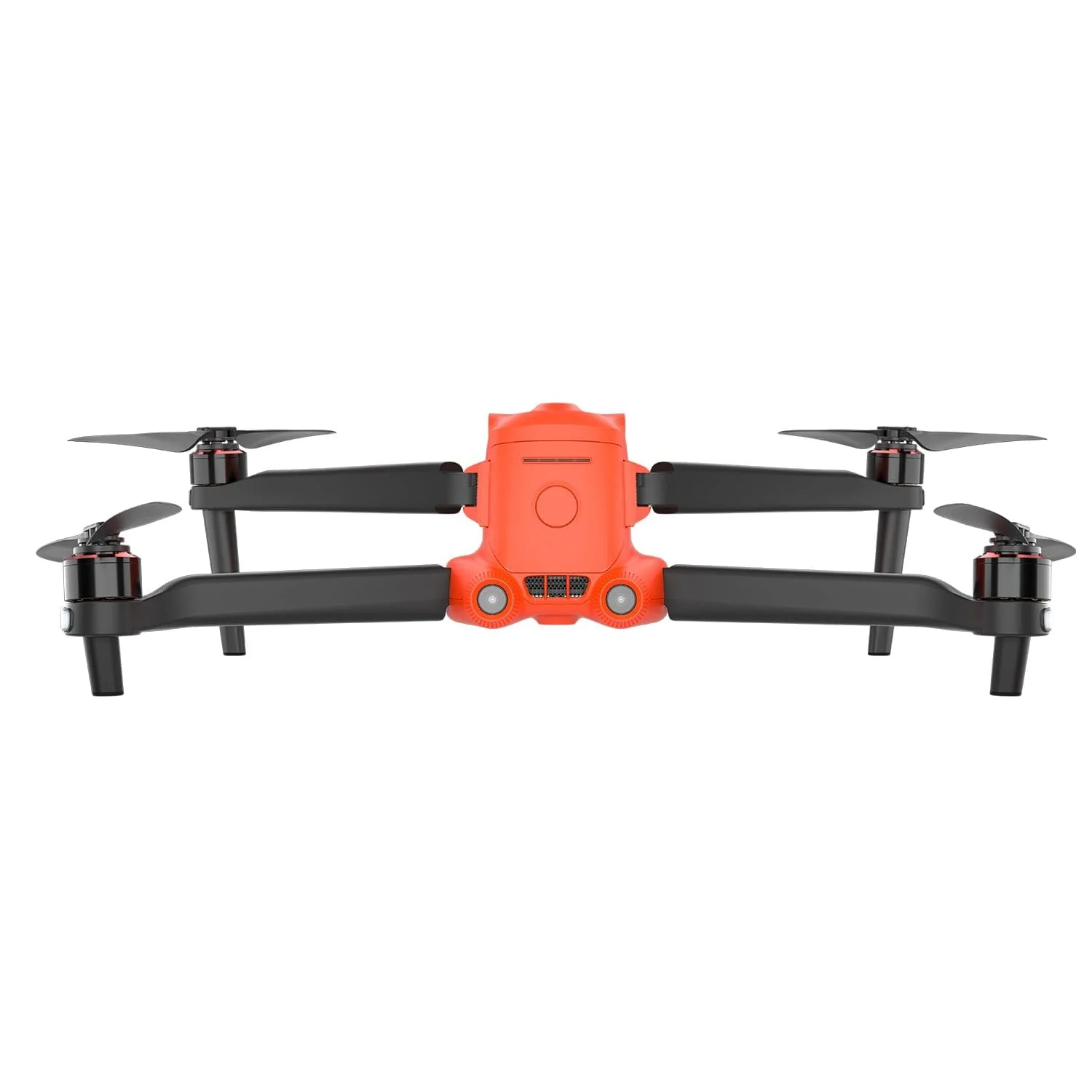

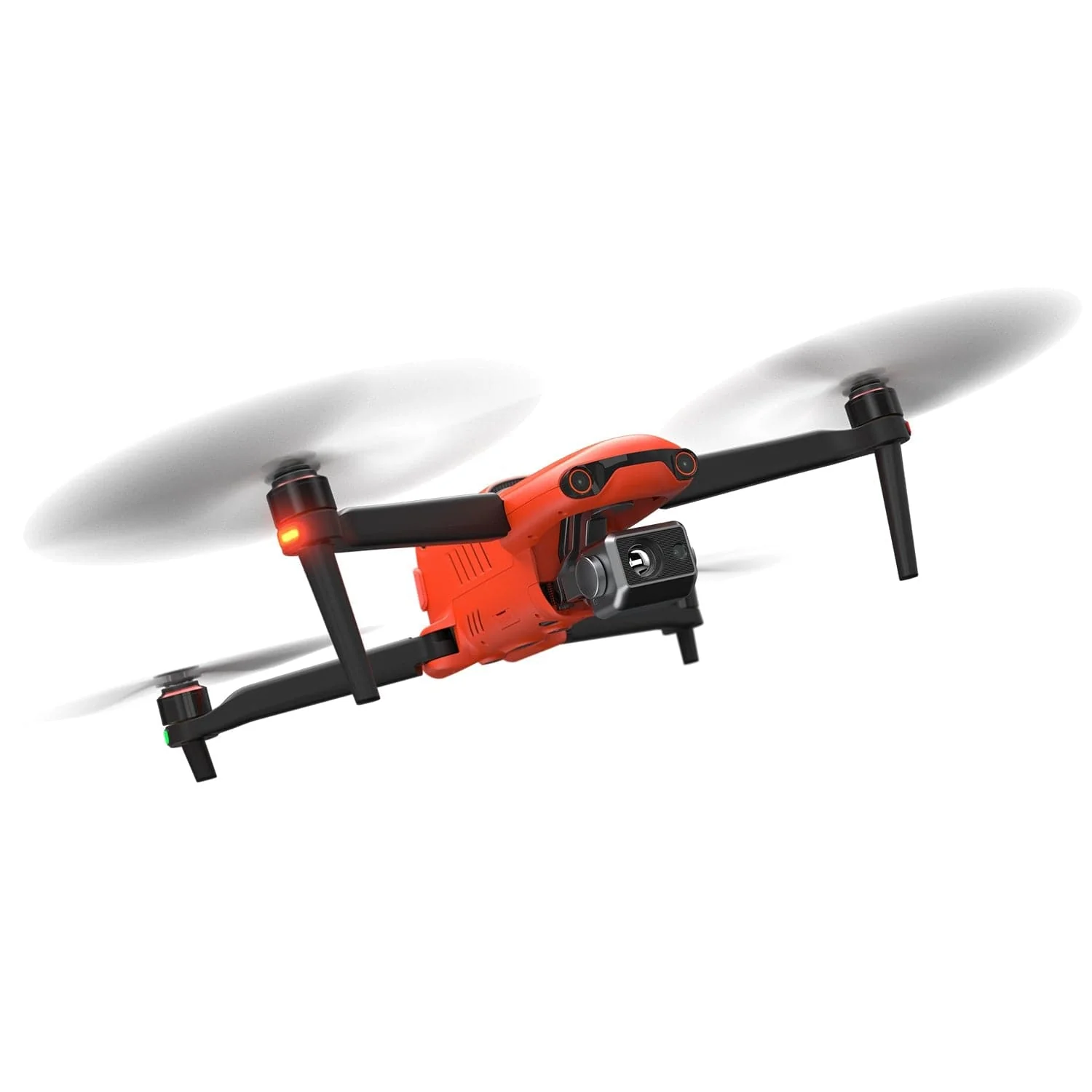

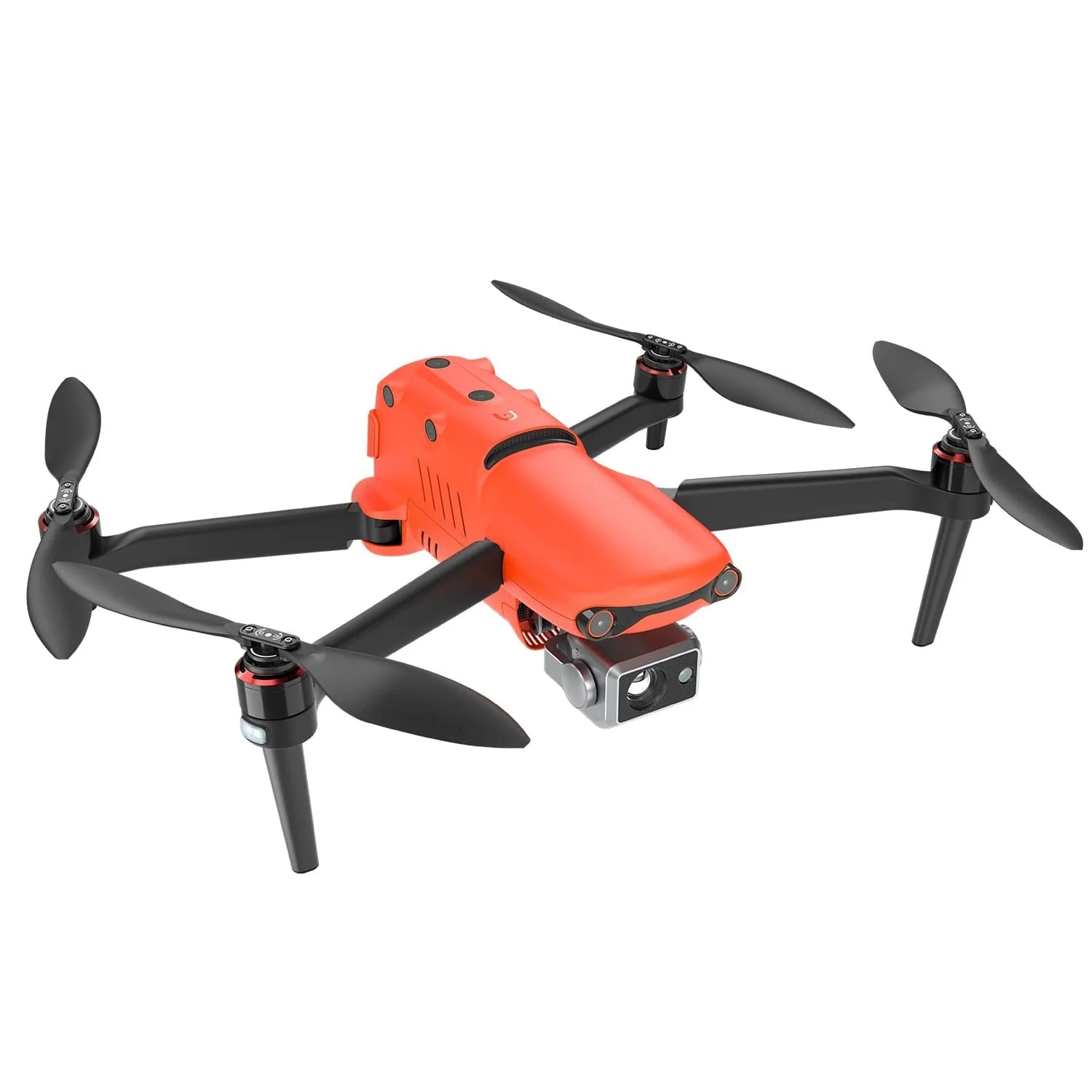

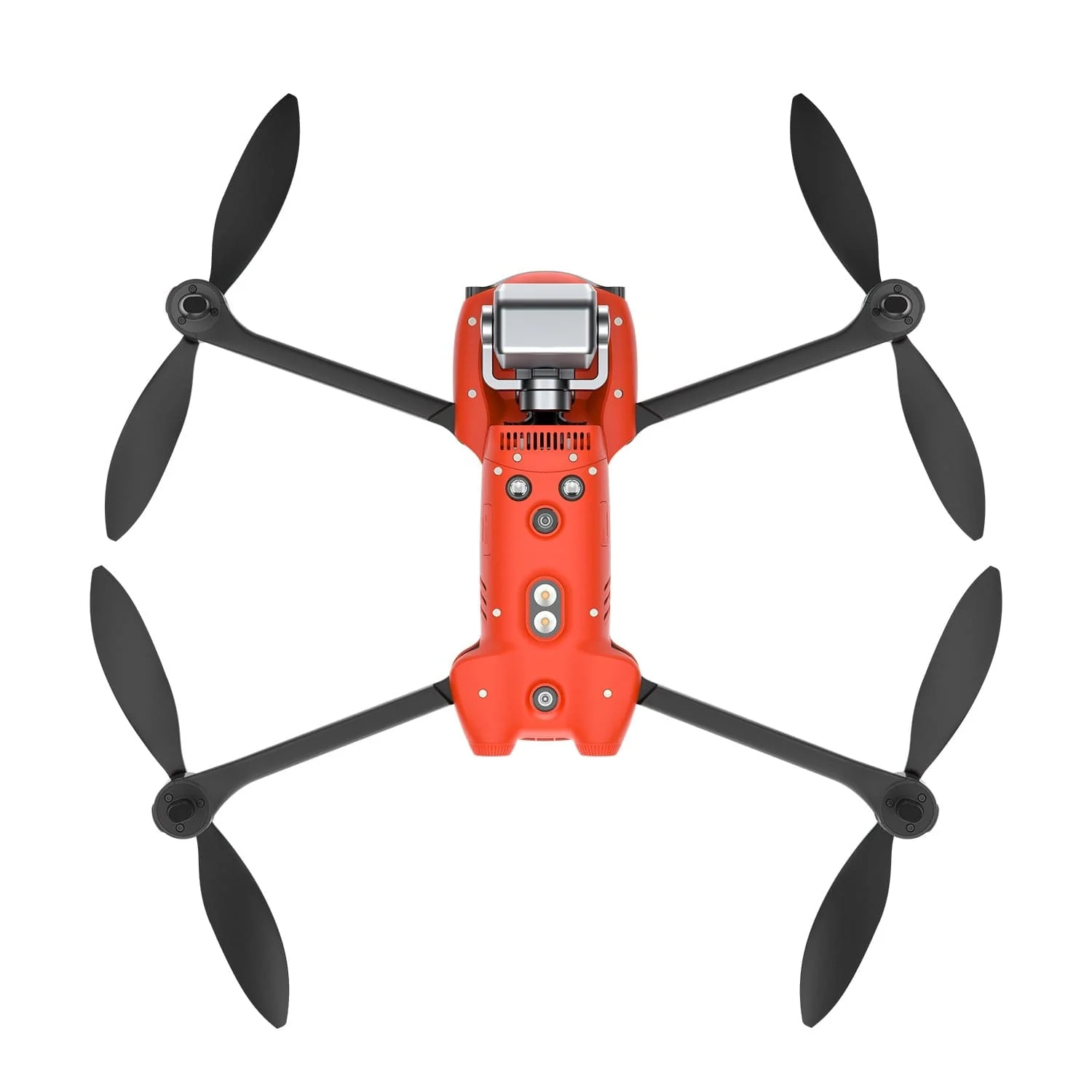

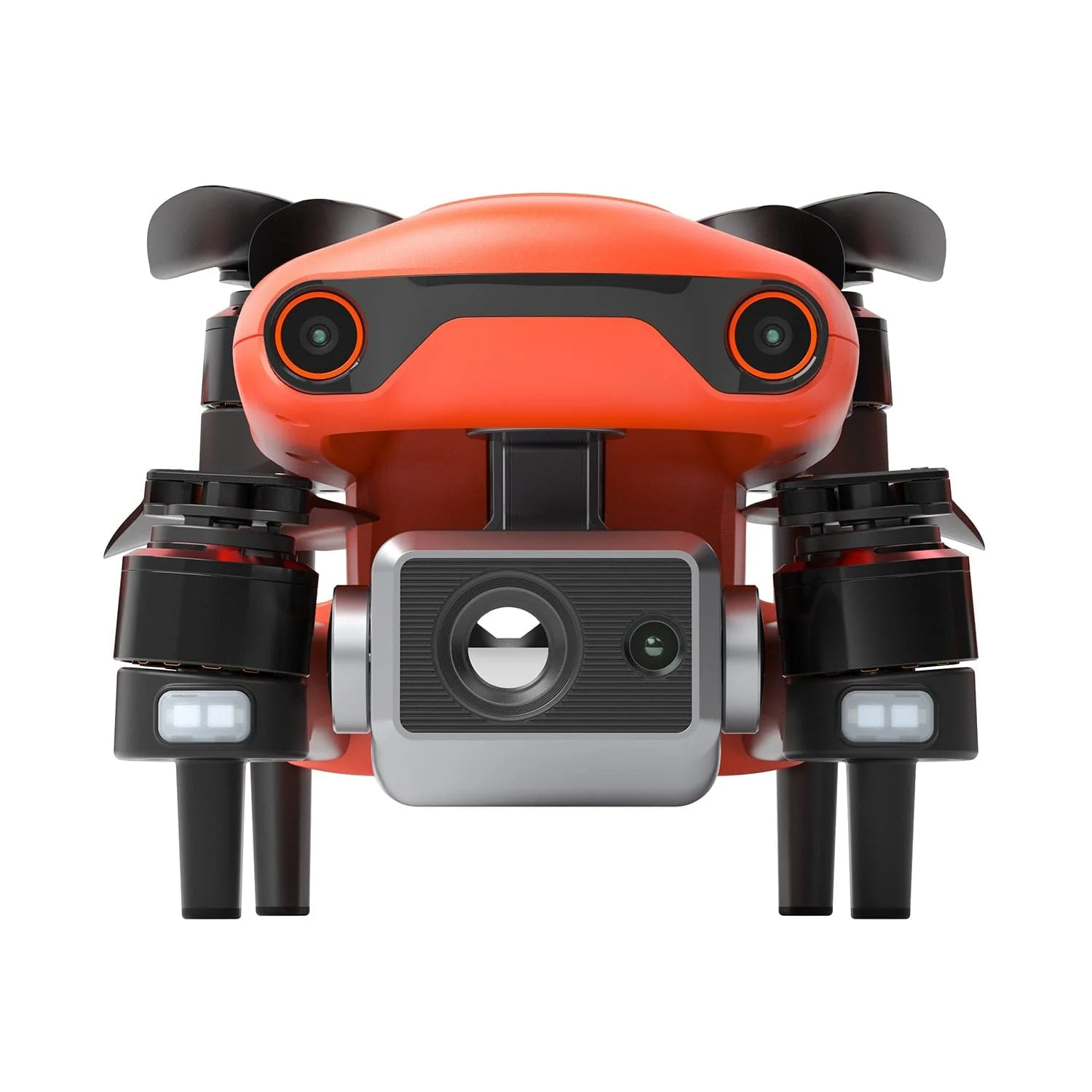

Autel Robotics EVO II Dual 640T Infrared V2 Thermal Drone
The Autel EVO 2 Dual 640T thermal imaging drone is the industry's first drone to combine an infrared imaging camera with an 8K camera. The thermal imager has a resolution of up to 640x512, allowing pilots to see deep details in dark environments. Enterprise drones take us deeper than just video production, photography, mapping, 3D modeling and inspection, and more for asset/infrastructure inspection, public safety, and wildlife management.
EVO II Dual 640T Enterprise V2 Top Highlights
Autel EVO II Dual 640T Drone with 8K Camera and IR Imaging Camera
Dual-sensor camera: Includes 8K camera and infrared imaging camera. It can operate in visible light, infrared and dual image modes. Additionally, the camera captures infrared images at 640 x 512 (640) or 320 x 256 (320) resolution and records 720p video in dual image mode at 30 fps. Standard 13mm lens, 16x digital zoom, can identify objects up to 100 meters away.
Highest Efficiency in All Viewing Conditions
The EVO II Dual 640T supports up to 10 thermal palettes, enabling pilots to deal with a variety of complex shooting environments and mission scenarios.

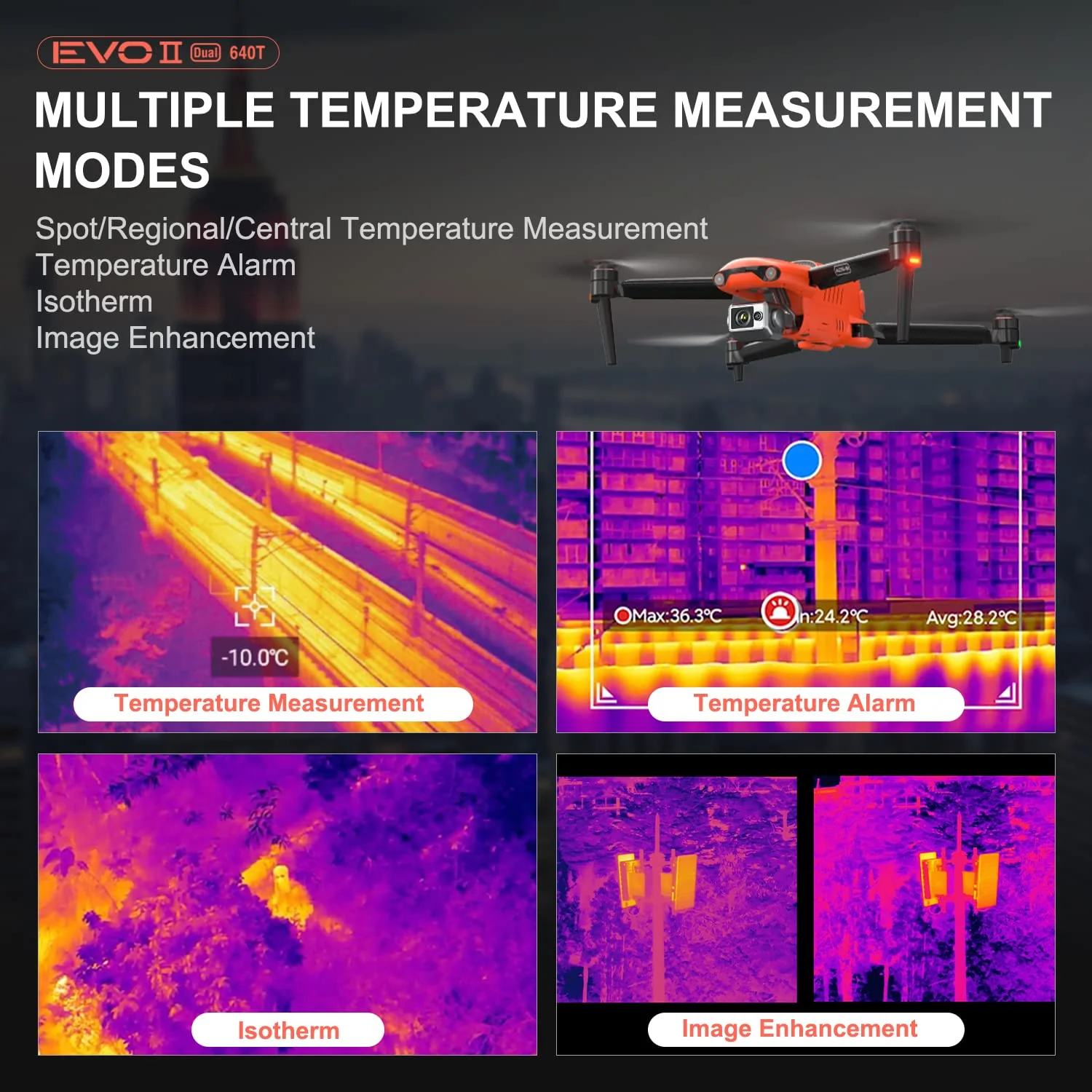

Spot Temperature Measurement
Regional Temperature Measurement
Temperature Alarm
Central Temperature Measurement
Isotherm
Image Enhancement
Picture-in-Picture Mode (Enhanced Situational Awareness)
Visual and thermal images combine to help users quickly interpret data and help make critical decisions.
Powerful Infrared Thermal Analysis Tool(IRPC)
This free temperature measurement analysis tool is developed for the 640T, and enables users to quickly import images, edit and analyze temperature measurement, and to generate detailed reports for sharing and coolaboration.(Select the "Word" icon Export report. Generate analysis report)

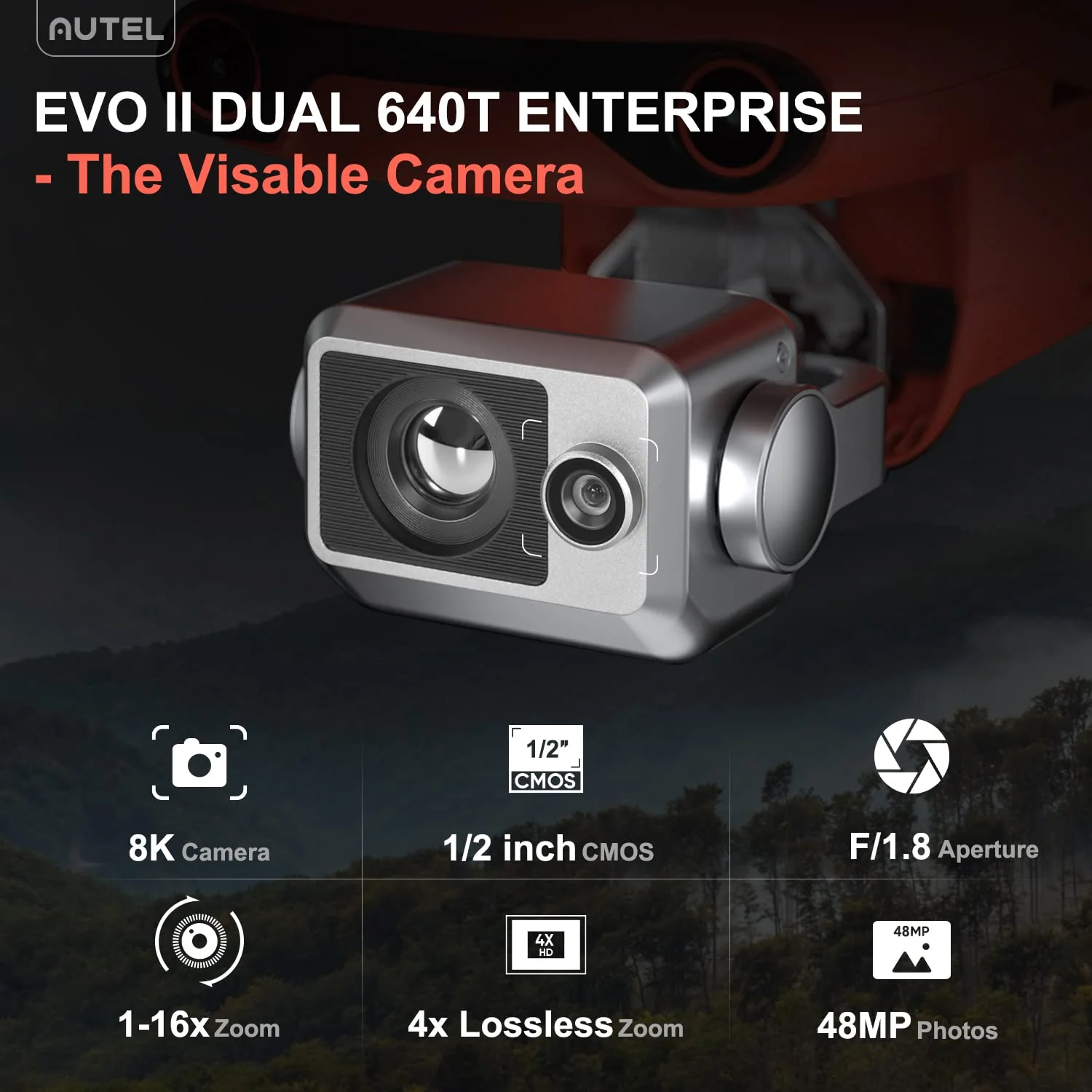

The Visiable Camera--High-resolution Imaging
8K Video, Unmatched Clarity
EVO II Dual 640T records in resolutions up to 7680x4320. With 4 times more pixels than 4K (and 16 times more than HD), 8K videos redefine image clarity and depth.
48MP Camera
The 48MP sensor captures every forensic-relevant detail to assist in precise evidence capture. Both thermal and RGB images are provided with embedded metadata, making the EVO II Dual 640T the ultimate public safety tool.
4K HDR For Greater Dynamic Range
4K HDR offers greater detail in highlights and shadows, providing higher-quality images from the most demanding environments
Powerful Telephone Zoom
The high resolution provides the ability to zoom deep into a scene and crop an image or video to 4K without any loss in quality. Capture a scene, zoom in, and reframe your shots with ease.
Mission Planner
Rectangular and Polygon mission planners - Those are going to be great for anybody that's dealing with photogrammetry. So anybody that needs to be able to capture a lot of images in a rectangular mission or polygon mission, you're going to be able to do that in an autonomous fashion. Then you're going to be able to take EVO II Dual 640T's images and upload them to your 3D mapping.
360° Obstacle Avoidance
This advanced technology helps to ensure safe and efficient navigation even in challenging environments, such as tight spaces or areas with limited visibility. The EVO II Dual 640T is capable of performing autonomous flights, allowing you to focus on capturing high-quality thermal images and data. With its powerful sensors and advanced navigation system, the EVO II Dual 640T is a valuable tool for any inspection, survey or rescue mission.
Dynamic Track 2.0
The EVO II Dual 640T can model the location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.
Modular Design - Unlimited Expansion
Reliable Data Encryption
Protect sensitive information through encrypted internal and external storage, allowing users to work with confidence.
Superior Flight Performance
EVO II Enterprise has powerful flight performance, and is equipped with a new power system and carbon fiber structure design. The aircraft adopts the industry-leading dual-frequency image transmission system inside, which has strong anti-interference ability and can output high-definition images up to 1080p.
ADS-B Receiver
Intelligent detection of nearby manned aircraft emitting ADS-B signals gives drone operators ample time to take evasive action to avoid mid-air collisions.
All Cameras interchangeable
Autel EVO II Series Dones is one aircraft with three camera options. All cameras for Evo II can be purchased separately and are interchangeable!

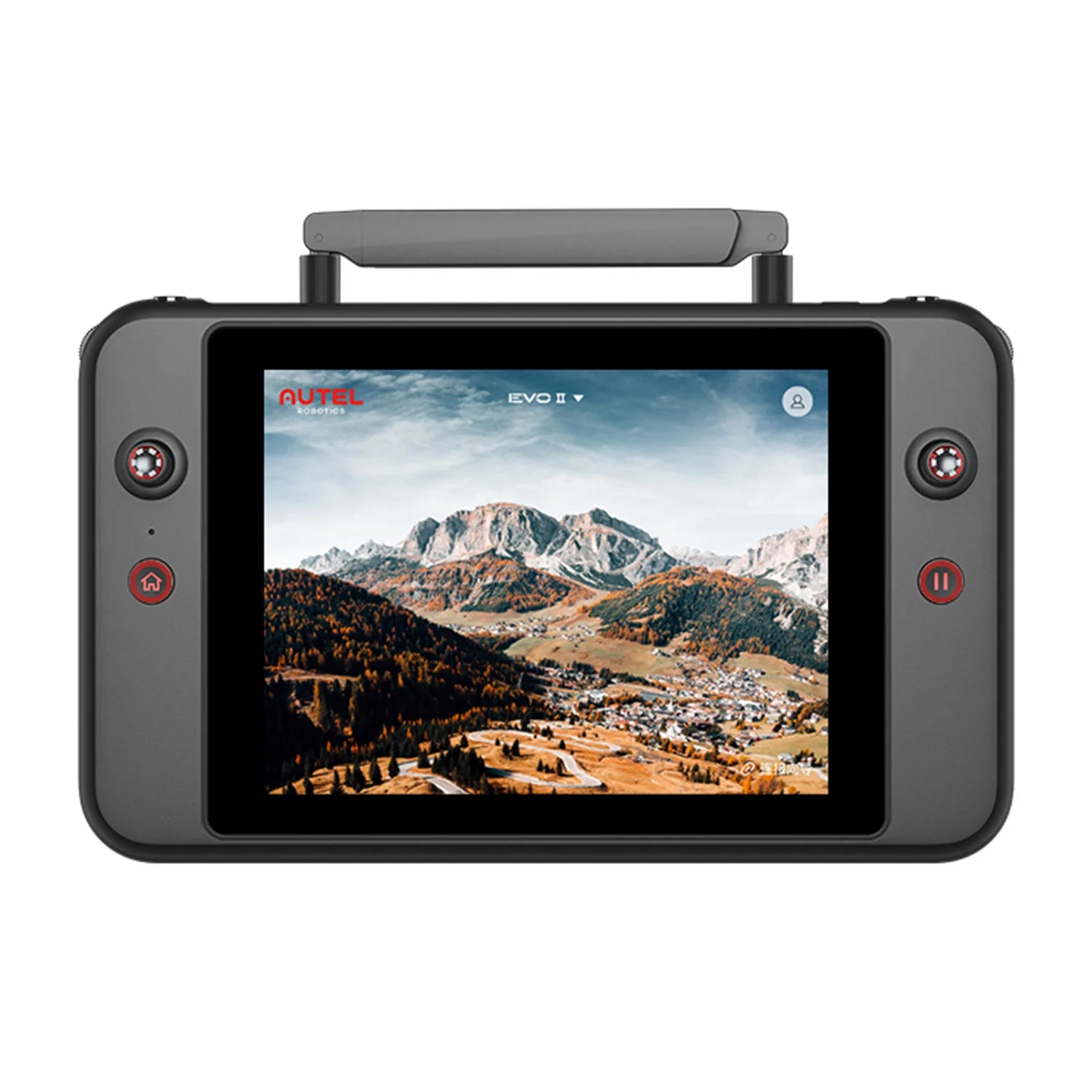

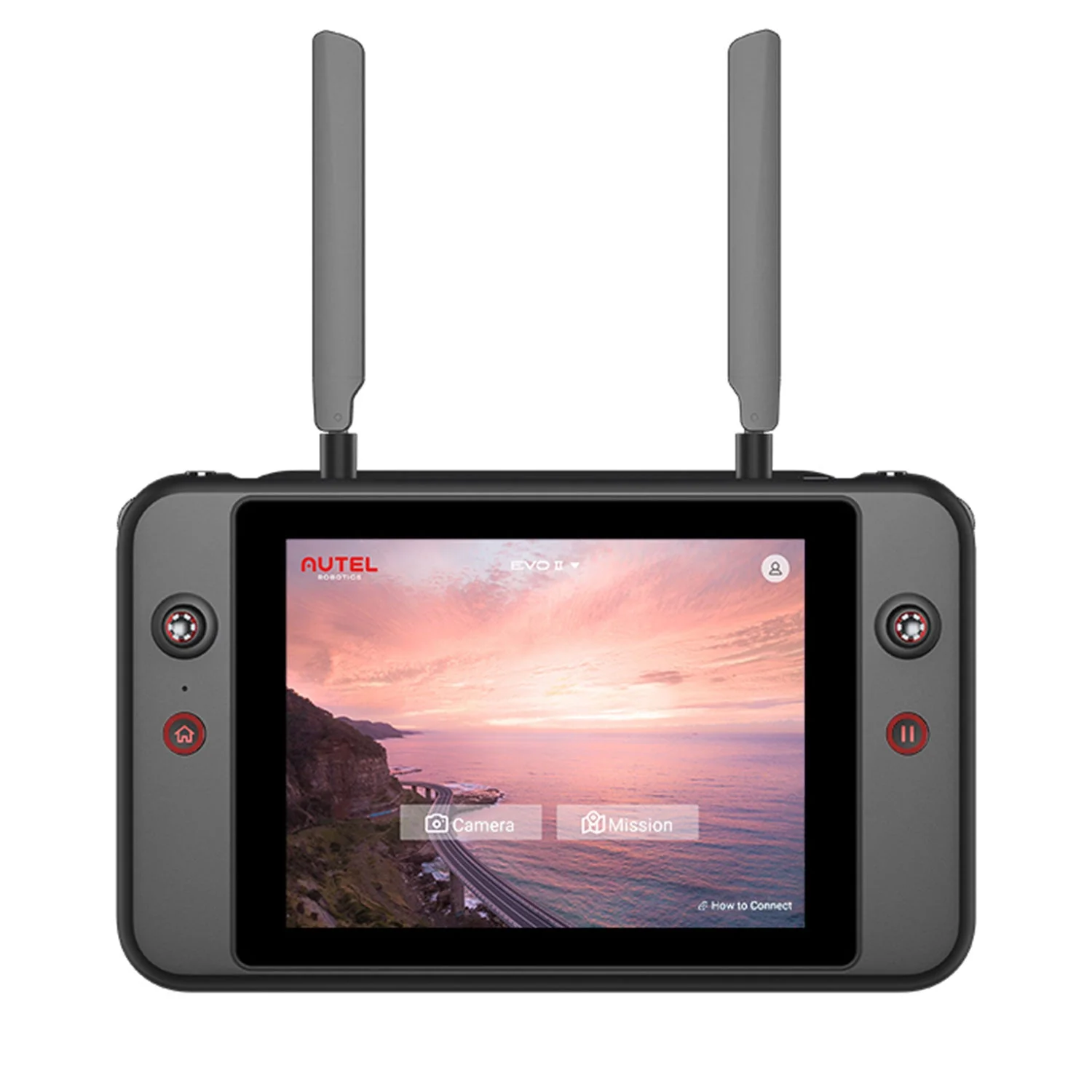

Autel Smart Controller
EVO II Dual 640T Rugged Bundles are equipped with Autel's 7.9" 2000-nit Smart Controller for maximum viewing when operating. This 7.9" Smart Controller from Autel Robotics features a 2000-nit display, 4.5 hours of runtime, 128GB of internal storage and a customized Android operating system that allows for 3rd party apps to be downloaded and installed.

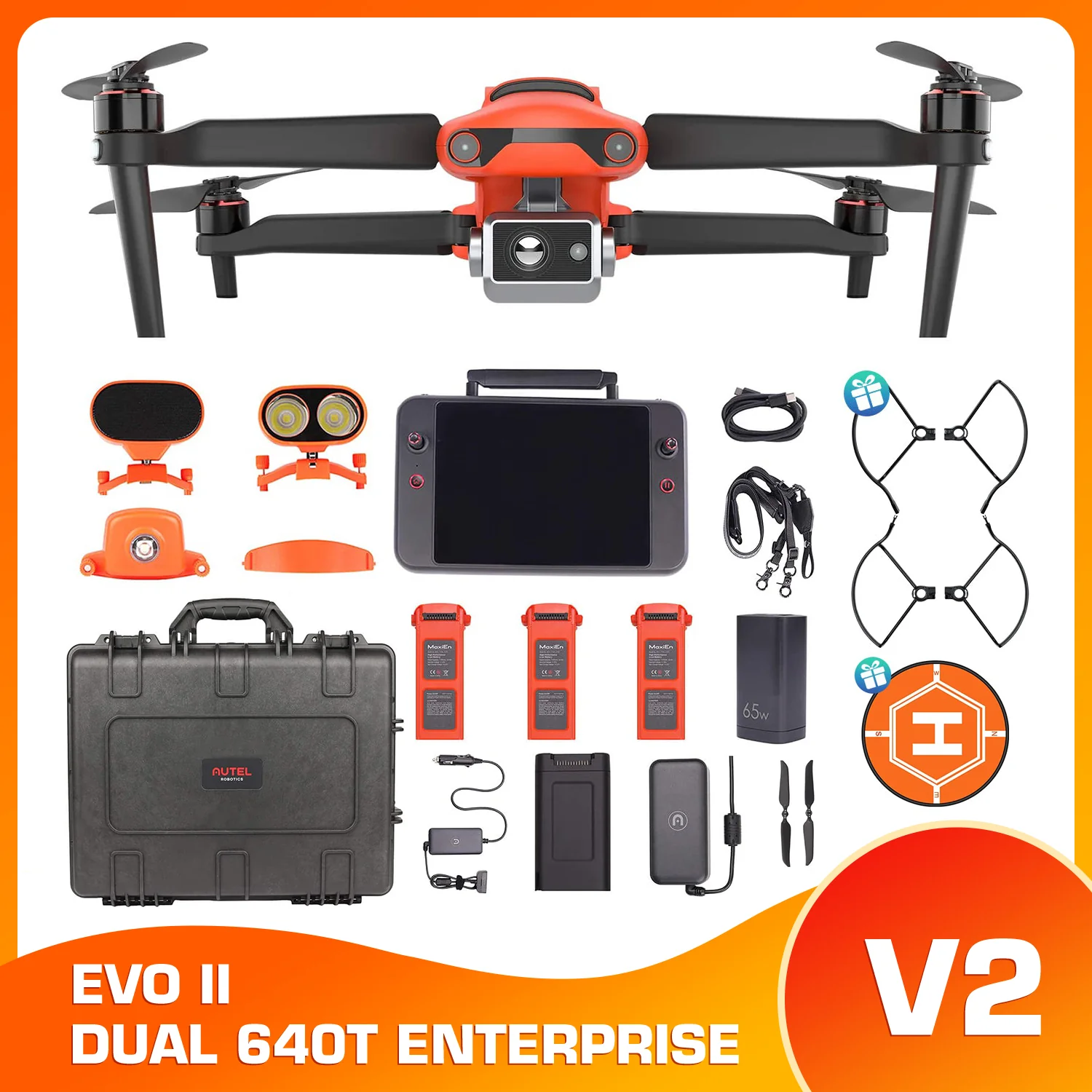

Enterprise Bundle Accessories
Autel Robotics EVO II Dual 640T Enterprise V2 will come with 3 enterprise level accs: Strobe,Spotlight,and Loudspeaker.With Strobe Module,it will indicate the location of the drone at night to avoid accident. With Strobe Module,it will indicate the location of the drone at night to avoid accident. With Spotlight Module,it beams a powerful and long distance light when searching at night. With Loudspeaker Module,Enables effective on-site communication through long-distance live broadcasts and prerecorded audio loops.
EVO II Dual 640T Enterprise V2 Wide Application
EVO II Dual 640T in Police Use
An Autel EVO II Dual thermal drone saved the day for a Nevada sheriff’s department when a suspect fleeing into the cover of darkness could be located because of his “heat signature.” While one suspect was apprehended pretty quickly, the other fled the scene on foot into the night.Typically, when that happens, the person running gets away because there’s not a great way to maintain visuals in the dark. However, Greenhut used the EVO II’s thermal camera to explore the area until he found the suspect attempting to hide behind a tree. Greenhut locked the drone’s sight in on the man until backup arrived to arrest him.
EVO II Dual 640T In Industrial Inspection
The EVO II 640T uses an 8K Visual Spectrum Sensor and 640 Radiometric Thermal Sensor, giving inspectors the ability to perform multiple roof inspections in half the time it takes by conventional methods. Our drone kits will not only allow you to visually inspect the entire building , but also use thermal technology to check for hot spots. This enables you to safely and quickly check the status of the structure. As well as to help you identify defects, leakage, and corrosion issues, without having to spend on additional personnel and equipment.
EVO II Dual 640T In Search and Rescue operations
Autel EVO II 640T Thermal Drone is a versatile and reliable tool for search and rescue operations. With its high-resolution thermal imaging camera, long flight time, and accurate positioning capabilities, this drone is designed to assist search and rescue teams in finding and rescuing victims in a timely and effective manner.
EVO II Dual 640T In Wildlife Management
Maximize your livestock protection with the advanced thermal imaging capabilities of the Autel 640T drone. As a leading solution in the industry, the EVO II Dual 640T provides peace of mind for farm owners by detecting potential threats, such as predators, that could cause harm to farm animals. With its thermal imaging technology, even the most elusive creatures, like Wild Boar, can be easily located and counted. This reliable and effective tool ensures the safety and security of your livestock, making the Autel EVO II Dual 640T an indispensable asset for any farm owner.
EVO II Dual 640T In Residential Roof Inspection
Inspect and document the exterior condition of shingle, tile, or slate roof structures with ease using the high-resolution visible imaging capabilities of the Autel EVO II Dual 640T drone. Utilizing unmanned aerial vehicle (UAV) technology, this drone provides a detailed view of the roof, allowing you to easily observe hail damage, wind damage, openings in the roof, cracked tiles, and much more. When water gets on the surface of the membrane, it creates a higher temperature that can be easily detected using the infrared imaging capabilities of the Autel 640T. This versatile tool makes roof inspections quicker, safer, and more efficient, delivering reliable results every time.
Why Choose Autel EVO II Dual 640T Enterprise?
1. Thermal Imaging Sensor for Multiple Temperature Measurement Modes: EVO II Dual 640T Enterprise V2 thermal imaging sensor has a resolution of up to 640x512@30 fps. It also comes standard with a 13mm lens, 16x digital zoom, and is capable of recognizing subjects at distant. The built-in infr-ared sensors and high-speed processors, provides a variety of temperature measurement functions, easy to catch temperature data: Spot/Regional/Central/Temperature Alarm/Isotherm/Image Enhancement.
2. High-End Rescue Equipment: EVO II Dual 640T enterprise V2 has an fully improved high-quality imaging system, upgraded 15km (9.3 miles) image transmission range, and additional modular accessories(strobe/spotlight/loudspeaker), which help you meet a variety of use cases including insp-ection, search and rescue, mapping, public safety and more.
3. SkyLink Touch Screen V2 Smart Controller: EVO II Dual 640T Enterprise V2 is upgraded with Autel new system - SkyLink, allows video transmission from up to 9km away and Image Quality up to 2.7K, supports 2.4GHz / 5.8GHz / 900MHz tri-band communication and can automatically frequency change for maximum anti-interference capability. It also comes with touch screen V2 smart controller which is 4 times brightness than ordinary mobile devices.
4. All Details Captured By Autel Camera: The 0.8-inch RYYB CMOS sensor and Moonlight Algorithm suppress image noise in limited-lighting conditions, making tar-get location, identification, and classification easier than ever. Also paired with the 50 megapixel camera, EVO II Dual 640T V2 helps you capture every picture detail.
[spec]
EVO II Dual 640T Specs
EVO II Dual 640T Camera Specifications (Infrared Camera + Visible Light Camera)

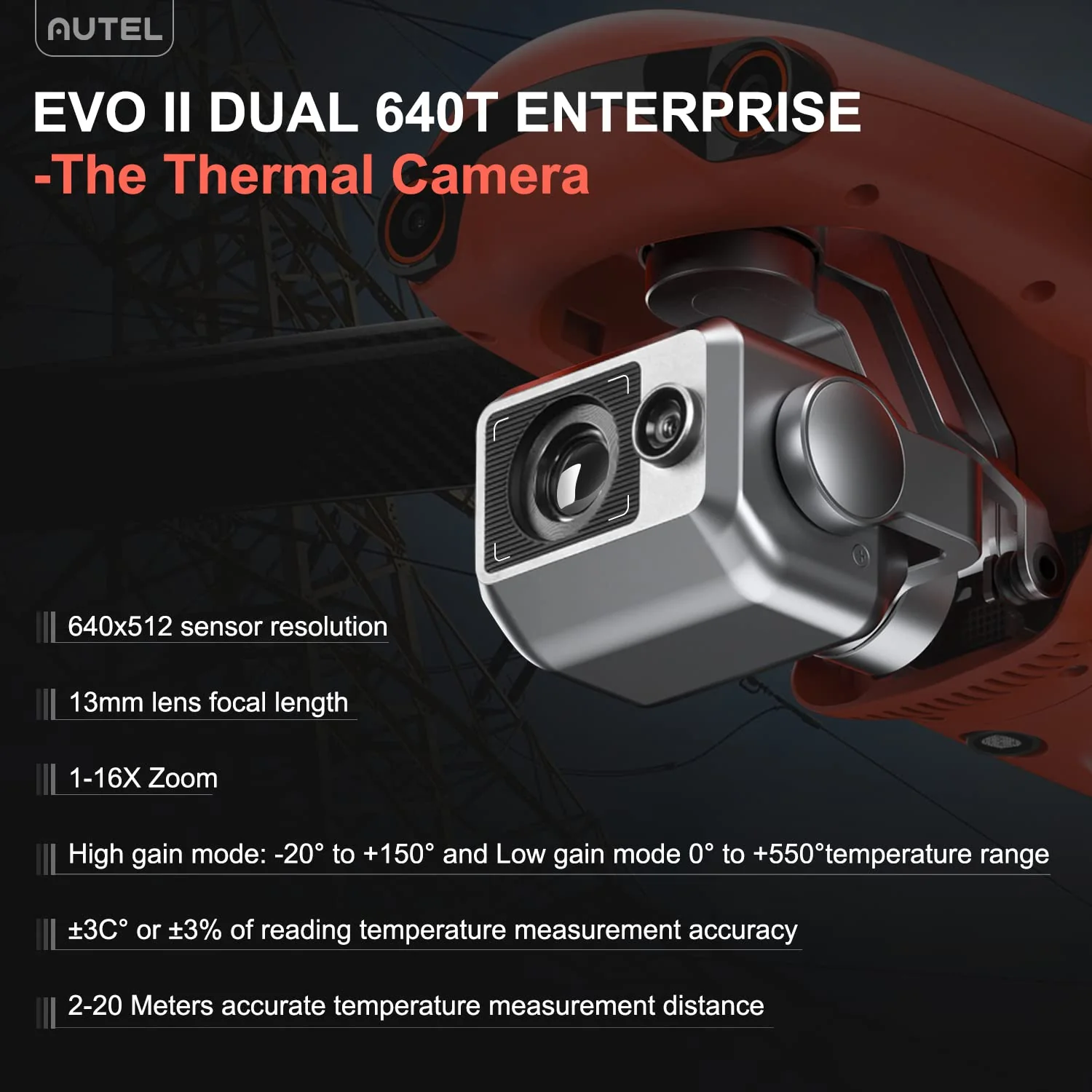

EVO II Dual 640T Infrared Camera Specifications
| Sensor | Vanadium oxide uncooled infrared focal plane detector |
| Lens | Viewing angle H33°V26° Focal length 13mm |
| Zoom | 1-8x |
| Sensor Resolution | 640x512 |
| Pixel Size | 12μm |
| Wavelength Range | 8 - 14μm |
| Temperature Range | High gain mode: -20° to +150° Low gain mode: 0° to +550° |
| Temperature Measurement Accuracy | ±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃ |
| Video Resolution | 640x512@30fps |
| Bit rate | 6Mbps |
| Video Format | MOV / MP4 (Support H.264/H.265) |
| Camera Resolution | Infrared mode: 640*512 Picture-in-picture mode: 1920*1080, 1280*720 |
| Photo Mode | Single shot Continuous shooting: 3, 5, 3 by default; Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, the default is 5S. |
| Photo Format | TIFF+JPG (with irg file) |
EVO II Dual 640T visible light camera specifications
| Sensor | 1/2" CMOS Effective Pixels: 48 MP |
| Lens | FOV: about 79° 35mm Format Equivalent: 25.6 mm Aperture: f/1.8 Focus range: 0.5 m to infinity (with auto focus) |
| Digital Zoom | 1 ~ 8x (Max. 4x lossless zoom) |
| ISO Range | Video: 100-6400 Photos: 100-3200 |
| Shutter Speed | Electronic Shutter: 8 ~ 1/8000s |
| Maximum photo size | 8000x6000 (4:3) 7680x4320 (16:9) 4000x3000 (4:3) 3840x2160 (16:9) |
| Still Image Format | JPEG / DNG / JPEG+DNG |
| Photo Modes | Single shot; Continuous shooting (AEB/Burst): 3, 5, 3 by default; Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S; Pure night shot: support 4K Jpeg; HDR: Support 4K Jpeg; Long exposure: up to 8s; |
| Image Format | JPG (default); DNG |
| Video Resolution | 8K 7680*4320 p25/p24 6K 5760*3240 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24 |
| Video Format | MP4 / MOV format (MPEG-4 AVC/H.264, HEVC/H.265) |
| Max Video Bitrate | 120Mbps |
Gimbal
| Gimbal | Three-axis stabilization |
| Mechanical Range | Tilt: -135° to +45° Heading: -100° to +100° |
| Controllable Range | Tilt: -120° to +30° Heading: -90° to +90° |
| Maximum Control Speed (Tilt) | 300°/s |
| Angle Jitter | ±0.005° |
Aircraft
| Weight (with propeller and battery) | 1237g±0.5g |
| Wheelbase | 397 mm |
| Maximum Take-off Altitude | 6000 m |
| Max Ascent Speed | 5 m/s（automatic flight） 8 m/s（manual control） |
| Max Descent Speed | 4 m/s |
| Max Horizontal Flight Speed | 72 km/h（positioning mode） |
| Max Tilt Angle | 33°（positioning mode） |
| Max Angular Velocity | 120°/s |
| Max Flight Time | 38 minutes |
| Operating Temperature Range | 0℃ to 40℃ |
| Maximum Resistance to Wind | 39-46 mph (Level 8) |
| Operating Frequency | 2.400 GHz to 2.4835 GHz |
| Transmission Power (2.4G) | FCC：≤26 dBm ISED：≤26 dBm CE：≤20 dBm RCM：≤20 dBm SRRC：≤20dBm |
| Hovering Accuracy | When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m RTK is not enabled: vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS positioning works normally) Level: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS positioning works normally) |
| Image Position Compensation | The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively. |
Sensing System (Obstacle Avoidance)
| Sensing System | Omnidirectional Obstacle Sensing |
| Forward | Precision Measurement Range: 0.5-20 m Detectable Range: 0.5-40m Effective Sensing Speed: <15m/s FOV: Horizontal: 60°, Vertical: 80° |
| Backward | Precision Measurement Range: 0.5-16 m Detectable Range: 0.5-32m Effective Sensing Speed: <12m/s FOV: Horizontal: 60°, Vertical: 80° |
| Upward | Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <6m/s FOV: Horizontal: 60°, Vertical: 50° |
| Downward | Precision Measurement Range: 0.5-11 m Detectable Range: 0.5-22m Effective Sensing Speed: <6m/s FOV: Horizontal: 90°, Vertical: 70° |
| Sides | Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <10m/s FOV: Horizontal: 60°, Vertical: 50° |
| Operating Environment | Above: The surface has rich textures and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment); the surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) Below: The ground has rich textures and sufficient lighting conditions (> 15 lux, indoor fluorescent lamp is normally irradiated by the environment); the surface is made of diffuse reflective material and the reflectivity is> 20% (such as walls, trees, people, etc.) |
Remote Controller and Image Transmission
| Operating Frequency | 2.400 GHz to 2.4835 GHz |
| Max Transmission Distance | FCC：9 km（without interference or obstruction） CE：5 km（without interference or obstruction） |
| Real-time Image Transmission Quality | 720p@30fps / 1080p@30fps |
| Maximum Bit Rate of Real-time Image Transmission | 40Mbps |
| Transmission Power (2.4G) | FCC：≤26 dBm ISED：≤26 dBm CE：≤20 dBm RCM：≤20 dBm SRRC：≤20dBm |
| Display screen | 3.26" OLED 854（W） * 480（H）Pixel Directly preview the video without connecting a mobile phone |
| Remote Controller Battery | 5000mAh |
| Run Time | 3 hours |
| Charging Time | 2 hours fast charge |
| Supported Mobile Device Size | Max Length: 3.30" (84mm) Max Thickness: 0.51" (13mm) |
| Supported USB Port Types | Lightning, Micro USB (Type-B), USB-C |
| Working current/voltage | [email protected] |
Intelligent Flight Battery
| Capacity | 7100 mAh |
| Voltage | 11.55 V |
| Max Charging Voltage | 13.2 V |
| Battery Type | LiPo 3S |
| Energy | 82 Wh |
| Net Weight | 0.81 lbs (365 grams) |
| Charging Temperature Range | 41°F to 104°F (5°C to 40°C) |
| Storage Temperature and Humidity | -10~30℃，65±20%RH |
| Recommended Storage Temperature | 22-28℃ |
| Max Charging Power | 93W |
| Charging Time | 90 minutes |
Intelligent Flight Battery Manager
| Voltage | 13.2 V |
| Charging Temperature Range | 5℃ to 45℃ |
Charger
| Input | 100-240 V, 50/60 Hz, 1.5A |
| Output | 13.2 V = 5 A 5V=3A 9V=2A 12V=1.5A |
| Voltage | 13.2±0.1V |
| Rated Power | 66W |
Introducing: Commercial Applications for EVO II
EVO II Dual 640T Thermal Imaging Demonstration
EVO II Dual 640T: Thermal Analysis Tool Overview
[accessories]
Autel EVO II Dual 640T Enterprise Rugged Bundle
*If you need certification from other countries or regions, please contact us.
[faq]EVO II Dual 640T Enterprise [V2] FAQ
Q: What is it used for of the expanded accessories?
A：
The bundle includes 3 expanded accessories:
1. Spotlight: It can beam a powerful, long-distance aerial light when searching at night.
2. Strobe Light: It can indicate the location of the aircraft at night to avoid air traffic accidents.
3. Loudspeaker: It enables more effective on-site communication through long-distance telephony and audio loops.
Please note that the drone can also be compatible with RTK module(the RTK module is not included in this bundle, please get it separately) which can provide centimeter-accurate positioning data to complete a mapping mission.
Q: Is the evo ii dual 640t enterprise waterproof?
A： No, the EVO II Dual Enterprise is not waterproof. Please do not fly on rainy days.
Q: How long does it take to fully charge the battery?
A： It takes about 90 minutes to fully charge each battery.
Q: Does the camera gimble have the ability to look straight down (full vertical)?
A： Yes it does

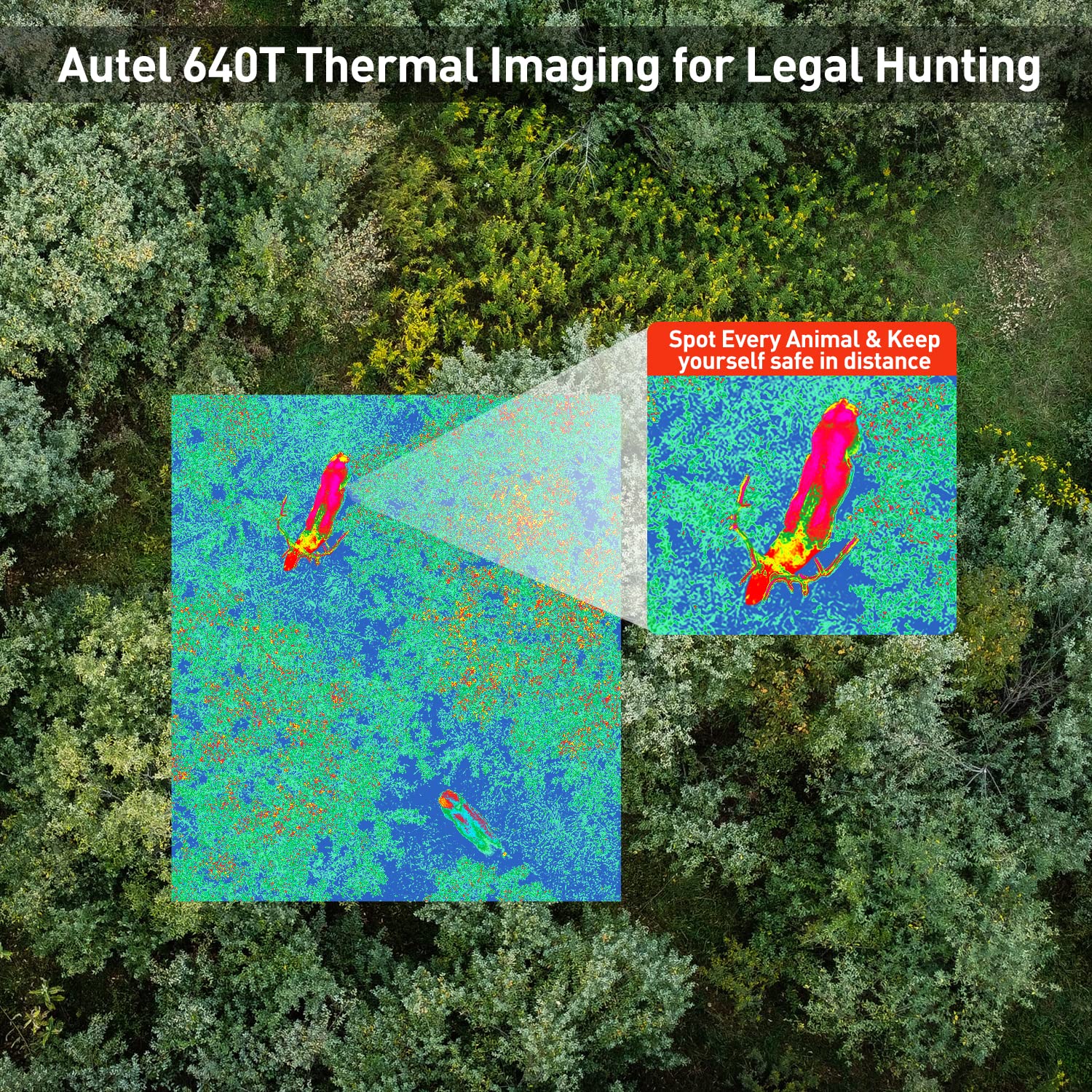

Q: Can this drone be used in hunting area?
A： Yes, the thermal imaging cameras of this drone can help you pinpoint the location of animals, improving hunting efficiency and accuracy. (Please do the hunting legally and compliantly).
Q: Is this 640t enterprise has obstacle avoidance?
A： Our EVO II dual 640t enterprise is equipped with a six-direction binocular vision obstacle avoidance system. The body has a total of ten vision sensors (two of each on the front, back, top, bottom, left and right).
