Autel Robotics EVO II DUAL 640T Rugged Bundle [V2]
- 640*512 Thermal Imaging Resolution
- 10 Thermal Color Palettes
- 8K Video/48MP Picture
- Dynamic Track 2.0
- 360°Obstacle Avoidance
- 5.5 Miles Video Transmission Range
- Maximum Efficiency In All Viewing Conditions
[keyfeatures]
Autel Robotics EVO II Dual 640T Infrared V2 Thermal Drone
The Autel EVO 2 Dual 640T thermal imaging drone is the industry's first drone to combine an infrared imaging camera with an 8K camera. The thermal imager has a resolution of up to 640x512, allowing pilots to see deep details in dark environments. Enterprise drones take us deeper than just video production, photography, mapping, 3D modeling and inspection, and more for asset/infrastructure inspection, public safety, and wildlife management.
EVO II Dual 640T V2 Top Highlights

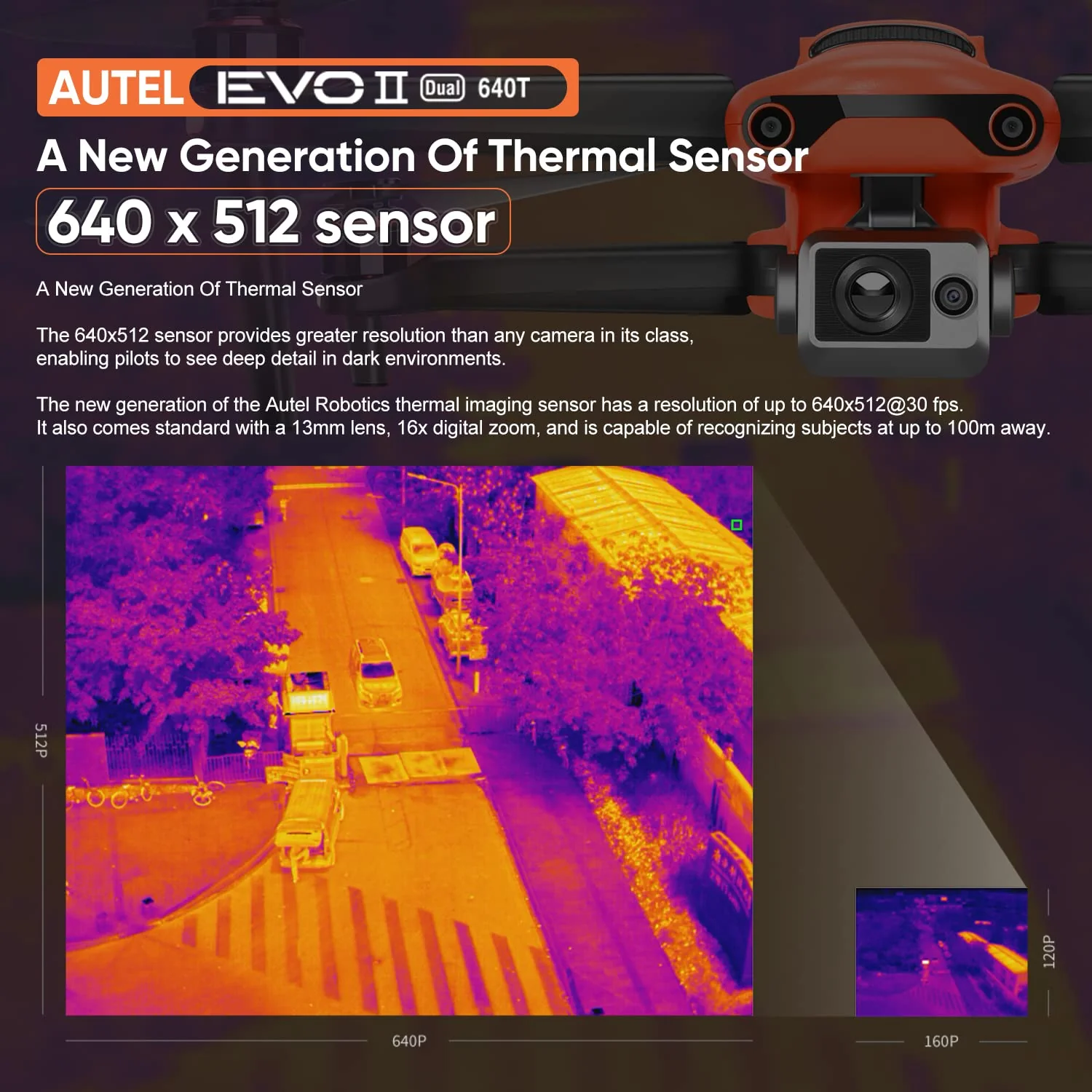

640x512 30Hz New Thermal Imaging Sensor
Equipped with 640*512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making thermal imaging details clearer and more discernible than competition with the similar resolution and hardware.
Maximum Efficiency In All Viewing Conditions

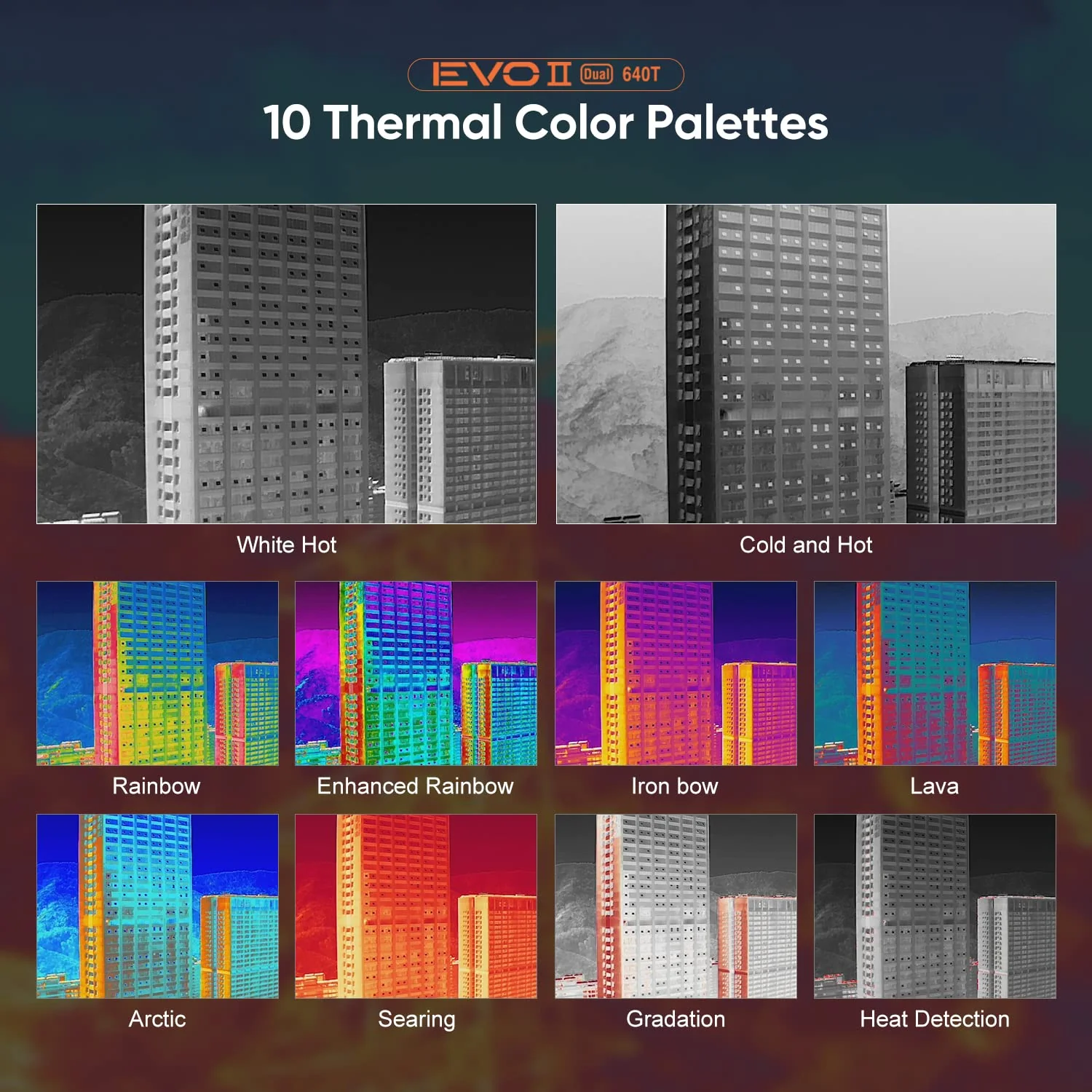

EVO II Dual 640T supports up to 10 thermal palettes, enabling pilots to cope with a variety of complex shooting environments and mission scenarios.
DRI Ranges
DRI stands for Detection, Recognition and Identification.
1）Detection: Detect if an object is present
2）Recognition: See what type of object it is (i.e. person, vehicle, airplane)
3）Identification: Determine subject affiliation and intent.
Multiple Temperature Measurement Modes, Professional Analysis Tool
Powerful Infrared Thermal Analysis Tool(IRPC)
This free temperature measurement analysis tool is developed for the 640T V2, and enables users to quickly import images, edit and analyze temperature measurement, and to generate detailed reports for sharing and coolaboration.(Select the "Word" icon Export report. Generate analysis report)

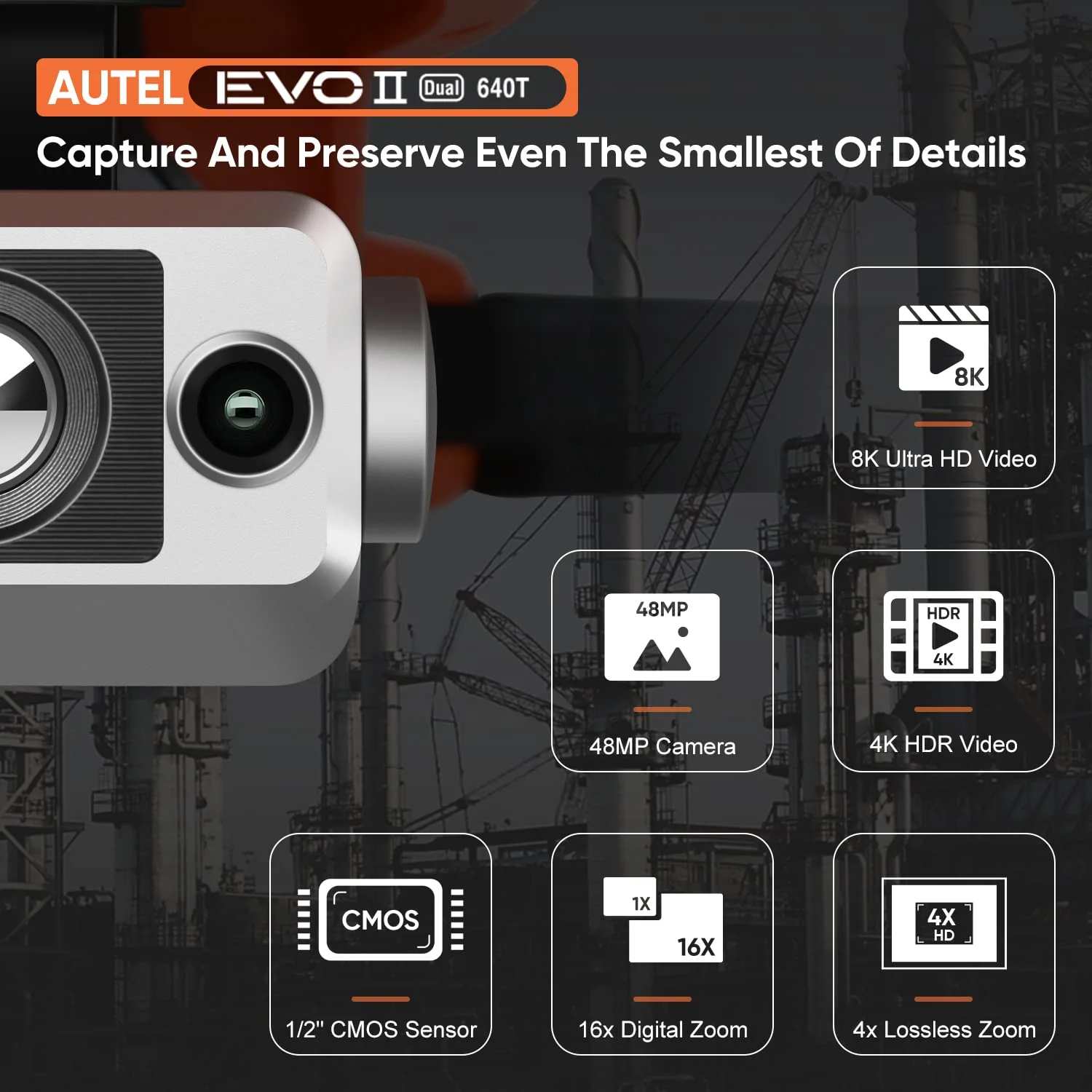

Capture And Preserve Even The Smallest Of Details
8K Video, Unmatched Clarity
EVO II Dual 640T records in resolutions up to 7680x4320. With 4 times more pixels than 4K (and 16 times more than HD), 8K videos redefine image clarity and depth.
48MP Camera
The 48MP sensor captures every forensic-relevant detail to assist in precise evidence capture. Both thermal and RGB images are provided with embedded metadata, making the EVO II Dual 640T the ultimate public safety tool.
4x Lossless Zoom
The high resolution provides the ability to zoom deep into a scene and crop an image or video to 4K without any loss in quality. Capture a scene, zoom in, and reframe your shots with ease.
4K HDR For Greater Dynamic Range
4K HDR video adds dynamic range by merging long-, medium-, and short-term exposures into a single frame. 10-bit color depth captures over 1 billion colors to provide greater flexibility in post production while still retaining rich details in the shadows and highlights.
Mission Planner
Rectangular and Polygon mission planners - Those are going to be great for anybody that's dealing with photogrammetry. So anybody that needs to be able to capture a lot of images in a rectangular mission or polygon mission, you're going to be able to do that in an autonomous fashion. Then you're going to be able to take EVO II Dual 640T's images and upload them to your 3D mapping.
360° Obstacle Avoidance
Autel Robotics EVO II Dual 640T V2 is equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.
EVO II - AI Enhanced Dynamic Track
EVO II Dual smart tracking uses deep learning algorithms to automatically track the selected subject while avoiding obstacles during flight. The function can track the subject in three modes: behind, side-by-side, or fixed position.
All Cameras interchangeable
Autel EVO II Series Dones is one aircraft with three camera options. All cameras for EVO II can be purchased separately and are interchangeable!
Industry Leading Performance
The EVO II Dual 640T V2's flight performance has been fully optimized thanks to its new power system and carbon fiber structural design. Equipped with an industry-leading dual-frequency image transmission system, the unit also provides stronger anti-interference capabilities and stable transmission of high-definition images up to 1080p.
38Min Max Flight Time 45mph(20m/s) Max Flight Speed
9.3miles(15km) Max Transmission Range 2lbs(920g) Max Lift Capability
39mph(17m/s) Max Wind Resistance
EVO II Dual 640T V2 Wide Application
EVO II Dual 640T in Police Use
An Autel EVO II Dual thermal drone saved the day for a Nevada sheriff’s department when a suspect fleeing into the cover of darkness could be located because of his “heat signature.” While one suspect was apprehended pretty quickly, the other fled the scene on foot into the night.Typically, when that happens, the person running gets away because there’s not a great way to maintain visuals in the dark. However, Greenhut used the EVO II’s thermal camera to explore the area until he found the suspect attempting to hide behind a tree. Greenhut locked the drone’s sight in on the man until backup arrived to arrest him.
EVO II Dual 640TIn Industrial Inspection
The EVO II 640T uses an 8K Visual Spectrum Sensor and 640 Radiometric Thermal Sensor, giving inspectors the ability to perform multiple roof inspections in half the time it takes by conventional methods. Our drone kits will not only allow you to visually inspect the entire building , but also use thermal technology to check for hot spots. This enables you to safely and quickly check the status of the structure. As well as to help you identify defects, leakage, and corrosion issues, without having to spend on additional personnel and equipment.
EVO II Dual 640T In Search and Rescue operations
Autel EVO II 640T Thermal Drone is a versatile and reliable tool for search and rescue operations. With its high-resolution thermal imaging camera, long flight time, and accurate positioning capabilities, this drone is designed to assist search and rescue teams in finding and rescuing victims in a timely and effective manner.
EVO II Dual 640T In Wildlife Management
Maximize your livestock protection with the advanced thermal imaging capabilities of the Autel 640T drone. As a leading solution in the industry, the EVO II Dual 640T provides peace of mind for farm owners by detecting potential threats, such as predators, that could cause harm to farm animals. With its thermal imaging technology, even the most elusive creatures, like Wild Boar, can be easily located and counted. This reliable and effective tool ensures the safety and security of your livestock, making the Autel EVO II Dual 640T an indispensable asset for any farm owner.
EVO II Dual 640T In Residential Roof Inspection
Inspect and document the exterior condition of shingle, tile, or slate roof structures with ease using the high-resolution visible imaging capabilities of the Autel EVO II Dual 640T drone. Utilizing unmanned aerial vehicle (UAV) technology, this drone provides a detailed view of the roof, allowing you to easily observe hail damage, wind damage, openings in the roof, cracked tiles, and much more. When water gets on the surface of the membrane, it creates a higher temperature that can be easily detected using the infrared imaging capabilities of the Autel 640T. This versatile tool makes roof inspections quicker, safer, and more efficient, delivering reliable results every time.
EVO II Dual 640T In Legal Hunting
The EVO II Dual 640T is a highly advanced drone that can greatly assist hunters in their pursuits. With a dual 640T thermal camera and high-resolution imaging capabilities, hunters can locate and track game from the air. The drone's long flight time and stable flight performance also allow for extended monitoring and observation of wildlife. This cutting-edge technology can help hunters plan and execute successful hunting trips, increasing their chances of making a successful catch.
[spec]
EVO II Dual 640T Camera Specifications (Infrared Camera + Visible Light Camera)
EVO II Dual 640T Infrared Camera Specifications
| Sensor | Vanadium oxide uncooled infrared focal plane detector |
| Lens | Viewing angle H33°V26° Focal length 13mm |
| Zoom | 1-8x |
| Sensor Resolution | 640x512 |
| Pixel Size | 12μm |
| Wavelength Range | 8 - 14μm |
| Temperature Range | High gain mode: -20° to +150° Low gain mode: 0° to +550° |
| Temperature Measurement Accuracy | ±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃ |
| Video Resolution | 640x512@30fps |
| Bit rate | 6Mbps |
| Video Format | MOV / MP4 (Support H.264/H.265) |
| Camera Resolution | Infrared mode: 640*512 Picture-in-picture mode: 1920*1080, 1280*720 |
| Photo Mode | Single shot Continuous shooting: 3, 5, 3 by default; Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, the default is 5S. |
| Photo Format | TIFF+JPG (with irg file) |
EVO II Dual 640T visible light camera specifications
| Sensor | 1/2" CMOS Effective Pixels: 48 MP |
| Lens | FOV: about 79° 35mm Format Equivalent: 25.6 mm Aperture: f/1.8 Focus range: 0.5 m to infinity (with auto focus) |
| Digital Zoom | 1 ~ 8x (Max. 4x lossless zoom) |
| ISO Range | Video: 100-6400 Photos: 100-3200 |
| Shutter Speed | Electronic Shutter: 8 ~ 1/8000s |
| Maximum photo size | 8000x6000 (4:3) 7680x4320 (16:9) 4000x3000 (4:3) 3840x2160 (16:9) |
| Still Image Format | JPEG / DNG / JPEG+DNG |
| Photo Modes | Single shot; Continuous shooting (AEB/Burst): 3, 5, 3 by default; Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S; Pure night shot: support 4K Jpeg; HDR: Support 4K Jpeg; Long exposure: up to 8s; |
| Image Format | JPG (default); DNG |
| Video Resolution | 8K 7680*4320 p25/p24 6K 5760*3240 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24 |
| Video Format | MP4 / MOV format (MPEG-4 AVC/H.264, HEVC/H.265) |
| Max Video Bitrate | 120Mbps |
Gimbal
| Gimbal | Three-axis stabilization |
| Mechanical Range | Tilt: -135° to +45° Heading: -100° to +100° |
| Controllable Range | Tilt: -120° to +30° Heading: -90° to +90° |
| Maximum Control Speed (Tilt) | 300°/s |
| Angle Jitter | ±0.005° |
Aircraft
| Weight (with propeller and battery) | 1237g±0.5g |
| Wheelbase | 397 mm |
| Maximum Take-off Altitude | 6000 m |
| Max Ascent Speed | 5 m/s（automatic flight） 8 m/s（manual control） |
| Max Descent Speed | 4 m/s |
| Max Horizontal Flight Speed | 72 km/h（positioning mode） |
| Max Tilt Angle | 33°（positioning mode） |
| Max Angular Velocity | 120°/s |
| Max Flight Time | 38 minutes |
| Operating Temperature Range | 0℃ to 40℃ |
| Maximum Resistance to Wind | 39-46 mph (Level 8) |
| Operating Frequency | 2.400 GHz to 2.4835 GHz |
| Transmission Power (2.4G) | FCC：≤26 dBm ISED：≤26 dBm CE：≤20 dBm RCM：≤20 dBm SRRC：≤20dBm |
| Hovering Accuracy | When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m RTK is not enabled: vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS positioning works normally) Level: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS positioning works normally) |
| Image Position Compensation | The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively. |
Sensing System (Obstacle Avoidance)
| Sensing System | Omnidirectional Obstacle Sensing |
| Forward | Precision Measurement Range: 0.5-20 m Detectable Range: 0.5-40m Effective Sensing Speed: <15m/s FOV: Horizontal: 60°, Vertical: 80° |
| Backward | Precision Measurement Range: 0.5-16 m Detectable Range: 0.5-32m Effective Sensing Speed: <12m/s FOV: Horizontal: 60°, Vertical: 80° |
| Upward | Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <6m/s FOV: Horizontal: 60°, Vertical: 50° |
| Downward | Precision Measurement Range: 0.5-11 m Detectable Range: 0.5-22m Effective Sensing Speed: <6m/s FOV: Horizontal: 90°, Vertical: 70° |
| Sides | Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <10m/s FOV: Horizontal: 60°, Vertical: 50° |
| Operating Environment | Above: The surface has rich textures and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment); the surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) Below: The ground has rich textures and sufficient lighting conditions (> 15 lux, indoor fluorescent lamp is normally irradiated by the environment); the surface is made of diffuse reflective material and the reflectivity is> 20% (such as walls, trees, people, etc.) |
Remote Controller and Image Transmission
| Operating Frequency | 2.400 GHz to 2.4835 GHz |
| Max Transmission Distance | FCC：9 km（without interference or obstruction） CE：5 km（without interference or obstruction） |
| Real-time Image Transmission Quality | 720p@30fps / 1080p@30fps |
| Maximum Bit Rate of Real-time Image Transmission | 40Mbps |
| Transmission Power (2.4G) | FCC：≤26 dBm ISED：≤26 dBm CE：≤20 dBm RCM：≤20 dBm SRRC：≤20dBm |
| Display screen | 3.26" OLED 854（W） * 480（H）Pixel Directly preview the video without connecting a mobile phone |
| Remote Controller Battery | 5000mAh |
| Run Time | 3 hours |
| Charging Time | 2 hours fast charge |
| Supported Mobile Device Size | Max Length: 3.30" (84mm) Max Thickness: 0.51" (13mm) |
| Supported USB Port Types | Lightning, Micro USB (Type-B), USB-C |
| Working current/voltage | [email protected] |
Intelligent Flight Battery
| Capacity | 7100 mAh |
| Voltage | 11.55 V |
| Max Charging Voltage | 13.2 V |
| Battery Type | LiPo 3S |
| Energy | 82 Wh |
| Net Weight | 0.81 lbs (365 grams) |
| Charging Temperature Range | 41°F to 104°F (5°C to 40°C) |
| Storage Temperature and Humidity | -10~30℃，65±20%RH |
| Recommended Storage Temperature | 22-28℃ |
| Max Charging Power | 93W |
| Charging Time | 90 minutes |
Intelligent Flight Battery Manager
| Voltage | 13.2 V |
| Charging Temperature Range | 5℃ to 45℃ |
Charger
| Input | 100-240 V, 50/60 Hz, 1.5A |
| Output | 13.2 V = 5 A 5V=3A 9V=2A 12V=1.5A |
| Voltage | 13.2±0.1V |
| Rated Power | 66W |
Introducing: Commercial Applications for EVO II
EVO II Dual 640T Thermal Imaging Demonstration
EVO II Dual 640T: Thermal Analysis Tool Overview
[accessories]
Autel EVO II Dual 640T Rugged Bundle Package List
*If you need certification from other countries or regions, please contact us.
Original: $3,799.00
-65%$3,799.00
$1,329.65Product Information
