Autel MaxiIM KM100 Kit | Auto Key IMMO Universal Key Generator Kit with 5pcs Universal Smart Key
1 / 5
Autel MaxiIM KM100 Kit | Auto Key IMMO Universal Key Generator Kit with 5pcs Universal Smart Key
2026 Newest Autel MaxiIM KM100
The Autel MaxiIM KM100 (2026) redefines automotive key programming with its intelligent Android tablet design, offering advanced transponder cloning, IMMO coding, and smart key replacement for 700+ vehicle models. Designed for locksmiths and technicians, this all-in-one kit combines cutting-edge key generation with unmatched ease of use.
Autel KM100 Top Hightlights
- 60-Second Key Generation (Autel Universal Only)
- Programs Autel’s IKEY universal key as smart key replacement for more than 700 vehicles
- Extensive IMMO Key programming coverage including BMW, Volkswagen, Honda, and General Motors
- Chip Read & Write, Cloning and Frequency Detection
- Key Renewal: Supporting 36 Vehicle Makes
- Transponder Editing: Supporting 20 Categories
- Dual-Band, High Frequency Transmitter 315m/434m or 868m/915m Supporting Certification Requirements of Various Regions
- Supporting PLC V200
Advanced IMMO Functions
- Key Learning via OBD for 90% Vehicles
- Generate Simulator Key (KM100 as Emergency Key)
- Smart Remote Learning / Key Learning
- IMMO Data Backup / Restore
- Key Generation / Program a Smart Key
- All Key Lost / Add a Key
- Read PIN / Password Calculation
- IMMO ECU Reset / Adaptation / Refresh / Coding
KM100 Vehicle Compatibility
- AutoVin vehicle identification to ensure accuracy
- Simple Operation, Guided User Instructions, Easy To Use
- Industry-Leading Coverage Of IMMO Learning Via OBD For More Than 90% Of Models
- Supporting 8 Key Series And 37 Models
- Covering The Top 100 Selling Models In North America For The Last 10 Years
KM100 VS IM508S VS IM608 PRO II
Superior Hardware Configualtion
- Display:5.5-inch screen with 1280 x 720 resolution
- CPU:Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
- OS:Android 9.0
- Memory:2GB RAM/ 64GB on-board memory
- Camera:8 Megapixels
- VCI:MaxiVCI V200
- Connection: Wi-Fi, Bluetooth 5.0, USB 2.0 type C
- Battery:4950mAh
MaxiIM KM100 Specifications
| Dimensions (WxHxD) | 200mm(7.9") x 89 mm (3.5") x 22mm (0.87") |
| Weight | 352.7g (0.8 lb) |
| Screen | 5.5-inch screen with 1280 x 720 resolution |
| Processor | Rockchip PX30 (4x ARM Cortex-A35 1.5GHz) |
| Operating System | Android 9.0 |
| Memory | 2 GB RAM / 64GB on-board memory |
| Camera | 8 megapixels |
| Connection |
|
| Battery | 4950mAh lithium-polymer battery |
| VCI | v200 |
| Input | 5V / 2A |
| Sensor | Ambient light sensor |
| Audio Input / Output |
|
| Operating Temp | -10 to 45°C (14 to 113°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Function | Autel MaxiIM IM508 | Autel MaxiIM IM608 | Autel MaxiIM KM100 |
| Universal Transponder & Key Generation | No | No | Yes |
| Transponder Simulation Editing & Cloning | No | No | Yes |
| Ignition Coil Detection | No | No | Yes |
| Vehicle Diagnostics | Yes, Basic function | Yes | No |
| Vehicle Service Functions | Yes | Yes | No |
| IMMO Function via Programmer | Yes | Yes | No |
| Frequency Reading | Yes | Yes | Yes |
| Frequency Detection | Yes | Yes | Yes |
| Key Unlocking/Key Renew | Yes | Yes | Yes |
| Immobilizer Data Processing | Yes | Yes | Yes |
| IMMO in Open OBD mode | Yes | Yes | Yes |
Autel MaxIM KM100 KIT Packing List
$529.00
Autel MaxiIM KM100 Kit | Auto Key IMMO Universal Key Generator Kit with 5pcs Universal Smart Key—
$529.00
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
2026 Newest Autel MaxiIM KM100
The Autel MaxiIM KM100 (2026) redefines automotive key programming with its intelligent Android tablet design, offering advanced transponder cloning, IMMO coding, and smart key replacement for 700+ vehicle models. Designed for locksmiths and technicians, this all-in-one kit combines cutting-edge key generation with unmatched ease of use.
Autel KM100 Top Hightlights
- 60-Second Key Generation (Autel Universal Only)
- Programs Autel’s IKEY universal key as smart key replacement for more than 700 vehicles
- Extensive IMMO Key programming coverage including BMW, Volkswagen, Honda, and General Motors
- Chip Read & Write, Cloning and Frequency Detection
- Key Renewal: Supporting 36 Vehicle Makes
- Transponder Editing: Supporting 20 Categories
- Dual-Band, High Frequency Transmitter 315m/434m or 868m/915m Supporting Certification Requirements of Various Regions
- Supporting PLC V200
Advanced IMMO Functions
- Key Learning via OBD for 90% Vehicles
- Generate Simulator Key (KM100 as Emergency Key)
- Smart Remote Learning / Key Learning
- IMMO Data Backup / Restore
- Key Generation / Program a Smart Key
- All Key Lost / Add a Key
- Read PIN / Password Calculation
- IMMO ECU Reset / Adaptation / Refresh / Coding
KM100 Vehicle Compatibility
- AutoVin vehicle identification to ensure accuracy
- Simple Operation, Guided User Instructions, Easy To Use
- Industry-Leading Coverage Of IMMO Learning Via OBD For More Than 90% Of Models
- Supporting 8 Key Series And 37 Models
- Covering The Top 100 Selling Models In North America For The Last 10 Years
KM100 VS IM508S VS IM608 PRO II
Superior Hardware Configualtion
- Display:5.5-inch screen with 1280 x 720 resolution
- CPU:Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
- OS:Android 9.0
- Memory:2GB RAM/ 64GB on-board memory
- Camera:8 Megapixels
- VCI:MaxiVCI V200
- Connection: Wi-Fi, Bluetooth 5.0, USB 2.0 type C
- Battery:4950mAh
MaxiIM KM100 Specifications
| Dimensions (WxHxD) | 200mm(7.9") x 89 mm (3.5") x 22mm (0.87") |
| Weight | 352.7g (0.8 lb) |
| Screen | 5.5-inch screen with 1280 x 720 resolution |
| Processor | Rockchip PX30 (4x ARM Cortex-A35 1.5GHz) |
| Operating System | Android 9.0 |
| Memory | 2 GB RAM / 64GB on-board memory |
| Camera | 8 megapixels |
| Connection |
|
| Battery | 4950mAh lithium-polymer battery |
| VCI | v200 |
| Input | 5V / 2A |
| Sensor | Ambient light sensor |
| Audio Input / Output |
|
| Operating Temp | -10 to 45°C (14 to 113°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Function | Autel MaxiIM IM508 | Autel MaxiIM IM608 | Autel MaxiIM KM100 |
| Universal Transponder & Key Generation | No | No | Yes |
| Transponder Simulation Editing & Cloning | No | No | Yes |
| Ignition Coil Detection | No | No | Yes |
| Vehicle Diagnostics | Yes, Basic function | Yes | No |
| Vehicle Service Functions | Yes | Yes | No |
| IMMO Function via Programmer | Yes | Yes | No |
| Frequency Reading | Yes | Yes | Yes |
| Frequency Detection | Yes | Yes | Yes |
| Key Unlocking/Key Renew | Yes | Yes | Yes |
| Immobilizer Data Processing | Yes | Yes | Yes |
| IMMO in Open OBD mode | Yes | Yes | Yes |

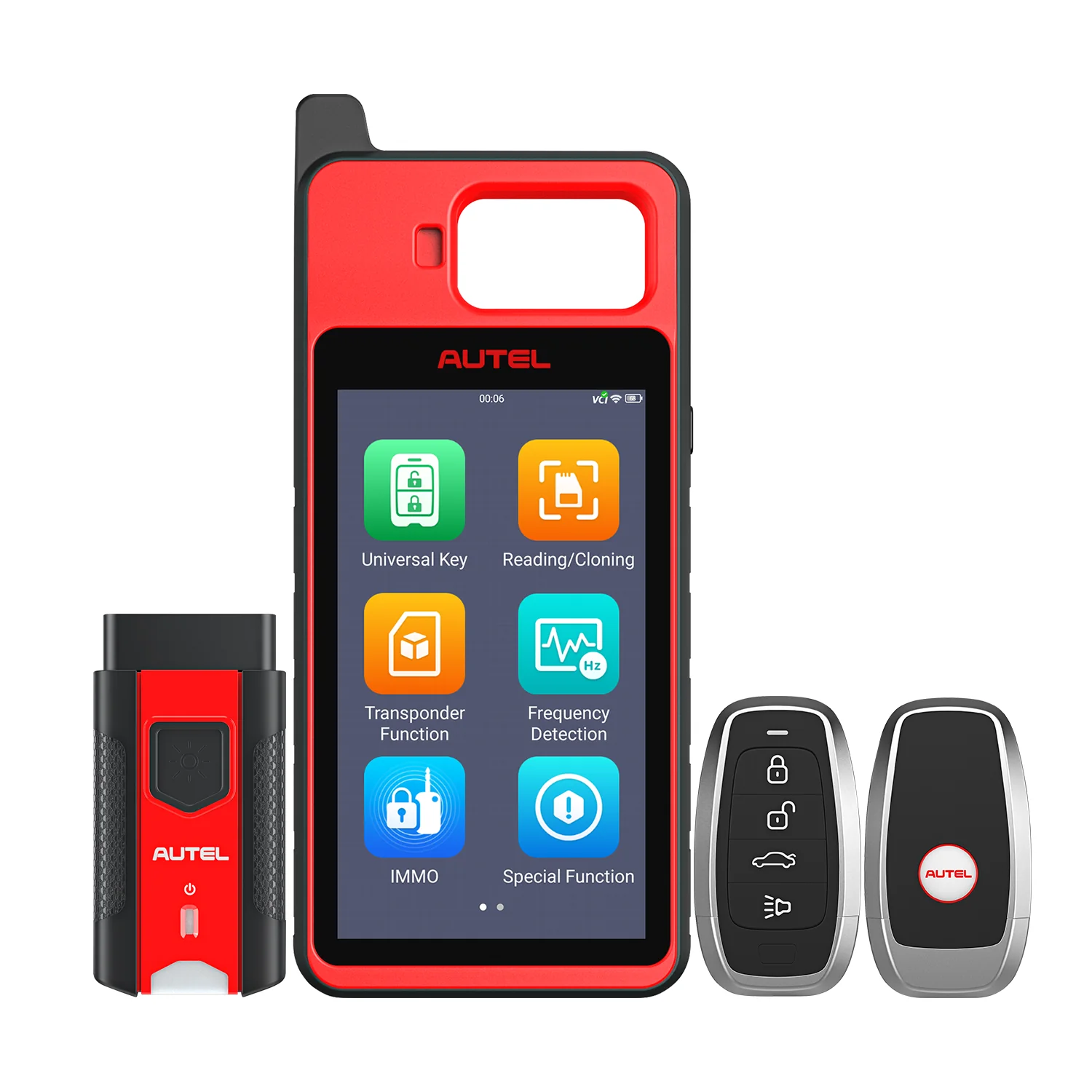

Autel MaxIM KM100 KIT Packing List
