Autel MaxiIM IM608 Pro

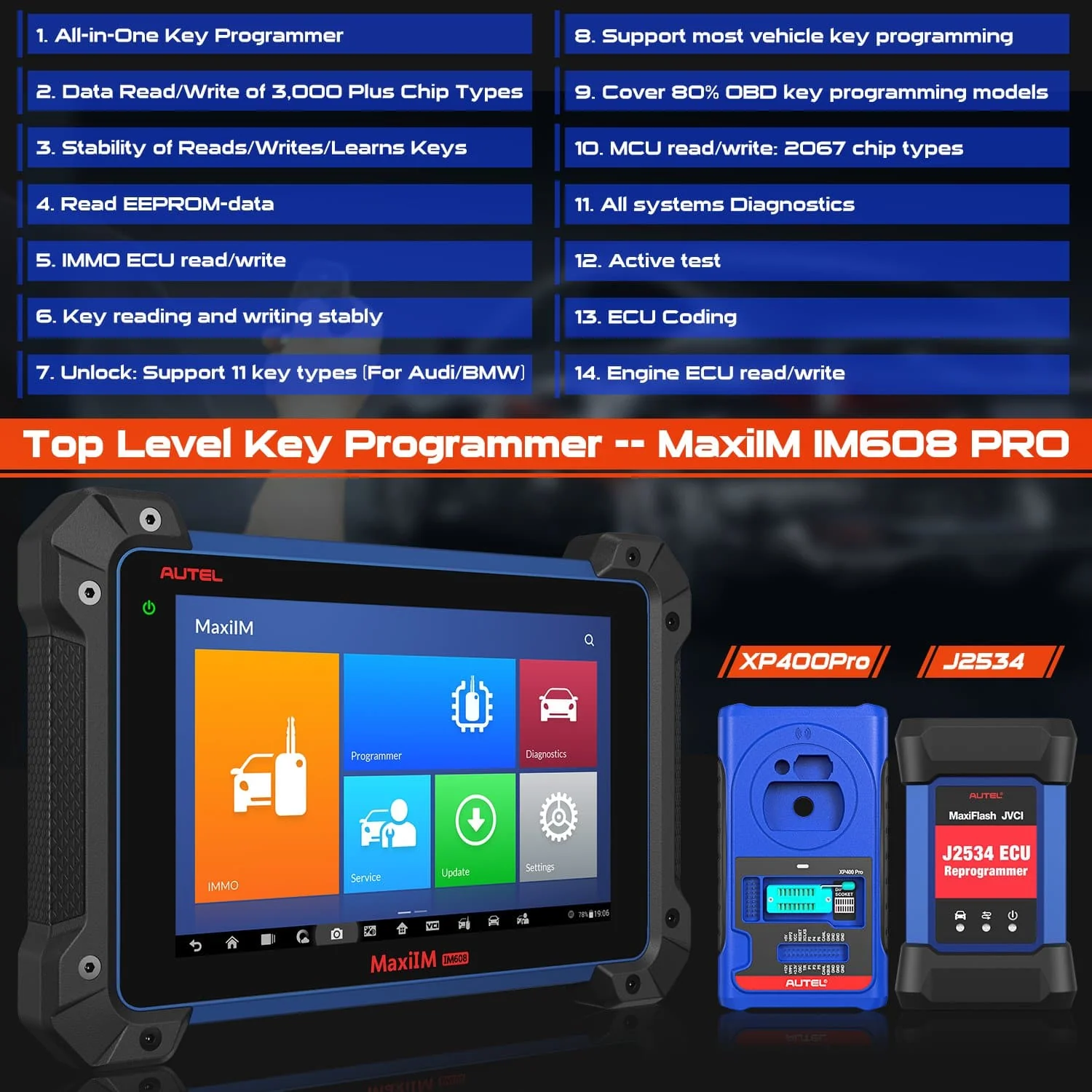

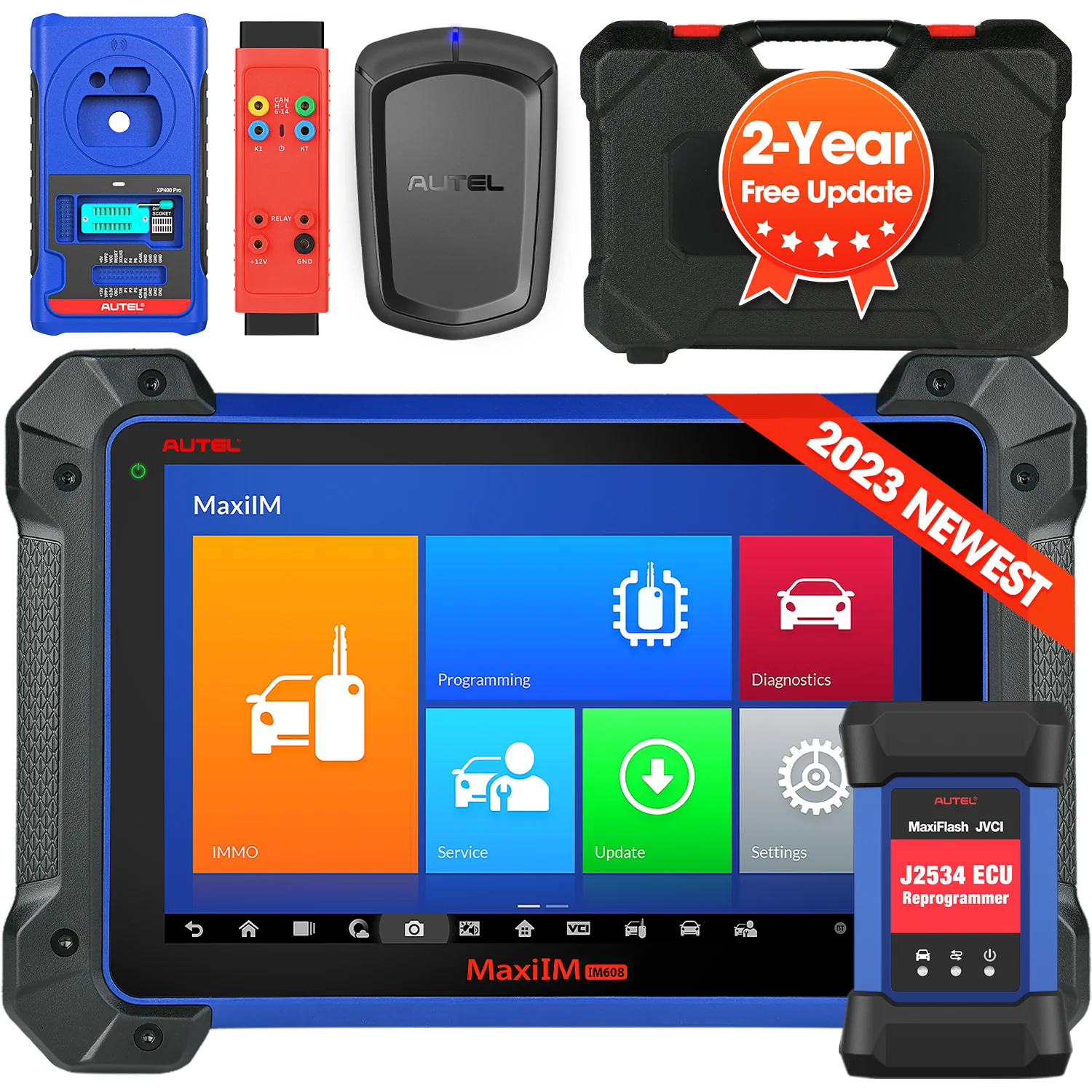

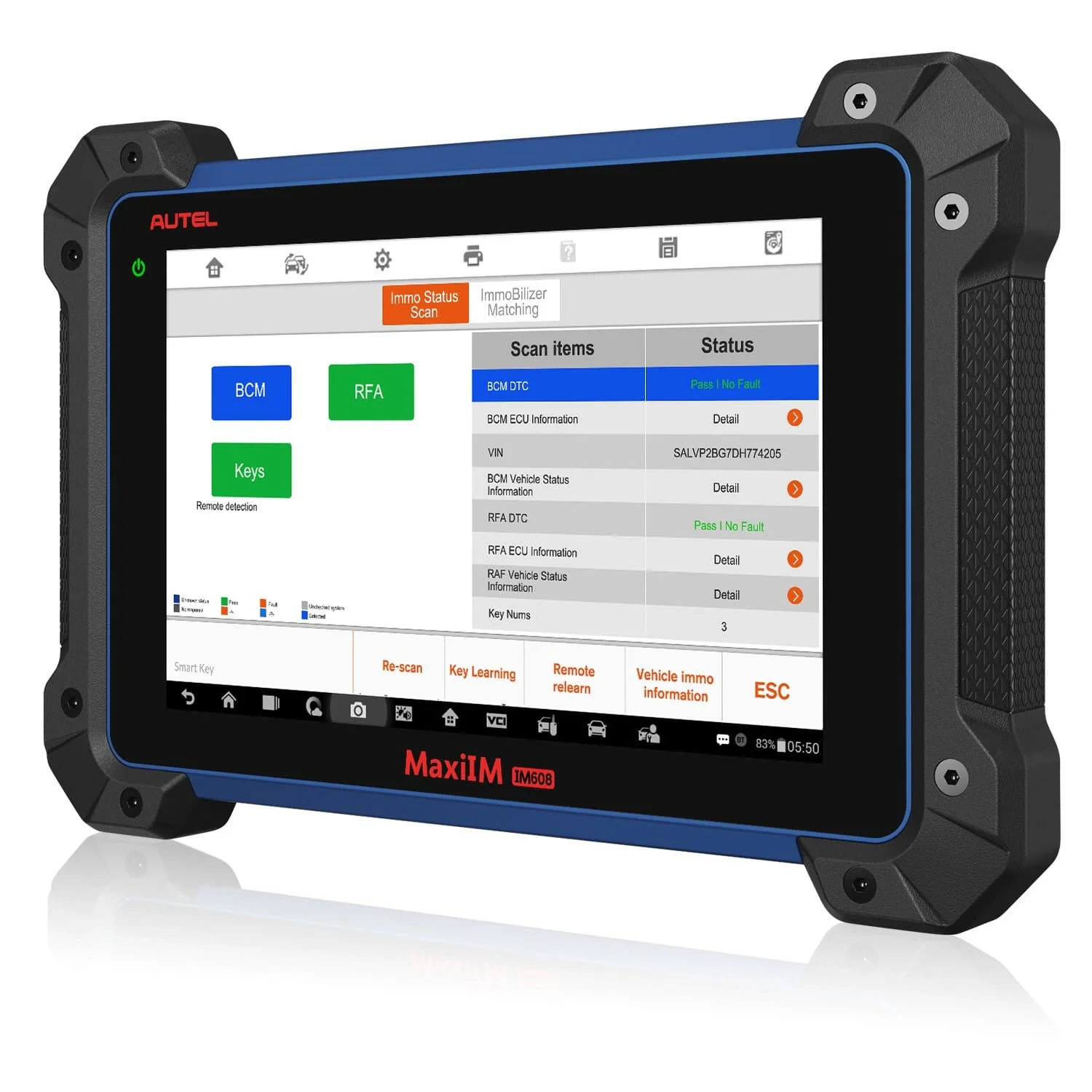

The IM608 PROKPA is a comprehensive key and immobilizer programming package of the MaxiIM IM608 Pro 10.1-inch Android touchscreen tablet, XP400Pro key and chip programmer, the wireless JVCI J2534 pass thru programming device and the Key Programming Adapter kit.

The IM608 Pro key programming tool enables key learning directly through the OBDII port for 85 percent of vehicles in North America. The tablet can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle.

The IM608 Pro is also an advanced diagnostics tablet featuring AutoVIN and AutoSCAN technology to automatically identify the vehicle and perform an all systems scan. The advanced diagnostics functions of the IM608 Pro include the ability to perform active test, coding and adaptations.

Autel IM608 Pro Main Features

• IMMO & Key Programming Bundle
• MaxiIM IM608 Pro 10.1-inch Android Touchscreen Tablet
• Program IMMO & Keys for U.S., Asian and European Vehicles
• XP400Pro Key and Chip Programmer
• JVCI Wireless J2534 Pass Thru Programming Device
• Includes IMKPA Key Programming Adapter Kit

AUTEL IM608 PRO Functions Supported:

1. IMMO Functions

• Auto Detect Make/Model/Year/System
• Read PIN (All Key Lost)
• Key Learning
• IMMO ECU Reset/Adaption
• IMMO ECU Refresh/Coding
• Remote Learning
• AUDI Q5/A4/A5 2015-2017 Key Learning
• VW MQB Key Learning
• BMW FEM/BDC Key Learning and Adaption
• BMW CAS4 Key Learning and Adaption
• Mercedes Key Learning
• 2015-2018 Land Rover & Jaguar write key via dump
• Volvo Smart Key Learning/knob-style smart key
• Advanced Programming Functions
• EEPROM Read/Write
• MCU Read/Write
• Key Programming
• Mercedes Key Read/Write
• Remote Frequency Detect

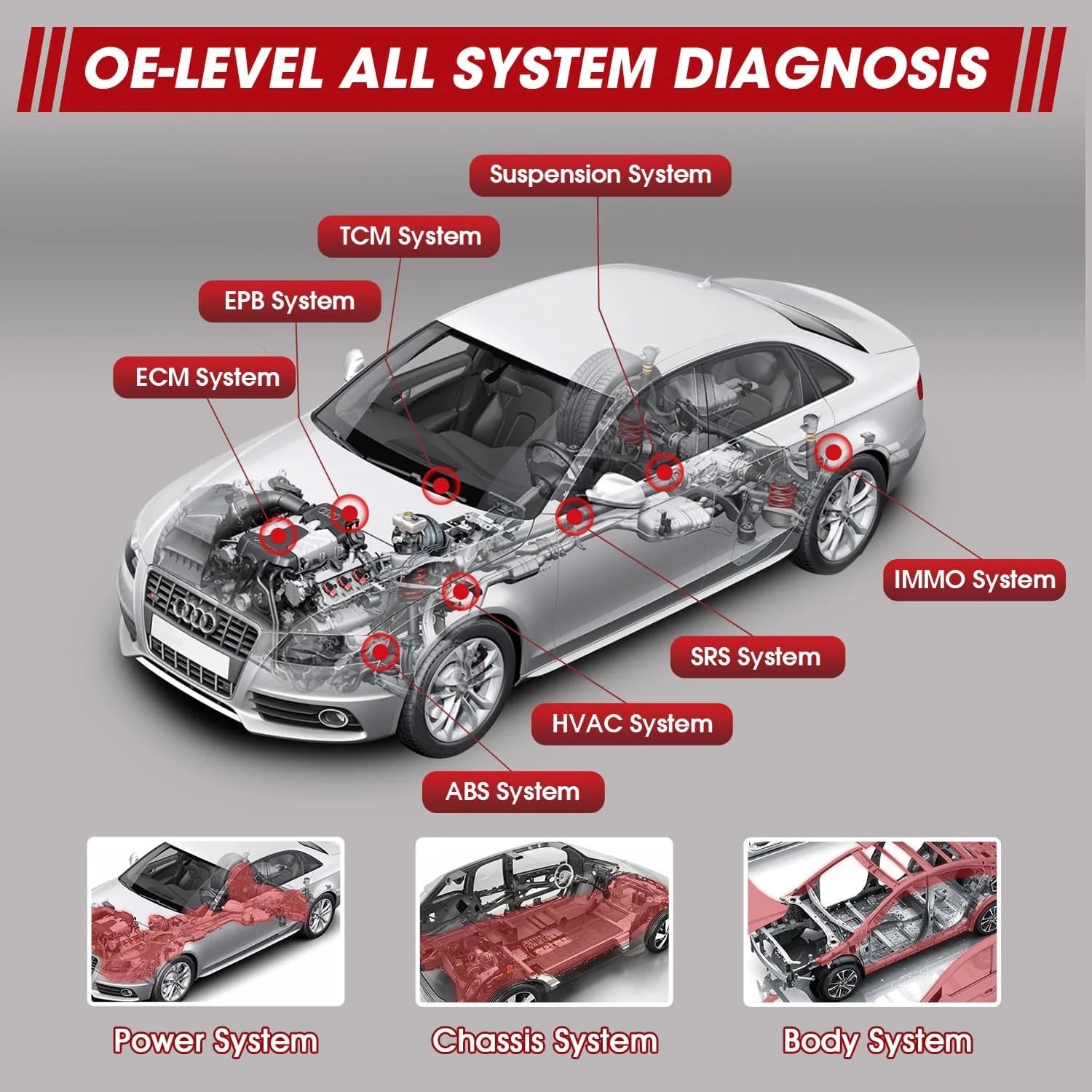

• OE-Level Diagnostics

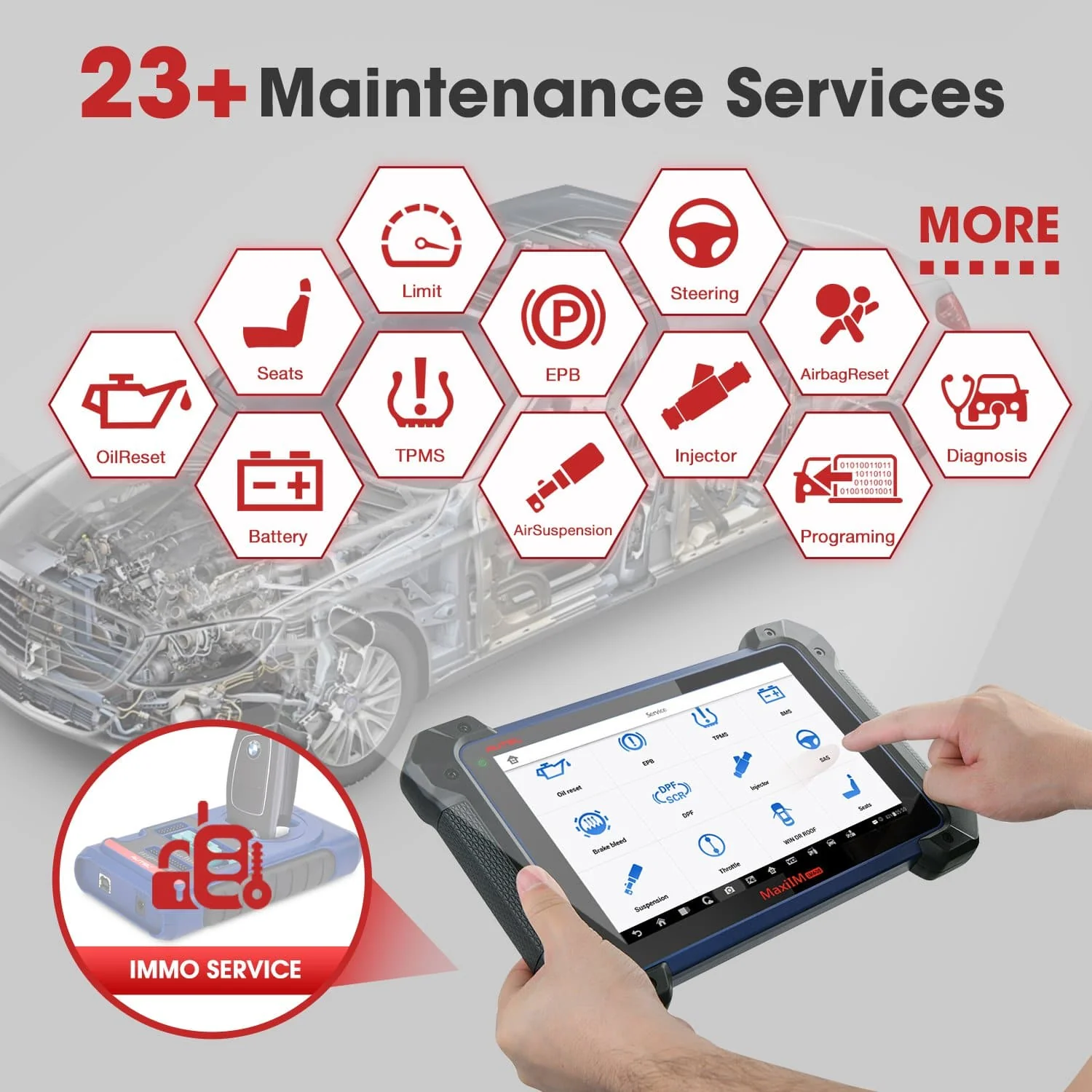

2. All System Diagnostics & Advanced Service Functions (Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer)

• Oil Service Reset
• Parking Brake Pad Relearn After Replacement
• Steering Angle Sensor Relearn
• Battery Registration and Reset
• Diesel Particulate Filter Regeneration
• Tire Pressure Monitoring System
• Active Test
• ECU Coding
• VW/Audi Component Protection
• Complete Service Functions

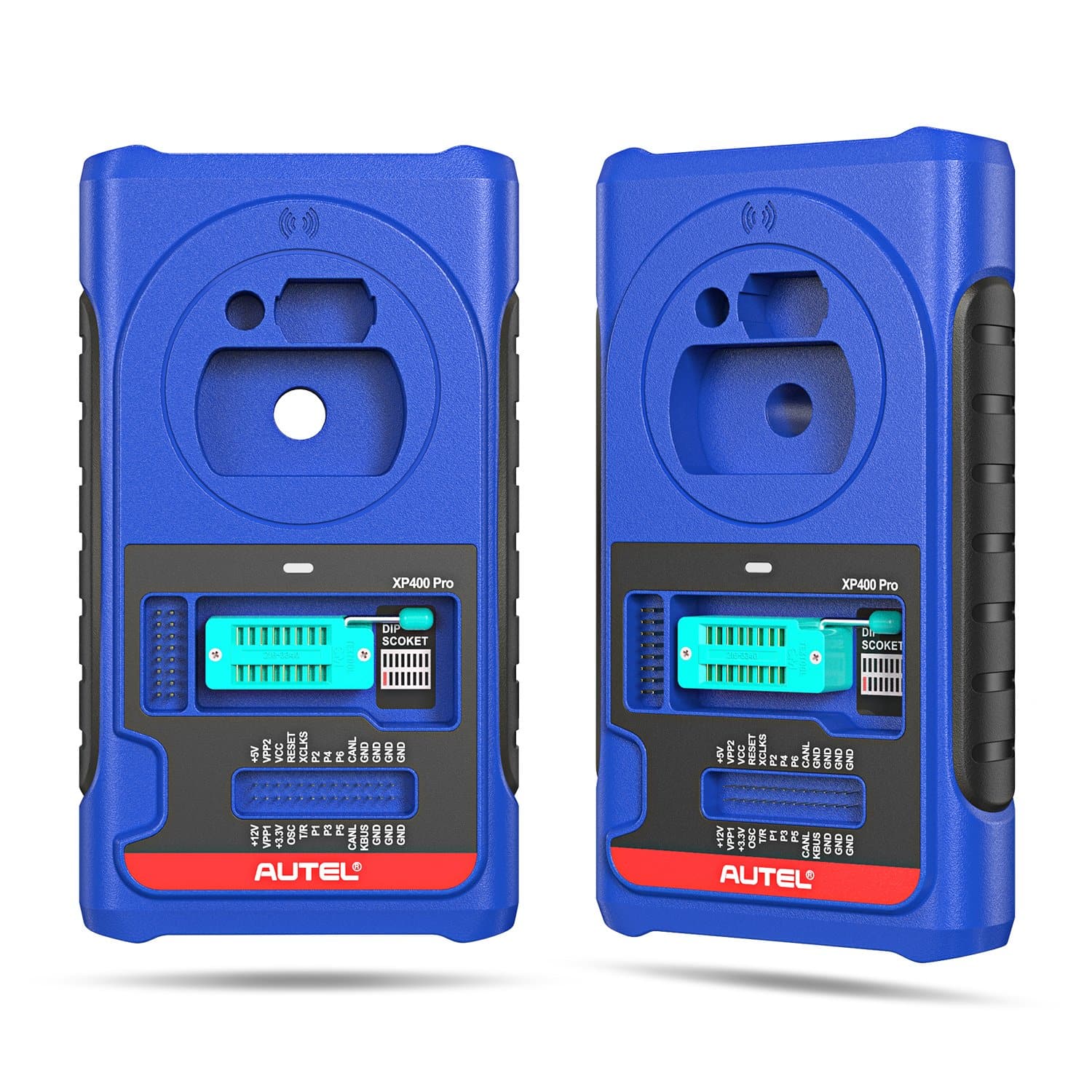

XP400 Pro adds support for following Chips:

• EEPROM-->AMD-->AM29FXXX series chip
• EEPROM--> FUJITSU-->MB29FXXX series chip
• EEPROM-->ST-->M29FXXX series chip
• Engine control module-->ST-->M29FXXX series chip
• IMMO-->BENZ-->ESL_W209_W906 (Motorola) read/write/erase function
• IMMO-->BMW-->EWS3 module read/write function
• REMOTE_RENEW(renew key)-->NEC-->V51 and V5 chip read/write/erase

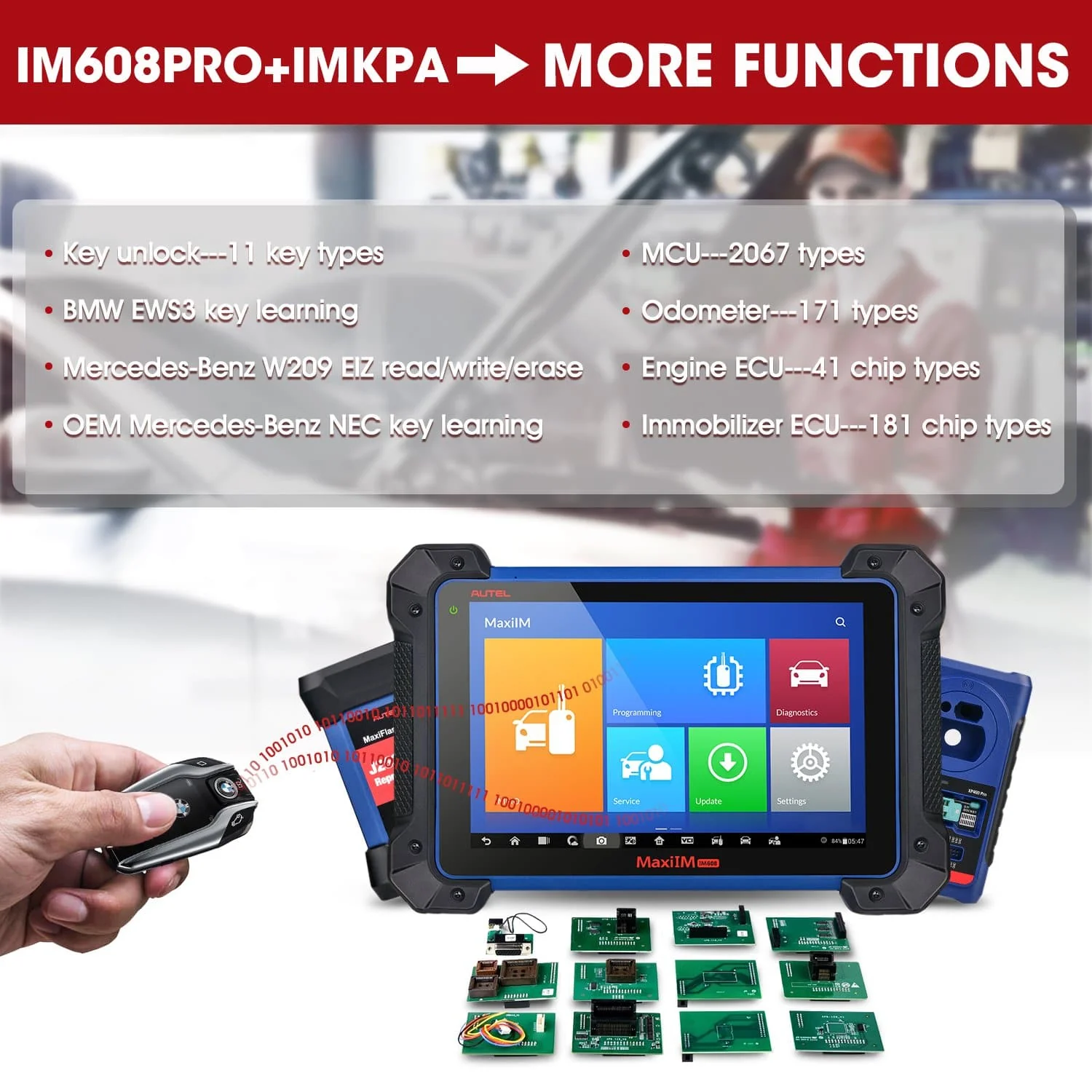

XP400 Pro adds support for following Adapter Board:

• APB113 PCF79XX adapter board
• APB114 EWS3 adapter board
• APB115 NEC Adapter board
• APB118 NEC ELV adapter board
• APB119 TB28FXXX adapter board
• APB120 TMS370 adapter board
• APB121 AM29FXXX adapter board
• APB122 AM29FXXX adapter board 1
• APB123 AM29FXXX adapter board 2
• APB126 M35080/D80 adapter board
• APB127 MC68HC0(7)05BXX adapter board
• APB128 MC68HC05X32 adapter board

Advanced Key Programming Functions

1. Exclusive Smart Mode to guide Key Programming
2. Auto Read IMMO Data via OBD
3. One-tap Key Programming via OBD & Easy-to-use Remote Programming
4. With the newly upgraded key programmer XP400 Pro

Extensive Vehicle & Functionality Coverage

1. Support Diagnostics & IMMO Programming for 10,000+ Models;
2. Support Models Up to 2020;
3. All System Diagnostics and Advanced Maintenance Services;
4. Benz -- 3rd Generation IMMO CAN-Line / K-Line Add Key, All Key Lost via OBD;
5. BMW -- Support EWS3/4; CAS 1/2/3/4, FEM/BDC Add Key / All Key Lost;
6. Volkswagen / Audi -- Add Key / All Key Lost via OBD for 2013 - 2020 Models;
7. GM -- Read IMMO Password, Add Key / All Key Lost up to 2020;
8. Ford -- Add Key / All Key Lost (No PIN Needed) up to 2020;
9. Mazda -- Add Key / All Key Lost (No PIN Needed) up to 2020;
10. FCA -- Read IMMO Password, Add Key / All Key Lost up to 2020;
11. Renault -- Add Key / All Key Lost (No PIN Needed) up to 2020
12. Jaguar LandRover -- Add Key / All Key Lost up to 2019
13. Volvo -- Semi-smart Key Learning via OBD up to 2018; Smart / Blade / Fobik Key Learning via Dump

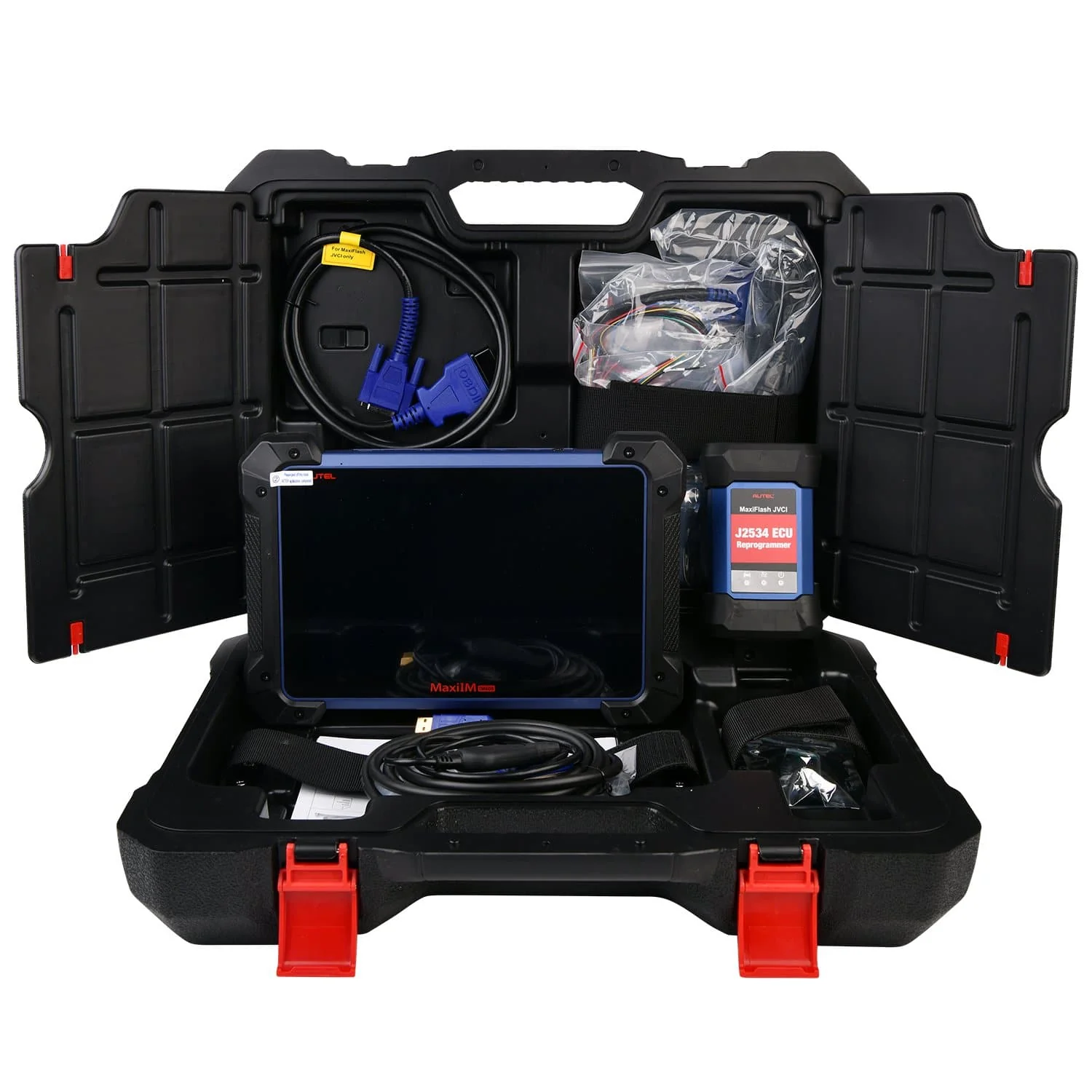

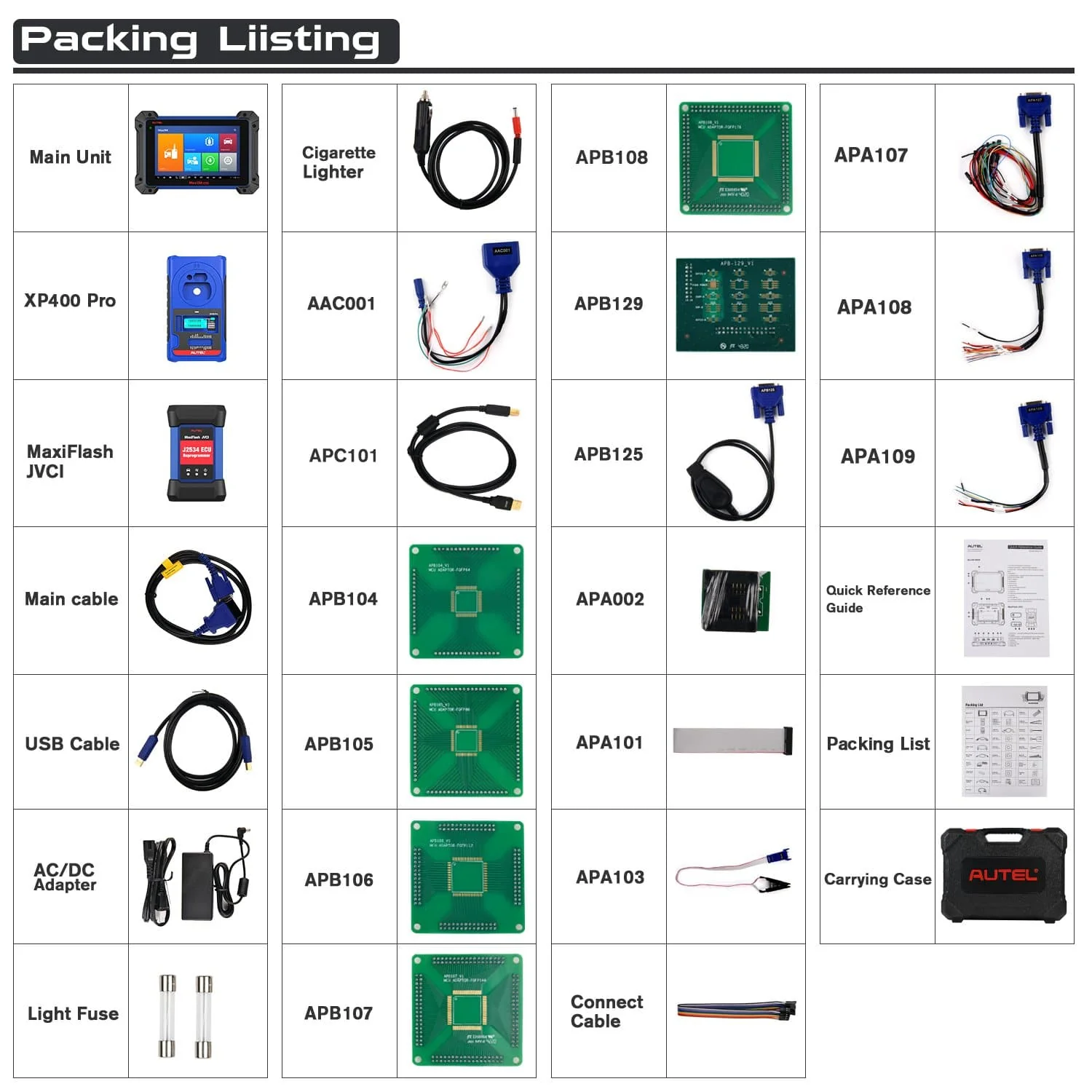

Autel IM608 Pro Packing List:

• 1pc x MaxiIM IM608 Tablet
• 1pc x XP400 Pro Key Programmer
• 1pc x MaxiFlash JVCI ECU Reprogrammer
• 1pc x APB112 (Optional)
• 1pc x Gbox2 (Optional)
• 1pc x Carry Case
• 1pc x Main Cable
• 1pc x USB Cable (2m)
• 1pc x Mini USB Cable
• 1pc x AC/DC Adapter (12V)
• 1pc x Light Fuse - 6*30mm (2pcs)
• 1pc x Cigarette Lighter
• 1pc x AAC001
• 1pc x APC101 (USB Cable)
• 1pc x APB129 (EEPROM Adapter)
• 1pc x APB125 (Mercedes Infrared Collector)
• 1pc x APB103 (MCU_PLCC52)
• 1pc x APB104 (MCU_FQFP64)
• 1pc x APB105 (MCU_FQFP80)
• 1pc x APB106 (MCU_FQFP112)
• 1pc x APB107 (MCU_FQFP144)
• 1pc x APB108 (MCU_FQFP176)
• 1pc x APB109
• 1pc x APB110 (MCU_FQFP176)
• 1pc x APB111 (MCU_FQFP176)
• 1pc x APA002 (EEPROM Socket)
• 1pc x APA101 (Signal Cable)
• 1pc x APA103 (EEPROM Clamp)
• 1pc x APA107 (ECU Clamp)
• 1pc x APA108 (MCU Clamp)
• 1pc x APA109 (MC9S12 Clamp)
• 1pc x Connect Cable

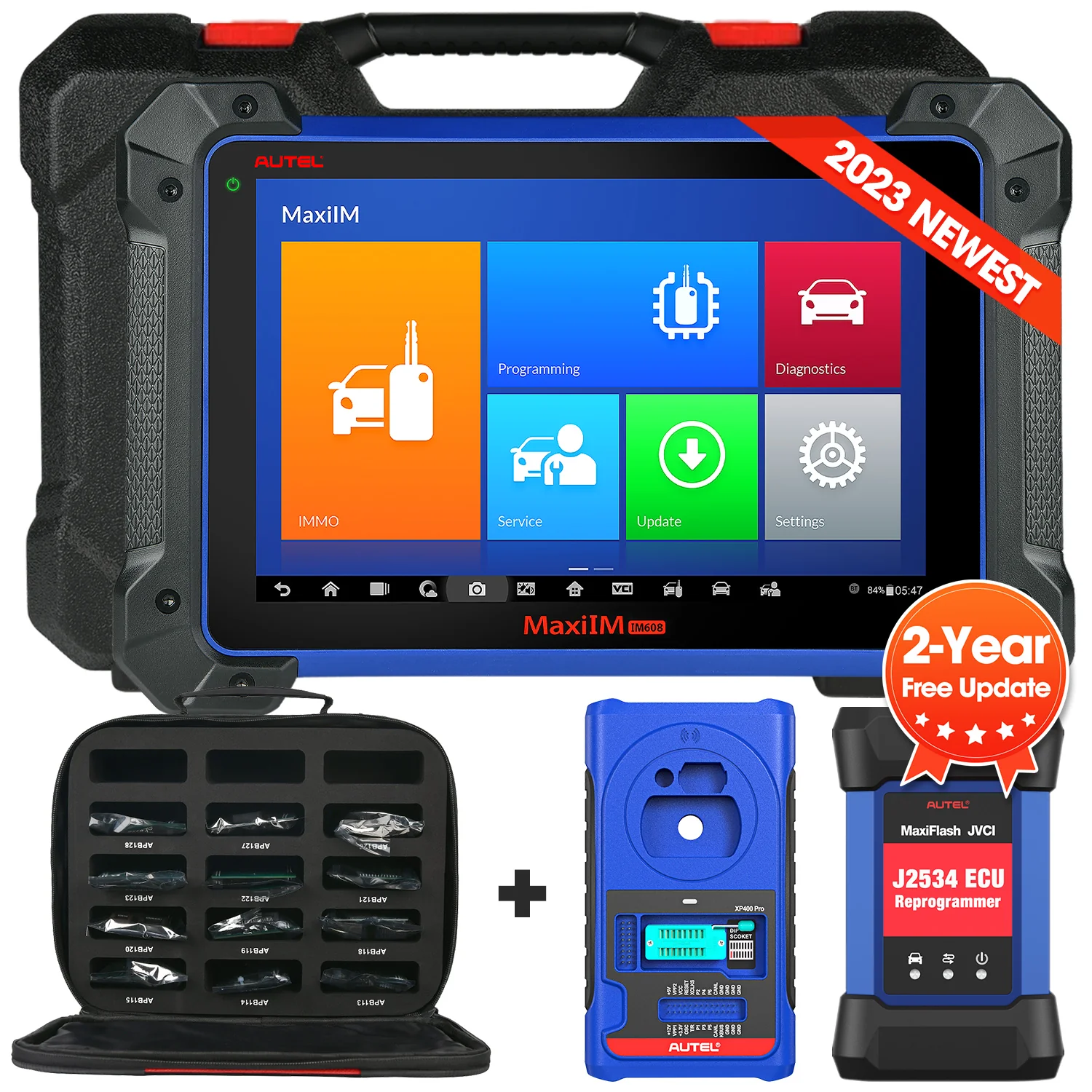

Package List of IMKPA Accessories

• 1pc x APB113
• 1pc x APB114
• 1pc x APB115
• 1pc x APB118
• 1pc x APB119
• 1pc x APB120
• 1pc x APB121
• 1pc x APB122
• 1pc x APB123
• 1pc x APB126
• 1pc x APB127
• 1pc x APB128
• 1pc x Storage Case

[video]

(1/6)Autel IM608 Pro Introduction and Unboxing | Key programming

(2/6)Need a new Honda key? Follow these tips and get a new key fast!

(3/6)Autel IM608 Pro | Make a car key without original one | Key programming

(4/6)How to program a new key on Mercedes-Benz | Autel IM608 Pro

(5/6) Lost all keys? 5 minutes to get your lost Mercedes Benz car keys replaced!

(6/6)How to do EEPROM Programming with a Porsche

[comparisons]

Model	IM508	IM608 Pro
Key Programming
EEPROM Read/Write	Basic	Advanced
MCU Read/Write	Basic	Advanced
Immobilizer Read/Write	Standard Functions	Advanced
Engine Read/Write	Standard Functions	Advanced
Mercedes Infrared Key Read/Write	Need XP400 Pro	Standard Functions
Remote Frequency Detection	Need XP400 Pro	Standard Functions
IMMO
Smart Mode(Guided and Automated Key Learning Function)	Standard Functions	Standard Functions
Auto Detect Make/Model/Year/System	Standard Functions	Standard Functions
Read PIN(Add Key/All Key Lost)	Standard Functions	Standard Functions
Key Generation/Key Learning/Remote Learning	Standard Functions	Standard Functions
IMMO ECU Reset/Adaption	Standard Functions	Standard Functions
IMMO ECU Refresh/Coding	Standard Functions	Standard Functions
Backup/Restore IMMO Data	Standard Functions	Standard Functions
BENZ 3rd Generation IMMO Add Key, All Key Lost via OBD	Need XP400 Pro	Standard Functions
Read/Write/Erase Benz ESL_W209 / W906 Data	Need XP400 Pro and IMKPA	Need IMKPA
Benz OE NEC Key Learning	Need XP400 Pro and IMKPA	Need IMKPA
Volkswagen MQB Key Learning via OBD	Standard Functions	Standard Functions
Volkswagen/Audi 4th Generation IMMO Key Learning	Standard Functions	Standard Functions
Volkswagen/Audi 5th Generation IMMO Key Learning	Standard Functions	Standard Functions
BMW FEM/BDC Key Learning and Adaption	Standard Functions	Standard Functions
BMW CAS4/3/2/1 Key Learning	Standard Functions	Standard Functions
BMW EWS3 Key Learning	Need XP400 Pro and IMKPA	Need IMKPA
2015-2019 Jaguar Land Rover Write Key via Dump	Need XP400 Pro	Standard Functions
Volvo Smart Key/Fobik Smart Key Learning	Need XP400 Pro	Standard Functions
Volkswagen/AUDI/BMW Key Unlock	Need XP400 Pro and IMKPA	Need IMKPA
OE-Level Diagnostics
All Systems for Over 80 Makes	Standard Functions	Standard Functions
Active Test	/	Standard Functions
ECU Coding	/	Standard Functions
Complete Service Functions	Basic	Advanced
Features
Rechargeable Li-ion Battery	5000 mAh	15000 mAh
Internet Updatable	Wi-Fi	Wi-Fi
Multilingual Support	Standard Functions	Standard Functions
Limited One Year Warranty	Standard Functions	Standard Functions
Touchscreen	7-inch	10.1-inch
Memory	64GB	64GB
Processor	Quad-core	Hexa-core
Camera	/	8.0 Megapixel
Resolution	1024x600	1920x1200
