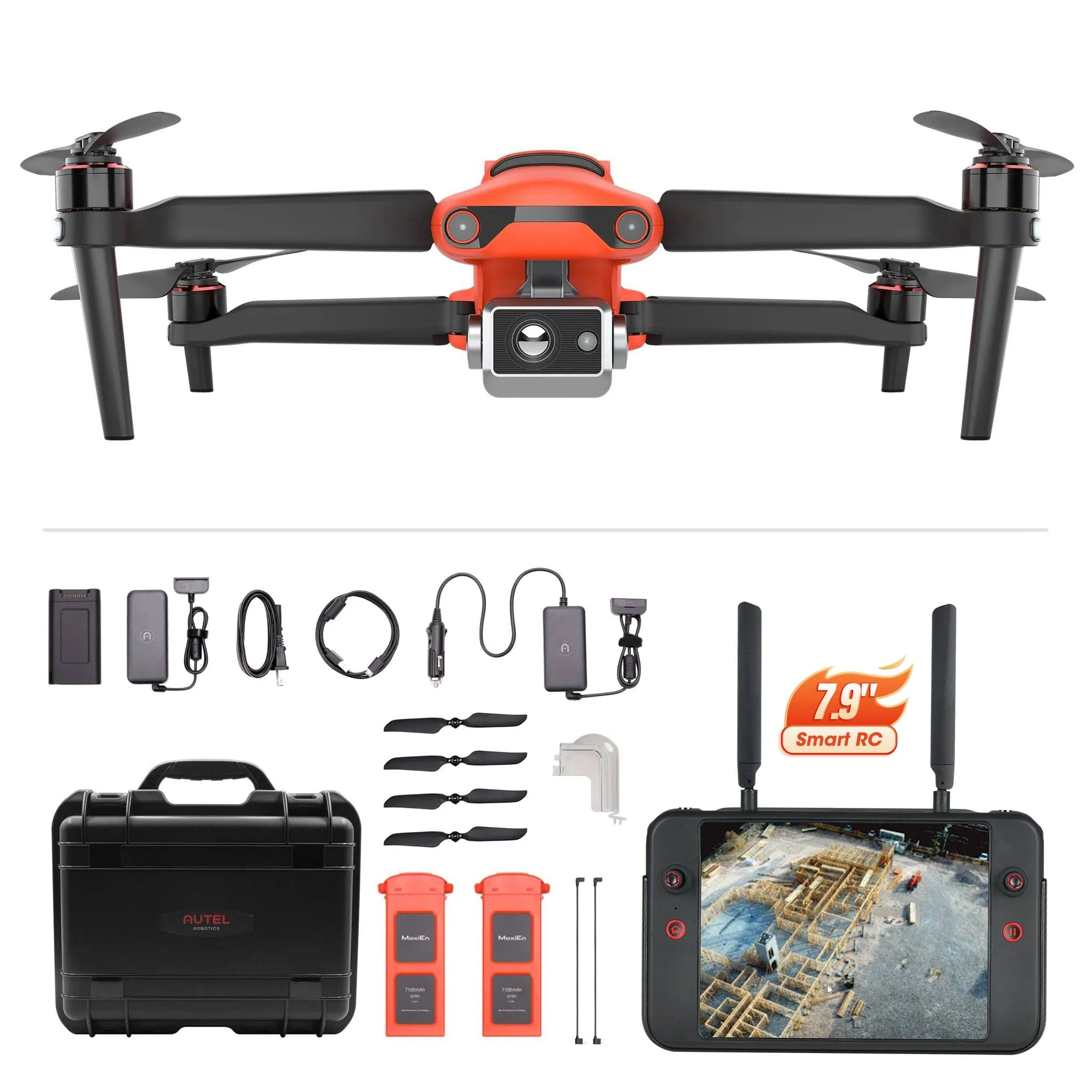

Autel Robotics EVO II Dual 640T Thermal Drone Rugged Bundle [V2] With Autel 7.9" Smart Controller
Autel Robotics EVO II Dual 640T Thermal Drone Rugged Bundle [V2] With Autel 7.9" Smart Controller

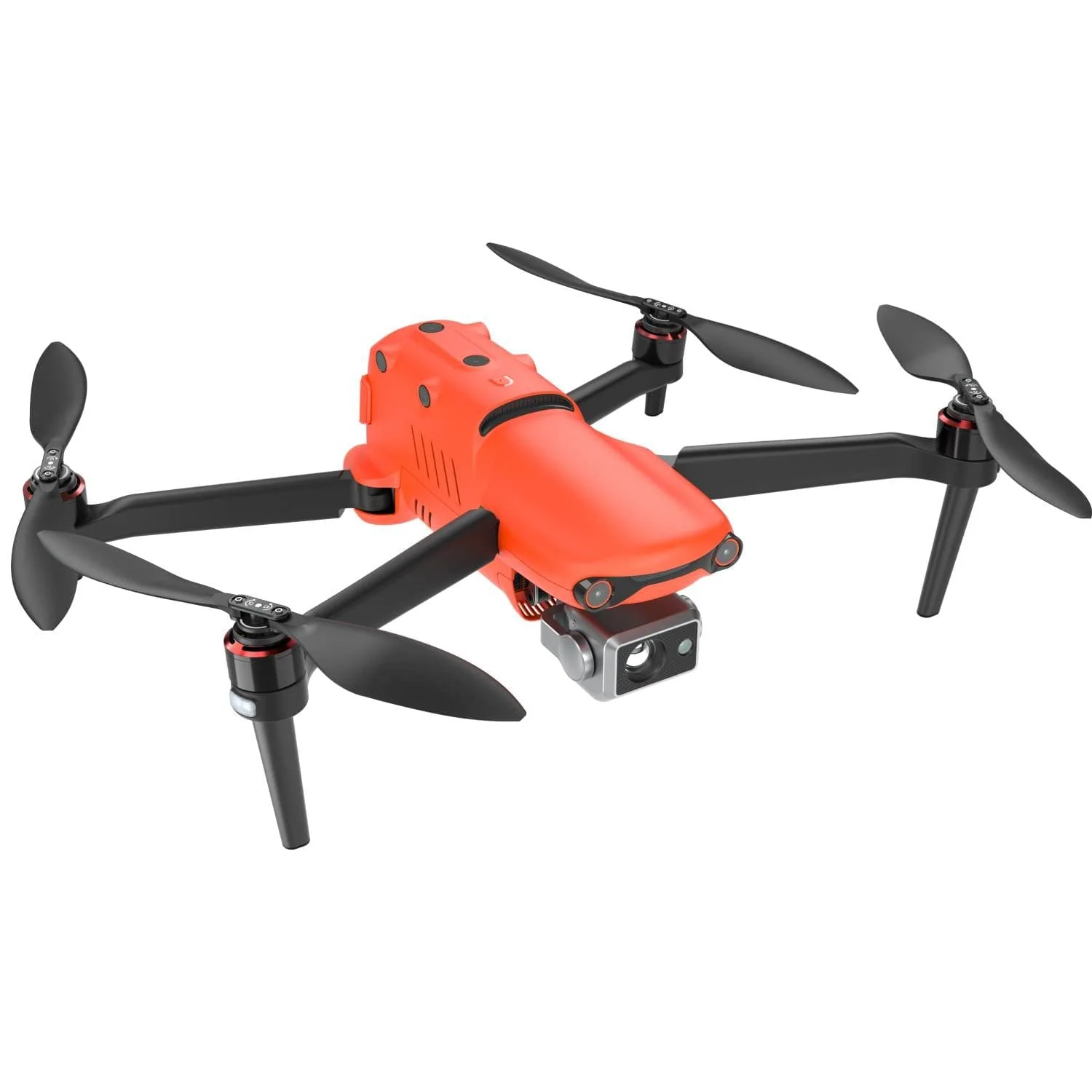

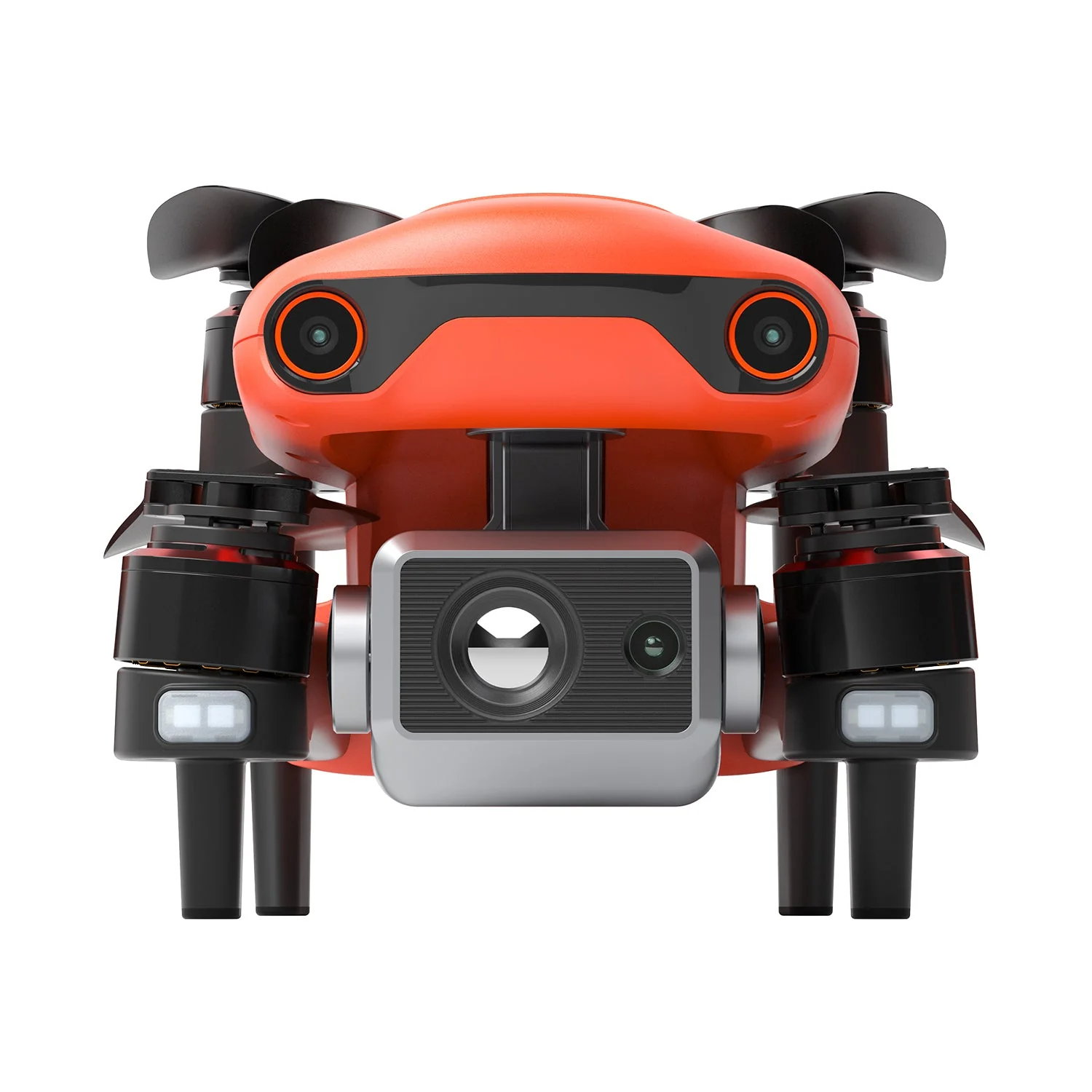

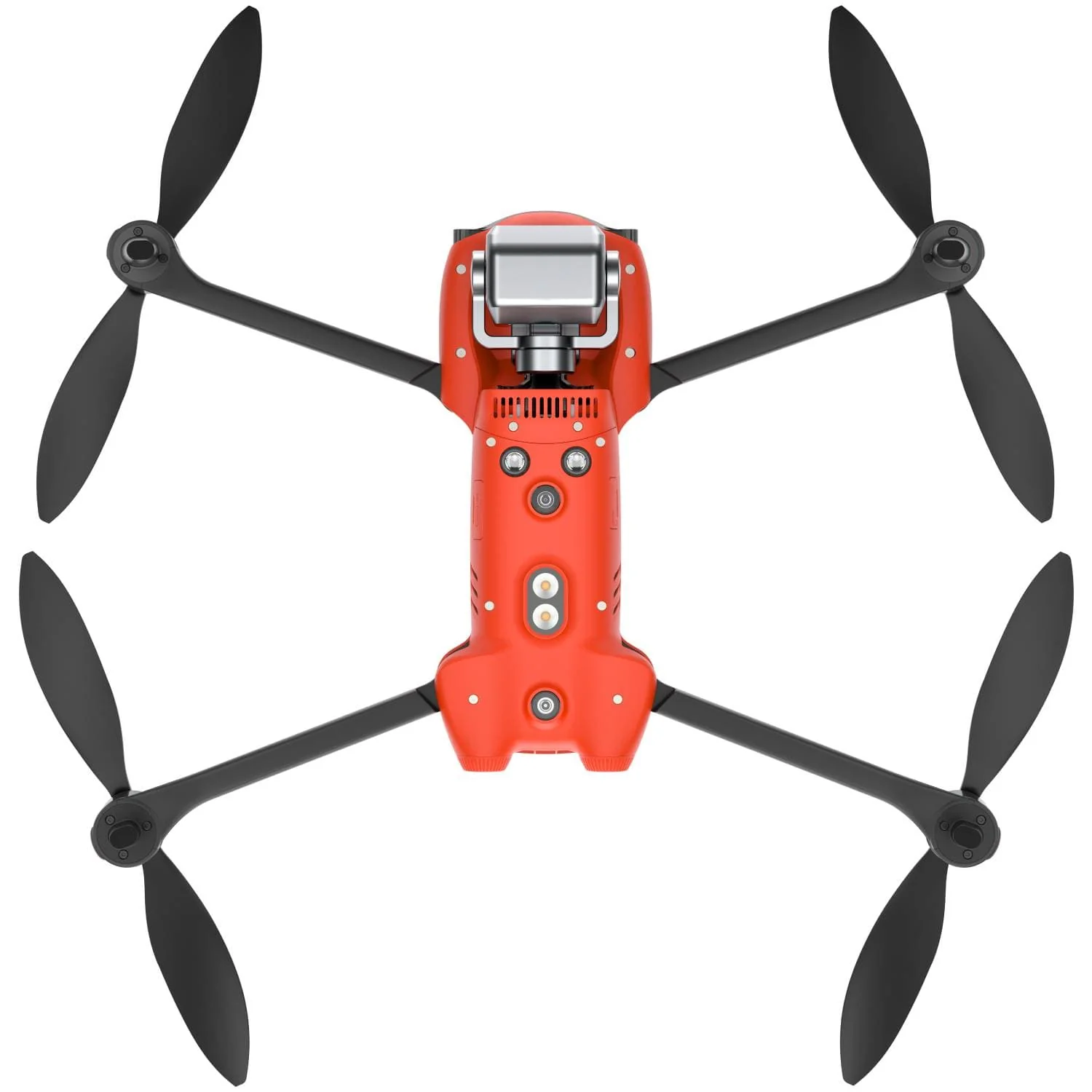

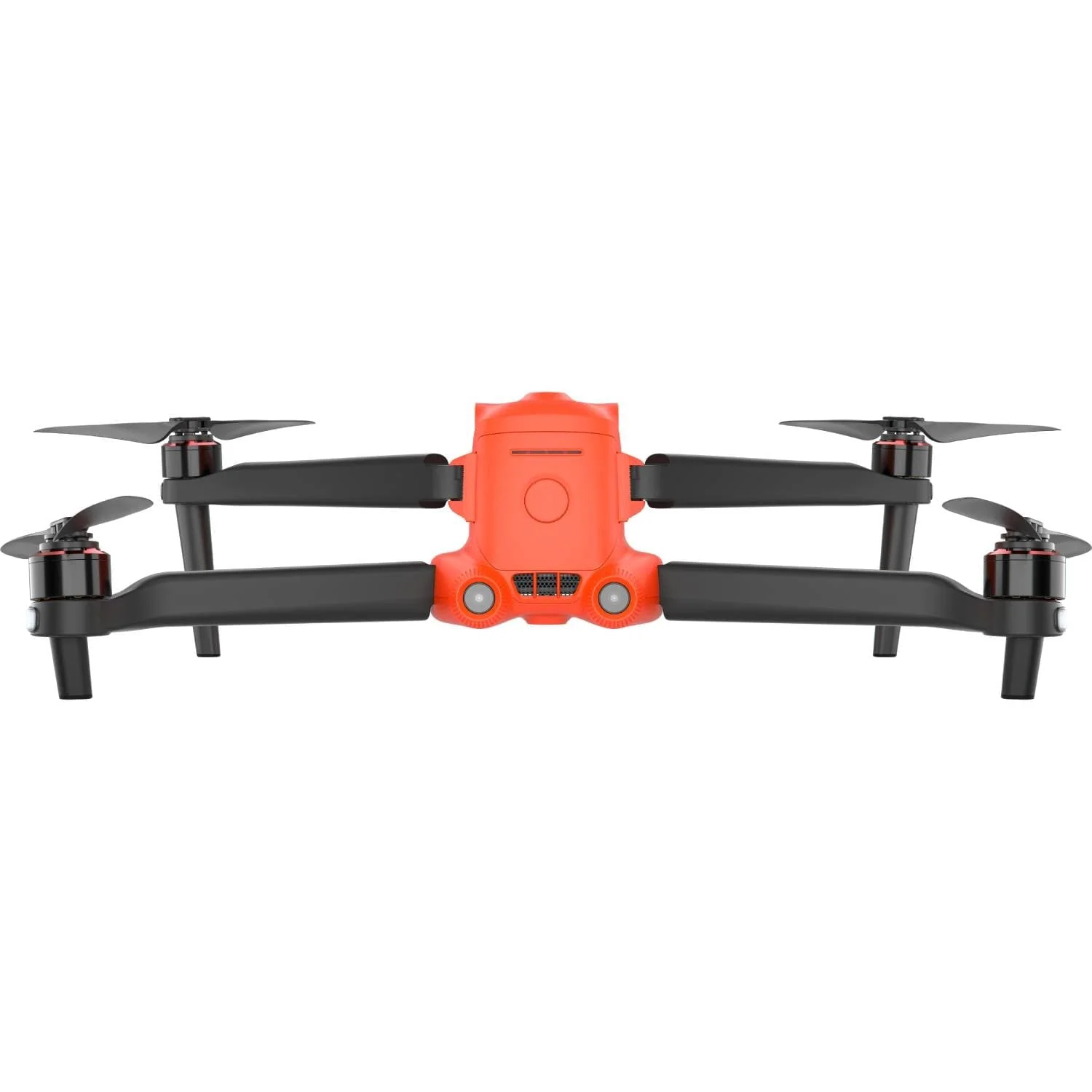

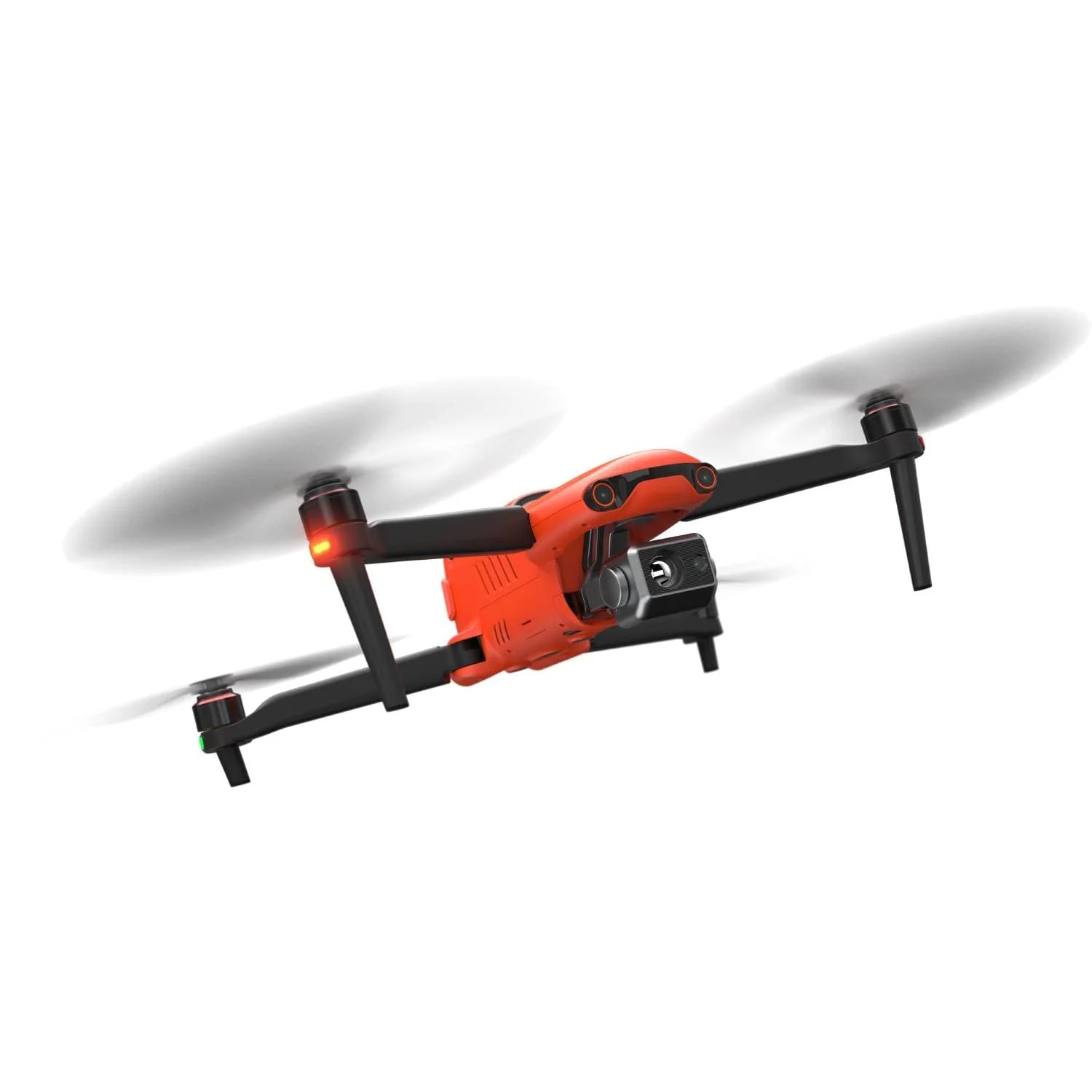

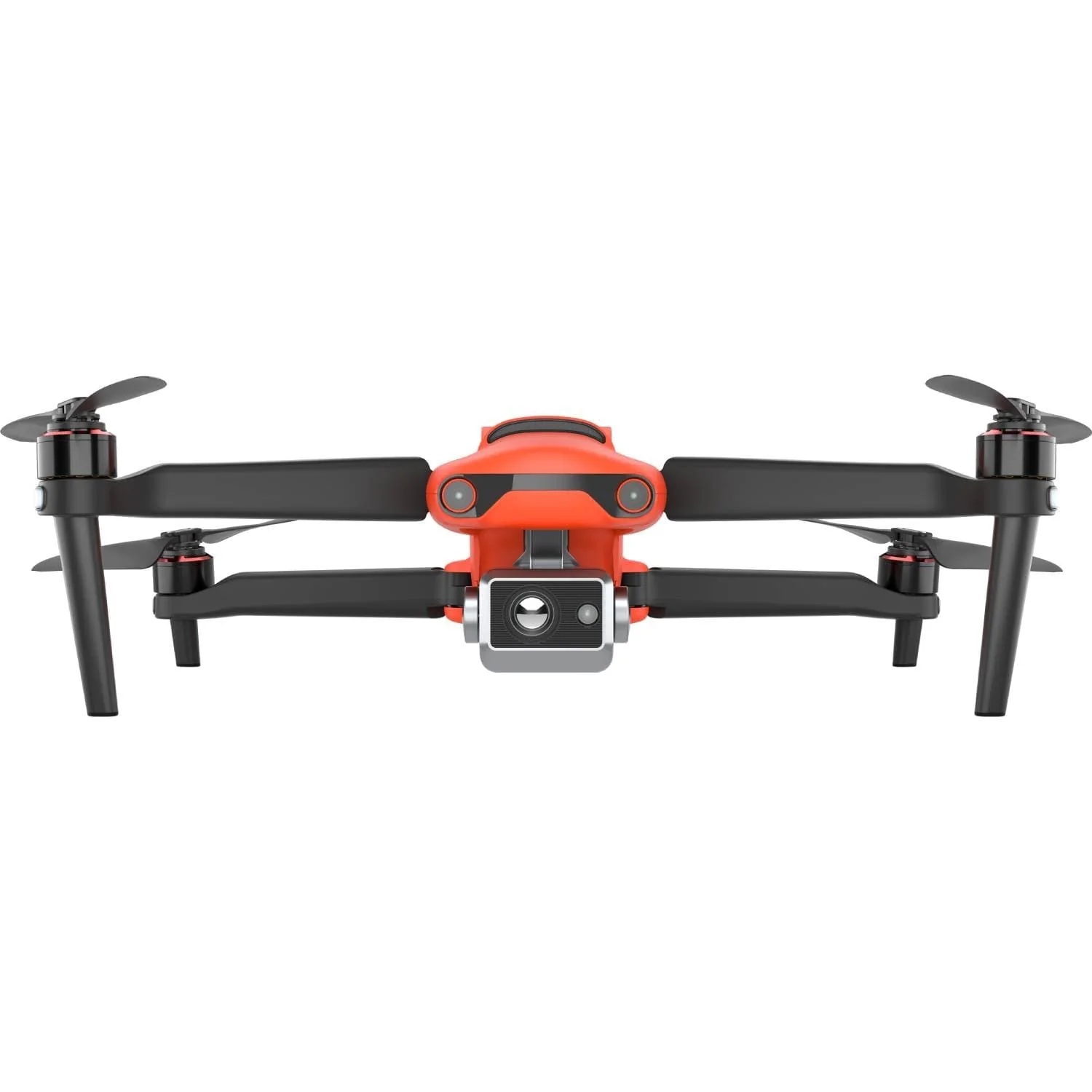

Autel Robotics EVO II Dual 640T Drone
Atuel Robotics EVO II Dual 640T is equipped with a 640*512 high-resolution thermal imaging camera and 8K ultra HD visible light camera, enabling you to capture highly detailed imagery to achieve optimal insights.
In addition to the Dual camera, the EVO II Dual 640T can accurately detect heat sources within a distance of 2-15 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T can regulate temperature deviations within 3 degrees Celsius.
A New Generation Of Thermal Sensor
The 640x512 sensor provides greater resolution than any camera in its class, enabling pilots to see deep detail in dark environments. The new generation of the Autel Robotics thermal imaging sensor has a resolution of up to 640x512@30 fps. It also comes standard with a 13mm lens, and 16x digital zoom, and is capable of recognizing subjects up to 100 m away.
Maximum Efficiency In All Viewing Conditions
EVO II Dual 640T supports up to 10 thermal palettes, enabling pilots to cope with a variety of complex shooting environments and mission scenarios.
Picture-in-Picture Mode (For Enhanced Situational Awareness)
Visual and thermal imagery are combined to help users quickly interpret data and aid in critical decision-making.
Capture And Preserve Even The Smallest Of Details
8K Video, Unmatched Clarity
EVO II Dual 640T records in resolutions up to 7680x4320. With 4 times more pixels than 4K (and 16 times more than HD), 8K videos redefine image clarity and depth.
48MP Camera
The 48MP sensor captures every forensic-relevant detail to assist in precise evidence capture. Both thermal and RGB images are provided with embedded metadata, making the EVO II Dual 640T the ultimate public safety tool.
4x Lossless Zoom
The high resolution provides the ability to zoom deep into a scene and crop an image or video to 4K without any loss in quality. Capture a scene, zoom in, and reframe your shots with ease.
4K HDR For Greater Dynamic Range
4K HDR offers greater detail in highlights and shadows, providing higher.
360° Obstacle Avoidance
Omnidirectional Obstacle Avoidance With 12 Visual Sensors
Equipped with 19 groups of sensors — including 12 visual sensors, the main camera, ultrasound, and dual IMUs — the EVO II Dual 640T can easily build three-dimensional maps and plan paths through complex terrain in real-time.
Powerful Infrared Thermal Analysis Tool(IRPC)
This free temperature measurement analysis tool is developed for the 640T, and enables users to quickly import images, edit and analyze temperature measurement, and to generate detailed reports for sharing and coolaboration.(Select the "Word" icon Export report. Generate analysis report)

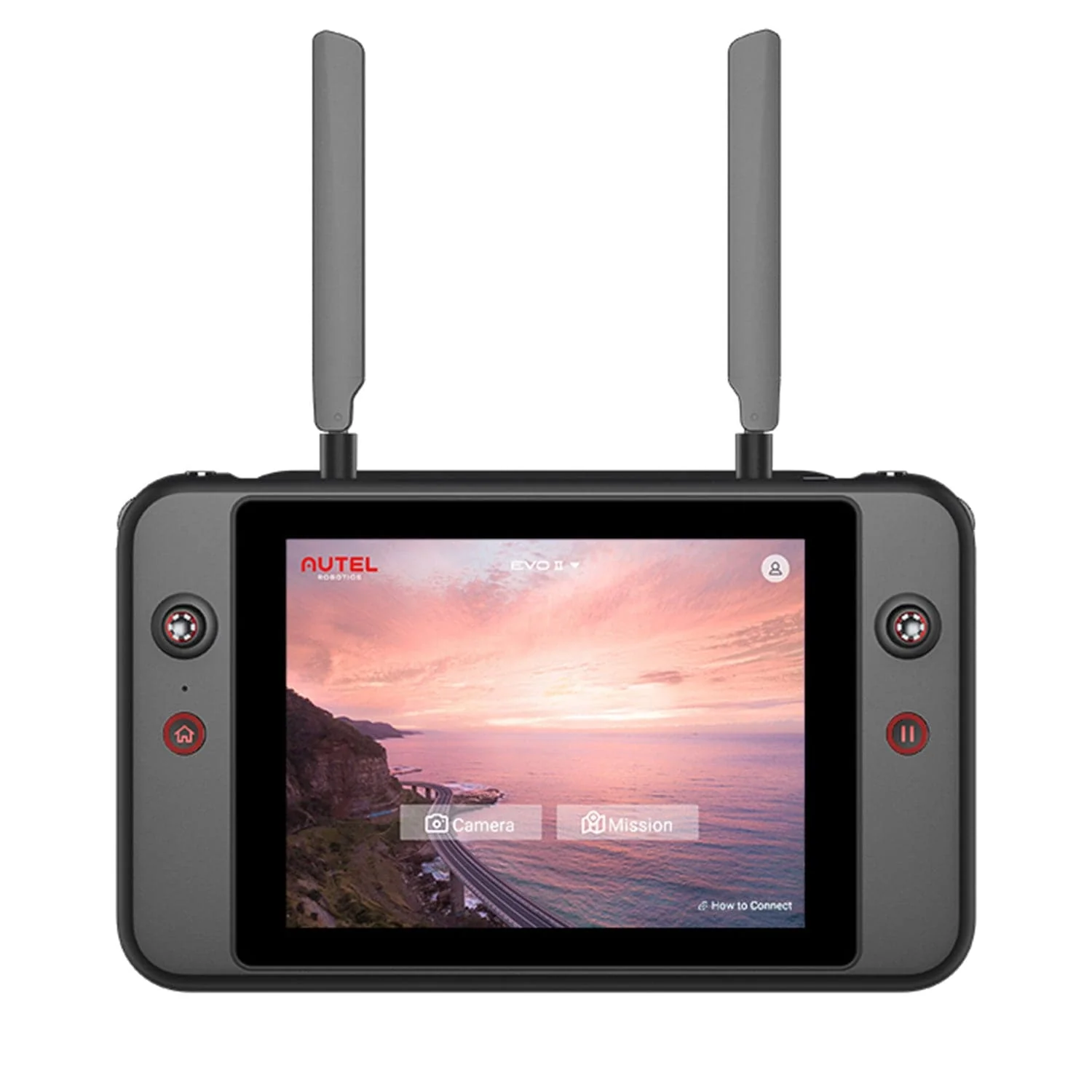

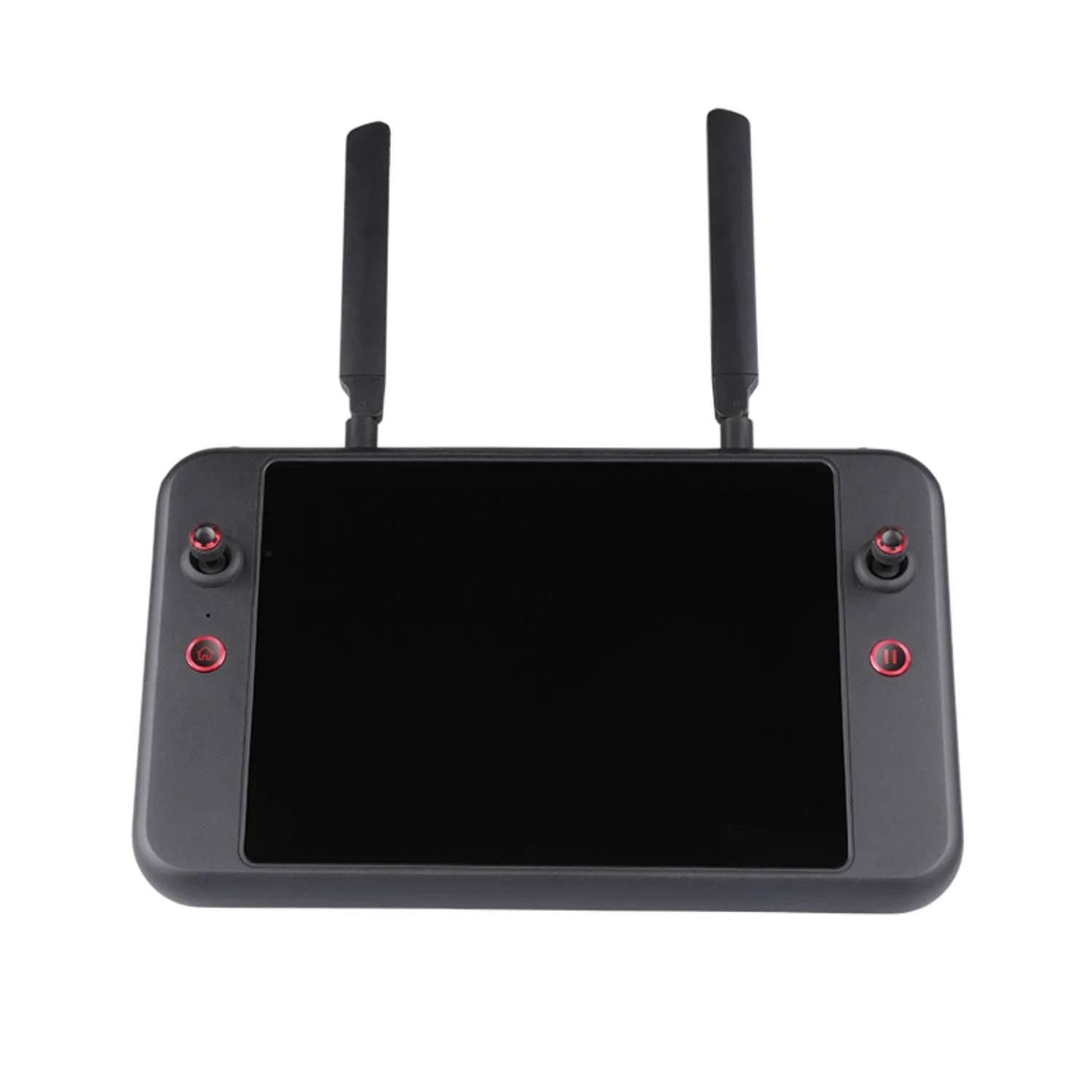

Autel Smart Controller
EVO II Dual 640T Rugged Bundles are equipped with Autel's 7.9" 2000-nit Smart Controller for maximum viewing when operating. This 7.9" Smart Controller from Autel Robotics features a 2000-nit display, 4.5 hours of runtime, 128GB of internal storage and a customized Android operating system that allows for 3rd party apps to be downloaded and installed.
The New Level of Thermal Drone
A sharp, high-contrast thermal image ensures improved identification of a wild animal, individual body parts and even the smallest objects such as branches, leaves, grass and ground surface.
All three camera modules support a variety of shooting modes, including: Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse; High-dynamic-range (HDR) imaging; NIGHTBEAT (high signal-to-noise ratio)
Connect Autel Live Deck to display live on any device
A high-definition live feed from the EVO 2 drone camera can be displayed on your remote control’s screen or connect with Autel Live Deck to displayed on any device including computer, tv, phone, etc. Of course, Images and videos can be stored in the aircraft’s onboard memory or on a micro SD card.
Adjust field-of-view to any angle from 0° to 90° while flying
EVO II Dual Drone contains a high-precision 3-axis gimbal that keeps the camera steady while the aircraft is flying, ensuring image stability and clarity. Also, You can use the remote control's gimbal pitch dial to adjust the pitch axis to any angle from 0° to 90° at any time.
All Cameras interchangeable
Autel EVO II Series Dones is one aircraft with three camera options. All cameras for Evo II can be purchased separately and are interchangeable!
Dynamic Track 2.0
The EVO II Dual 640T can model the location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.
Modular Design - Unlimited Expansion
Modular Design - Unlimited expansion
Interchangeable Payloads Offer Expansion Capability - Payload Capacity 2lbs (900g)
Live Video Streaming - LiveDeck enables pilots to share the live aerial video across public or private networks sharing data with command posts, stakeholders, or online viewers.
Open SDK - Create customized services.
38 Minutes Max Flight Time
[spec]
EVO II Dual 640T Camera Specifications (Infrared Camera + Visible Light Camera)
EVO II Dual 640T Infrared Camera Specifications
| Sensor | Vanadium oxide uncooled infrared focal plane detector |
| Lens | Viewing angle H33°V26° Focal length 13mm |
| Zoom | 1-8x |
| Sensor Resolution | 640x512 |
| Pixel Size | 12μm |
| Wavelength Range | 8 - 14μm |
| Temperature Range | High gain mode: -20° to +150° Low gain mode: 0° to +550° |
| Temperature Measurement Accuracy | ±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃ |
| Video Resolution | 640x512@30fps |
| Bit rate | 6Mbps |
| Video Format | MOV / MP4 (Support H.264/H.265) |
| Camera Resolution | Infrared mode: 640*512 Picture-in-picture mode: 1920*1080, 1280*720 |
| Photo Mode | Single shot Continuous shooting: 3, 5, 3 by default; Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, the default is 5S. |
| Photo Format | TIFF+JPG (with irg file) |
EVO II Dual 640T visible light camera specifications
| Sensor | 1/2" CMOS Effective Pixels: 48 MP |
| Lens | FOV: about 79° 35mm Format Equivalent: 25.6 mm Aperture: f/1.8 Focus range: 0.5 m to infinity (with auto focus) |
| Digital Zoom | 1 ~ 8x (Max. 4x lossless zoom) |
| ISO Range | Video: 100-6400 Photos: 100-3200 |
| Shutter Speed | Electronic Shutter: 8 ~ 1/8000s |
| Maximum photo size | 8000x6000 (4:3) 7680x4320 (16:9) 4000x3000 (4:3) 3840x2160 (16:9) |
| Still Image Format | JPEG / DNG / JPEG+DNG |
| Photo Modes | Single shot; Continuous shooting (AEB/Burst): 3, 5, 3 by default; Timed shooting: 2S, 5S, 7S, 10S, 20S, 30S, 60S, default 5S; Pure night shot: support 4K Jpeg; HDR: Support 4K Jpeg; Long exposure: up to 8s; |
| Image Format | JPG (default); DNG |
| Video Resolution | 8K 7680*4320 p25/p24 6K 5760*3240 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24 |
| Video Format | MP4 / MOV format (MPEG-4 AVC/H.264, HEVC/H.265) |
| Max Video Bitrate | 120Mbps |
Gimbal
| Gimbal | Three-axis stabilization |
| Mechanical Range | Tilt: -135° to +45° Heading: -100° to +100° |
| Controllable Range | Tilt: -120° to +30° Heading: -90° to +90° |
| Maximum Control Speed (Tilt) | 300°/s |
| Angle Jitter | ±0.005° |
Aircraft
| Weight (with propeller and battery) | 1237g±0.5g |
| Wheelbase | 397 mm |
| Maximum Take-off Altitude | 6000 m |
| Max Ascent Speed | 5 m/s（automatic flight） 8 m/s（manual control） |
| Max Descent Speed | 4 m/s |
| Max Horizontal Flight Speed | 72 km/h（positioning mode） |
| Max Tilt Angle | 33°（positioning mode） |
| Max Angular Velocity | 120°/s |
| Max Flight Time | 38 minutes |
| Operating Temperature Range | 0℃ to 40℃ |
| Maximum Resistance to Wind | 39-46 mph (Level 8) |
| Operating Frequency | 2.400 GHz to 2.4835 GHz |
| Transmission Power (2.4G) | FCC：≤26 dBm ISED：≤26 dBm CE：≤20 dBm RCM：≤20 dBm SRRC：≤20dBm |
| Hovering Accuracy | When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m RTK is not enabled: vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS positioning works normally) Level: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS positioning works normally) |
| Image Position Compensation | The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively. |
Sensing System (Obstacle Avoidance)
| Sensing System | Omnidirectional Obstacle Sensing |
| Forward | Precision Measurement Range: 0.5-20 m Detectable Range: 0.5-40m Effective Sensing Speed: <15m/s FOV: Horizontal: 60°, Vertical: 80° |
| Backward | Precision Measurement Range: 0.5-16 m Detectable Range: 0.5-32m Effective Sensing Speed: <12m/s FOV: Horizontal: 60°, Vertical: 80° |
| Upward | Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <6m/s FOV: Horizontal: 60°, Vertical: 50° |
| Downward | Precision Measurement Range: 0.5-11 m Detectable Range: 0.5-22m Effective Sensing Speed: <6m/s FOV: Horizontal: 90°, Vertical: 70° |
| Sides | Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <10m/s FOV: Horizontal: 60°, Vertical: 50° |
| Operating Environment | Above: The surface has rich textures and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment); the surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.) Below: The ground has rich textures and sufficient lighting conditions (> 15 lux, indoor fluorescent lamp is normally irradiated by the environment); the surface is made of diffuse reflective material and the reflectivity is> 20% (such as walls, trees, people, etc.) |
Autel Robotics Smart Controller
| Image Transmission |
Max Signal Transmission Distance, (No interference, No obstacles)：FCC：13km;CE：7km Transmitter Power (EIRP) 902-928 MHz FCC:≤30dBm 2.400-2.4835 GHz FCC:≤30dBm CE：≤20dBm 5.725-5.850 GHz CE：≤14dBm |
| Digital Transmission |
Working Frequency：5.725 - 5.755 GHz Transmitter Power (EIRP)：FCC:≤20dBm CE：≤14dBm |
| Wi-Fi | Protocol: Wi-Fi Direct, Wi-Fi Display, 802.11a/b/g/n/ac, Wi-Fi with 2×2 MIMO Working Frequency: 2.400- 2.4835GHz; 5.150-5.250GHz; 5.725-5.850 GHz |
| Battery | Capacity: 5800mAh Voltage: 11.55V Battery Type: Li-ion Battery Energy: 67 Wh Charging time: 120 min |
| Operating Hours | ~3h(Max Brightness) ~4.5h (50% Brightness) |
| Internal Storage | 128GB |
| Video Output port | HDMI Port |
| USB-A Voltage/current | 5V/2A |
| Operating Temperature | -4° to 104° F (-20℃ to 40℃) |
| Storage Temperature Range | < 1 month: -4° to 113° F (-20° to 45° C) 1-3 months: 32° to 86° F (0° to 30° C) 3-12 months: 59° to 77° F (15° to 25° C) |
| Charging Temperature | 41° to 113° F (5℃ to 45℃) |
| *Supported Aircrafts | EVO II Series, EVOII RTK Series, EVO II Enterprise |
| Satellite Positioning Module | GPS +GLONASS +Galileo |
| Dimensions | 303×190×87mm (with antenna folded) 303×273×87mm (with antenna unfolded) |
| Weight | 1150g (without protection case) 1250g (with protection case) |
Intelligent Flight Battery
| Capacity | 7100 mAh |
| Voltage | 11.55 V |
| Max Charging Voltage | 13.2 V |
| Battery Type | LiPo 3S |
| Energy | 82 Wh |
| Net Weight | 0.81 lbs (365 grams) |
| Charging Temperature Range | 41°F to 104°F (5°C to 40°C) |
| Storage Temperature and Humidity | -10~30℃，65±20%RH |
| Recommended Storage Temperature | 22-28℃ |
| Max Charging Power | 93W |
| Charging Time | 90 minutes |
Intelligent Flight Battery Manager
| Voltage | 13.2 V |
| Charging Temperature Range | 5℃ to 45℃ |
Charger
| Input | 100-240 V, 50/60 Hz, 1.5A |
| Output | 13.2 V = 5 A 5V=3A 9V=2A 12V=1.5A |
| Voltage | 13.2±0.1V |
| Rated Power | 66W |
Introducing: Commercial Applications for EVO II
EVO II Dual 640T Thermal Imaging Demonstration
EVO II Dual 640T: Thermal Analysis Tool Overview
