Autel Robotics EVO Max 4T | 2025 Newest Released | Reach New Frontiers
- Free Gifts - One Battery & Landing Pad
- 8K 10x Optical Zoom
- Thermal Camera:640x512 | 16x Digital Zoom
- Wide Camera: 50MP | 1/1.28" CMOS
- Zoom Camera: 48MP | 8K 10x Optical Zoom(160x Max)
- Laser Rangefinder
- Autel SkyLink 3.0 | 12.4 miles Transmission Range
- 720° Obstacle Avoidance
- 42 mins Max Flight Time
- A-Mesh 1.0 | Mesh Networking Technology
- 3D Map Planning | Multiple Mission Types | Data Security
- Multi-channel Projection Screen*
- Autel SDK
[keyfeatures]
Autel EVO Max 4T - A Leader of Drone Intelligence
The EVO Max 4T brings powerful technologies and advanced autonomy to users. EVO Max 4T assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance.Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios.With a foldable, weather-resistant design, the EVO Max 4T is as portable as it is capable.
Hybrid Sensor Payload
The EVO Max 4T payload integrates wide-angle, zoom and thermal camera with a laser rangefinder for all data capture needs and critical decision making.
Laser Rangefinder
Tap a target to get the coordinates and altitude rapidly from up to 0.75 miles away.
Thermal Camera
Equipped with 640x512 high-resolution radiometric thermal imaging camera, 30fps and 16x digital zoom.
Wide Camera
Autel's Moonlight Algorithm 2.0 boosts post processing and allows the pilot to capture crisp, detailed images in low-light environments.
Video: support 4K 30fps, max ISO 64000.
Photo: Moonlight mode reduces noise and enhances HDR.
Zoom Camera
Supports for 8K 10x optical zoom and 160x Max. Hybrid Zoom with clear details on targets up to 1.24 miles away.
A Leader in Drone Intelligence
The EVO Max 4T comes equipped with a wide array of features and capabilities that range from Autonomous Path Finding, Navigation in GPS Denied Environments, and Accurate Object Identification and Tracking.
Autonomous Path Finding
Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.
Navigation In GPS Denied Environments
Advanced sensors allow the EVO Max 4T to navigate within hardened structures, underground, or in environments without GPS.
Accurate Object Identification And Tracking
Based on Autel's AI recognition technology, the EVO Max 4T can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement personnel.
No Blind Spots
Ultimate Obstacle Avoidance
EVO Max 4T is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.
*Obstacle Avoidance performance varies with drone speed, lighting, and flying conditions and is not meant to replace pilot responsibility.
Anti Jam, Anti Interference
The EVO Max 4T uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4T to fly confidently near power lines, critical structures, and in complex areas.
Weather Rating-IP43
Platform Capability
EVO Max 4T redefines portability with its powerful platform and all weather design.
It comes equipped with the following features and capabilities:
- 42 Minutes of Maximum Flight Time
- IP43 Ingress Protection Rating
- 27 mph Maximum Wind Resistance
- 23,000ft Service Ceiling
- 12.4 Mile Transmission Range
*Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
Hot-Swappable Battery
Autel Max 4T hot-swappable battery system, which allows for extended flight times without the need for downtime. This system allows users to easily swap out batteries while the drone is still in operation, making it ideal for use in time-critical applications where every second counts.
A-Mesh 1.0
The Drone Industry's First Mesh Networking Technology
The EVO Max 4T features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration for seamless enterprise operations.
Strong Anti-Interference
The EVO Max 4T can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.
Beyond-Line-of-Sight Applications
With A-Mesh, multiple aircrafts in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.
Full-Fleet Control
Multiple drones can be controlled autonomously by one pilot or by a group of pilots simultaneously with or without LTE coverage.
Enhanced Range
Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.
Autel SkyLink 3.0
The EVO Max 4T SkyLink 3.0 system comes with 6 antennas, 4 frequency bands, AES-256 encryption*, and optional 4G integration* to provide users with the most advanced flight capabilities ever in an EVO.
- 12.4 Mile Image Transmission Range
- 1080p/60fps Real-Time Image Quality
- 900MHz/2.4GHz/5.2GHz/5.8GHz Frequency Bands**
- <150ms Latency
*This feature will be available in a future update.
**5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.
Autel Enterprise App Platform
The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4T's mission capability.
Smart Features
The EVO Max 4T comes equipped with the following intelligent features that were tailored for commercial end users:
3D Map Planning
Plan, create, and execute 3D waypoint mission plans on a 3D map.
Mission Reproduction*
Fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max 4T will automatically record the camera angles and replicate the mission you just flew.
Quick Mission*
Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.
Multiple Mission Types
The Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.
Waypoint Missions
Users can add waypoints for flexible, non-structured flight paths.
Rectangular Mission
Supports one-click automatic generation of a rectangular flight area.
Automatic Mission (Generation And Data Capture*)
Automatically produce routes by adding regional boundary points through dots or importing KML files.
Terrain Follow*
Maintain relatively constant altitude from the ground for uneven or sloped terrain.
Oblique Photography
Automatically plan 5 groups of routes (1 ortho + 4 oblique) according to the flight area set by the user.
Spiral Mission*
Supports helical flight search in a designated area for SAR.
Polygon Mission
Supports one-click automatic generation of polygon flight areas.
Vertical Scan*
Perform vertical surveys for building facades, open pit walls, and towers.
Corridor Mission*
Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow, large-scale terrain.
*This feature will be available in a future update.
Data Security
Featuring AES 128/256 storage, radio link and network encryption for operational security.
Privacy Protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.
Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.
Enhanced Live-View
Multi-channel Projection Screen*
Supports simultaneous output of RGB, infrared, night vision, and wide-angle images.
*This feature will be available in a future update.
Complete Remote Operations System
Used with the EVO Nest, the EVO Max series supports all-weather auto piloting for scenarios such as substations, industrial parks, and rooftops.
Autel SDK
The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.
Mobile SDK
Open UX SDK (iOS & Android) can directly call up the ready-made interactive interface.
Payload SDK*
Unified interface standards support access to third-party mounts such as microphones and gas detectors.
Cloud SDK*
Enables remote live broadcast and control of drones and Nests through third-party platforms or web pages.
Autel Smart Controller V3
Daylight Readable Display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution. SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s. Functional Interface: HDMI ports allow connection to 3rd party displays or monitors. Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty. Local Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.
EVO Nest (optional)
EVO Nest is a base for automatic take off, landing, charging, and mission planning for the EVO series. The Nest is designed for all-weather operation and uses a single-piece protective drum with fewer moving parts to simplify maintenance.
RTK Module (optional)
Provides centimeter-accurate positioning data for mapping and reduces electromagnetic interference for flying near critical structures.
Application
The Autel EVO Max 4T was designed for survey and inspections, search and rescue operations, public safety, and many other commercial applications.
[spec]
Autel Robotics EVO Max 4T Specs
Aircraft
| Weight | 3.5 lbs (1600g, battery and gimbal included) |
| Dimensions | 576*660*149 (folded, incl. propellers) 340*407*148(folded, excl. propellers) 257*136*133 (unfolded, excl. propellers) |
| Diagonal Wheelbase | 1.52 ft (464mm) |
| Max Ascent Speed | 8m/s |
| Max Descent Speed | 6m/s |
| Max Horizontal Speed (windless near sea level) | 22m/s |
| Max Service Ceiling Above Sea Level | 23000ft (7000m) |
| Max Flight Time (windless) | 42 mins |
| Max Hovering Time (windless) | 40 mins |
| Max Wind Resistance | 27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s). |
| IP Rating | IP43 |
| Max Tilt Angle | 35° |
| Max Angular Velocity | Pitch: 300°/s; Yaw: 120°/s |
| Operating Temperature | -4°F to 122°F (-20℃ - 50℃) |
| Operating Frequency | 2.4G/5.2G*/5.8G/900MHz* |
| Transmitter Power (EIRP) | 2.4GHz:<33dBm(FCC), 20dBm(CE/SRRC/MIC) 5.8GHz:33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC) |
| Hovering Accuracy | Vertical: ±0.1 m (Vision System enabled); ±0.3 m (GPS enabled); ±0.15 m (RTK enabled); Horizontal: ±0.15 m (Vision System enabled); ±0.3 m (GPS enabled); |
Gimbal
| Mechanical Range | Pan: -135° to 45° Tilt: -45° to 45° Roll: -100° to 100° |
| Controllable Range | -90° to 45° |
| Stable system | 3-axis mechanical gimbal (pitch, tilt, roll) |
| Max Control Speed (pitch) | 200º/s |
| Angular Vibration Range | <0.005° |
Zoom Camera (Telephoto)
| Sensor | 1/2" CMOS, Effective pixels: 48M |
| Lens | Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm) Aperture: f/2.8-f/4.8 |
| Exposure Compensation | ±3EV 0.3EV/step |
| ISO Range | Normal Mode： Auto: ISO100 ~ ISO6400 Manual: Photo: ISO100 ~ ISO12800 Video: ISO100 ~ ISO6400 |
| Shutter Speed | Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s |
| Max Photo Size | 8000×6000 |
| Max Video Resolution | 7680×4320 |
Wide Camera
| Sensor | 1/1.28 CMOS, Effective pixels: 50M |
| Lens | DFOV: 85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: 8-wire SMA, PDAF focus |
| Exposure Compensation | ±3EV 0.3EV/step |
| ISO Range | Auto: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO64000) Manual: Photo: ISO100~ISO12800 Video: ISO100~ISO6400 |
| Shutter Speed | Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s |
| Max. Video Resolution | 3840×2160 |
| Photo Size | 8192*6144 4096*3072 |
Thermal Camera
| Thermal Imager | Uncooled VOx Microbolometer |
| Lens | DFOV: 64° Aperture: 13mm Focus: f/1.2 |
| Infrared Temperature Measurement Accuracy |
26.6~37.4 ℉ or reading ±3% (using the larger value) @ambient temperature -4℉ to 140℉ |
| Video Resolution | 640*512 |
| Photo Size | 640*512 |
| Pixel Pitch | 12 um |
| Temperature Measurement Method | Center measurement, pot measurement, rectangular measurement |
| Temperature Measurement Range | -4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C) |
| Temperature Alert | High and low temperature alarm thresholds, reporting coordinates and temperaturevalues |
Laser Range Finder
| Measurement Accuracy | ±1m |
| Measuring Range | 1.2km |
Image Transmission
| Operating Frequency | 2.4G/5.2G*/5.8G/900MHz* |
| Max Transmission Distance (unobstructed, free of interference) | 20km |
| Independent Networking | 7.9-inch Smart Controller |
| Transmitter Power (EIRP) | 2.4GHz:<33dBm（FCC）, <20dBm(CE/SRRC/MIC) 5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: <23dBm(FCC/SRRC/MIC) |
Autonomy
| Non-GPS Hovering and Manual Flight | Indoor: Horizontal error ≤3cm （At least have texture at one direction） Outdoor: Daytime: Within 500m flight height, horizontal error < 0.01*height Night: Manual flight is controllable within 100m flight height |
| Non-GPS Return-to-Home | Within 500m flight height, horizontal error of Return-to-Home point < 30cm |
| Automatic Obstacle Rerouting | High Speed Obstacle Rerouting: Flight speed up to 20m/s when Min. safety distance to obstacle is 1.5m High Precision Obstacle Rerouting: Flight speed could reach 3m/s when Min. safety distance to obstacle is 0.2m |
| Multi-target Recognition and Tracking | Target identification types: people, vehicles, boats Number of targets detected: 64 Comprehensive recognition accuracy: > 85% |
Millimeter-wave Radar
| Frequency | 60Ghz~64Ghz |
| Size | 38*14*2mm |
| Weight | 2g |
| EIRP | 18dbm |
| Distance Detection Range | For Obstacle Avoidance：0.2m~100m For Height Measurement：0.05m~200m |
| Ranging Accuracy | For Obstacle Avoidance：0.1m For Height Measurement：0.02m |
| Speed Measurement Range | ± 60m/s（4D Mode）；±28m/s（3D Mode）； |
| Speed Measurement Accuracy | ≤1% |
| Max. Tracking Target Number | 32 |
Visual Sensing System
| Obstacle Sensing Range | Forward/Upward/Downward/Backward/Sideward: 0.2~50m |
| FOV | Forward/Backward/Sideward: 60°(H)，80°(V) Upward/Downward: 360°(H)，190°(V) |
7.9-inch smart controller
| Screen | 7.9 inch, 2000nits max. brightness, 2048*1536 resolution |
| External Battery | Capacity: 5800mAh Voltage: 11.55V Battery Type: Li-on Energy: 67Wh Charing time: 120mins Intelligent Lithium Ion Battery |
| Operating Time | 3 hours (Max. brightness) 4.5 hours (50% brightness) |
| Max Transmission Distance (with interference) | FCC: 20km CE: 7km |
| Storage | 128G |
| GNSS | GPS+GLONASS+Galileo+Beidou |
| Operating Temperature | -20℃ to 40℃ |
| Protocol | WiFi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi |
| Operating Frequency | 2.400 - 2.4835 GHz； 5.150 - 5.250GHz； 5.725 ‒ 5.850 GHz |
| Transmitter Power (EIRP) | 2.400 - 2.4835 GHz FCC/CE:≤20dBm 5.150 - 5.250GHz FCC:≤17dBm 5.725 ‒ 5.850 GHz FCC:≤17dBm CE:≤14dBm |
Aircraft Battery
| Capacity | 8070mAh |
| Voltage | 14.88V |
| Battery Type | LiPo 4S |
| Energy | 120wh |
| Net Weight | 520g |
| Charging Temperature | 5ºC to 45ºC(When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery) |
| Hot Swap | Support |
[video]
Autel EVO Max 4T
Meet The EVO Max 4T In Details
[accessories]

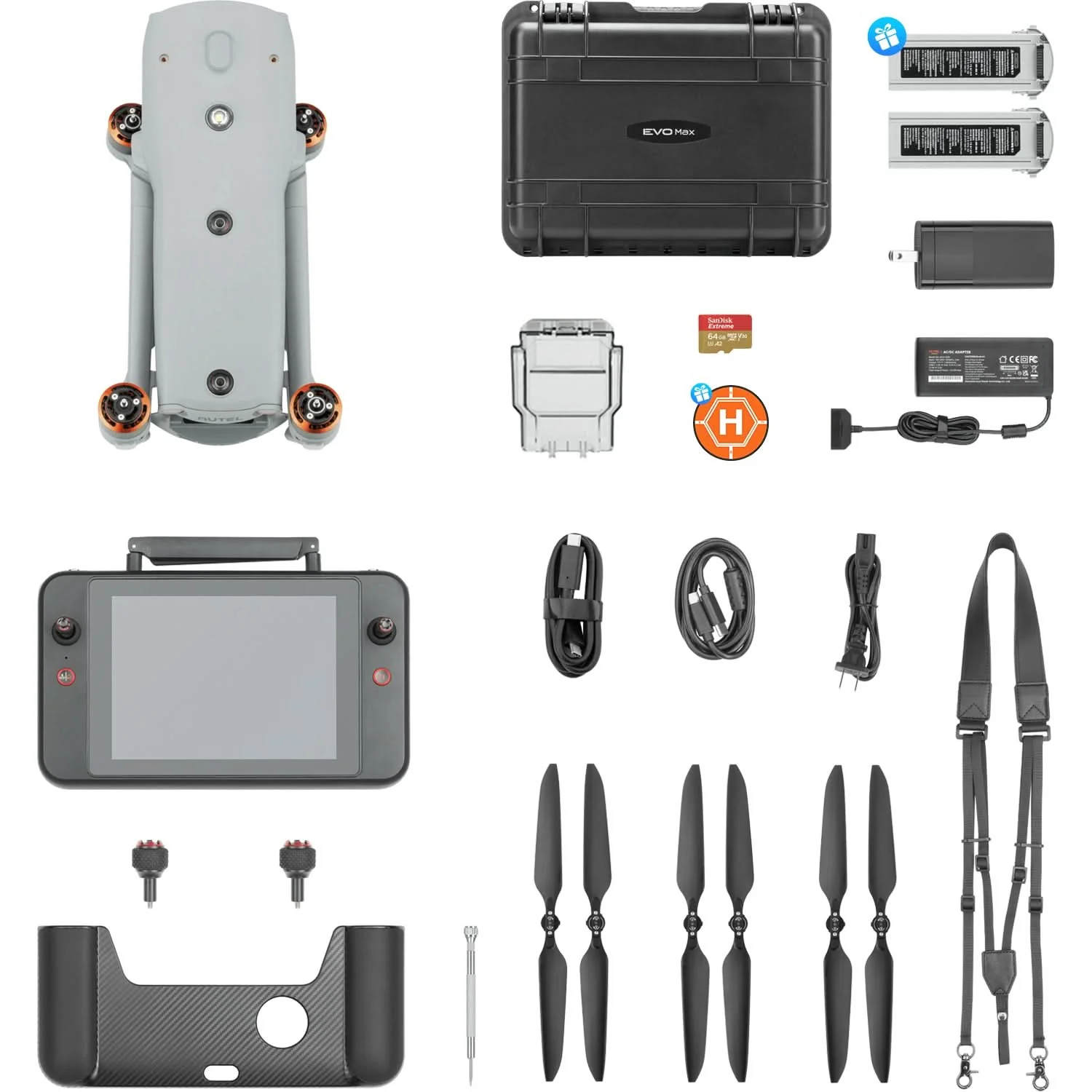

Autel Robotics EVO Max 4T Package List
| Aircraft | x1 |
| Battery | x2 |
| Landing Pad | x1 |
| Gimbal Cover | x1 |
| 64GB MicroSD Card | x1 |
| Battery Charger & Power Cable | x1 |
| Clockwise Propellers | x3 |
| Counter-Clockwise Propellers | x3 |
| Screwdriver | x1 |
| Smart Controller V3 | x1 |
| Smart Controller Lanyard | x1 |
| Smart Controller Cover | x1 |
| Pair of Joysticks | x1 |
| RC Charger | x1 |
| RC Charging Cable | x1 |
| Data Cable | x1 |
| Manual | x1 |
| Quick Start Guide | x1 |
| Packing List | x1 |
| Rugged Case | x1 |
[downloads]
|
Name |
Download |
|
EVO Max 4T Brochure - EN.pdf |
|
|
EVO Max 4T Quick Guide.pdf |
|
|
EVO Max 4T Battery Safe Operation Guidelines.pdf |
|
|
EVO Max 4T Disclaimrand Safety Operation Guidelines .pdf |
[faq]
Autel Robotics EVO Max 4T FAQ
Q: When was the Autel EVO MAX 4T released?
A： The Autel EVO Max 4T is an enterprise drone announced by Autel Robotics at CES 2023 on Jan. 5 (10 a.m. ET).
Q: What is the configuration of Autel EVO Max 4T camera?
A： EVO Max 4T is equipped with three high-quality cameras: a telephoto camera, a wide-angle camera, and an infrared thermal imaging camera.
Zoom camera: with 10x optical zoom, 160x digital zoom, 1/2 inch CMOS sensor, aperture size f/2.8-f/4.8, can take 48MP photos, maximum photo resolution 8000*6000, maximum video resolution 7680*4320.
Wide camera Camera: 1/1.28″ CMOS sensor, fixed aperture f/1.9, using PDAF to focus, can take a maximum of 50MP photos, the maximum resolution of photos is 8192*6144, and the maximum resolution of videos is 3840*2160.
Infrared thermal imaging camera: Infrared thermal imaging resolution is 640×512@30fps, fixed aperture f/1.2, focal length 13mm, pixel pitch 12 microns, temperature range can reach -4℉ to 302℉, 32℉ to 1022℉.
In addition, EVO Max 4T also integrates a laser rangefinder, which is on the same camera platform as the three cameras. The measurement accuracy of the laser rangefinder is ±1 meter, and the measurement range can reach 1.2 kilometers.
Q: Does EVO Max 4T support temperature measurement?
A： Yes, it is equipped with a temperature analysis tool - IR PC TOOL. The resolution of the thermal imager of EVO Max 4T can reach 640*512@30fps, realize 16x digital zoom, and the measuring distance can reach 1.2 kilometers.
Q: Does EVO Max 4T support nighttime obstacle avoidance and water surface obstacle avoidance?
A：
Yes, the millimeter-wave radar carried by the aircraft realizes obstacle avoidance at night and surface obstacle avoidance. Surrounded by obstacle sensors, the Max 4T is able to map its environment and automatically navigate around obstacles. The Max 4T has 720° obstacle avoidance and can detect objects down to 0.5 inches.
Q: What is the difference between 4D mode and 3D mode of EVO Max 4T millimeter wave radar?
A： In 4D mode, the radar can detect objects from four parts: distance, speed, yaw angle and pitch angle, and the speed measurement range is ±60m/s. In 3D mode, the radar can detect objects from three parts: distance, speed and yaw angle, and the speed range is ±28m/s.
Q: Is the EVO Max 4T dust and water resistant?
A： Yes, the EVO Max 4T is rated IP43.
Q: What are the updates in SkyLink 3.0 compared to SkyLink 2.0?
A： SkyLink 2.0 is used in Autel EVO II V3 series, the transmission distance is 15 kilometers, and it supports three-band (2.4/5.8Ghz/900Mhz) transmission. Autel SkyLink 3.0 has a longer transmission distance of up to 20 kilometers, supports more frequency bands (2.4/5.2/5.8Ghz/900Mhz), and has stronger anti-radio frequency interference capabilities.
Q: What is the maximum flight time of the EVO Max 4T?
A： The flight time of the quadcopter drone depends on the power system of the drone and the take-off weight of the drone is the longest. The EVO Max 4T weighs around 1600g and has a flight time of 42 minutes (without load).
Q: What software does Autel EVO MAX 4T use?
A： Currently Autel EVO Max 4T is only available for Autel Enterprise App.
Q: What remote control does Autel EVO MAX 4T use?
A： Currently Autel MAX 4T only works with Autel Smart Controller V3.
Original: $8,999.00
-65%$8,999.00
$3,149.65Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Free Gifts - One Battery & Landing Pad
- 8K 10x Optical Zoom
- Thermal Camera:640x512 | 16x Digital Zoom
- Wide Camera: 50MP | 1/1.28" CMOS
- Zoom Camera: 48MP | 8K 10x Optical Zoom(160x Max)
- Laser Rangefinder
- Autel SkyLink 3.0 | 12.4 miles Transmission Range
- 720° Obstacle Avoidance
- 42 mins Max Flight Time
- A-Mesh 1.0 | Mesh Networking Technology
- 3D Map Planning | Multiple Mission Types | Data Security
- Multi-channel Projection Screen*
- Autel SDK
[keyfeatures]
Autel EVO Max 4T - A Leader of Drone Intelligence
The EVO Max 4T brings powerful technologies and advanced autonomy to users. EVO Max 4T assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance.Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios.With a foldable, weather-resistant design, the EVO Max 4T is as portable as it is capable.
Hybrid Sensor Payload
The EVO Max 4T payload integrates wide-angle, zoom and thermal camera with a laser rangefinder for all data capture needs and critical decision making.
Laser Rangefinder
Tap a target to get the coordinates and altitude rapidly from up to 0.75 miles away.
Thermal Camera
Equipped with 640x512 high-resolution radiometric thermal imaging camera, 30fps and 16x digital zoom.
Wide Camera
Autel's Moonlight Algorithm 2.0 boosts post processing and allows the pilot to capture crisp, detailed images in low-light environments.
Video: support 4K 30fps, max ISO 64000.
Photo: Moonlight mode reduces noise and enhances HDR.
Zoom Camera
Supports for 8K 10x optical zoom and 160x Max. Hybrid Zoom with clear details on targets up to 1.24 miles away.
A Leader in Drone Intelligence
The EVO Max 4T comes equipped with a wide array of features and capabilities that range from Autonomous Path Finding, Navigation in GPS Denied Environments, and Accurate Object Identification and Tracking.
Autonomous Path Finding
Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.
Navigation In GPS Denied Environments
Advanced sensors allow the EVO Max 4T to navigate within hardened structures, underground, or in environments without GPS.
Accurate Object Identification And Tracking
Based on Autel's AI recognition technology, the EVO Max 4T can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement personnel.
No Blind Spots
Ultimate Obstacle Avoidance
EVO Max 4T is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.
*Obstacle Avoidance performance varies with drone speed, lighting, and flying conditions and is not meant to replace pilot responsibility.
Anti Jam, Anti Interference
The EVO Max 4T uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4T to fly confidently near power lines, critical structures, and in complex areas.
Weather Rating-IP43
Platform Capability
EVO Max 4T redefines portability with its powerful platform and all weather design.
It comes equipped with the following features and capabilities:
- 42 Minutes of Maximum Flight Time
- IP43 Ingress Protection Rating
- 27 mph Maximum Wind Resistance
- 23,000ft Service Ceiling
- 12.4 Mile Transmission Range
*Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
Hot-Swappable Battery
Autel Max 4T hot-swappable battery system, which allows for extended flight times without the need for downtime. This system allows users to easily swap out batteries while the drone is still in operation, making it ideal for use in time-critical applications where every second counts.
A-Mesh 1.0
The Drone Industry's First Mesh Networking Technology
The EVO Max 4T features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration for seamless enterprise operations.
Strong Anti-Interference
The EVO Max 4T can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.
Beyond-Line-of-Sight Applications
With A-Mesh, multiple aircrafts in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.
Full-Fleet Control
Multiple drones can be controlled autonomously by one pilot or by a group of pilots simultaneously with or without LTE coverage.
Enhanced Range
Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.
Autel SkyLink 3.0
The EVO Max 4T SkyLink 3.0 system comes with 6 antennas, 4 frequency bands, AES-256 encryption*, and optional 4G integration* to provide users with the most advanced flight capabilities ever in an EVO.
- 12.4 Mile Image Transmission Range
- 1080p/60fps Real-Time Image Quality
- 900MHz/2.4GHz/5.2GHz/5.8GHz Frequency Bands**
- <150ms Latency
*This feature will be available in a future update.
**5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.
Autel Enterprise App Platform
The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4T's mission capability.
Smart Features
The EVO Max 4T comes equipped with the following intelligent features that were tailored for commercial end users:
3D Map Planning
Plan, create, and execute 3D waypoint mission plans on a 3D map.
Mission Reproduction*
Fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max 4T will automatically record the camera angles and replicate the mission you just flew.
Quick Mission*
Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.
Multiple Mission Types
The Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.
Waypoint Missions
Users can add waypoints for flexible, non-structured flight paths.
Rectangular Mission
Supports one-click automatic generation of a rectangular flight area.
Automatic Mission (Generation And Data Capture*)
Automatically produce routes by adding regional boundary points through dots or importing KML files.
Terrain Follow*
Maintain relatively constant altitude from the ground for uneven or sloped terrain.
Oblique Photography
Automatically plan 5 groups of routes (1 ortho + 4 oblique) according to the flight area set by the user.
Spiral Mission*
Supports helical flight search in a designated area for SAR.
Polygon Mission
Supports one-click automatic generation of polygon flight areas.
Vertical Scan*
Perform vertical surveys for building facades, open pit walls, and towers.
Corridor Mission*
Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow, large-scale terrain.
*This feature will be available in a future update.
Data Security
Featuring AES 128/256 storage, radio link and network encryption for operational security.
Privacy Protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.
Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.
Enhanced Live-View
Multi-channel Projection Screen*
Supports simultaneous output of RGB, infrared, night vision, and wide-angle images.
*This feature will be available in a future update.
Complete Remote Operations System
Used with the EVO Nest, the EVO Max series supports all-weather auto piloting for scenarios such as substations, industrial parks, and rooftops.
Autel SDK
The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.
Mobile SDK
Open UX SDK (iOS & Android) can directly call up the ready-made interactive interface.
Payload SDK*
Unified interface standards support access to third-party mounts such as microphones and gas detectors.
Cloud SDK*
Enables remote live broadcast and control of drones and Nests through third-party platforms or web pages.
Autel Smart Controller V3
Daylight Readable Display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution. SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s. Functional Interface: HDMI ports allow connection to 3rd party displays or monitors. Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty. Local Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.
EVO Nest (optional)
EVO Nest is a base for automatic take off, landing, charging, and mission planning for the EVO series. The Nest is designed for all-weather operation and uses a single-piece protective drum with fewer moving parts to simplify maintenance.
RTK Module (optional)
Provides centimeter-accurate positioning data for mapping and reduces electromagnetic interference for flying near critical structures.
Application
The Autel EVO Max 4T was designed for survey and inspections, search and rescue operations, public safety, and many other commercial applications.
[spec]
Autel Robotics EVO Max 4T Specs
Aircraft
| Weight | 3.5 lbs (1600g, battery and gimbal included) |
| Dimensions | 576*660*149 (folded, incl. propellers) 340*407*148(folded, excl. propellers) 257*136*133 (unfolded, excl. propellers) |
| Diagonal Wheelbase | 1.52 ft (464mm) |
| Max Ascent Speed | 8m/s |
| Max Descent Speed | 6m/s |
| Max Horizontal Speed (windless near sea level) | 22m/s |
| Max Service Ceiling Above Sea Level | 23000ft (7000m) |
| Max Flight Time (windless) | 42 mins |
| Max Hovering Time (windless) | 40 mins |
| Max Wind Resistance | 27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s). |
| IP Rating | IP43 |
| Max Tilt Angle | 35° |
| Max Angular Velocity | Pitch: 300°/s; Yaw: 120°/s |
| Operating Temperature | -4°F to 122°F (-20℃ - 50℃) |
| Operating Frequency | 2.4G/5.2G*/5.8G/900MHz* |
| Transmitter Power (EIRP) | 2.4GHz:<33dBm(FCC), 20dBm(CE/SRRC/MIC) 5.8GHz:33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC) |
| Hovering Accuracy | Vertical: ±0.1 m (Vision System enabled); ±0.3 m (GPS enabled); ±0.15 m (RTK enabled); Horizontal: ±0.15 m (Vision System enabled); ±0.3 m (GPS enabled); |
Gimbal
| Mechanical Range | Pan: -135° to 45° Tilt: -45° to 45° Roll: -100° to 100° |
| Controllable Range | -90° to 45° |
| Stable system | 3-axis mechanical gimbal (pitch, tilt, roll) |
| Max Control Speed (pitch) | 200º/s |
| Angular Vibration Range | <0.005° |
Zoom Camera (Telephoto)
| Sensor | 1/2" CMOS, Effective pixels: 48M |
| Lens | Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm) Aperture: f/2.8-f/4.8 |
| Exposure Compensation | ±3EV 0.3EV/step |
| ISO Range | Normal Mode： Auto: ISO100 ~ ISO6400 Manual: Photo: ISO100 ~ ISO12800 Video: ISO100 ~ ISO6400 |
| Shutter Speed | Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s |
| Max Photo Size | 8000×6000 |
| Max Video Resolution | 7680×4320 |
Wide Camera
| Sensor | 1/1.28 CMOS, Effective pixels: 50M |
| Lens | DFOV: 85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: 8-wire SMA, PDAF focus |
| Exposure Compensation | ±3EV 0.3EV/step |
| ISO Range | Auto: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO64000) Manual: Photo: ISO100~ISO12800 Video: ISO100~ISO6400 |
| Shutter Speed | Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s |
| Max. Video Resolution | 3840×2160 |
| Photo Size | 8192*6144 4096*3072 |
Thermal Camera
| Thermal Imager | Uncooled VOx Microbolometer |
| Lens | DFOV: 64° Aperture: 13mm Focus: f/1.2 |
| Infrared Temperature Measurement Accuracy |
26.6~37.4 ℉ or reading ±3% (using the larger value) @ambient temperature -4℉ to 140℉ |
| Video Resolution | 640*512 |
| Photo Size | 640*512 |
| Pixel Pitch | 12 um |
| Temperature Measurement Method | Center measurement, pot measurement, rectangular measurement |
| Temperature Measurement Range | -4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C) |
| Temperature Alert | High and low temperature alarm thresholds, reporting coordinates and temperaturevalues |
Laser Range Finder
| Measurement Accuracy | ±1m |
| Measuring Range | 1.2km |
Image Transmission
| Operating Frequency | 2.4G/5.2G*/5.8G/900MHz* |
| Max Transmission Distance (unobstructed, free of interference) | 20km |
| Independent Networking | 7.9-inch Smart Controller |
| Transmitter Power (EIRP) | 2.4GHz:<33dBm（FCC）, <20dBm(CE/SRRC/MIC) 5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: <23dBm(FCC/SRRC/MIC) |
Autonomy
| Non-GPS Hovering and Manual Flight | Indoor: Horizontal error ≤3cm （At least have texture at one direction） Outdoor: Daytime: Within 500m flight height, horizontal error < 0.01*height Night: Manual flight is controllable within 100m flight height |
| Non-GPS Return-to-Home | Within 500m flight height, horizontal error of Return-to-Home point < 30cm |
| Automatic Obstacle Rerouting | High Speed Obstacle Rerouting: Flight speed up to 20m/s when Min. safety distance to obstacle is 1.5m High Precision Obstacle Rerouting: Flight speed could reach 3m/s when Min. safety distance to obstacle is 0.2m |
| Multi-target Recognition and Tracking | Target identification types: people, vehicles, boats Number of targets detected: 64 Comprehensive recognition accuracy: > 85% |
Millimeter-wave Radar
| Frequency | 60Ghz~64Ghz |
| Size | 38*14*2mm |
| Weight | 2g |
| EIRP | 18dbm |
| Distance Detection Range | For Obstacle Avoidance：0.2m~100m For Height Measurement：0.05m~200m |
| Ranging Accuracy | For Obstacle Avoidance：0.1m For Height Measurement：0.02m |
| Speed Measurement Range | ± 60m/s（4D Mode）；±28m/s（3D Mode）； |
| Speed Measurement Accuracy | ≤1% |
| Max. Tracking Target Number | 32 |
Visual Sensing System
| Obstacle Sensing Range | Forward/Upward/Downward/Backward/Sideward: 0.2~50m |
| FOV | Forward/Backward/Sideward: 60°(H)，80°(V) Upward/Downward: 360°(H)，190°(V) |
7.9-inch smart controller
| Screen | 7.9 inch, 2000nits max. brightness, 2048*1536 resolution |
| External Battery | Capacity: 5800mAh Voltage: 11.55V Battery Type: Li-on Energy: 67Wh Charing time: 120mins Intelligent Lithium Ion Battery |
| Operating Time | 3 hours (Max. brightness) 4.5 hours (50% brightness) |
| Max Transmission Distance (with interference) | FCC: 20km CE: 7km |
| Storage | 128G |
| GNSS | GPS+GLONASS+Galileo+Beidou |
| Operating Temperature | -20℃ to 40℃ |
| Protocol | WiFi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi |
| Operating Frequency | 2.400 - 2.4835 GHz； 5.150 - 5.250GHz； 5.725 ‒ 5.850 GHz |
| Transmitter Power (EIRP) | 2.400 - 2.4835 GHz FCC/CE:≤20dBm 5.150 - 5.250GHz FCC:≤17dBm 5.725 ‒ 5.850 GHz FCC:≤17dBm CE:≤14dBm |
Aircraft Battery
| Capacity | 8070mAh |
| Voltage | 14.88V |
| Battery Type | LiPo 4S |
| Energy | 120wh |
| Net Weight | 520g |
| Charging Temperature | 5ºC to 45ºC(When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery) |
| Hot Swap | Support |
[video]
Autel EVO Max 4T
Meet The EVO Max 4T In Details
[accessories]
Autel Robotics EVO Max 4T Package List
| Aircraft | x1 |
| Battery | x2 |
| Landing Pad | x1 |
| Gimbal Cover | x1 |
| 64GB MicroSD Card | x1 |
| Battery Charger & Power Cable | x1 |
| Clockwise Propellers | x3 |
| Counter-Clockwise Propellers | x3 |
| Screwdriver | x1 |
| Smart Controller V3 | x1 |
| Smart Controller Lanyard | x1 |
| Smart Controller Cover | x1 |
| Pair of Joysticks | x1 |
| RC Charger | x1 |
| RC Charging Cable | x1 |
| Data Cable | x1 |
| Manual | x1 |
| Quick Start Guide | x1 |
| Packing List | x1 |
| Rugged Case | x1 |
[downloads]
|
Name |
Download |
|
EVO Max 4T Brochure - EN.pdf |
|
|
EVO Max 4T Quick Guide.pdf |
|
|
EVO Max 4T Battery Safe Operation Guidelines.pdf |
|
|
EVO Max 4T Disclaimrand Safety Operation Guidelines .pdf |
[faq]
Autel Robotics EVO Max 4T FAQ
Q: When was the Autel EVO MAX 4T released?
A： The Autel EVO Max 4T is an enterprise drone announced by Autel Robotics at CES 2023 on Jan. 5 (10 a.m. ET).
Q: What is the configuration of Autel EVO Max 4T camera?
A： EVO Max 4T is equipped with three high-quality cameras: a telephoto camera, a wide-angle camera, and an infrared thermal imaging camera.
Zoom camera: with 10x optical zoom, 160x digital zoom, 1/2 inch CMOS sensor, aperture size f/2.8-f/4.8, can take 48MP photos, maximum photo resolution 8000*6000, maximum video resolution 7680*4320.
Wide camera Camera: 1/1.28″ CMOS sensor, fixed aperture f/1.9, using PDAF to focus, can take a maximum of 50MP photos, the maximum resolution of photos is 8192*6144, and the maximum resolution of videos is 3840*2160.
Infrared thermal imaging camera: Infrared thermal imaging resolution is 640×512@30fps, fixed aperture f/1.2, focal length 13mm, pixel pitch 12 microns, temperature range can reach -4℉ to 302℉, 32℉ to 1022℉.
In addition, EVO Max 4T also integrates a laser rangefinder, which is on the same camera platform as the three cameras. The measurement accuracy of the laser rangefinder is ±1 meter, and the measurement range can reach 1.2 kilometers.
Q: Does EVO Max 4T support temperature measurement?
A： Yes, it is equipped with a temperature analysis tool - IR PC TOOL. The resolution of the thermal imager of EVO Max 4T can reach 640*512@30fps, realize 16x digital zoom, and the measuring distance can reach 1.2 kilometers.
Q: Does EVO Max 4T support nighttime obstacle avoidance and water surface obstacle avoidance?
A：
Yes, the millimeter-wave radar carried by the aircraft realizes obstacle avoidance at night and surface obstacle avoidance. Surrounded by obstacle sensors, the Max 4T is able to map its environment and automatically navigate around obstacles. The Max 4T has 720° obstacle avoidance and can detect objects down to 0.5 inches.
Q: What is the difference between 4D mode and 3D mode of EVO Max 4T millimeter wave radar?
A： In 4D mode, the radar can detect objects from four parts: distance, speed, yaw angle and pitch angle, and the speed measurement range is ±60m/s. In 3D mode, the radar can detect objects from three parts: distance, speed and yaw angle, and the speed range is ±28m/s.
Q: Is the EVO Max 4T dust and water resistant?
A： Yes, the EVO Max 4T is rated IP43.
Q: What are the updates in SkyLink 3.0 compared to SkyLink 2.0?
A： SkyLink 2.0 is used in Autel EVO II V3 series, the transmission distance is 15 kilometers, and it supports three-band (2.4/5.8Ghz/900Mhz) transmission. Autel SkyLink 3.0 has a longer transmission distance of up to 20 kilometers, supports more frequency bands (2.4/5.2/5.8Ghz/900Mhz), and has stronger anti-radio frequency interference capabilities.
Q: What is the maximum flight time of the EVO Max 4T?
A： The flight time of the quadcopter drone depends on the power system of the drone and the take-off weight of the drone is the longest. The EVO Max 4T weighs around 1600g and has a flight time of 42 minutes (without load).
Q: What software does Autel EVO MAX 4T use?
A： Currently Autel EVO Max 4T is only available for Autel Enterprise App.
Q: What remote control does Autel EVO MAX 4T use?
A： Currently Autel MAX 4T only works with Autel Smart Controller V3.
