Autel EVO II Pro RTK [V3]

The Autel Robotics EVO II Pro RTK V3 inherits all features of the original EVO II Pro drone and integrates an entirely new RTK V3 module on top, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK).

Autel EVO II Pro RTK V3 10 Highlights

Centimeter-Level Positioning System

The EVO II RTK V3 series integrates an entirely new RTK V3 module, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The EVO II RTK V3 aircraft can record the original satellite observation data, camera exposure parameters and various other data. The positioning system supports A-RTK V3 base station and RTK V3 network, which helps to achieve accurate and stable data acquisition in complex operation environments.

Mission Execution With Advanced Intelligence

EVO II RTK V3 Series aircraft offer users a full range of intelligent features and solutions to suit a variety of mission needs. Using advanced flight control and the latest AI technology, the aircraft can significantly improve mission work flows and help reduce operating costs.

Creating Mission, Waypoint Flying, 720° Omnidirectional sensing & Obstacle avoidance, Photo Replication, No Need Ground Control Points, High Precision RTK V3/ PPK Positioning, Support A-RTK V3 High Precision GNSS Base Station.

No Need for Ground Control Points

The EVO II RTK V3 Series leverages a high precision RTK V3 module, supports PPK and time synchronization, and is not limited by communication links or network coverage.

RTK V3 High-precision GNSS Base Station

The EVO II RTK V3 Series supports RTK V3 high-precision GNSS base station to obtain real-time differential data, which makes it possible to obtain the accurate coordinates of the designated target point. And the EVO II RTK V3 Series supports third party base stations with NTRIP capability.

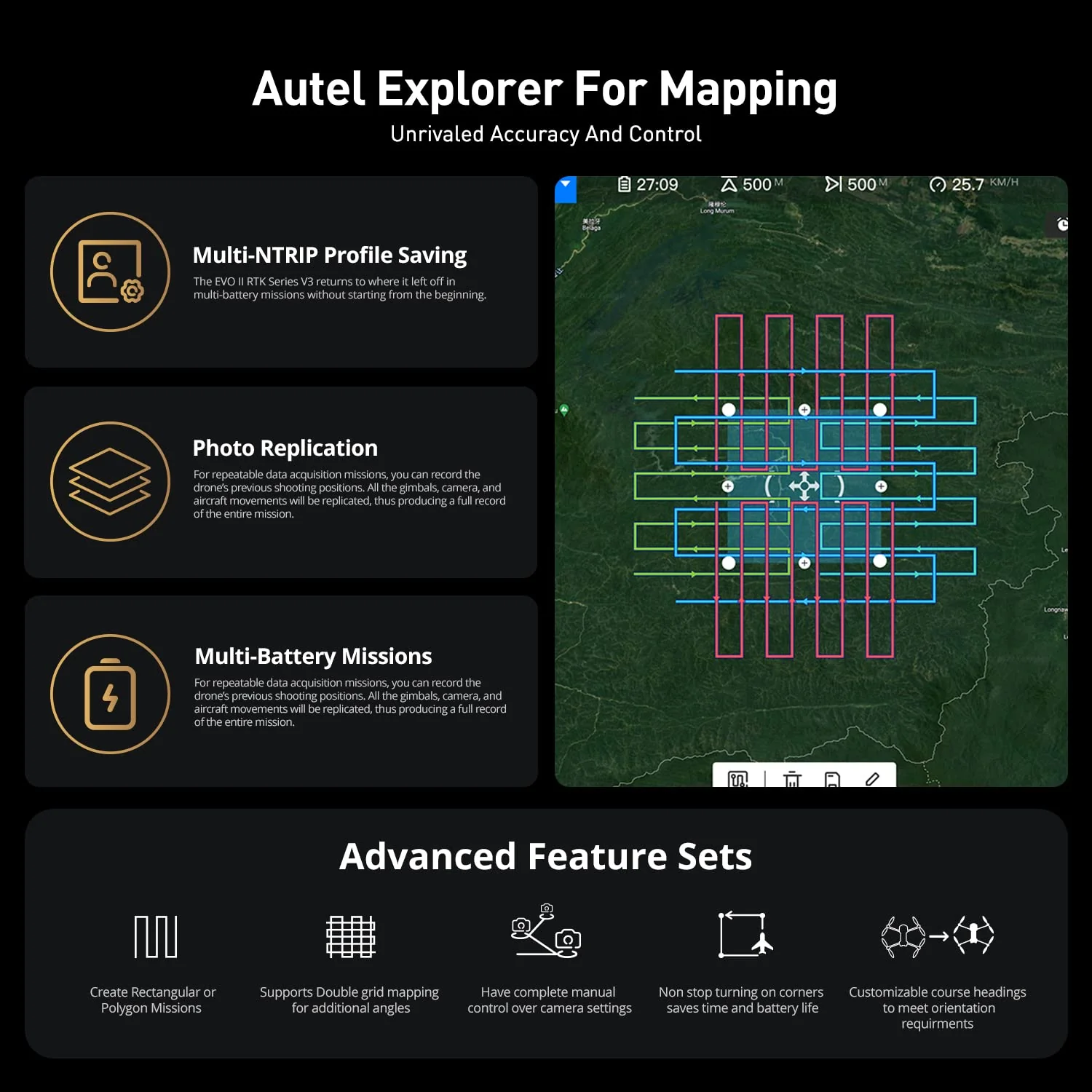

Autel Explorer for Mapping

Create Rectangular or Polygon Missions Non stop turning on corners Supports Double grid mapping for additional angles

Moonlight Algorithm 2.0

EVO II Pro V3 comes with Autel's Moonlight Algorithm 2.0, which provides additional noise reduction for improved image quality. Combined with its upgraded CMOS sensor, this drone is capable of capturing clear images and video even in low light conditions or at night.

This feature is particularly useful for pilots who need to operate the drone in challenging lighting environments.

Exceptional Image Quality

With Sony's new 20 megapixel 1-inch CMOS image sensor, the EVO II Pro V3 supports up to 6K video with greater dynamic range, stronger noise suppression, and higher frame rates. The f/2.8-f/11 adjustable aperture and 44000 maximum ISO gives photographers enhanced creative control.

Excel in Low Light

EVO II Pro V3 brings you Autel's Moonlight Algorithmn 2.0 with additional noise reduction processing. Paired with EVO II Pro V3's upgraded CMOS, succeed in operations with minimal lighting or in harsh lighting situations at night.

Capture the night time world

The EVO II Pro V3 camera featured Hyper-light mode for shooting in low-light conditions with 2D and 3D noise reduction smoothing motion blur and reducing noise.

4K HDR Video

the EVO II Pro V3 pairs the brilliance of 4K clarity with the brightness, color and detail of HDR. Previously hidden areas of dark shadow and sunlight are now full of clarity and details.

Post-Production Flexibility with 12-bit DNG

The EVO II Pro V3 can take 12-bit DNG photos and is capable of recording up to 68.6 billion colors with 64 times the color rendering power of 10-bit, allowing greater flexibility in post-production.

6K Hyper-Lapse Photography

You can enjoy your favorite moments at any time, free from post-processing as 6K mobile time-lapse as video can be exported right after recording, and JPEG/RAW format are also supported.

16x Zoom in for the Details: EVO II Pro V3 supports 3x lossless zoom and 16 times digital zoom. Obtain clear intel from farther away without suspicion.

Accident Reconstruction:The EVO II Pro V3 is excellent for accident reconstruciton, andis compatible with Pix4d, Drone Deploy, and Skyebrowse.

Skylink 2.0 Video Transmission

The EVO II PRO V3 is upgraded with Autel's all new skylink 2.0 Video Transmission technology.

15KM HD video Transmission QHD Critical details with QHD video within 1km

2.4G/5.8G Less signal breakups and enhanced anti-inter-ference capabilities.

360°Obstacle Avoidance

EVO II Pro V3 is equipped with 12 visual optical sensors, which integrates 19 sets of sensors including the main
camera, ultrasonic wave, and IMU to build a three-dimensional map of the drone and its surroundings in real time.

EVO II - AI Enhanced Dynamic Track

EVO II Pro V3 can model location and speed of targets simultaneously, predict their trajectory accurately, avoiding obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.

Multiple Intelligent Flight Modes

Autel EVO II Pro V3 Drone supports multiple smart Flight Modes includes Dynamic Track, Parallel Track, Tripod Track, Viewpoint, Orbit, Gesture control, VR Flight, Waypoint and more.

Failsafe & Automatically Return Home

EVO 2 Pro V3 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.

Maximum Performance Endless Possibilities

40 Min Maximum Flight Time 20m/s Maximum Flight Speed

17m/s Maximum Wind Resistance 920g Maximum Lift Capability

Practical and Convenience Features

Deploy Rapidly : The EVO II Pro V3 takes 45 seconds from
launch to takeoff without fuss.

No Forced Updates : EVO II Pro V3 does not need to be on the latest
hardware or app version in order to take off unlike others.

No Fly Zones: EVO II Pro V3 does not have any no fly zones and will not prevent the pilot from taking off.(Please fly safely and consult your local laws and regulations.)

Autel Smart Controller V3

7.9-inch ,2000nit high brightness srceen is clearly visible even under direct sunlight. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

Broadcast with Live Deck 2

EVO II Pro V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.

EVO II Pro RTK [V3] - Wide Application

Public Safety

Assess threats from a safe distance or patrol an area during an investigation, freeing up manpower for other tasks.

Traffic Supervision

Monitor traffic flow over a larger areaand crack down on traffic violationsto improve safety for everyone on theroad.

Power Inspection

Zip between transmission towersto quickly spot structural damageor overheating electrical elementssaving time and labor costs.

Search and Rescue

Quickly locate missing persons byusing automated mission modesto cover larger search areas insituations where every secondcounts.

Firefighting

Soar above the flames to identify hotspots, locate victims,and monitor changing conditions, reducing the risk for crew members on the ground.

Accident Reconstruction

The EVO Il Pro Enterprise V3 is excellent for accident reconstruction, and is compatible with Pix4D,DroneDeploy,and SkyeBrowse.

Mapping

Autel EVO II Pro Enterprise V3 is the perfect choice for any aerial cinematographer or mapping pilot.

[spec]

Autel EVO 2 Pro V3 Specs

• Aircraft

  Takeoff weight	1191 g
  Max takeoff weight	2000 g
  Wheelbase	397 mm
  Size(L*W*H)	230x130x108 mm (folded) 457x558x108 mm (unfolded)
  Maximum service ceiling altitude	7000 m
  Max ascent speed	8 m/s (Ludicrous)
  Max descent speed	4 m/s (Ludicrous)
  Max horizontal flight speed	20m/s (Ludicrous)
  Max flight distance (no wind)	25 km
  Max tilt angle	33° (Ludicrous)
  Max angular velocity	120°/s
  Max flight time (no wind)	40 min
  Max hovering time (no wind)	35 min
  Operating temperature range	-10℃ ~ 40℃
  Maximum resistance to wind	12 m/s (Take-off and landing)
  Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only)
  Transmission power	900M FCC/ ISED：≤31dBm 2.4G FCC/ ISED：≤32dBm SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan) FCC/ISED/SRRC/MIC：≤33dBm CE/ RCM：≤14dBm
  Hovering accuracy	Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally)
  GNSS	GPS/Beidou/Glonass/Gallieo
  Internal storage	8GB
  SD storage	max. support 256GB (UHS-3 or Class 10)

• Gimbal

  Gimbal	3-axis stabilization
  Mechanical range	Tilt: -135° to +45°; Pan: -100° to +100°
  Controllable rotation range	Tilt: -90° to +30°; Pan: -90° to +90°
  Max control speed (Tilt)	300°/s
  Angular Vibration Range	±0.005°

• Remote controller and image transmission

  Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only)
  Transmission power	FCC：≤33dBm CE：≤[email protected]，≤[email protected] SRRC：≤[email protected]，≤[email protected]/5.7G
  Max Transmission Distance (unobstructed, free of interference)	FCC：15km CE：8km
  Display screen	2340x1080 60fps
  Battery	1900mAh
  Operating time	~2 hours (Max. Brightness) ~3 hours (50% Brightness)
  Charging time	90 minutes
  Internal Storage	ROM 128GB + expandable storage via micro-SD card

• Sensing system

  Sensing system type	Omnidirectional sensing system
  Forward	Accurate measurement range: 0.5-18 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Backward	Accurate measurement range: 0.5-16 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Upward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 65°, Vertical: 50°
  Downward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 100°, vertical: 80°
  Left and right	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 65°, vertical: 50°
  Operating Environment	Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

• Camera

  Sensor	1 inch CMOS; 20M pixels
  Lens	FOV: 82° Equivalent focal length: 29 mm Aperture: f/2.8 - f/11 Focus range: 0.5 m to infinity
  ISO range	Video: 100-44000 Photo: 100-6400
  Shutter speed	Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates
  Zoom	1-16x (up to 3x lossless zoom)
  Photo mode	Single shot/Burst shooting/AEB/Time Lapse/HDR
  Maximum photo size	5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9)
  Image Format	JPG (default) / DNG / JPG+DNG
  Photo mode	5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24
  Video format	MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
  Max bitrate	120Mbps
  Supported file system	FAT32/exFAT

• Battery

  Capacity	7100 mAh
  Voltage	11.55 V
  Battery type	LiPo 3S
  Energy	82 Wh
  Weight	365 g
  Charging temperature range	5℃ to 45℃
  Storage temperature and humidity	-10~30℃，65±20%RH
  Recommended storage temperature	22-28℃
  Max charging power	93W
  Charging time	90 minutes

• Charger

  Input	100-240 V, 50/60 Hz, 1.5A
  Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
  Voltage	13.2±0.1V
  Rated power	66W

• Multi-Charger

  Voltage	13.2 V
  Charging temperature range	5℃ to 45℃

[video]

Autel EVO II RTK Series

Autel EVO II Pro 6K: Review + Flight Footagee

Introducing: EVO 2 Series

Experience: Shot On EVO II Pro 6K Drone

[accessories]

Autel EVO II Pro V3 RTK Rugged Bundle Package List

[downloads]

Name	Download
EVO II RTK V3 Brochure - EN.pdf
Specs For EVO II RTK Series V3 - .pdf
Autel Smart Controller V3 Brochure
Specs For Autel Smart Controller V3
Autel Live Deck 2 Brochure
Specs For Autel Live Deck 2

[faq]

EVO II Pro V3 RTK FAQ

Q: What is the RTK positioning accuracy?
A： 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)

Q: Which RTK base station modes are currently supported?
A： The A-RTK base station is currently supported.

Q: Is the gimbal replaceable?
A： Yes, and the aircraft comes built-in with 8GB internal memory.

Q: What is the difference between EVO II and EVO II Pro?
A： Yes. The product adopts a modular design, allowing for the payload to be replaced as needed.

Q: How long does it take to fully charge the battery?
A： It takes about 90 minutes to fully charge each battery.

Q: What app does this RTK drone using?
A： Autel EVO 2 PRO RTK uses Autel Explorer, which has lots of advanced features such as Multi-NTRIP Profile Saving, Photo Replication and Multi-Battery Missions etc.

Q: Does the evo ii rtk version 3 have "no fly zones"?
A： Autel EVO II RTK Series V3 does not have any no fly zones and will not prevent the pilot from taking off.

Q: Does this mappng drone support 3rd Party Base Station?
A： Yes, Autel EVO 2 PRO RTK V3 supports all NTRIP-compatible base stations.
