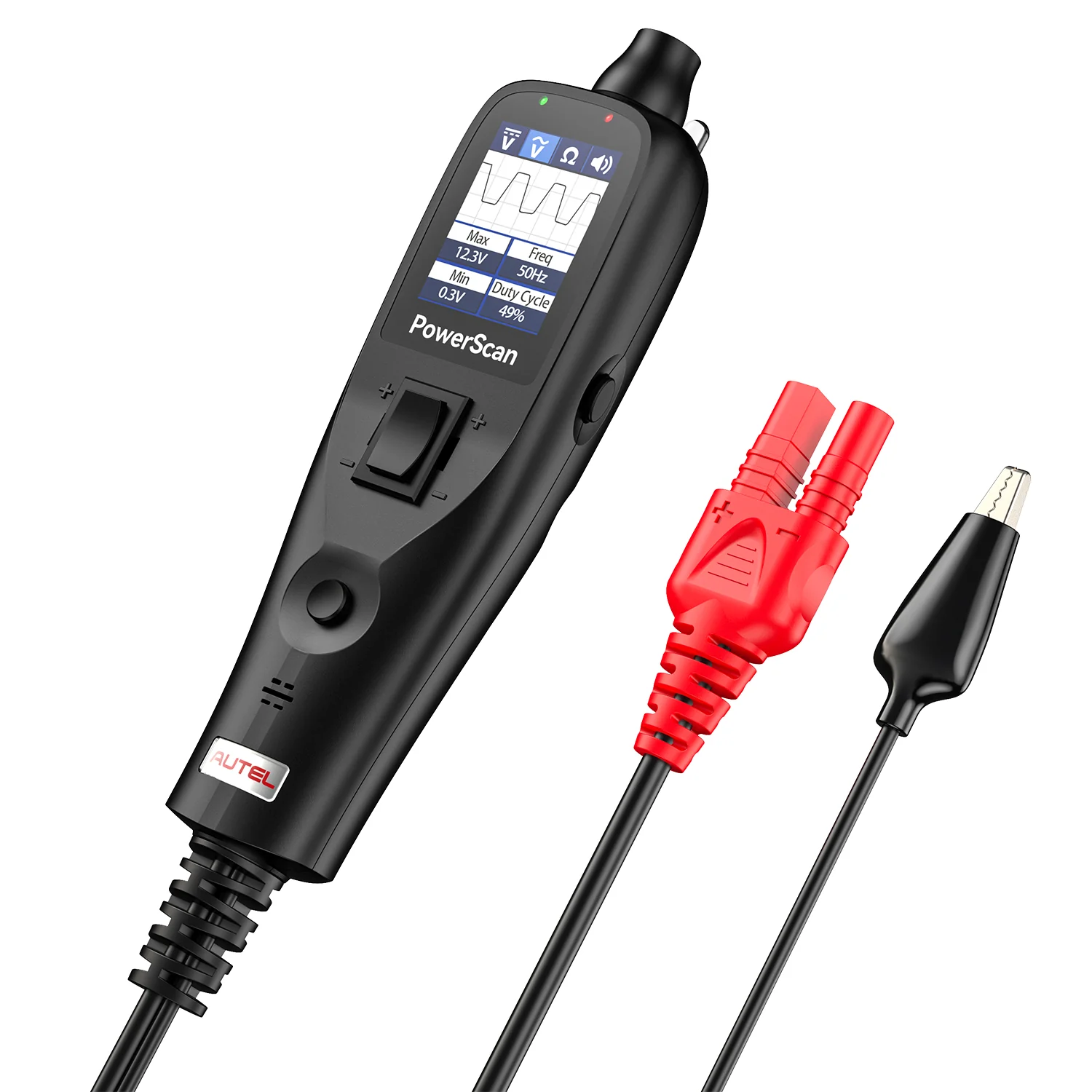

2025 Autel PowerScan PS100

The PS100 PowerScan Tool is the most revolutionary circuit tester to date. Featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan circuit tester is truly the ultimate in power and affordability, allowing users to check circuitry in one single step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.

Autel PS100 Features:

1. Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation
2. Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip
3. With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
4. Simultaneously uses the hot lead and the ground lead to activate components right in your hand
5. Instantly identifies positive, negative and open circuits
6. Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
7. Instantly checks continuity of switches, relays and diodes
8. Circuit breaker protected
9. Built-in Flashlight enables you to work in the dark
10. Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
11. 20ft (extendable) cable provides excellent accessibility to test along the vehicle
12. Extremely easy to use and highly reliable

 Autel PS100 4 Working Modes

There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each one.

1. DC Voltage: While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.

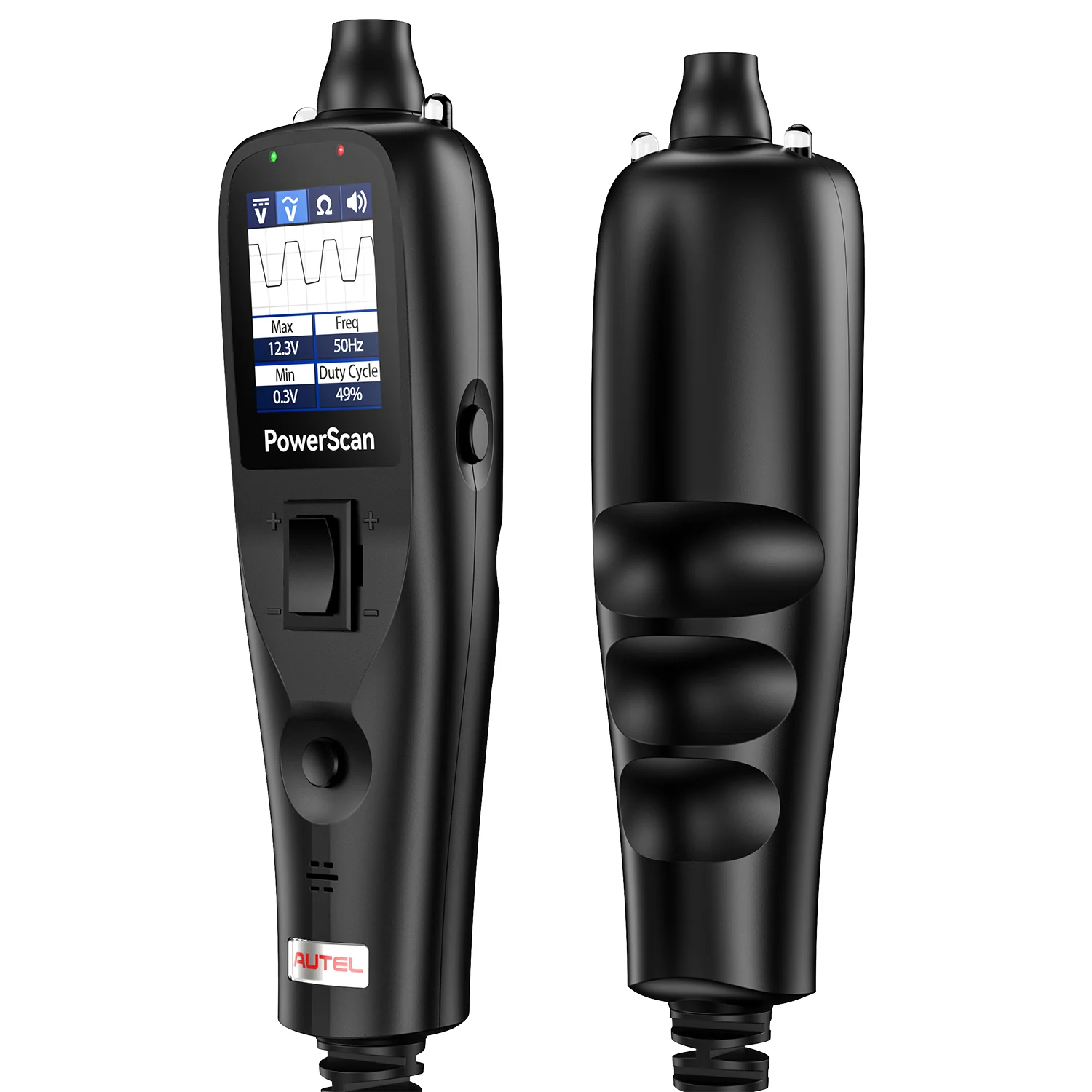

2. AC Voltage: While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min. voltage, frequency and duty cycle.
3. Resistance: While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.
4. Tone On/Off: While the tool in this mode, just do a quick press of the mode button to toggle the tone on or off. While quickly pressing (a quick press and release) the mode button, if a short high beep is heard, this means the audio tone is turned on. If a short low beep is heard, the audio tone is turned off. This function is invaluable when working in bright areas where LED illumination alone is not sufficient. The audio feature may be disengaged when desired, such as for applications where the tool will be connected to circuits for long periods of time and the audio could become annoying.

Component Activation & Test

The Autel PS100 Car Circuit Tester is the essential tool for automotive repair technicians and DIY enthusiasts. Quickly activate and accurately diagnose a wide range of vehicle electrical systems directly at the component level, verifying functionality and identifying faults.

Key Features & Applications:

1. Comprehensive Vehicle System Testing: Easily test blower motors, power windows, windshield wipers, rear defrosters, and other in-cabin electrical components.

2. Complete Lighting System Verification: Diagnose headlights, turn signals, brake lights, trailer lights, and virtually all other vehicle lighting types.

3. Power System Component Diagnosis: Safely activate and test critical engine bay components like starter motors, radiator cooling fans, fuel injectors, and solenoids.

4. Versatile Testing Methods: Supports multiple diagnostic approaches – activate components handheld, connected in-vehicle, or using a ground connection for maximum flexibility.

Short Circuit Tracking & Location

Stop wasting hours probing with a multimeter! The Autel PowerScan PS100 automotive circuit tester pinpoints short circuits and locates wiring breaks with precision. Its built-in short circuit protection features an auto-tripping circuit breaker that instantly disconnects power during overloads – safeguarding both you and critical vehicle electronics like ECUs from damage.

Key Benefits & Features:

1. Rapid Fault Location:
   Accurately trace shorts and identify open circuits in minutes – no tedious multimeter hopping.

2. Auto-Protection Circuitry:
   Integrated breaker trips instantly on overload to protect user safety and sensitive automotive electronics.

3. ECU-Safe Diagnostics:
   Prevents voltage spikes that damage engine control units and sensors during testing.

4. Time-Saving Efficiency:
   Dramatically cuts diagnostic time versus traditional multimeter methods.

Continuity Tests & Signal Tests

Master automotive electrical diagnostics with the Autel PS100. This professional-grade circuit tester quickly identifies cable and plug polarity (positive/negative) to prevent reverse connection risks and potential damage. Instantly verify circuit continuity across switches, relays, diodes, fuses, and wiring for fast, accurate troubleshooting. Trusted by DIYers and professional technicians alike.

Key Features & Benefits:

1. Smart Polarity Detection:

   • 🔴 Red LED = Positive

   • 🟢 Green LED = Negative

   • ⚫ No Light = Open Circuit
     Prevent costly reverse-polarity damage to sensitive electronics.

2. Comprehensive Continuity Testing:
   Rapidly test switches, relays, diodes, fuses, and wiring integrity.
   Eliminate guesswork in electrical repairs.

3. Error-Proof Diagnostics:
   Visual LED indicators deliver instant, unambiguous results.
   No multimeter interpretation needed.

4. Professional-Grade Reliability:
   Engineered for demanding shop environments and serious DIY projects.

20FT EXTENSION CABLE

This circuit tester comes with 20ft extension cable, 20ft+20ft allowing you to access any position of the vehicle and test it. The built-in flashlight is convenient for detection, fuse tester automotive kit can give you a good view in the dark.

Autel PS100 with Wide Coverage

Autel PS100 Automotive Circuit Teste can be used to test almost all 12V-24V electric devices including motorcycle, motorboat, large trucks and so on. Autel PS100 is a must have tool for every technician looking for a fast and accurate solution to electrical system diagnostics.

Autel PS100 Function Button

Autel PS100 Specs:

Display:	TFT color display (160 x 128 dpi)
Operating Temp:	0 to 60°C (32 to 140°F)
External Power:	12.0 or 24.0 V power provided via vehicle battery
Dimensions(L*W*H):	126mm*46.5mm*35mm (4.96”* 1.83” *1.38”)
Net Weight:	0.105kg (0.23lb),GW: 0.726 kg(1.6lb)

[comparisons]

[accessories]

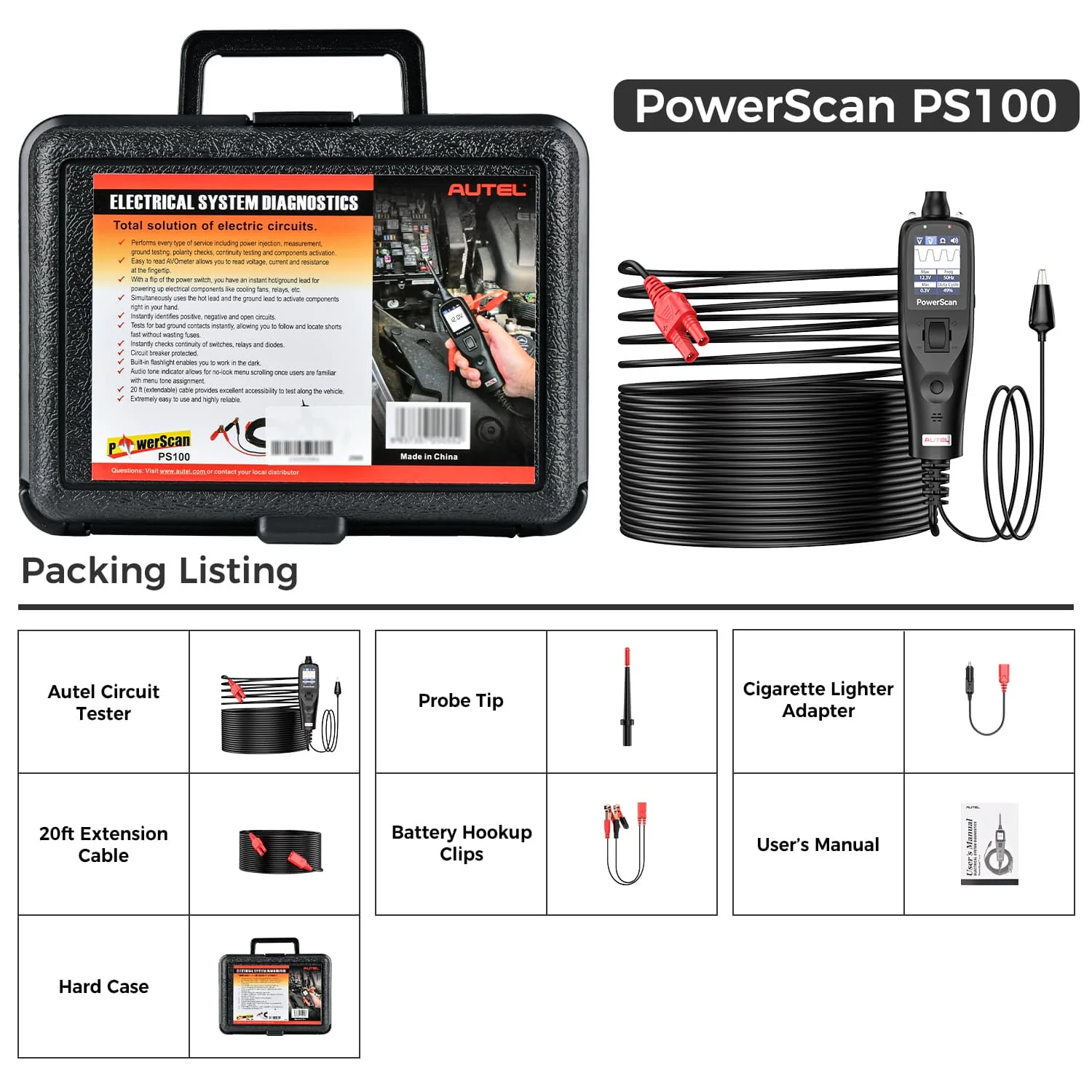

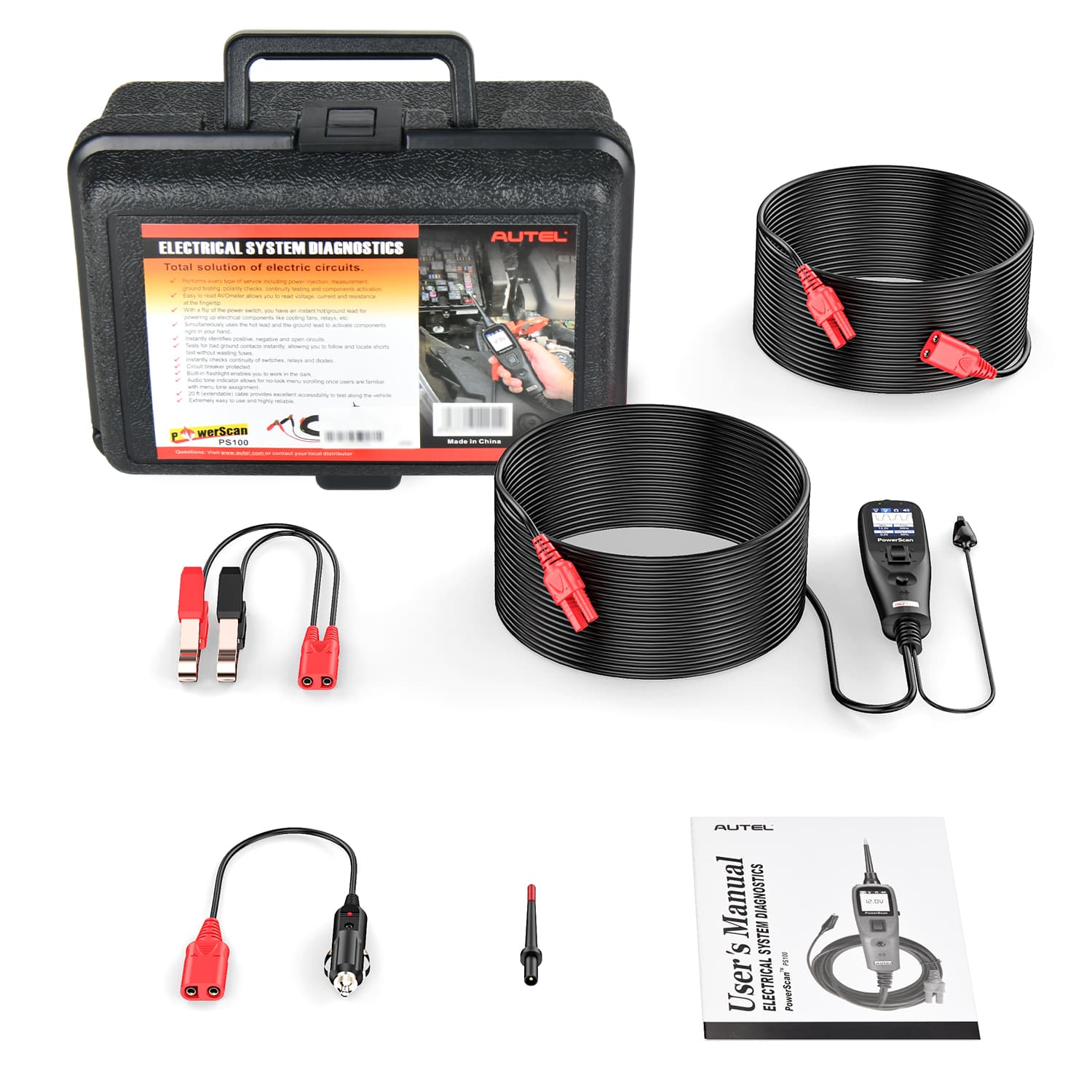

Autel PS100 Package List:

• 1x Autel PS100 power probe

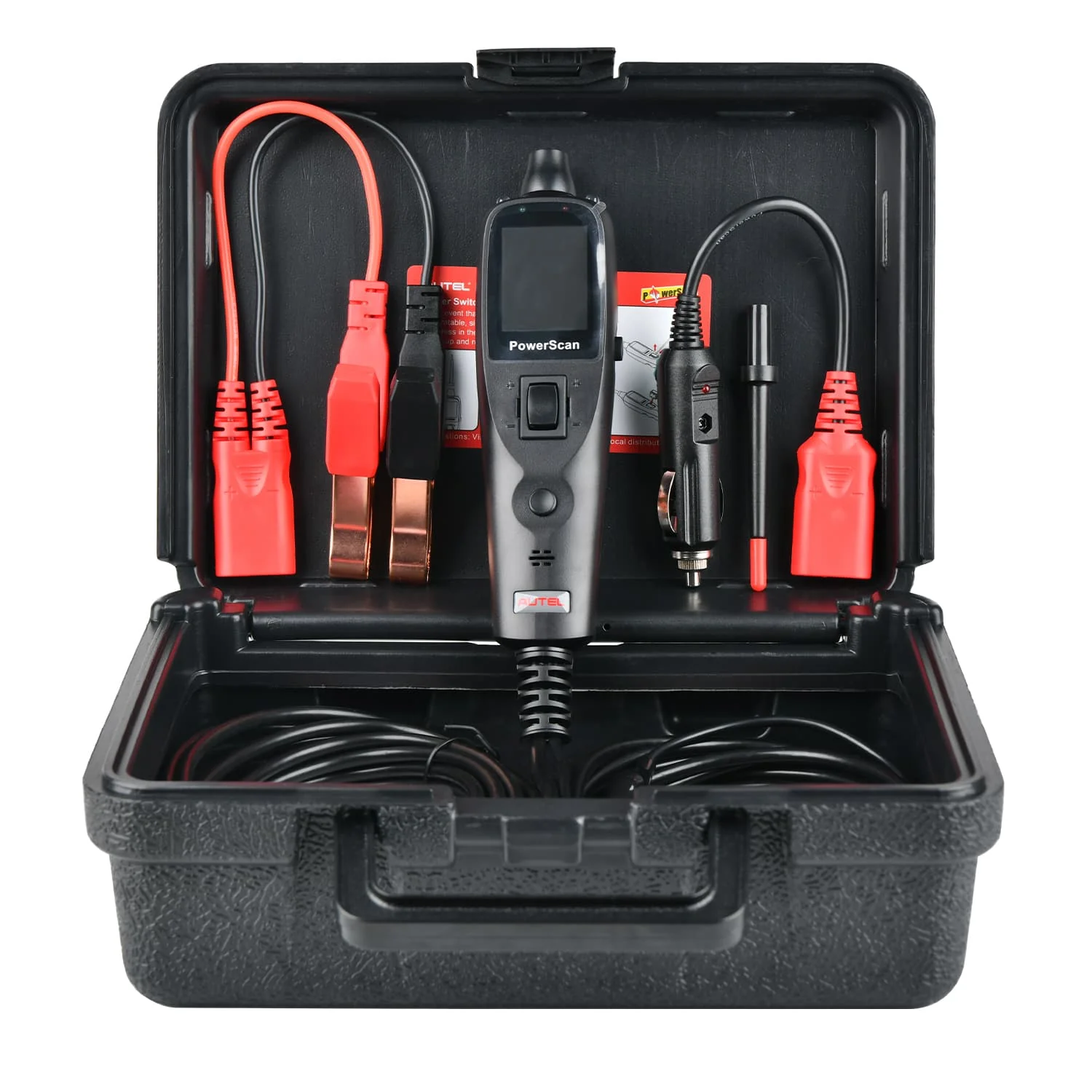

• 1x Rugged blow molded case
• 1x 20ft. extension cable

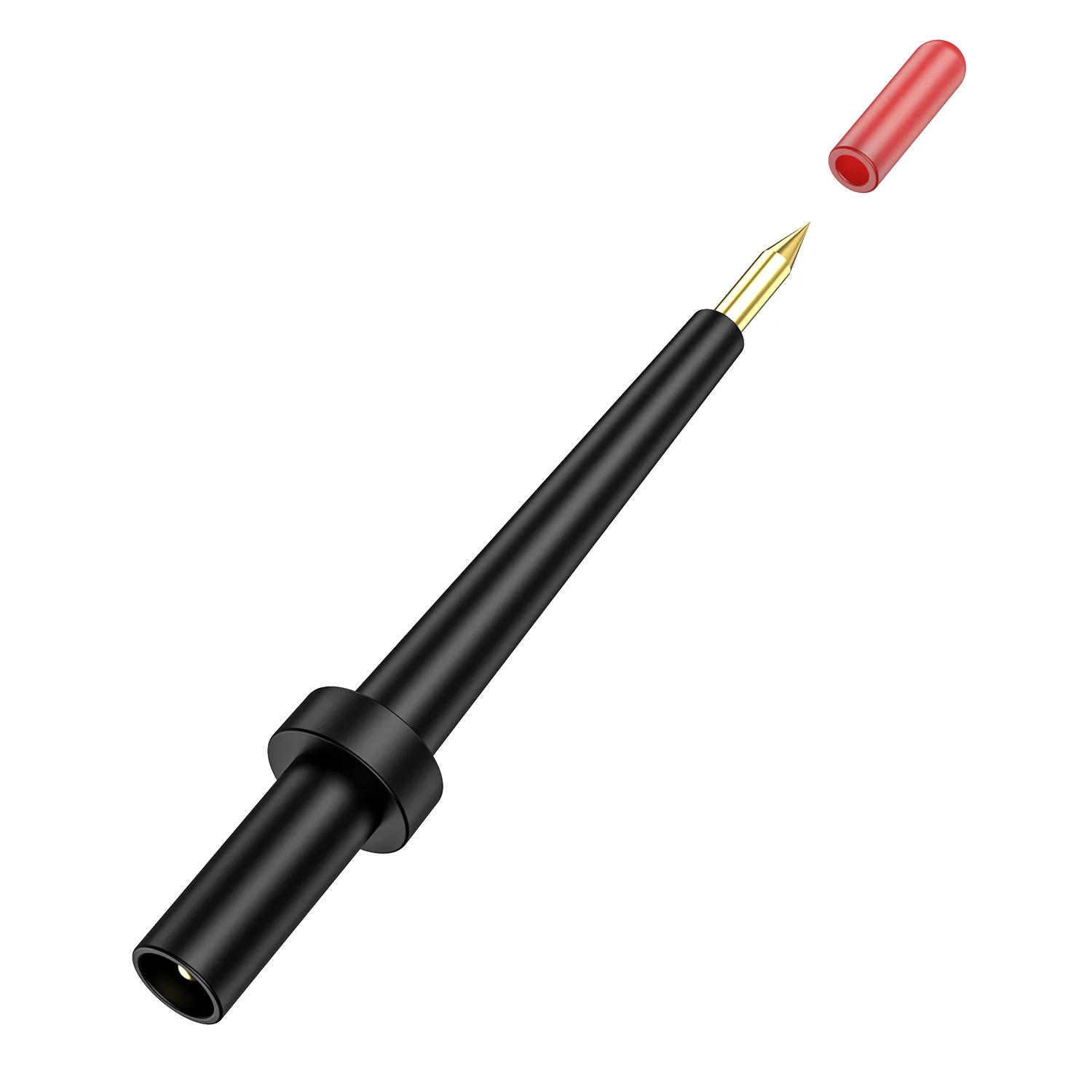

• 1x Probe tip

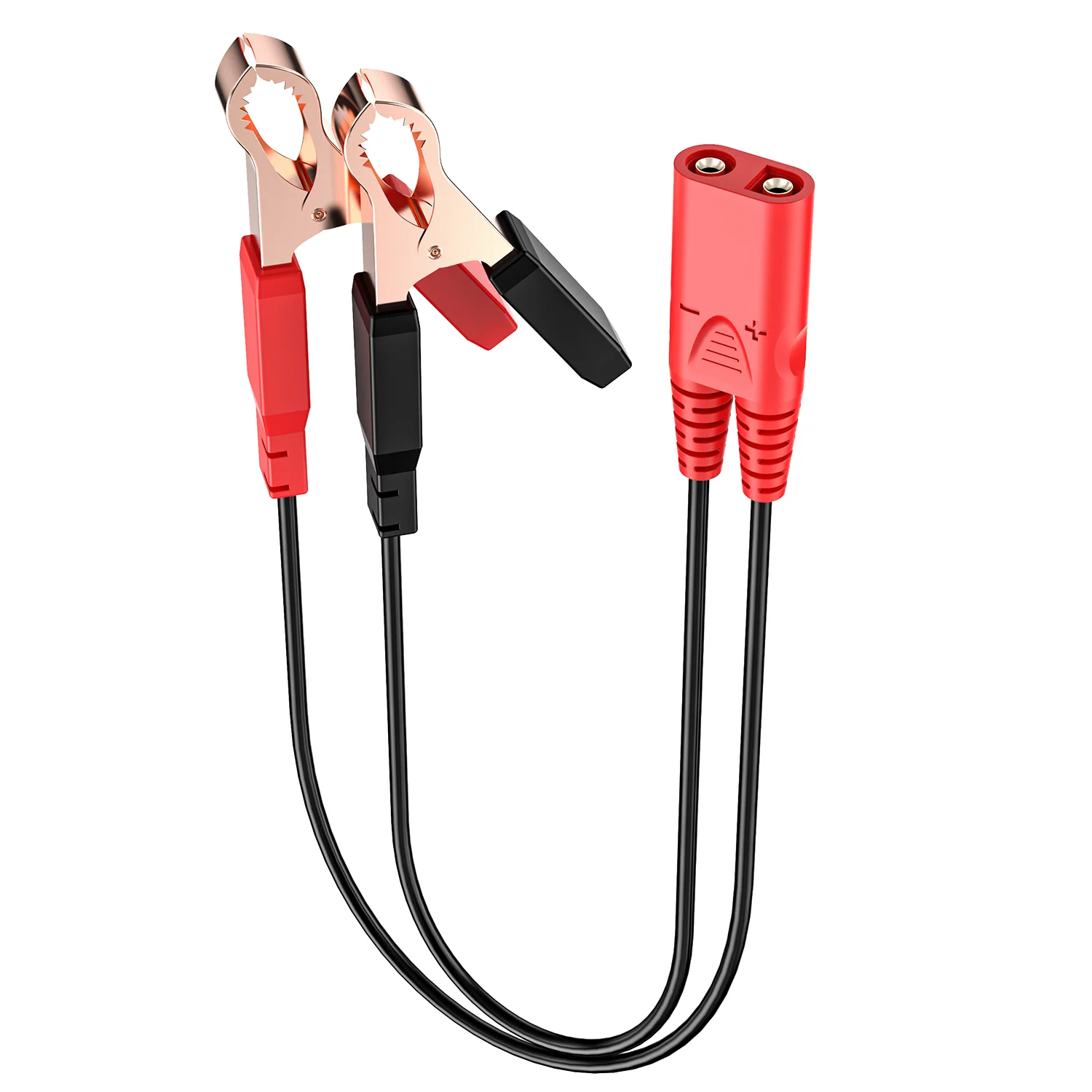

• 1x Battery hookup clips

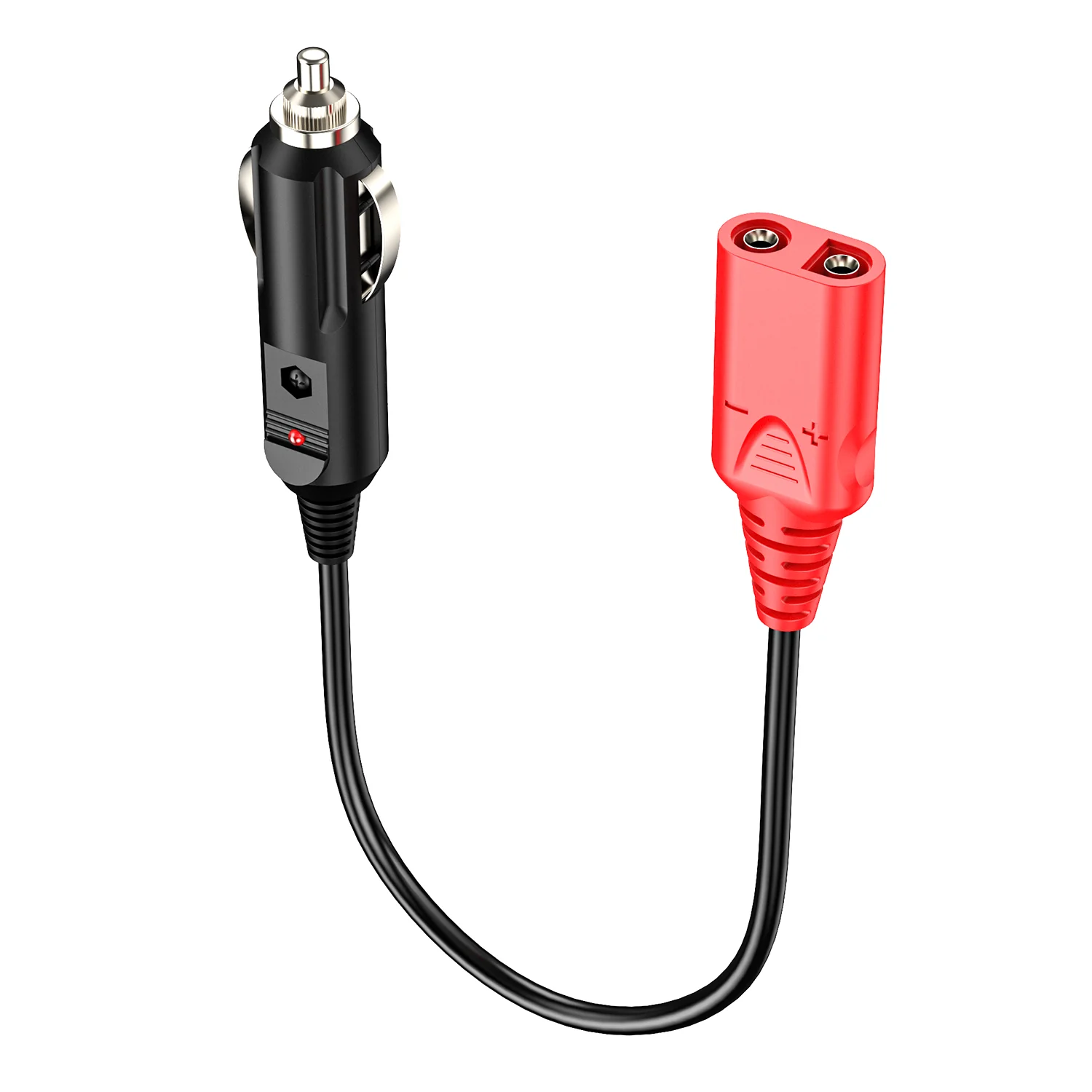

• 1x Cigarette lighter adapter
• 1x User's Manual
