Autel Maxisys MS908CV II

The Autel MaxiSys MS908CV II is a top-tier professional diagnostic tool engineered for heavy-duty commercial vehicles (Class 1–9), including trucks, trailers, buses, agricultural, and construction machinery. Its cutting-edge hardware and software deliver comprehensive, OE-level diagnostics with unmatched efficiency.

Top Reasons to Choose Autel MaxiSys MS908CV II in 2026

• Advanced ECU Coding - Adjust vehicle road speed, flash CV personalized functions, repair failing coding processes, etc
• 64+ Hot Services - Autel MS908CV II features 39+ services & 25+ adaptions for 150+ brands that are easy to navigate and more outstanding than other CV diagnostic scan tools.
• OE All-System Diagnosis - MS908CV II conducts simplifying all procedures as the priority, runs full checks for complex CV systems like ECAS, ABS/EBS, DPF/SCR, reads DTCs to locate the fault, clears DTCs to turn off the MIL, retrieves live data to learn about the details.
• Active Test - 3000+ active tests act more accurately but quicker problems location without bulky parts disassembling.
• 2026 Top Truck Scanner - Wireless BT with 230+ meters working range. The complete kit provided includes various adapters that are designed for diagnosing aging class-3 CV vehicles
• Wider Coverage - Widely apply to CV vehicles including Light/Heavy duty trucks (class 1-9), trailers, buses, special vehicles, and newly added agricultural & construction vehicles.
• Pre & Post Scan - Pre-Post Scanning will record vehicle status before and after diagnostics, helping you to locate problems and list suitable repair plans.
• Extensive Functions - Auto Scan 2.0, WIFI Print, Cloud Report Management, etc.
• Services for Truck - DPR Regeneration, Injector Cutout Tests, Injector Coding, Oil Light Service, etc.
• 1 Yeas Free Update & Warranty - Scanner comes with one year free software update and 1 year free warranty.

OE All-System Diagnosis

Autel MS908CV II can perform full-system scans for critical CV systems like ECAS, ABS/EBS, DPF/SCR, and engine management. Reads/clears DTCs, retrieves live data, and executes bi-directional controls to pinpoint faults without disassembly. Supports emission standards from Euro III to VI, covering engine, aftertreatment, body, and transmission systems.

3000+ Bi-Direction Control & Active Test

Unlike most bluetooth diesel diagnostic tool scanner for commercial vehicles that can only perform limited bi-directional control, this Autel Maxisys CV MS908CV II offers a comprehensive 3000+ active tests covering 99% mainstream CVs, e.g. Cylinder Cut Out Test, Cylinder Compression Test, On-board Electronic Components Test.

39+ Hot Service & 23 Adaptation Functions

Autel MS908CV II features 39+ services & 25+ adaptions for 150+ brands that are easy to navigate and more outstanding than other CV diagnostic scan tools. Help to solve more HD special issues including oil reset, DPF regeneration, SCR reset, VGT learning, SAS reset, injector coding, air suspension, ABS bleeding, etc.

• DPF Regeneration - Clear Particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance, allowing you to know about the status of the sensor during the regeneration process.
• Injector Cutout Test - Help you prevent and check your vehicle injectors and identify issues with individual cylinders, fuel injectors, and other components in your engine.
• Injector Coding - After replacing the related ECU or injector, MS908CV II helps to code each cylinder to identify injectors and control fuel injection.
• Oil Light Service - Use Autel MS908CV II to set zero to the oil light of CV Vehicles after finishing engine maintenance and set the next service mileage after changing the oil.

Online ECU Coding

The MS908CV II, like the MS909CV, offers advanced CV ECU coding not supported by regular diagnostic tools. It allows you to adjust vehicle road speed, personalize CV functions, and fix failing coding processes.

• Refresh Hidden Function
• Customize OE-Setting
• Online Parametric Configuration
• Improve Driving Comfortability
• Rematch Module Replacement/Calibration

Advanced J2534 ECU Programmer

The J2534 programmer designed for CV helps improve drivability and fuel efficiency, erase fault codes, and program the latest software without expensive OE scanners, functioning at an OEM level.

Wide CV Coverage

150+ Light Duty/Heavy Duty/Trailer/Special Vehicle/Agricultural/Construction makes (1996-2026) in US market.

Pre & Post Scan

Pro-Post Scanning will record vehicle status before and after diagnostics, helping you to locate problems and list suitable repair plans.

WiFi Printing

Directly print reports in seconds by connecting the same WiFi device with a Printer. No need to open your PC and connect entangled cables.

Cloud Report Management

All diagnostic reports can be uploaded to the cloud server, saving local storage and running faster diagnostic speed, without speed hiccups.

GPS Services

Widely used in automotive navigation. It helps drivers get directions and provides real-time information about their current location.



Autel Maxisys MS908CV II Specification List

Operating   System	Android 10
Processor	Octa-core processor (2.2 GHz quad-core A73 + 1.8 GHz quad-core A53)
Memory	4 GB RAM & 128 GB on-board memory
Display	9.7 inch LED capacitive touchscreen with 2048 x 1536 resolution
Connectivity	· WiFi (802.11 a/b/g/n/ac)
	· USB: 2.0
	· Bluetooth v5.0 + EDR
	· SD Card (Support up to 64 GB)
	· HDMI
Camera   (rear)	16.0 megapixels; auto focus with flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	· Microphone
	· Dual Speakers
	· 3-Band 3.5 mm stereo/standard headset jack
Power   and Battery	· 11000 mAh 3.7 V lithium-polymer battery · Charging via 12 V AC/DC power supply with a temperature between 0 °C and 45 °C
Input   Voltage	12 V (9-24 V)
Power   Consumption	6.5 W
Operating   Temp	0 °C to 50 °C (32 °F to 122 °F)
Storage   Temp	-20 °C to 60 °C (-4 °F to 140 °F)

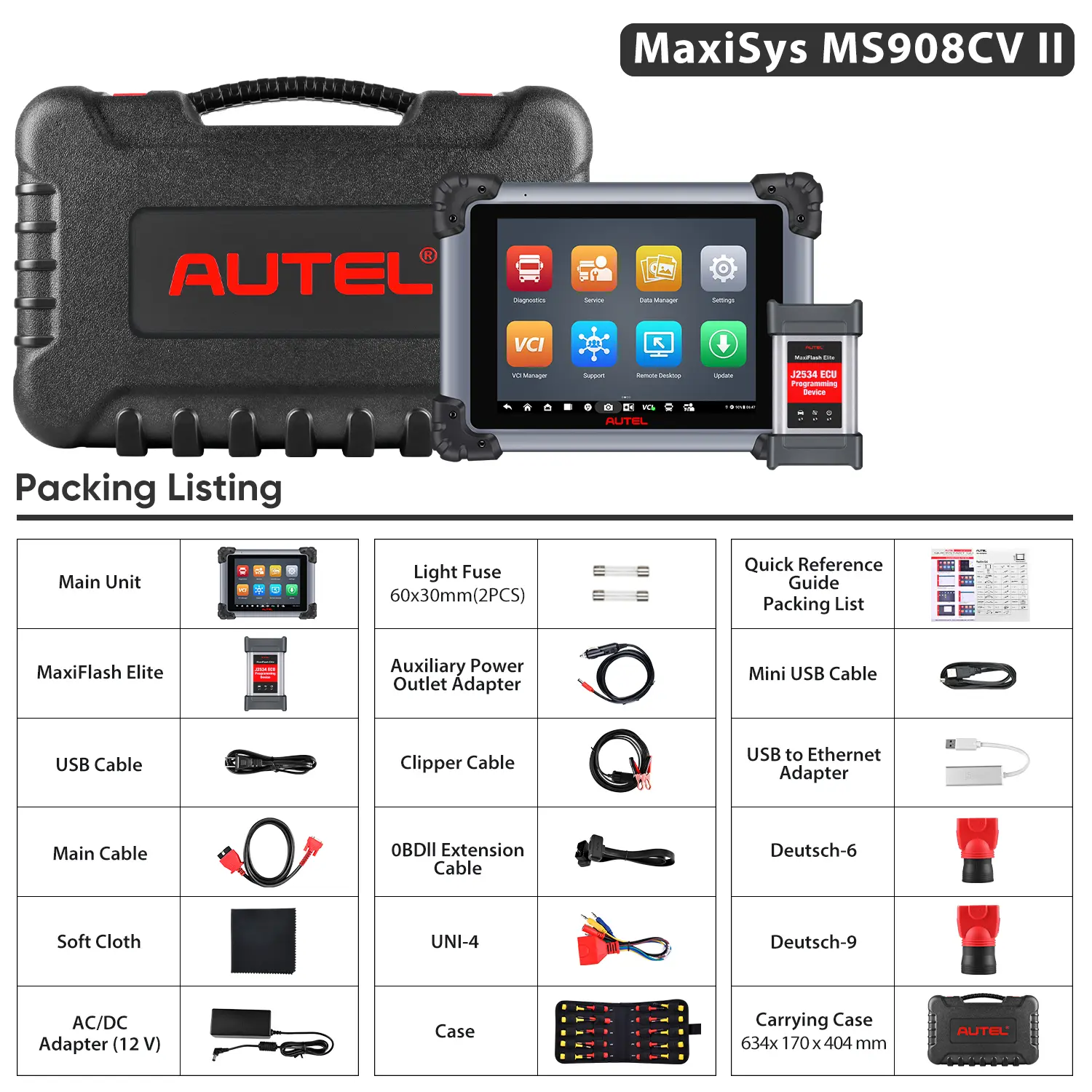

Autel Maxisys MS908CV II Packing List

[accessories]

Autel Maxisys MS908CV II Packing List
