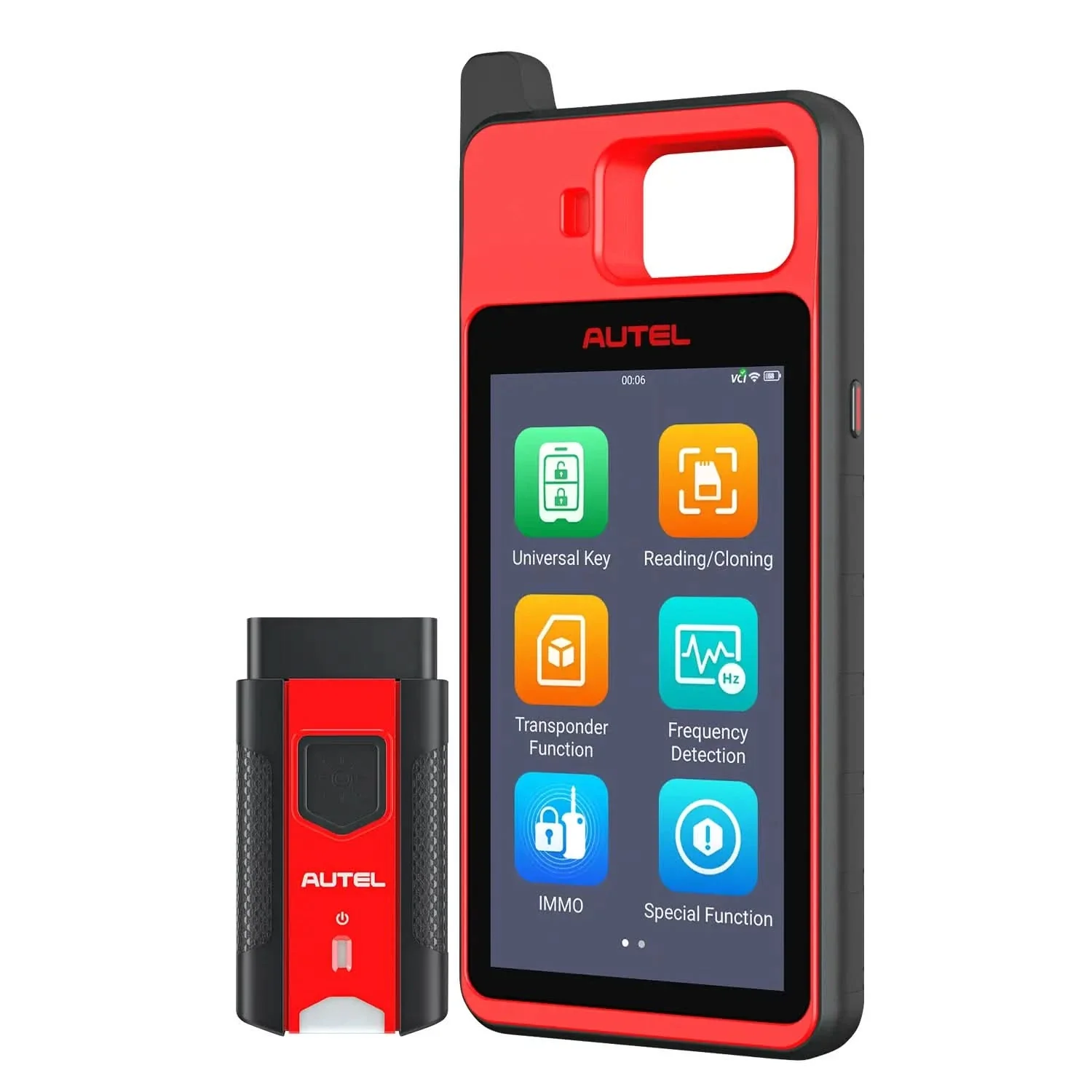

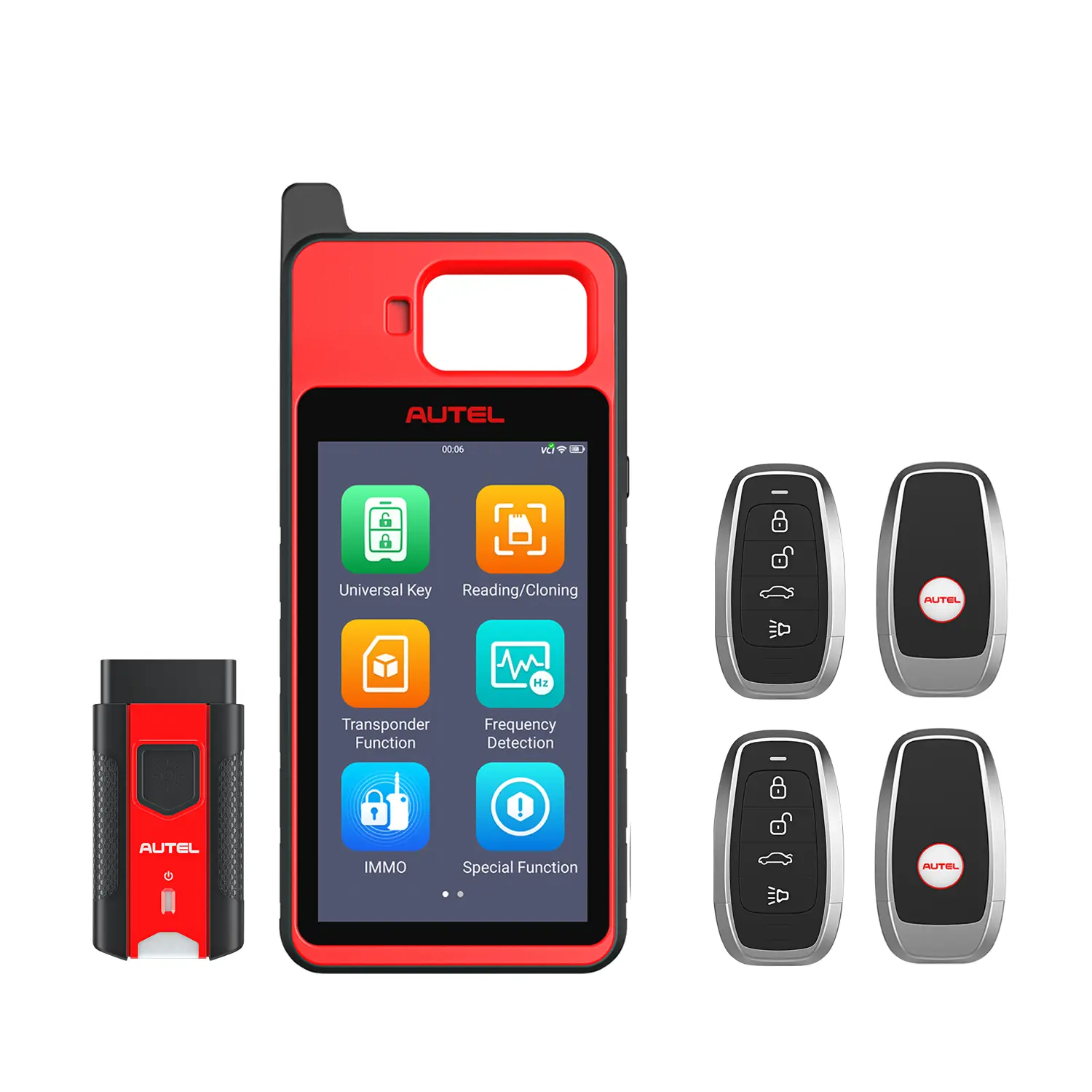

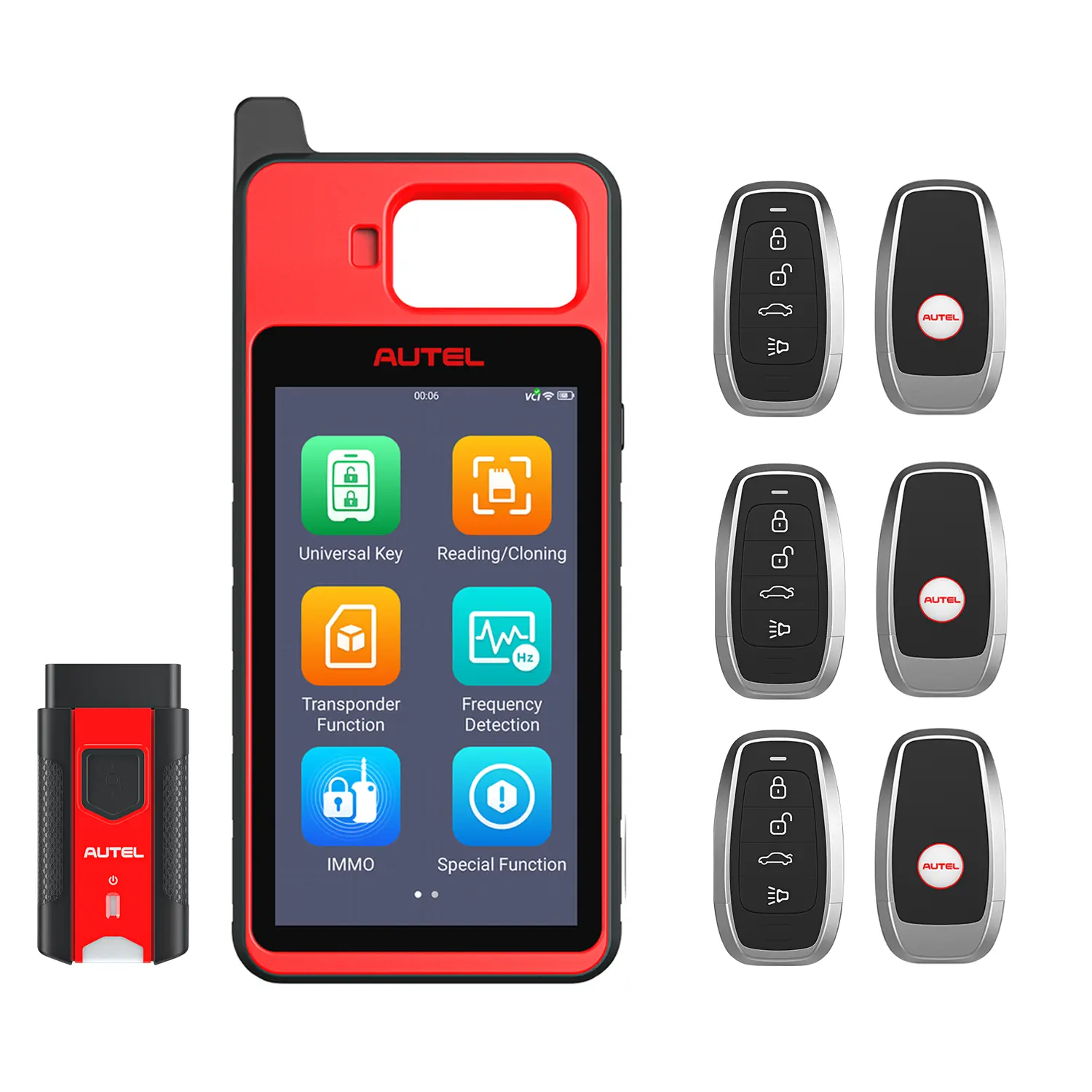

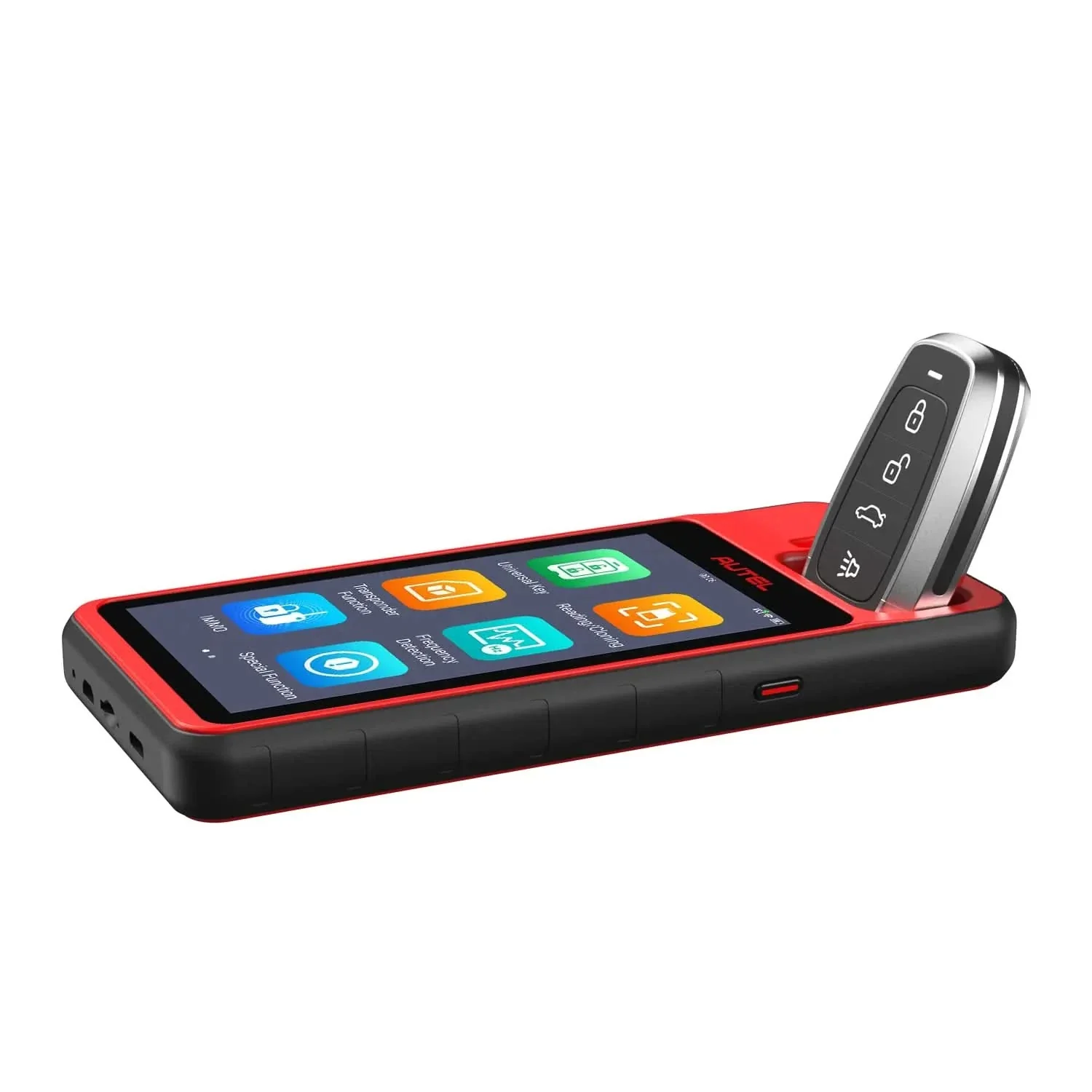

Autel MaxiIM KM100

The Autel MaxiIM KM100 (2026) redefines automotive key programming with its intelligent Android tablet design, offering advanced transponder cloning, IMMO coding, and smart key replacement for 700+ vehicle models. Designed for locksmiths and technicians, this all-in-one kit combines cutting-edge key generation with unmatched ease of use.

Important Information Reminder

Why KM100 is Available in KM100X and KM100E Models

The KM100 is available in multiple versions, such as KM100, KM100X, and KM100E. These versions have NO FUNCTIONAL DIFFERENCES. The reason for offering different models is due to different distributors supplying them, while the core features remain the same.

Autel KM100X Demonstration Video

Autel KM100 Top Hightlights

• 60-Second Key Generation (Autel Universal Only)

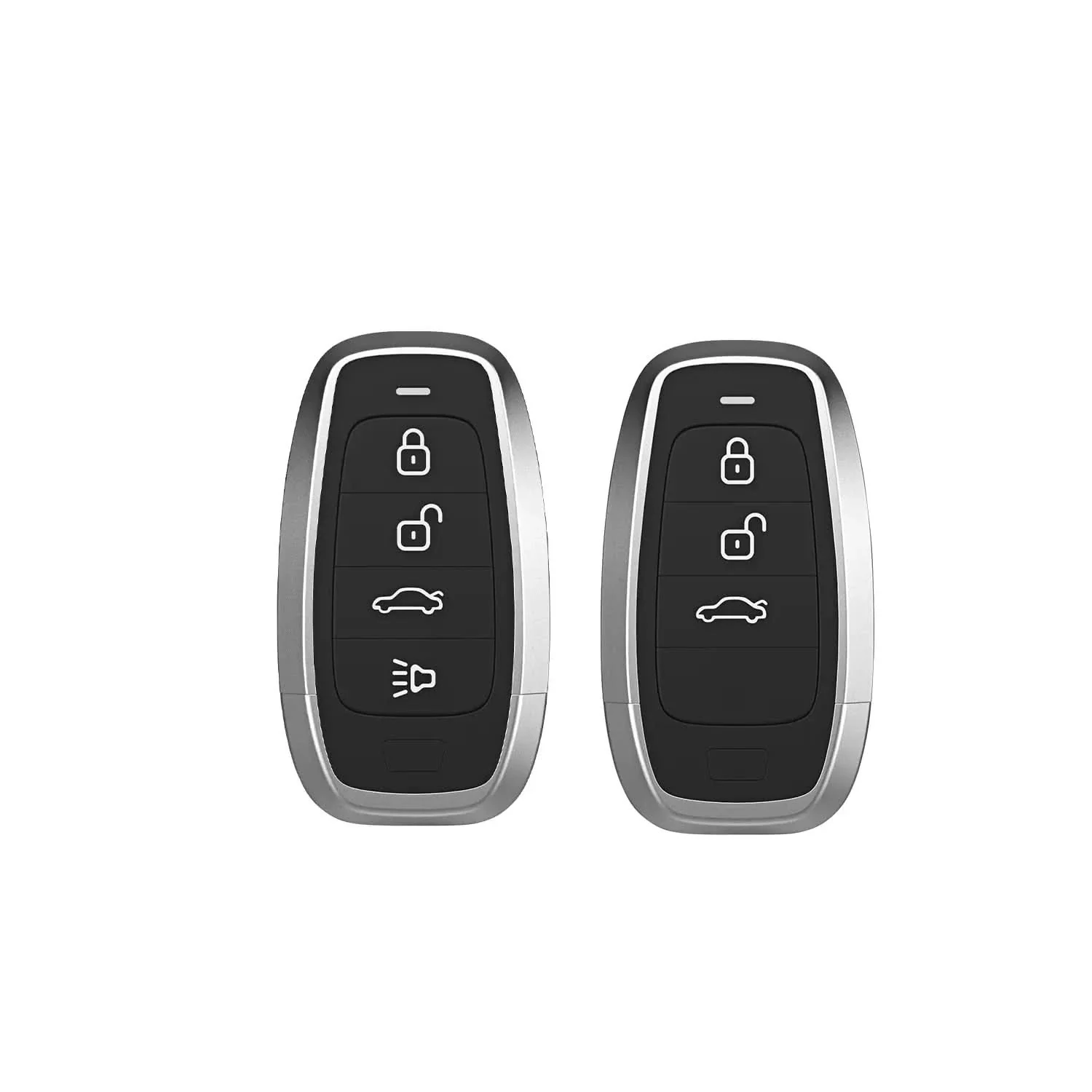

• Programs Autel’s IKEY universal key as smart key replacement for more than 700 vehicles
• Extensive IMMO Key programming coverage including BMW, Volkswagen, Honda, and General Motors
• Chip Read & Write, Cloning and Frequency Detection
• Key Renewal: Supporting 36 Vehicle Makes
• Transponder Editing: Supporting 20 Categories
• Dual-Band, High Frequency Transmitter 315m/434m or 868m/915m Supporting Certification Requirements of Various Regions
• Supporting PLC V200

Advanced IMMO Functions

• Key Learning via OBD for 90% Vehicles
• Generate Simulator Key (KM100 as Emergency Key)
• Smart Remote Learning / Key Learning
• IMMO Data Backup / Restore
• Key Generation / Program a Smart Key
• All Key Lost / Add a Key
• Read PIN / Password Calculation
• IMMO ECU Reset / Adaptation / Refresh / Coding

Autel MaxIM KM100 Transponder Functions

1. Read chip type, IMMO type, transponder ID, locking status, code mode etc.
2. Generate a functional transponder for your vehicle.
3. Edit transponder information
4. The Transponder Simulation function can be used to simulate the KM100 as a transponder using a variety of IMMO protocols. This function is particularly useful when your vehicle needs emergency start or such.
5. Conversion between two types of Ford transponder--ID63 and ID83.

KM100 Vehicle Compatibility

• AutoVin vehicle identification to ensure accuracy
• Simple Operation, Guided User Instructions, Easy To Use
• Industry-Leading Coverage Of IMMO Learning Via OBD For More Than 90% Of Models
• Supporting 8 Key Series And 37 Models
• Covering The Top 100 Selling Models In North America For The Last 10 Years

KM100 VS IM508S VS IM608 PRO II

Superior Hardware Configualtion

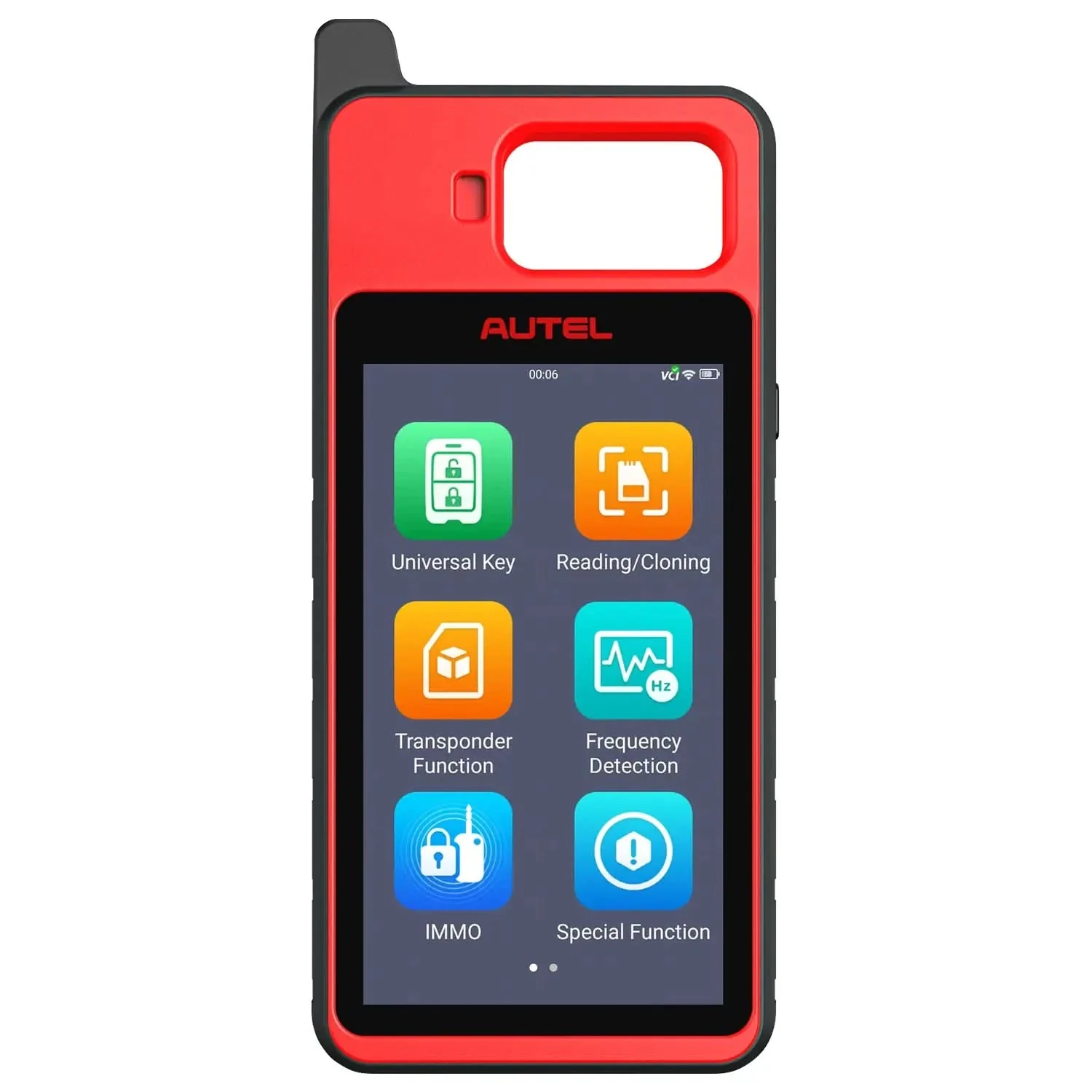

• Display: 5.5-inch screen with 1280 x 720 resolution
• CPU: Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
• OS: Android 9.0
• Memory: 2GB RAM/ 64GB on-board memory
• Camera: 8 Megapixels
• VCI: MaxiVCI V200
• Connection: Wi-Fi, Bluetooth 5.0, USB 2.0 type C
• Battery: 4950mAh

Autel MaxiIM KM100 Specifications

Function	Autel MaxiIM IM508	Autel MaxiIM IM608	Autel MaxiIM KM100
Universal Transponder & Key Generation	No	No	Yes
Transponder Simulation Editing & Cloning	No	No	Yes
Ignition Coil Detection	No	No	Yes
Vehicle Diagnostics	Yes, Basic function	Yes	No
Vehicle Service Functions	Yes	Yes	No
IMMO Function via Programmer	Yes	Yes	No
Frequency Reading	Yes	Yes	Yes
Frequency Detection	Yes	Yes	Yes
Key Unlocking/Key Renew	Yes	Yes	Yes
Immobilizer Data Processing	Yes	Yes	Yes
IMMO in Open OBD mode	Yes	Yes	Yes

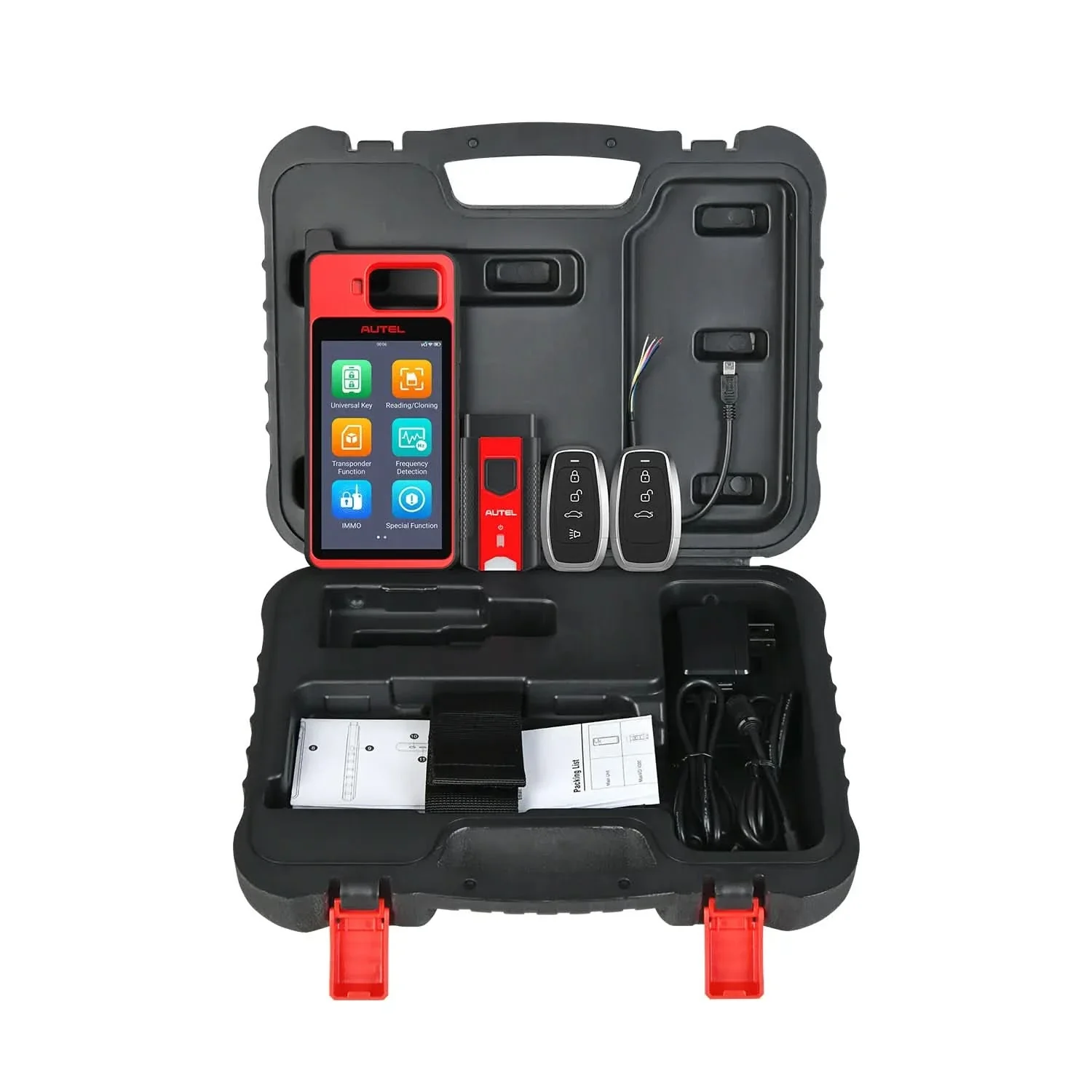

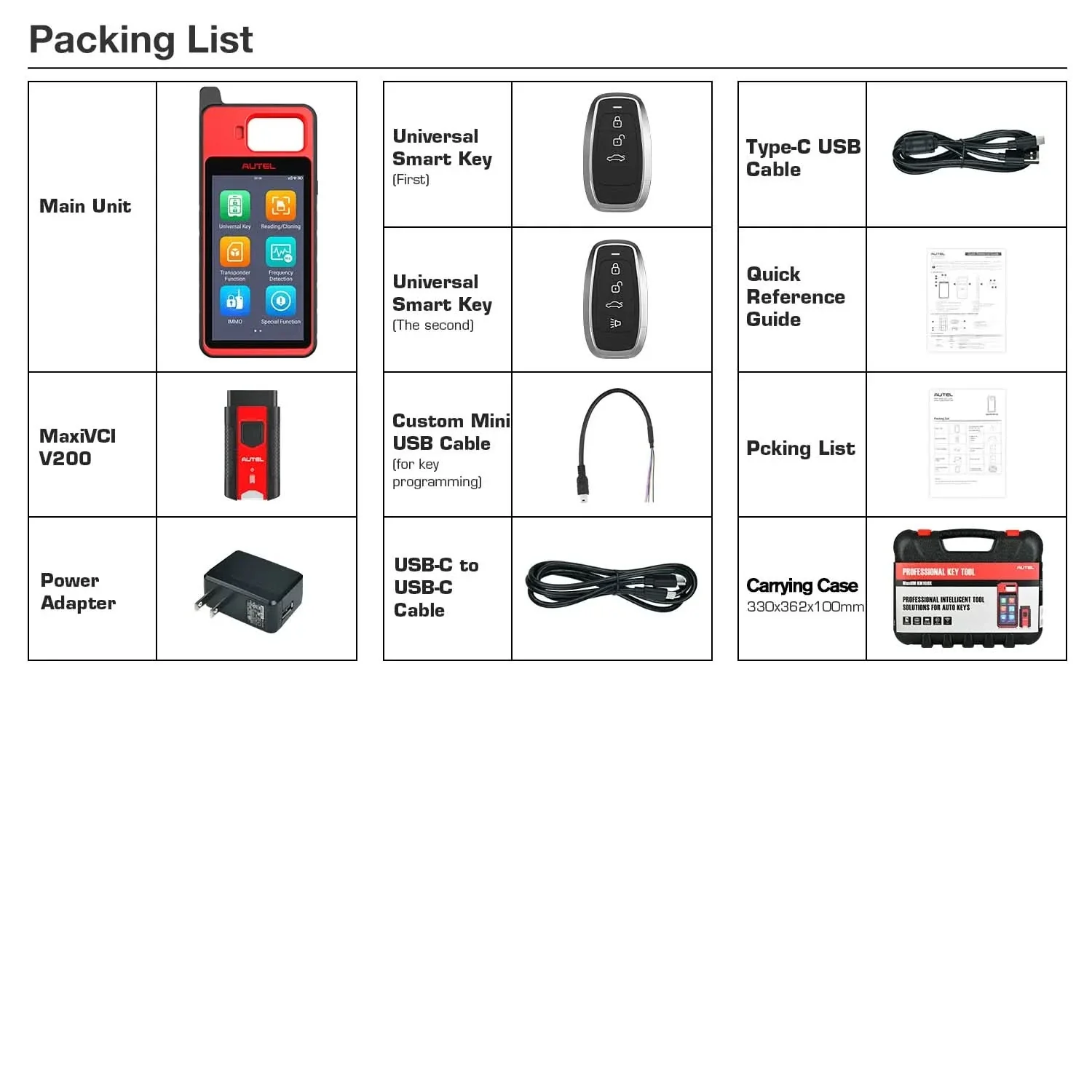

Autel MaxIM KM100 Packing List
