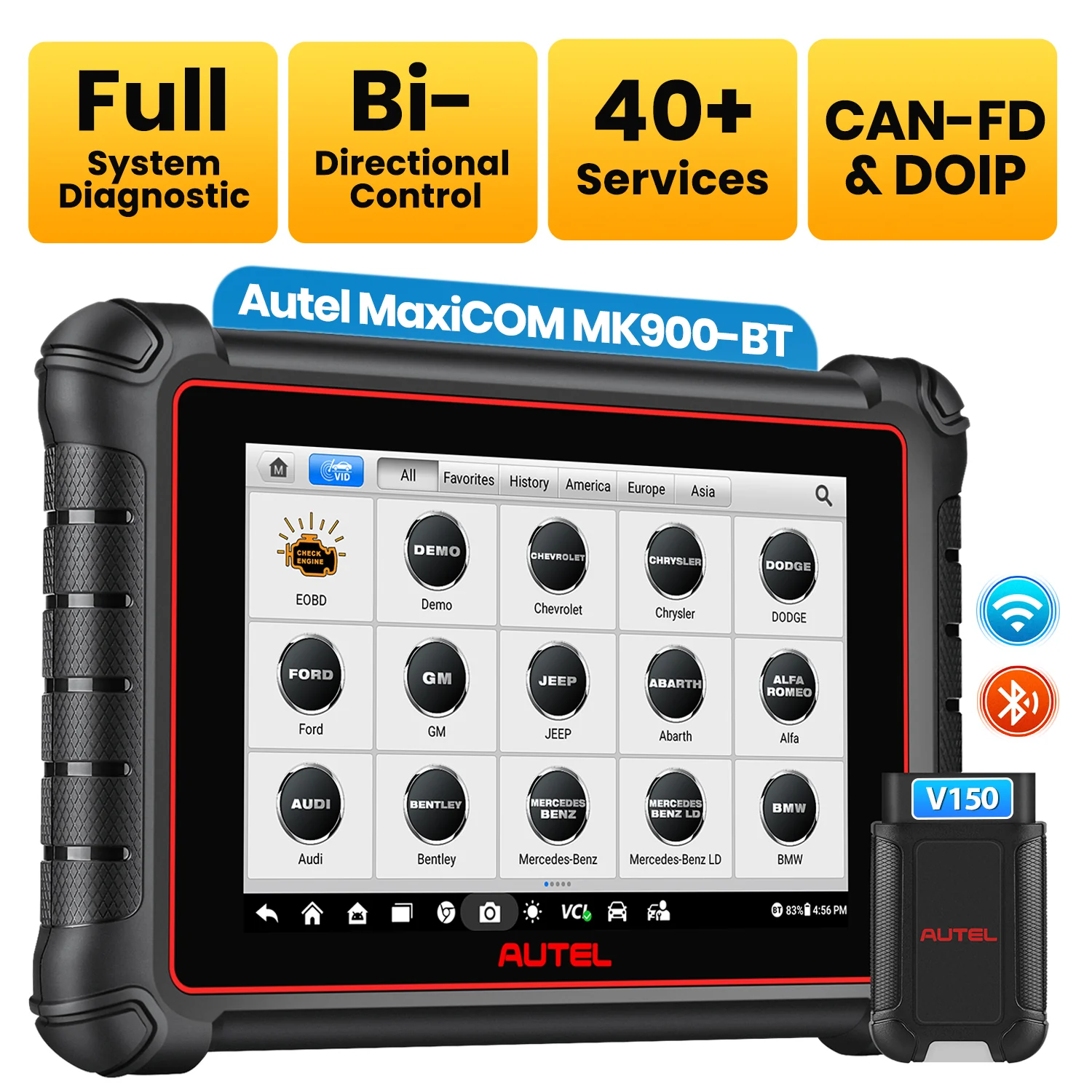

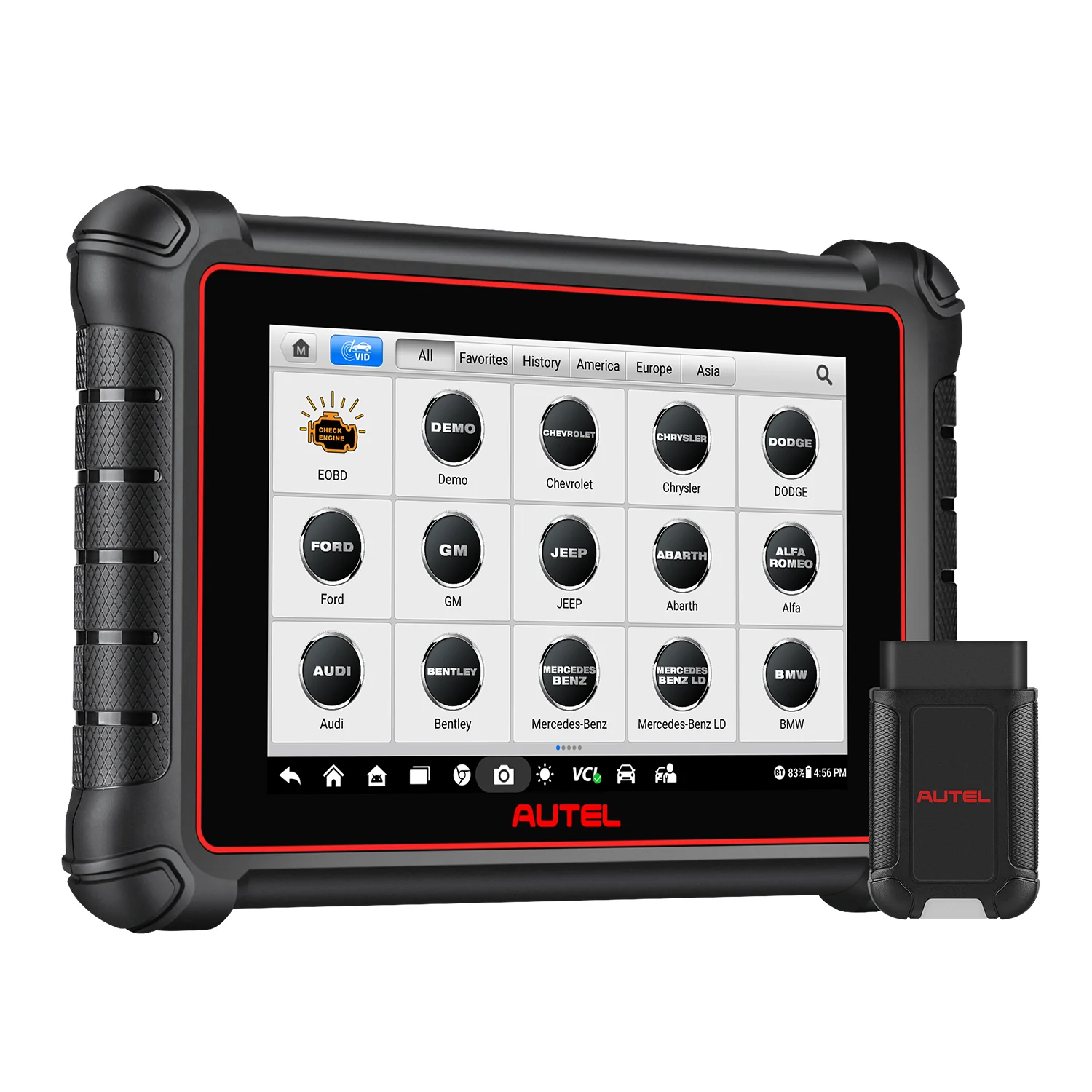

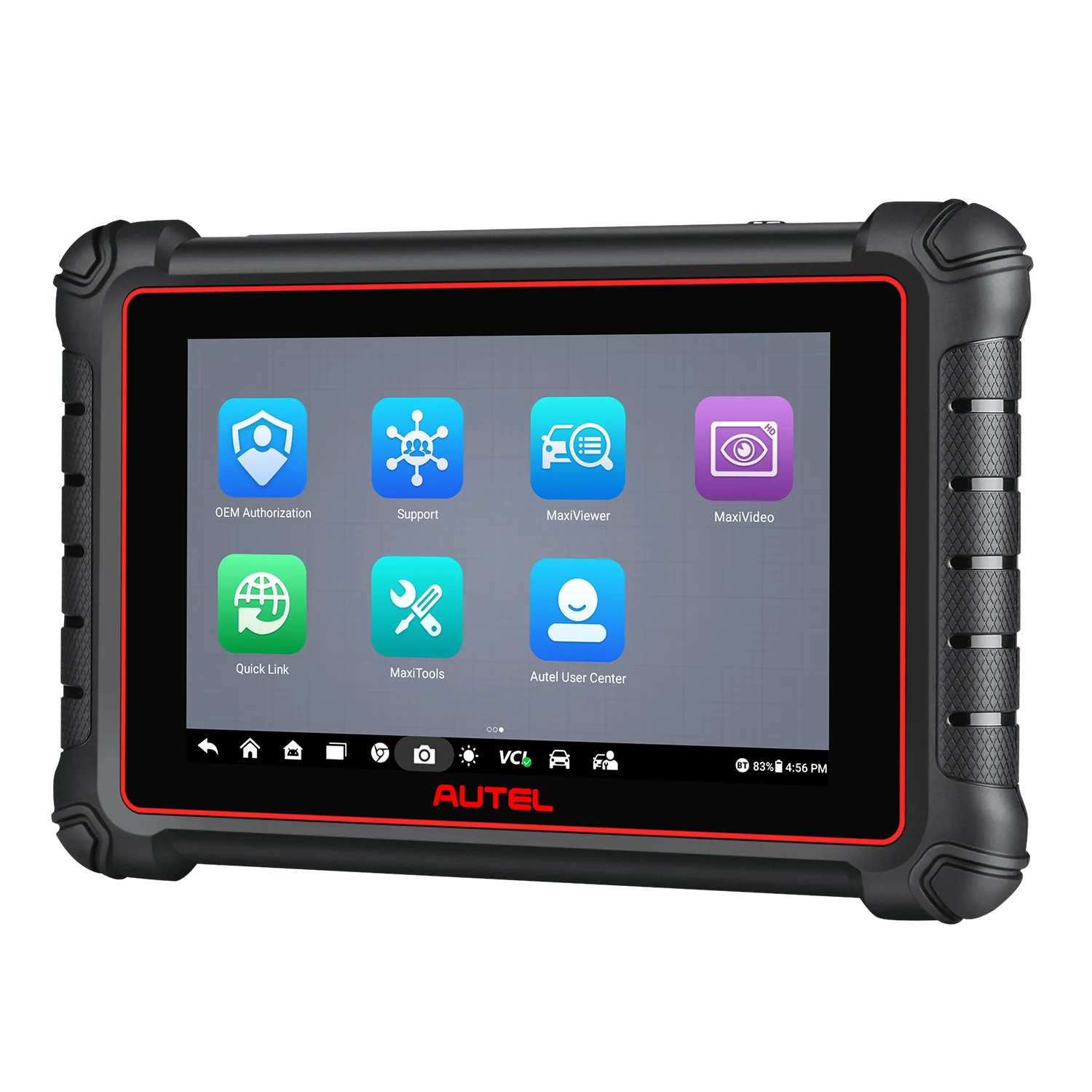

Autel MaxiCOM MK900-BT

The Autel MaxiCOM MK900BT is truly an outstanding scan tool for car enthusiasts or DIYers. As the newly released version from Autel, the MaxiCOM MK900BT boasts enhanced hardware that enables faster operation and expanded battery capacity.

With over 40 hot services, OE-level full system diagnostics,FCA AutoAuth Access(For EU&US), and Renault Access, wide coverage of 150+ brands, support for vehicles ranging from 1996 to 2026,21+ supported languages, and no IP limitation, this MK900BT car diagnostic scanner has become highly sought after by car mechanics. Moreover, it is compatible with MV108S for digital inspection ang BT506 for Battery Test, making it an exceptionally versatile tool.

OE-Level All-Systems Diagnosis

Autel MaxiCOM MK900BT diagnostic tablet scanner can access and scan all available electronic systems toread and clear codes, view live data, and retrieve ECU informationwhich brings workshop-level all available modules scanning to a whole car.

Bi-directional Control/Active Test

The Autel MaxiCOM MaxiCOM MK900BT scan tool output the commands to ECUs and monitor the operation of the actuators to quickly locate issues. For Example:

• Fuel Injector Balance, Injector Tests
• Cylinder Deactivation, A/C Compressor Clutch Relay On/Off
• Cycling ABS Pump Motor, EVAP Tests
• Switch on/off car wipers, Rolling up/down car windows/doors/sunroof
• Cooling fan motor command, Interior lighting test, High beam test

40+ Popular Maintenance Services

MaxiCOM MK900BT has 40+ Hot Services, which supports 150+ brands & AutoAuth for FCA Vehicles and helps you solve 99% complicated repairs, the services includingOil Reset, Injector Coding, ABS Auto Bleed, SAS, BMS, EPB,etc.

With MaxiCOM MK900BT, you can do the most basic car maintenance at homewithout taking the vehicle to a dealershipand spending hundreds and thousands on something you can do it on your own.

• Injector Coding: Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;
• ABS Bleeding: When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;
• Brake Reset: Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;
• GEAR Learn: Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.
• Key Coding: Help ECU to recognize the new keys when you need to add new keys, and delete the lost keys;
• Oil Reset: Reset the oil life systems every time the oil and oil filter are changed;
• SAS Reset: Perform steering angle sensor calibration and clear records;
• BMS Reset: Evaluate the battery charge state, register the battery replacement, etc.; More completed battery and starter-related detail working with BT506;
• Relearn Throttle: Initialize the throttle so that the “learned” values stored on ECU are returned to the default state;
• DPF REG: Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance;

Note: The reset service is not applicable to all models, and the models supported by different functions are different. If you need to know whether Autel diagnostic tools can support it, please contact us via email [email protected] for a compatible check.

WorldWide Vehicles Coverage

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes after 1996.
Ford, Ford(EU), GM, Chrysler, Dodge, Jeep, BMW, Mini, Benz, Benz Sprinter, Maybach, Smart, Volvo, Land Rover, Jaguar, Porsche, Volkswagen, LT3, Volkswagen CV, Audi, Bentley, Lamborghini, MAN_LD, Seat, Skoda, Bugatti, Renault, Dacia, Samsung, Opel, Vauxhall, Peugeot, Citroen, Fiat, Abarth, Lancia, Toyota, Acura, Daewoo, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Nissan GT-R, Scion, Subaru, Suzuki...

Autel MaxiCOM MK900BT Extensive Functions

Pre & Post Scan - Report is customized with shop and vehicle info

• Pre-scan Report: To help to expedite insurance carries approval of repair estimates, avoiding additional insurance authorizations.
• Post-scan Report: To prove all DTCs on the Pre-Scan report are fixed. DATED scan report to ensure vehicles are repaired and safe for customers.

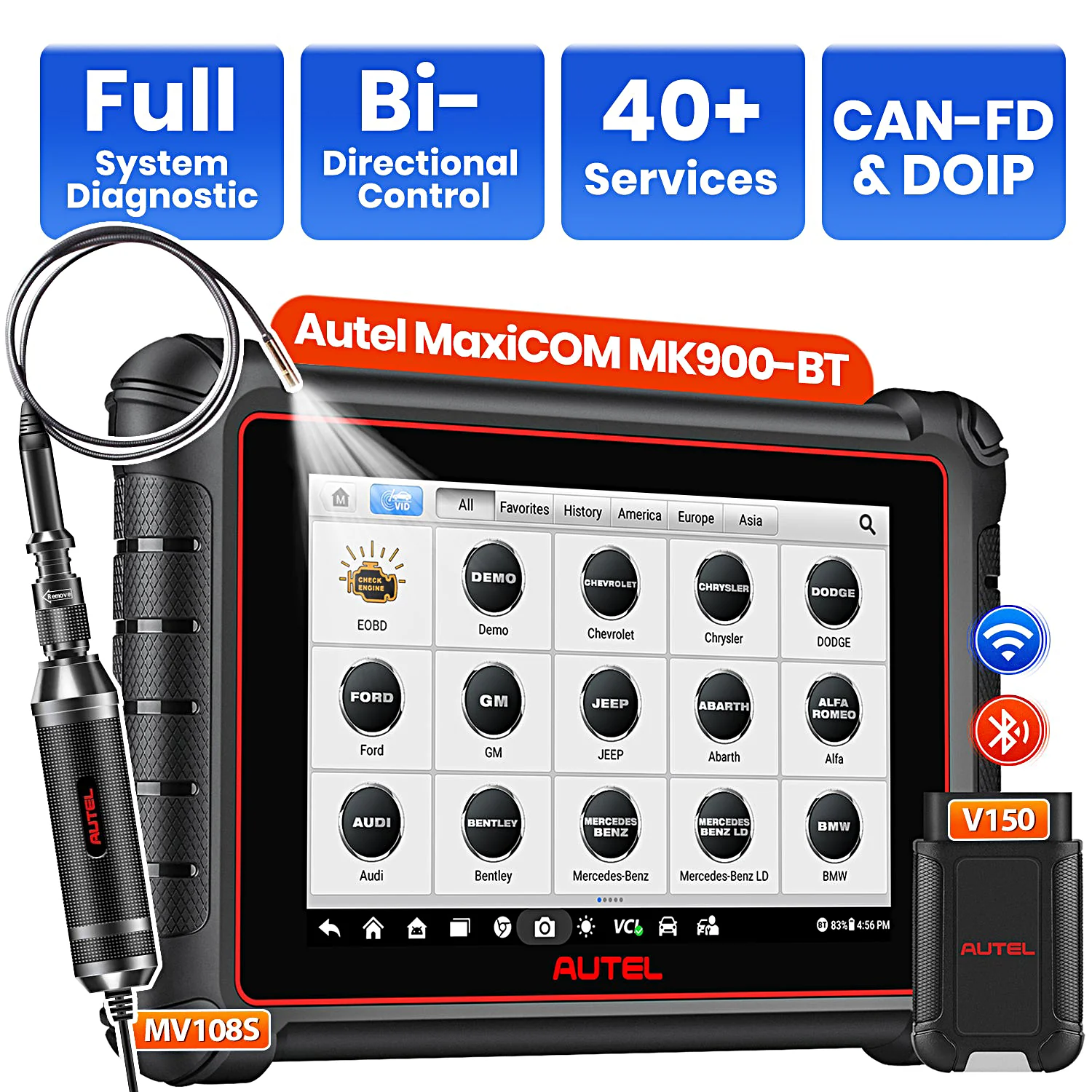

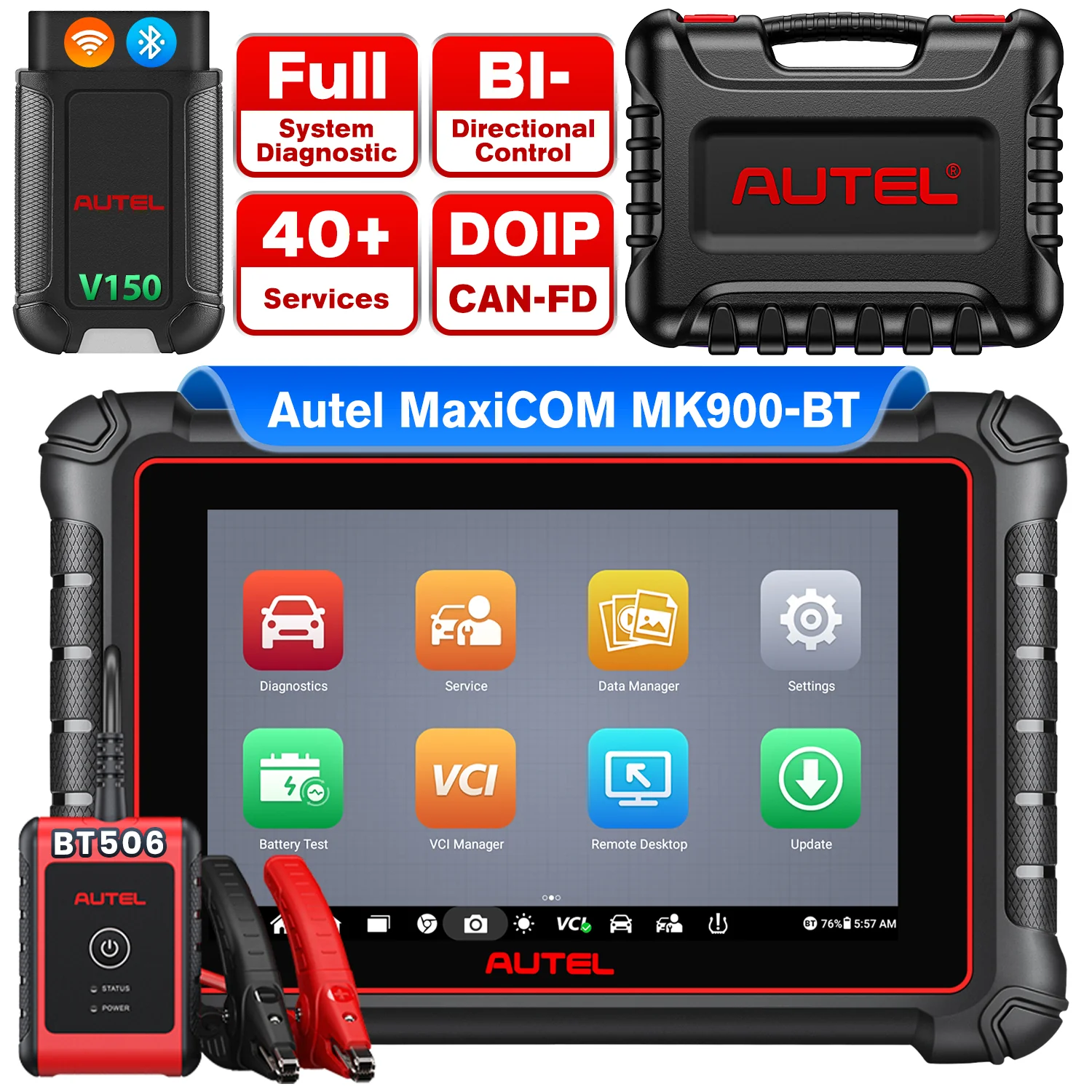

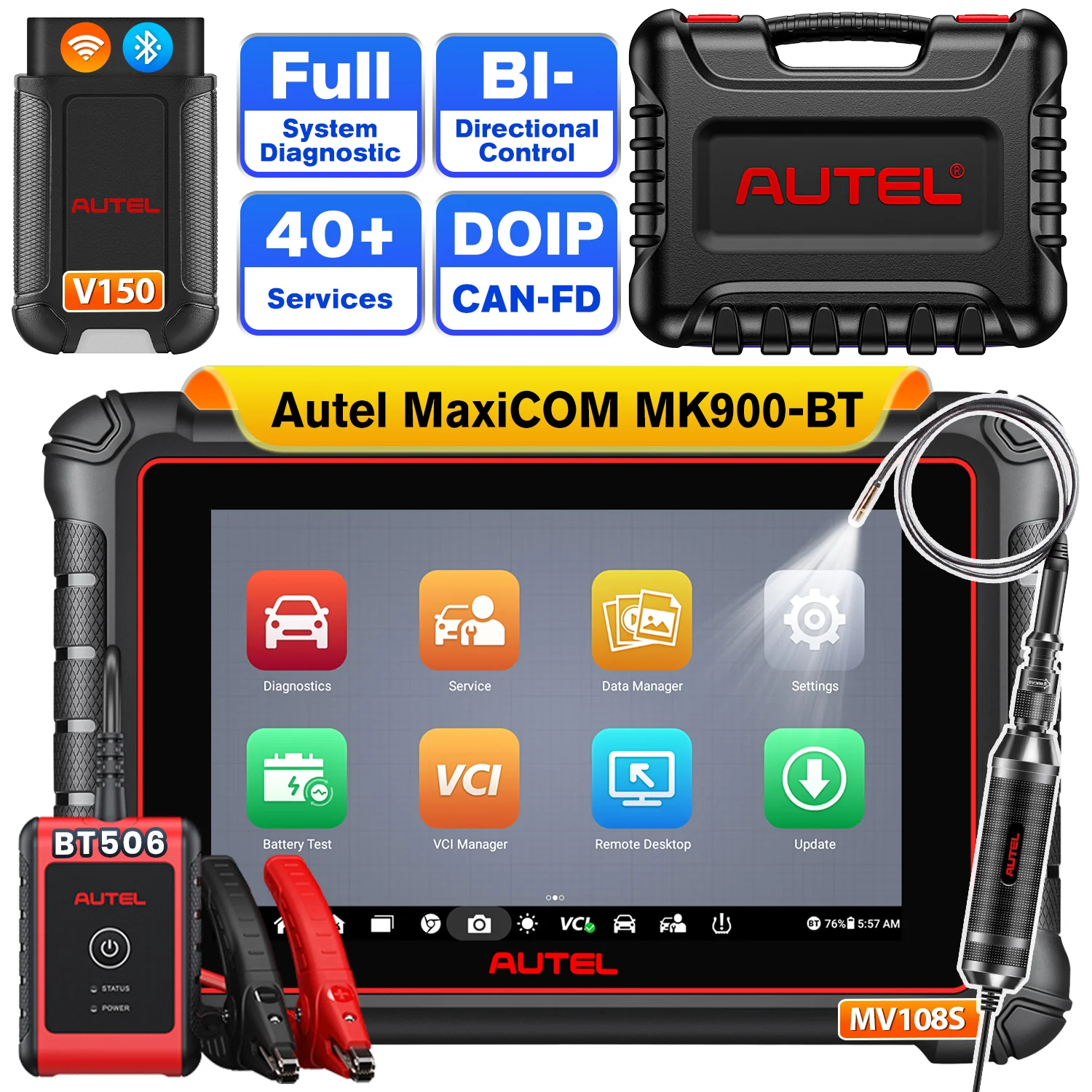

Compatible with BT506/MV108S

Autel Elite II Pro is exclusively equipped with battery test ability(Work with BT506), compatible with the MaxiVideo MV108S inspection camera for up-close visual inspections.

FCA AutoAuth

There is no need to dismantle the FCA cars & diagnose with the 12+8 adapter. Just register an "AutoAuth" account on the device and you can pay tp diagnose the FCA vehicles after 2017.



Autel MaxiCOM MK900-BT Specifications

Operating System	Android 11
Processor	Quad core Processor(1.8GHz)
Memory	4GB RAM & 64GB ROM
Display	8-inch LCD capacitive touchscreen with 1280x800 resolution
Rear Camera	8 MP
Connectivity	USB Type-C
	USB 2.0
	Wi-Fi
	Bluetooth
	Mini SD card (supports up to 64GB)
Audio Input/Output	Input: N/A
	Output: buzzer
Power and Battery	3.7 V/7700mAh lithium-polymer battery
	Charges via 5 VDC power supply
Battery Charging Input	5 V/3 A
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-10 to 60°C (14 to 140°F)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD



Autel MK900-BT Comparison Chart

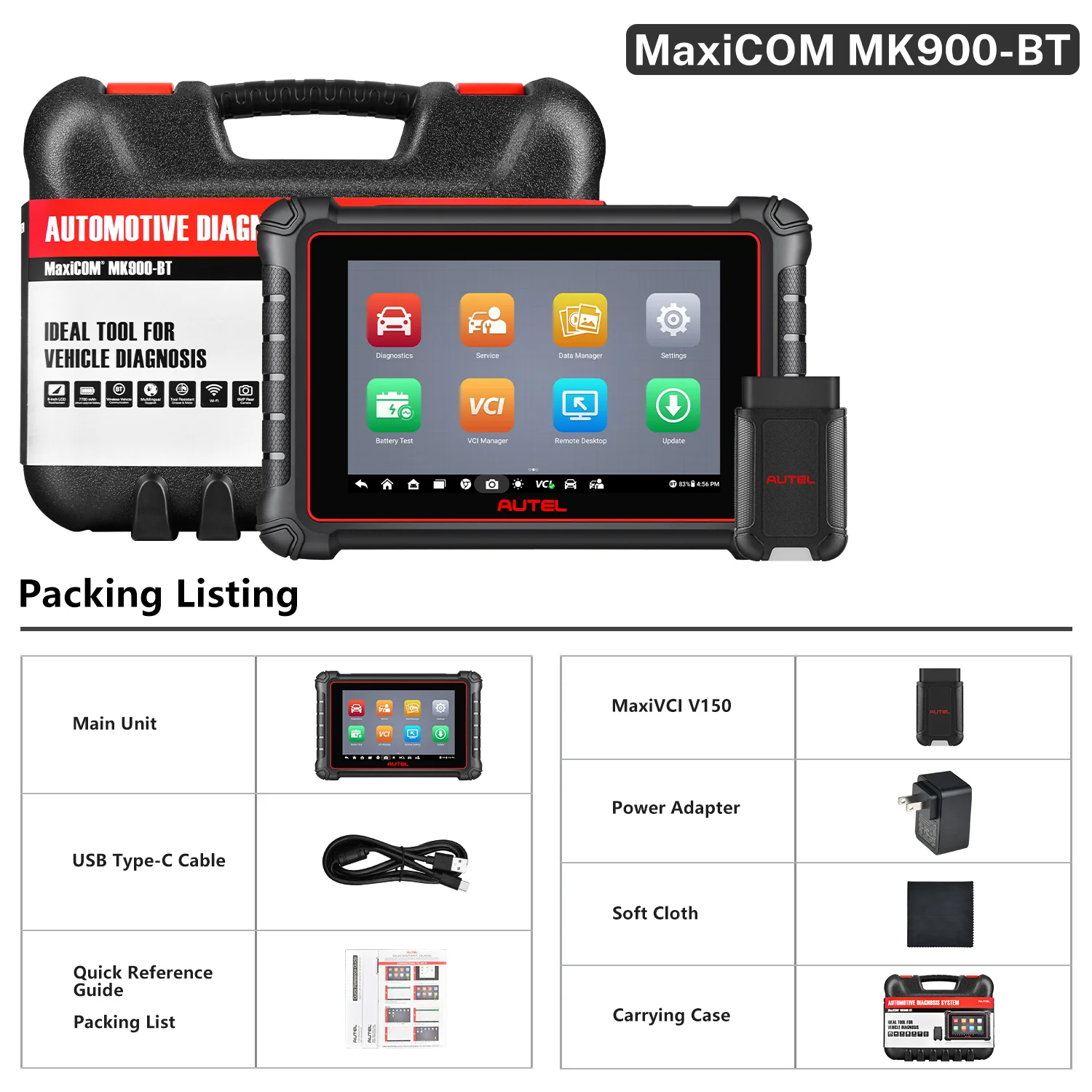

Autel MaxiCOM MK900-BT Pacakge List
