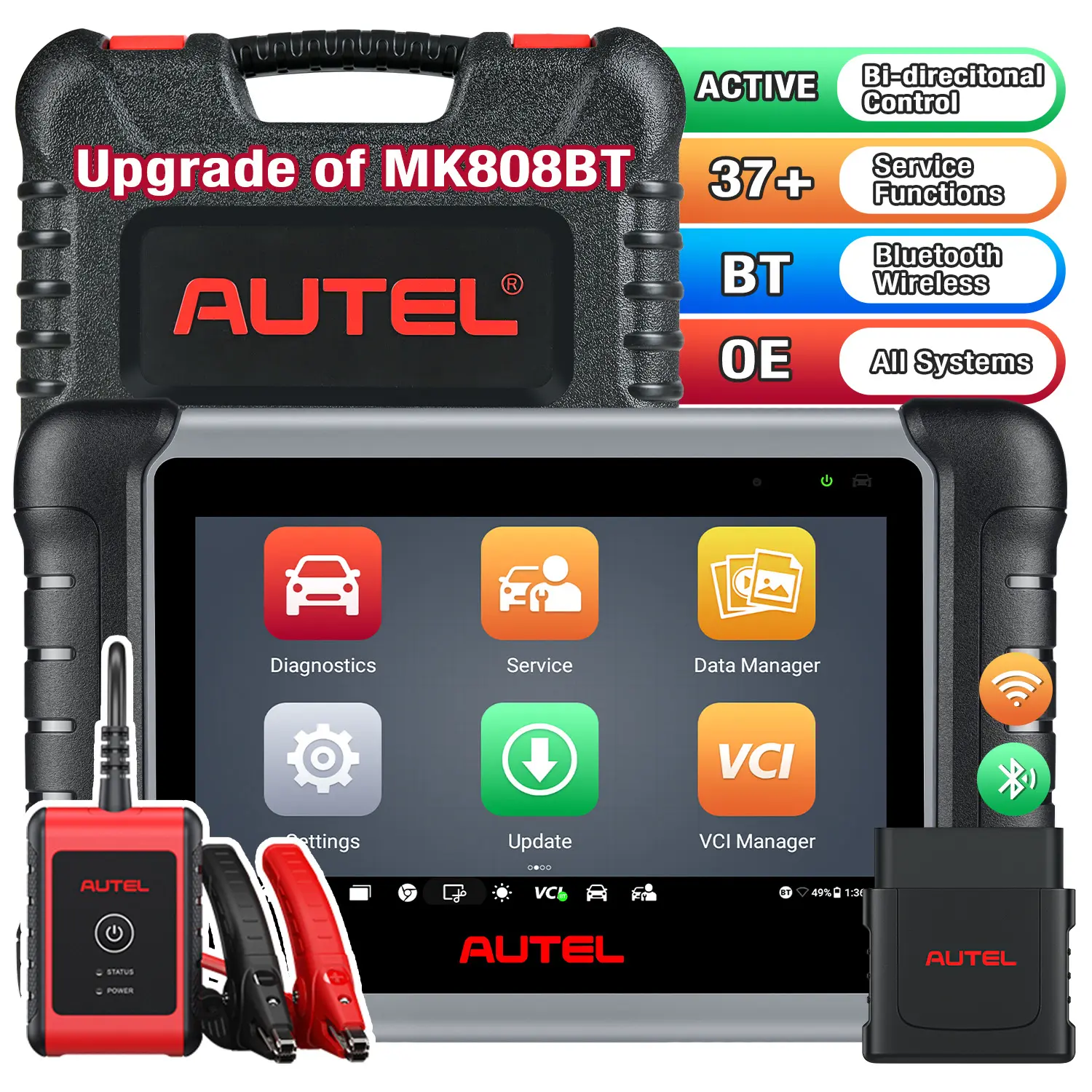

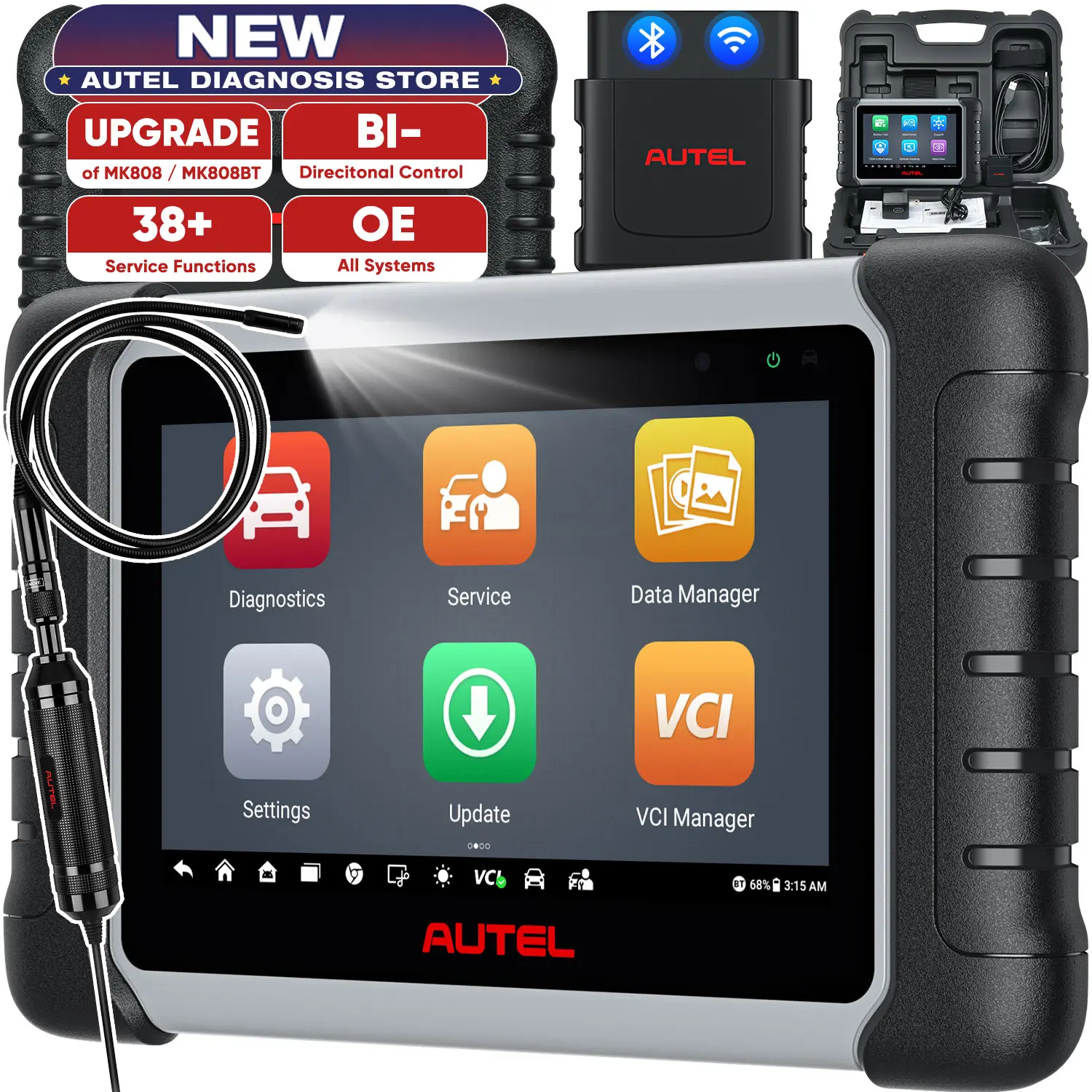

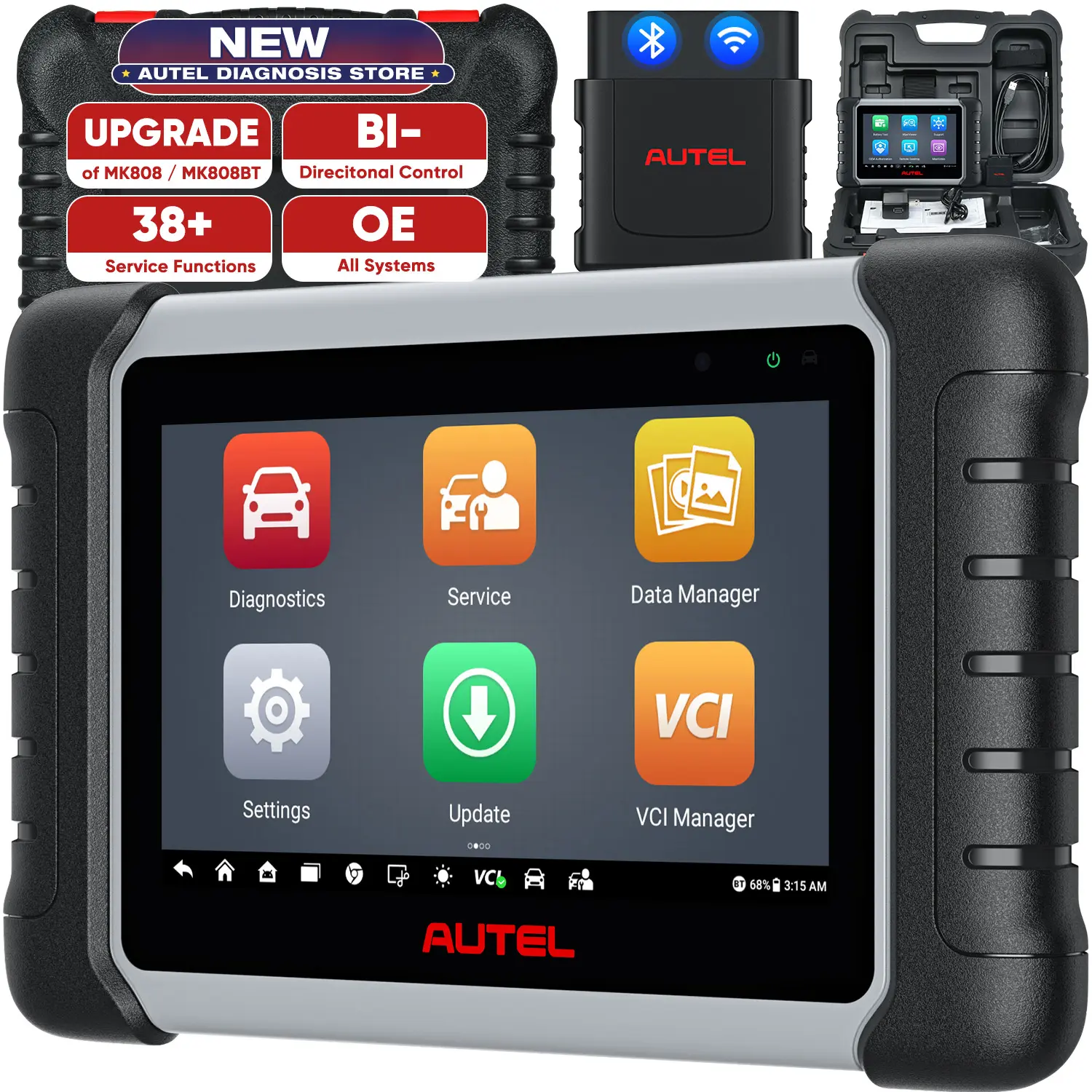

Autel MaxiCOM MK808BT PRO

Autel MaxiCOM MK808BT PRO automotive diagnostic tool , as an advanced version of Autel MX808/MK808BT, based on Android OS and 7.0 inch touchscreen, has the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market. As a professional grade automotive diagnostic scanner, MK808BT Pro has full bidirectional control (active test) capability, OE grade all system diagnostics, FCA AutoAuth, top cost-effective scanner in 2026.

As a pro-grade automotive diagnostic scanner, MK808BT PRO scan tool also provides you with superior special functions, including Oil Reset, EPB(Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), ABS Brake Bleed and DPF (Diesel Particulate Filter) Regeneration.

MaxiCOM MK808BT PRO Top 10 Highlights:

1. Android 11.0
2. No IP Restrictions
3. All Systems Diagnostic
4. Wide Vehicle Coverage
5. Support 24 Kinds of Languages
6. One Click Wi-Fi Update
7. 37+ Service & Maintenance Functions
8. Data Log & Remote Help
9. 2026 Upgraded Of MK808BT/MK808/MK808S/MX808
10. Stable BT Connection, working range up to 30 feet(10m)

OE-Level All Systems Diagnostics

Autel MaxiCOM MK808BT Pro professional diagnostic scan tool is specially designed for DIYers and auto technicians that enables in-depth diagnostics on all available vehicle modules including ECM, TCM, ABS, Airbag, BCM, Parking/Steering/Suspension/Radio, Lighting/HVAC systems and etc to pull codes, retrieve freeze-frame & ECU Info, read and clear codes, reset monitors and turn off warning lights, view live data in text, graph & analog to pinpoint fault locations efficiently.

OBDII Full Functions

This option presents a quick way to check for DTCs, isolate the cause of an illuminated malfunction indicator lamp (MIL), check monitor status prior to emissions certification testing, verify repairs, and perform a number of other services that are emissions-related. The OBD direct access option is also used for testing OBD II/EOBD compliant vehicles that are not included in the Diagnostics database.

1. Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs).
2. Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
3. I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
4. Live Data: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
5. View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
6. O2 Sensor Monitor: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
7. On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
8. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
9. Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Bi-Directional Control

Bidirectional active testing is widely used in automotive ECUs to help quickly check whether actuators such as ABS brake bleeding, automotive windows, rearview mirrors, sunroofs, and wipers are working normally. The bi-directional control scanner MK808BT PRO helps to find problems quickly by sending commands to the ECU to test the movement of the actuator.

37+ Advanced Hot Services

The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. The typical service operation screen is a series of menu driven executive commands. By following the on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions, the system will guide you through the complete performance for various service operations.

Bluetooth Diagnostics

As a wireless scanner tool, Autel MK808BT Pro is an upgraded version of the wired scanner MK808S/MK808. It is not limited to space, and the Bluetooth connection range can cover 10m. Whether you are in the car or outside the car, you can use the scan better. MK808BT Pro for vehicle service.

Advanced Hardware

1. Extraordinarily powerful Cortex-A55 processor (1.8 GHz) processor
2. 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
3. Internal reliable 64 GB On-board Memory for better performance
4. Unique ergonomic design with rubberized outer protection and a rugged internal housing
5. Android 11 Operating System for fast boot-up and multitasking

Worldwide Brand Vehicles

The OBD2 Scanner Autel MaxiCOM MK808 PRO is available for 150+ US, Asian and European vehicle brands, works well with: Acura, Audi, Benz, Bentley, BMW, Bugatti, Chevrolet, Chrysler, Corolla Gm, Holden, Ford, Honda, Hyundai, Infiniti, Kia, Land Rover, Isuzu, Jaguar, Lexus, Maybach, Mitsubishi, Nissan, Mazda, Mini, Opel, Porsche, Saab, Scion, Smart, Seat, Skoda, Sprinter, Subaru, Vauxhall, Volvo, Suzuki, Toyota, and Volkswagen vehicles, etc.



Autel MK808BT Pro Specification List

Recommended Use	Indoor
Operating System	Android 11
Processor	RK3566 Quad-core Arm Cortex-A55 processor (1.8 GHz)
Memory	4GB RAM & 64GB ROM
Display	7-inch LCD capacitive touchscreen with 1024 x 600 resolution
Connectivity	Mini USB 2.0 USB 2.0 Wi-Fi Bluetooth HDMI Type A Micro SD card (supports up to 64GB)
Sensors	Ambient light sensor for brightness auto changing
Audio input/output	Input: N/A Output: buzzer
Power and Battery	3.7 V/5000 mAh lithium-polymer battery Charges via a 5 VDC power supply
Tested Battery Life	Around 6.5 hours of continuous use
Battery Charging Input	5 V/2 A
Power Consumption	600 mA (LCD on with default brightness, Wi-Fi on) @3.7V
Operating Temp.	0 to 50°C(32 to 122°F)
Storage Temp.	-10 to 60°C (14 to 140°F)
Operating Humidity	5% - 95% non-condensing
Dimensions (W x H x D)	270.8 mm (10.0”) x 176.0 mm (6.9”) x 36 mm (1.4”)
Net Weight	885 g (2.31 lbs.)
Warranty & Update	1-year Free Update & Warranty

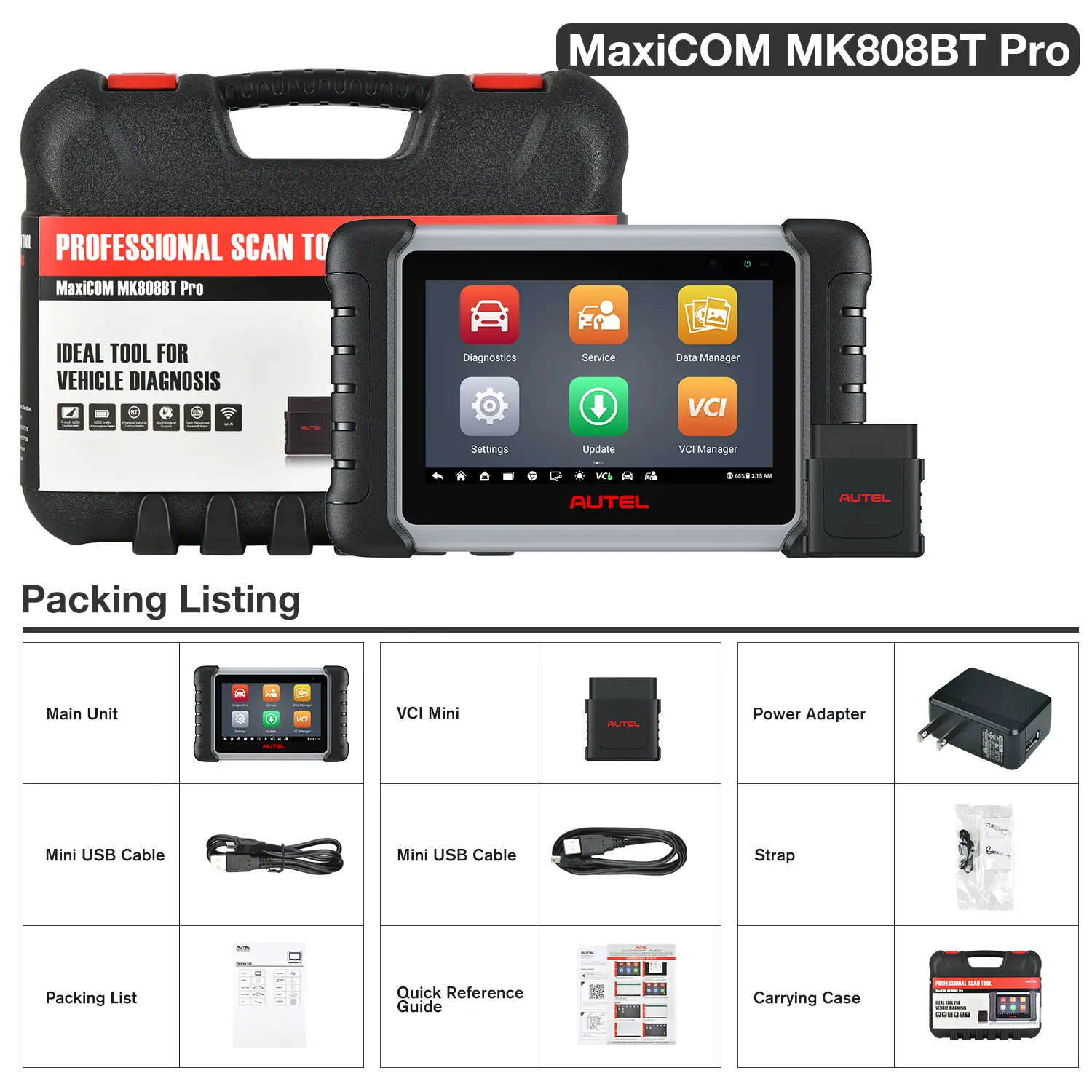

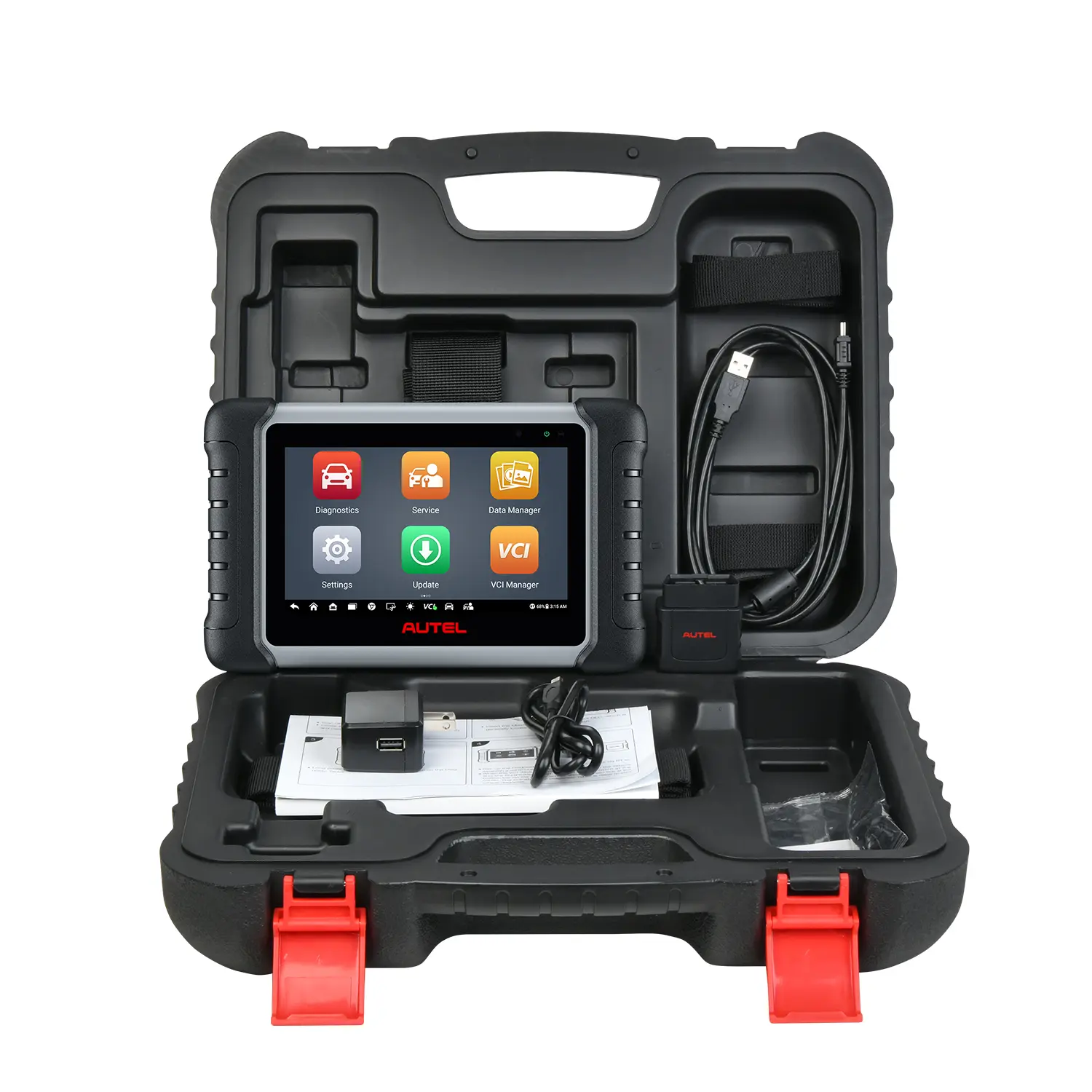

Autel MaxiCOM MK808BT PRO Packing List:
