• With 5 Batteries, Fly More
• FREE Gifts (Propeller Guards & Landing Pad)
• 640*512 Infrared Thermal Imaging
• AI Target Recognition & Positioning
• 6K Resolution
• 16x Digital Zoom
• Max video resolution of 4K 30P
• 12km Video Transmission Range
• 40 Minute Flight Endurance
• Extremely lightweight & portable

[keyfeatures]

Autel Robotics EVO Lite 640T Enterprise

The EVO Lite Enterprise Series, offers multiple advantages such as a lightweight and portable design, rapid deployment, and simple control for industrial applications. The AI target recognition feature enables the aircraft to easily identify and map various target objects automatically. The three-way binocular vision obstacle avoidance provides a safe flying experience.

The EVO Lite 640T Enterprise features a dual gimbal system, with a visible-light camera providing clear and detailed images, while the thermal-imaging camera aids in decision-making during operations. Paired with the Autel Enterprise professional flight software, it offers easy operation, user-friendly interaction, flexible single-person deployment, and efficient application in scenarios such as public safety and emergency rescue.

EVO Lite 640T Enterprise Top Highlights

Lightweight and Portable

The EVO Lite Enterprise Series aircraft weigh only 866 grams and have folded dimensions of just 210*123*95mm, making them easy to carry in a backpack. With a simple operation, they are ideal for efficient execution of missions by a single operator.

Autel Enterprise App

Autel Enterprise is a professional flight mission software designed for industry applications by Autel Robotics. It features an optimized interaction design for simple and efficient operation, an editable toolbar design for intuitive use, and integrates intelligent and professional functions to fully utilize the industry value of the EVO Lite Enterprise Series aircraft.

Split-Screen Display: Visible light, infrared, or map support dual-channel simultaneous output on the screen, providing comprehensive information through comparison.

Customizable Toolbar: Customize the menu toolbar in the app for quick access to frequently used functions, meeting personalized usage needs.

Offline Maps: Addresses the issue of map loading failures in no-network or weak-network environments by supporting offline maps, aiding in precise flight positioning.

AI Target Recognition and Positioning

Utilizing wide-angle or infrared lenses combined with intelligent AI algorithms and a self-learning system, the aircraft can automatically recognize and locate, including people, cars, and boats, projecting their positions on the map.

EVO Lite 640T Enterprise Dual Gimbal

Equipped with a dual gimbal, the wide-angle visible-light camera offers a broad field of view with vivid high-definition images, while the infrared thermal-imaging camera integrates high-resolution thermal-imaging algorithms, providing clear and detailed thermal source identification.

Thermal Imaging Camera

640*512 resolution // 9.1 mm focal length // 16x digital zoom

Temperature measurement range: -20°C to 150°C / 0°C to 550°C

Temperature accuracy: ±3°C or ±3% of reading (whichever is greater)

Visible Light Camera

1/2 inch CMOS // 48 million pixels // F2.8 aperture // 16x digital zoom

Maximum photo size of 8000*6000

Maximum video resolution of 4K 30P

High-Definition Video Transmission

Equipped with Autel SkyLink image transmission technology for a dual-signal, dual-reception system, the image transmission anti-interference capability improved, and the transmission distance reaches up to 12 kilometers. It supports 2.4GHz/5.2GHz/5.8GHz adaptive frequency hopping transmission, automatically selecting the best channel based on electromagnetic interference, providing strong anti-interference capability.And 1080P/30FPS real time image transmission quality.Less 200 Milliseconds latency.

Visual Perception System

The drone is equipped with wide-angle vision sensors at the front, back, and bottom, ensuring reliable flight safety.

Flight Performance

Born small but mighty. The outstanding flight performance of the EVO Lite Enterprise Series drones effortlessly tackles various challenges across multiple scenarios, significantly enhancing the efficiency of single-person mission flights.

40 minutes of endurance

18 meters per second Maximum horizontal flight speed

3000 meters Maximum takeoff altitude

SDK Ecosystem

The open Mobile SDK provides efficient, versatile, and easy-to-use control and service interfaces, enhancing development efficiency and enabling the creation of custom solution scenarios.

Data Security with Multiple Protections

Privacy Protection: Flight logs, locations, and other user privacy data require user consent to upload.

Encrypted Storage: Supports AES encryption for photos, videos, and flight logs, requiring a password for access.

Video Live Streaming: Supports RTMP and GB28181* protocols for live streaming, allowing for remote real-time viewing and analysis. *The GB28181 video live streaming protocol feature is pending future updates.

[spec]

EVO Lite 640T Enterprise Specs

• Aircraft

  Weight	866 g
  Maximum takeoff weight	866 g
  Dimensions	210×123×95mm (folded, propellers included) 433×516×95mm (unfolded, propellers included)
  Max. rotation speed	8000 rpm
  Wheelbase	368 mm
  Propeller Dimension	8.5 inch injection molded propeller. Spec: 8530
  Propeller weight	7.5 g
  Maximum ascent speed	Slow:3 m/s Smooth:3 m/s Standard: 5 m/s Ludicrous: 6 m/s
  Maximum descent speed	Slow:3 m/s Smooth:2 m/s Standard: 3 m/s Ludicrous: 4 m/s
  Maximum horizontal flight speed (no wind near sea level)	Slow :3 m/s Smooth:5 m/s Standard: 10 m/s Ludicrous: 18 m/s
  Maximum Service Ceiling Above Sea Level	3000 meters
  Maximum flight altitude	Chinese Mainland or EU: no more than 120 meters US: no more than 400 feet Note: In the flight application UAV, it can be set from 0 to 800 meters. To set beyond height required by law, you need to obtain authorization from authority.
  Maximum flight time (no wind)	40 minutes Note: Tested in lab with nearly no wind when aircraft flies at speed of 10 m/s and only for reference.
  Maximum flight mileage	24 km
  Maximum hover time (no wind)	37 minutes Note: Tested in lab with nearly no wind when aircraft hovers and only for reference.
  Maximum wind resistance level	Fresh breeze
  Maximum tilt angle	Slow: 15° Smooth: 30° Standard: 30° Ludicrous: 33°
  Maximum rotation angular speed	Smooth: 60°/s Standard: 120°/s Ludicrous: 200°/s
  Working temperature	-10℃~40℃
  Battery hot replacement	Not support
  Internal storage	Onboard storage: 4GB (support microSD card of up to 256GB)
  GNSS	GPS/BDS/GLONASS
  Hover accuracy	Vertically: ±0.1 meters (when visual positioning is working normally) ±0.3 meters (when GNSS is working normally) Horizontally: ±0.15 meters (when visual positioning is working normally) ±0.3 meters (when GNSS is working normally)

• Image Transmission

  Operating Frequency	2.4G: 2.400 – 2.476 GHz*; 2.400 – 2.4835 GHz 5.2G: 5.15 - 5.25 GHz** 5.8G: 5.725 - 5.829 GHz*, 5.725 - 5.850GHz *Only applicable to SRRC regions **Only applicable to FCC regions Note: Some frequencies are only available in some regions and some frequencies are only allowed for indoor use. Check local laws and regulations for details.
  Maximum signal effective distance (No interference, no obstruction)	FCC: 12 km CE: 6 km
  Effective transmitter power ( EIRP)	2.4G: ≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC) 5.8G: ≤30dBm(FCC/SRRC/ISED/RCM); ≤14dBm(CE/UKCA)

• Visual Perception System

  Sensing range	Forward: 0.2~23 meters Effective obstacle avoidance speed: ＜10m/s Backward: 0.2~30 meters Effective obstacle avoidance speed: ＜10m/s Downward: 0.2~20 meters
  FOV	Forward: 75° horizontally, 87° vertically Backward: 35° horizontally, 45° vertically Downward: 99° horizontally, 83° vertically
  Effective use of the environment	Front, rear: The surface has rich texture and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment) Below: The ground is richly textured and the lighting conditions are sufficient (>15 lux, normal indoor fluorescent lighting environment) The surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.)





• EVO Lite 640T Enterprise —— Visible Light Camera

  Image sensor	1/2 inch CMOS, 48 million pixels
  Lens	DFOV: 83.4° Equivalent focal length of 35mm: 24 mm Aperture: f/2.8 Focus distance: 0.5 meter ~ ∞ Focus: FF (Fixed Focus)
  ISO range	Auto/Manual: ISO100 ~ ISO6400
  Shutter speed	1/10000 ~1/60 seconds
  Defog mode	Support
  Zoom	1-16x digital zoom
  Maximum photo size	4000×3000, 8000×6000
  Photo format	JPG
  Video resolution	4000×3000 P30
  Video format	MP4/MOV
  Video coding format	H.265/H.264
  Support file system	FAT32/exFAT

• EVO Lite 640T Enterprise —— Thermal Imaging Camera

  Image Sensor	Uncooled VOx Microbolometer
  Lens	FOV: 61° Focal length: 9.1 mm Aperture: f/1.0 Focusing distance: 2.2 m ~ ∞
  Sensitivity	≤50mK@f/1.0, 25°C
  Pixel Pitch	12um
  Wavelength	8 - 14um
  Radiometric Measurement Method	Center measurement/Pot measurement/Rectangular measurement
  Radiometric Temperature Range	-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
  Radiometric Measurement Accuracy	±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
  Accurate Temperature Measurement Distance	1 ~ 25 m
  Digital Zoom	1-16x digital zoom
  Temperature Alert	In area temperature measurement, support high and low temperature alarm thresholds, reporting coordinates and temperature values
  Palette	White Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot
  Photo Size	640×512
  Photo Format	JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
  Video Resolution	640×512 30P
  Video Format	MP4/MOV

• EVO Lite 640T Enterprise Gimbal

  Mechanical scope	Pitch: -135°~45° Roll: -50°~50° Yaw: -90°~90°
  Controllable rotation range	Pitch: -90°~30°
  Stable system	Three-axis stabilization
  Maximum control speed (pitch)	100°/s
  Angualr vibration range	±0.003°

• Autel Smart Controller SE V2

  Material	PC+ABS
  Dimensions	226.3×137.7×31.5 mm (antennas folded) 226.3×215.4×31.5 mm (antennas unfolded)
  Weight	607 g
  Operating Temperature	-10°C to 40°C
  Storage Temperature	+15°C ~ +25°C (within a year) 0°C ~ +30°C (within three months) -20°C ~ +45°C (within a month)
  Protection Rating	IP43
  Internal Storage	Built-in storage of 32GB Available storage: 24GB
  MicroSD Extension	Supported
  Operating System	Based on Android 6.0.1
  Application Installation	Supports the installation of third-party Android apps
  USB -C	Charging: supports PD/QC fast charging, up to 65W
  USB -A	USB2.0
  GNSS	GPS/Galileo/BDS/GLONASS
  Wi-Fi Protocol	802.11a/b/g/n/ac Supports 2×2 MIMO Wi-Fi
  Wi-Fi Operating Frequency	2.4G: 2.400 – 2.476GHz*, 2.400 – 2.4835GHz 5.8G: 5.725 - 5.829GHz*, 5.725 - 5.850GHz *Only applicable to SRRC regions Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations.
  Wi-Fi Effective Isotropic Radiated Power (EIRP)	2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC); ≤12.14dBm (MIC) 5.8G: ≤30dBm (FCC/SRRC/ISED); ≤14dBm (CE)
  Bluetooth	Bluetooth 4.2
  Bluetooth Operating Frequency	2.400-2.4835GHz Note: Some regions specify frequency ranges. For details, please refer to local laws and regulations.
  Bluetooth Effective Isotropic Radiated Power (EIRP)	≤20dBm

• Autel Smart Controller SE V2 Image Transmission

  Antenna	Dual antennas, 1T2R, detachable design
  Operating Frequency	900M: 902 - 928MHz* 2.4G: 2.400 – 2.476GHz**，2.400 – 2.4835GHz 5.2G: 5150-5250MHz*** 5.8G: 5.725 - 5.829GHz**，5.725 - 5.850GHz *Only applicable to FCC and ISED regions **Only applicable to SRRC regions ***Only applicable to FCC and RCM regions Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations.
  Effective Isotropic Radiated Power (EIRP)	900M： ≤30dBm (FCC/ISED) 2.4G： ≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC) 5.2G: ≤30dBm (FCC/RCM) 5.8G： ≤30dBm (FCC/SRRC/ISED/RCM); ≤14dBm(CE)
  Maximum Transmission Distance (Without Interference and Blocking)	FCC: 12 km CE/SRRC: 8 km

• Autel Smart Controller SE V2 Display

  Resolution	1440×720
  Refresh Rate	60Hz
  Touch Control	Supports 10-point touch

• Autel Smart Controller SE V2 Battery

  Battery Type	Li-Po
  Rated Capacity	1900 mAh
  Voltage	DC 7.7V
  Battery Energy	14.63 Wh
  Charging Time	About 90 minutes (charging time is related to actual remaining power)
  Battery Endurance	1.5 hours (Max brightness) 2.5 hours (50% brightness)
  Battery Replacement	Supported

• Smart battery

  Operating Temperature	0 ~ +40℃
  Battery Type	LiPo 3S
  Rated Capacity	6175 mAh
  Battery Energy	68.7 Wh
  Voltage	11.13 V
  Charging Voltage Limit	12.75V
  Rated Charging Power	63.75W
  Rated Charging Power	78W
  Weight	309g
  Battery charging temperature	+5-+45℃ (When the battery temperature is below 5℃, the battery stops charging. When the battery temperature is above +45℃, the battery stops charging.)
  Ideal storage environment	+ 22℃ ~ +28℃
  Storage temperature and humidity	- 10℃ ~ +30℃, 65 ± 20%RH

• Battery Charger

  power input	100-240V ~ 50/60 Hz, 1.5 A
  Output port	Battery charging interface/USB-A
  Battery charging interface	12.75V⎓5A
  USB charging port	5V⎓3A, 9V⎓2A, 12V⎓1.5A
  Rated power	63.75W Max

[video]

New product release | Introducing EVO Lite Enterprise Series

AI Target Recognition -- EVO Lite Enterprise Series

Tripod -- EVO Lite Enterprise Series

Infrared Thermal Imaging -- EVO Lite Enterprise Series

Split Screen Display -- EVO Lite Enterprise Series

Customizable Toolbar -- EVO Lite Enterprise Series

Offline Maps -- EVO Lite Enterprise Series

[accessories]

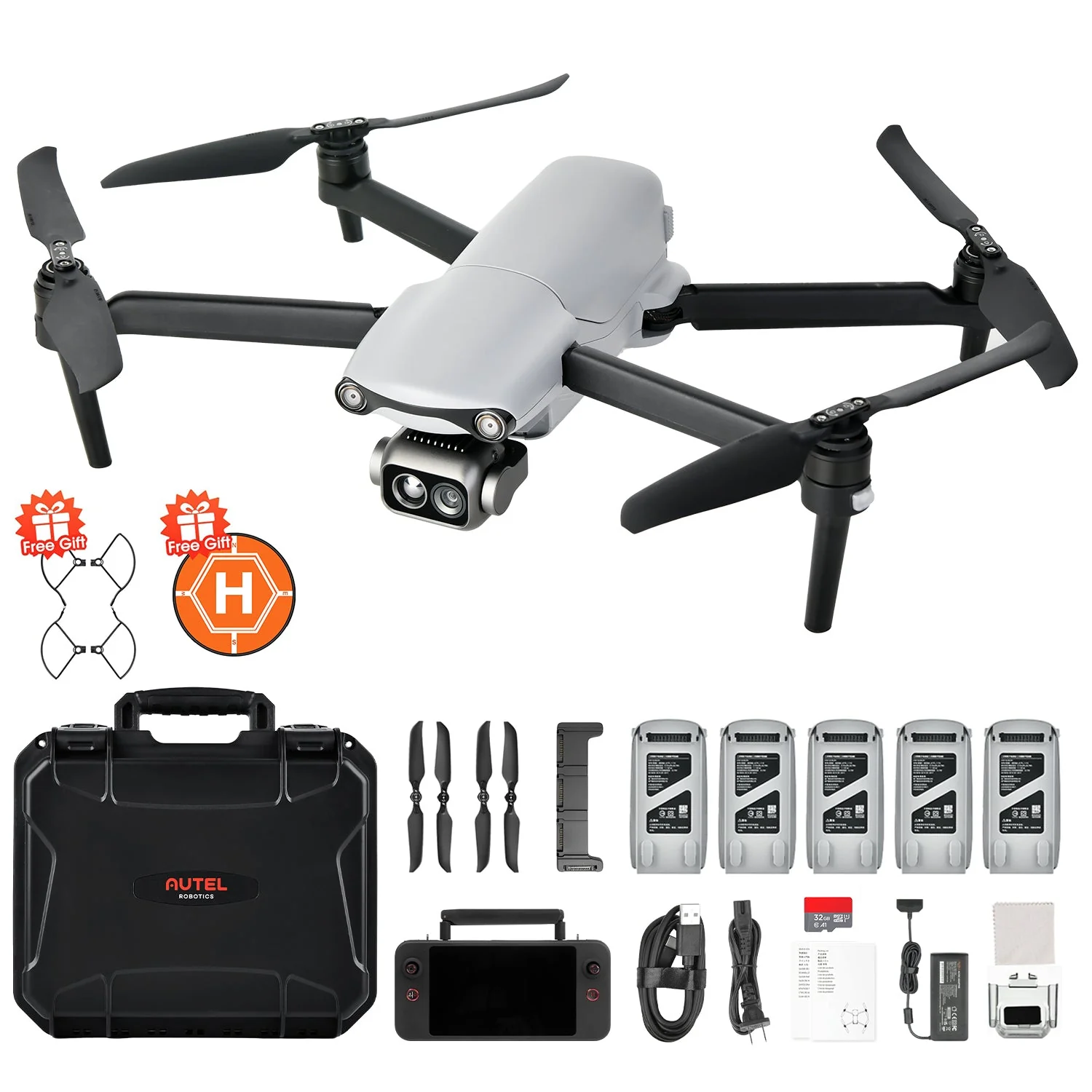

Autel EVO Lite 640T Enterprise Fly More Combo Package List

[downloads]

Name	Download
EVO Lite Enterprise Series Aircraft User Manual_V1.0
EVO Lite Enterprise Series_Quick Start Guide
