Autel MaxiVide MV108S

The MaxiVideo MV108S digital inspection camera is designed to work with MaxiSys series products(except MaxiSys 906) or PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

Autel MaxiVideo MV108S Features

The inspection endoscope Autel MaxiVideo MV108S will bring you the freedom to inspect areas normally inaccessible, making it much easier to find the solution:

High Compatibility: turn your Autel diagnostic tablet into a video inspection scope;
Work with MaxiCOM series: MK808S, MK808S-TS, MK906BT, MK906 PRO, MK906 PRO-TS, MK908PRO II, Ultra Lite and More
Work with MaxiSYS series: MS906 PRO, MS906 PRO-TS, MS909, MS919, Ultra and More
Work with MaxiPRO series: MP808, MP808TS, MP808S-TS and More
Wide Application: wonderful for up-close visual inspections in engine cylinders, most spark plug holes, and many other small part inspections in confined areas.
8.5mm Image Head: designed with smaller diameter cable & head, being easier to dive into tricky-to-reach areas and places.
1920x1080 dpi Image Capture: sharper images/videos with great details for clear viewing.
Super Bright LED Lights: further lighting to a dark area, improving image clarity.
Waterproof Camera: can operate at an underwater depth of 3.28ft (1m). No worries about using the video scope in wet places.
3.28ft (1m) Flexible Cable: long enough; can be bend, stay in shape to fit in different places.
Portable & Lightweight: can be carried easily in a pocket, or fit in small storage space.
Useful Accessories: [Mirror] get the view from a side angle; [Magnet] fetch small metal objects.
Made Up of 3 Parts: removable imager head cable + user-friendly handgrip + USB cable.

Autel MaxiVideo MV108S Top Highlights

Fully Meet Your Different Needs

This inspection endoscope MV108S can be widely used not just for an automotive inspection, but also for plumbing, construction, and inspection of any other hard-to-reach areas. Below we’ll show some typical using scenarios to explain why this video scope MaxiVideo MV108S is a good tool to have in your toolbox kit.

For Automotive Inspection:

Check the internal components of your engine for wear or damage without taking the whole thing apart;
Check the underside of your vehicle for rust, damage, or worn components without having to lift the car up.
Check the second car before buying; view areas that are normally hidden to avoid future expense and trouble, and more.

For House Maintenance (plumbing, construction, household applications, etc.)

Locate cables, pipes, valves and similar; Locate the source of leaks; Find blockages, damage, and corrosion; Find broken parts; Inspect machinery and manufactured goods; Find missing items; Locate pests …

High Quality, Useful Accessories

Our Autel MaxiVideo MV108S never neglects any details in order to provide the superior using experience. The mirror, magnetic and hook are utility, helpful and effective tools to shoot the trouble you detect in the gloomy environment.

Useful accessories:

Magnet - picks up small metal objects, such as dropped rings or screws
Mirror – helps to look around corners and see the unreachable areas
Hook – unclogs obstacles and picks up wires in the pipes or confined areas
MaxiVideo MV108S package including:
1 * MaxiVideo MV108S
1 * Magnet
1 * Mirror
1 * Hook

Easy To Use

3 Simple Steps to Use

1) Connect the Removable Imager Head Cable to the handgrip. Make sure the key and slot are properly aligned. Once they are aligned, finger-tighten the knurled knob to hold theconnection firmly in place.
2) Power up the MaxiSys Tablet, and select the Digital Inspection" application on theJob Menu.
3) Connect the MaxiVideo inspection camera to the MaxiSys Tablet with the USB connection, and you can start performing digital inspections with it.

Autel MaxiVideo MV108S Specification

Optimal Viewing Distance	1’’ to 14’’ (2.54cm to 35.56cm)
Camera	2 MP
Resolution	1920 x 1080
Depth of Field	3 cm to 8 cm (1.18” to 3.15”)
LED Beads	8 pcs
Imager Head Cable Length	1 m (39.37")
Waterproof Level (Imager Head)	IP67
Operating Temp	-10 °C to 70 °C (14 °F to 158 °F )
Storage Temp	-10 °C to 70 °C (14 °F to 158 °F )

Product Models	/	MV108S	MV108
Basic Hardware	Imager head	8.5mm	8.5mm
	Depth of field	3-8cm	2-6cm
	Field angle	81°	70°
	The length of Imager Head Cable	1m	1m
	Pixel	2000,000	300,000
	Flash	Yes	Yes
	Connection method	USB2.0	USB2.0
	Assembly method	The imager head cable is irremovable.	The imager head cable is removable.
	Imager Head Cable waterproof level	IP67	IP67
	Working temperature	-10°C to 70°C	-10°C to 70°C
	Storage temperature	-10°C to 70°C	-10°C to 70°C
Accessories	Reflector	Yes	Yes
Accessories	Hook	Yes	Yes

Autel MV108S Package List:

1 x MaxiVideo MV108S
1 x Magnet
1 x Mirror
1 x Hook

Autel MaxiVideo MV108S | 8.5mm Endoscope Camera Digital Inspection Camera For MaxiSys Tablet Kit

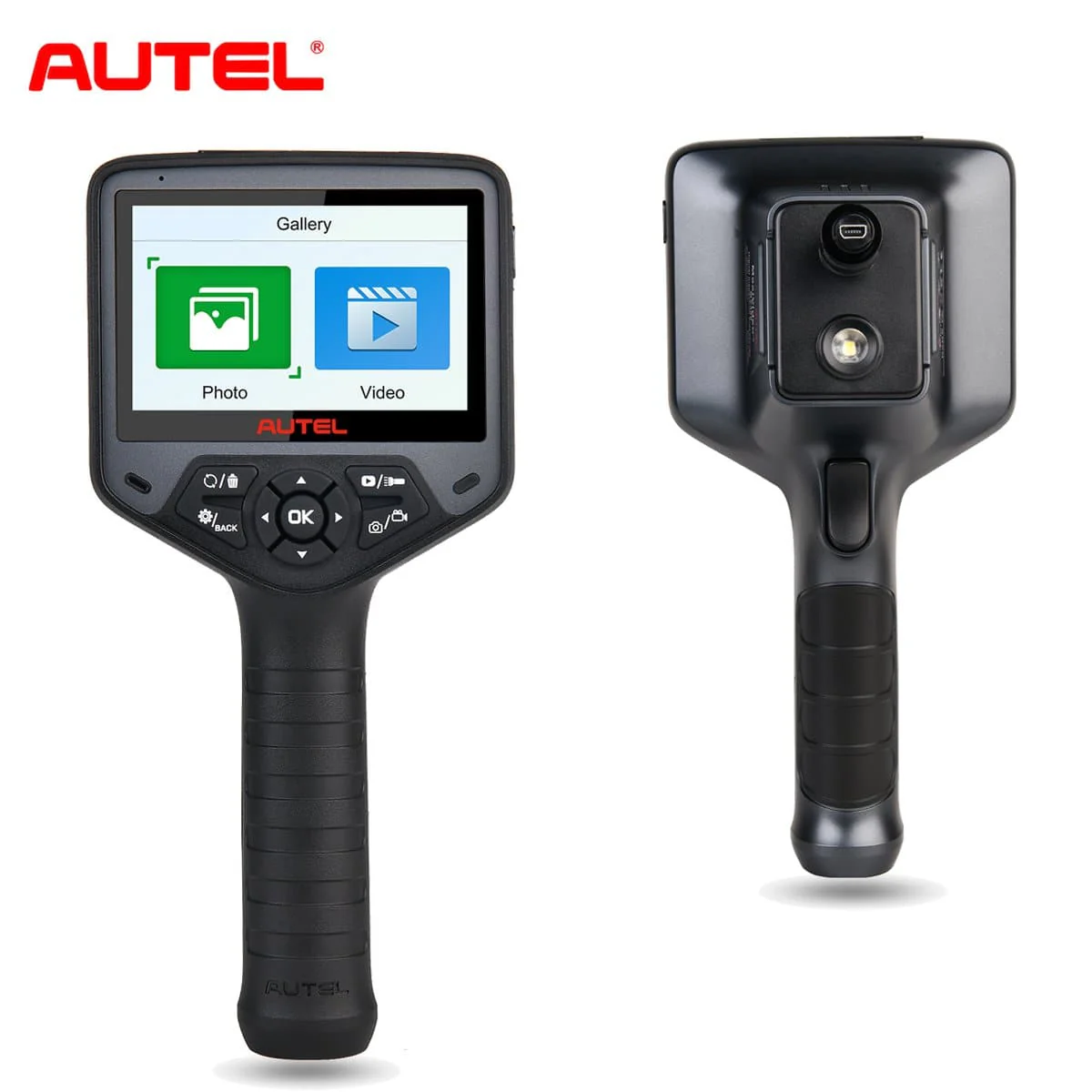

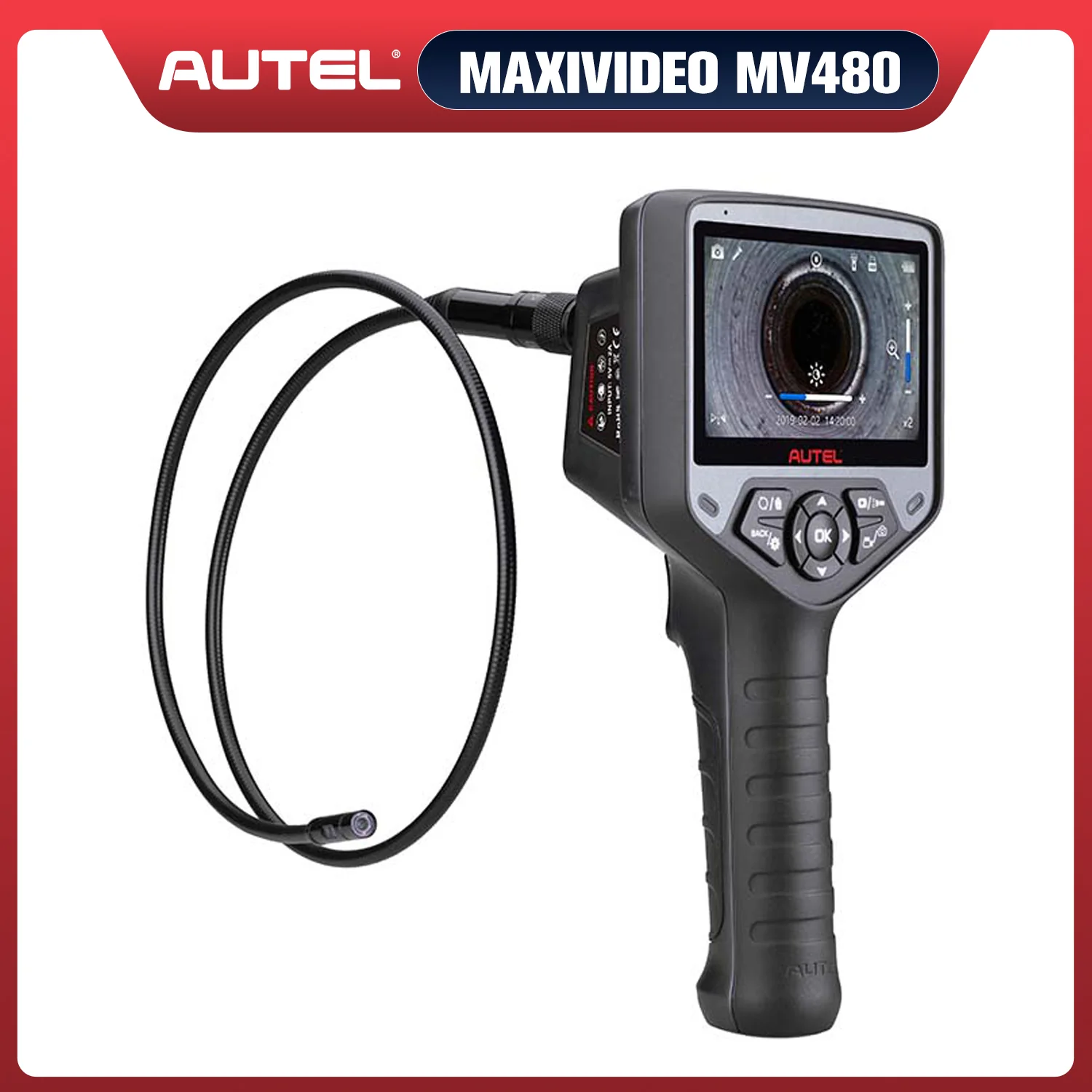

Autel Maxivideo MV480 | Dual-camera Digital Videoscope Inspection Camera Endoscope 8.5mm Image Head

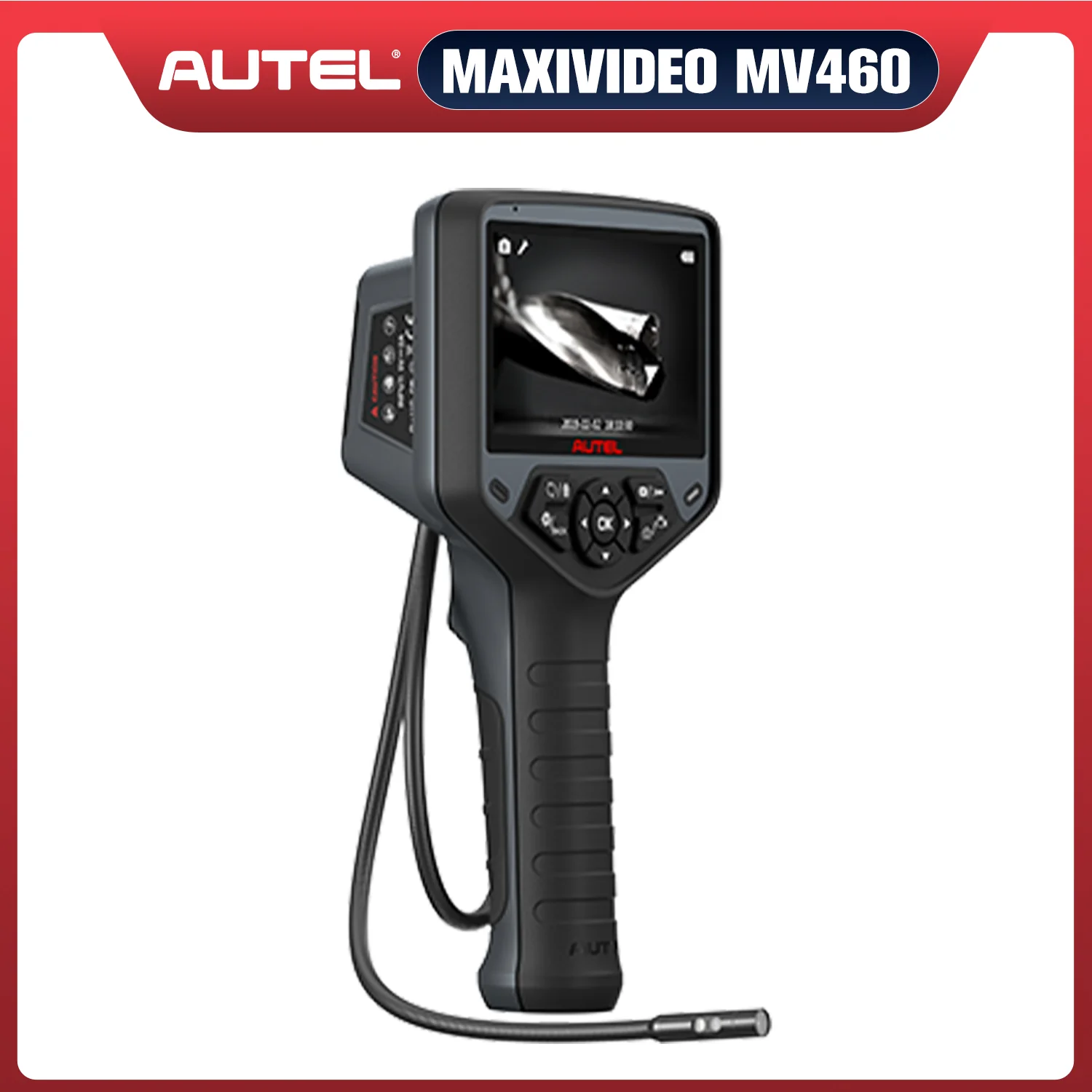

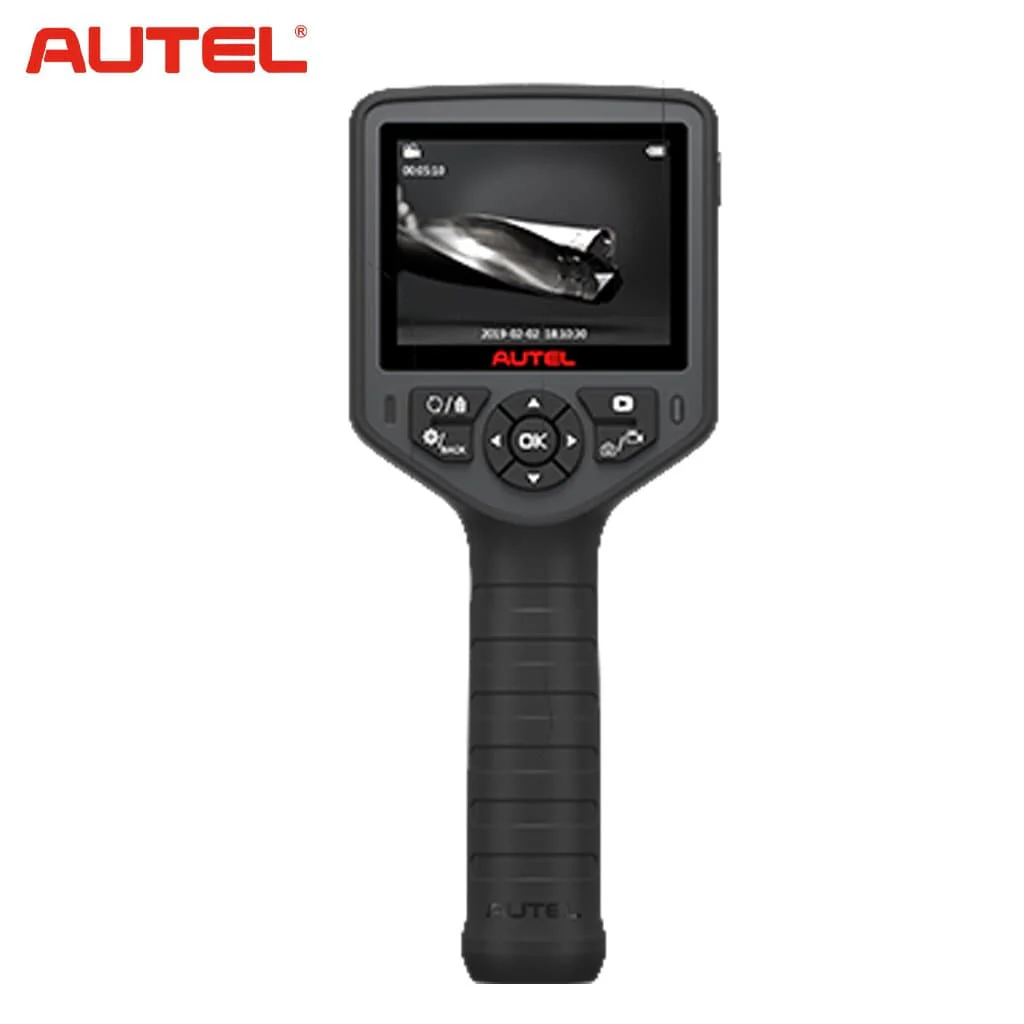

Autel MaxiVideo MV460 | 1080P HD Industrial Videoscope, Waterproof Inspection Camera with Full-Color Screen, 7X Digital Zoom

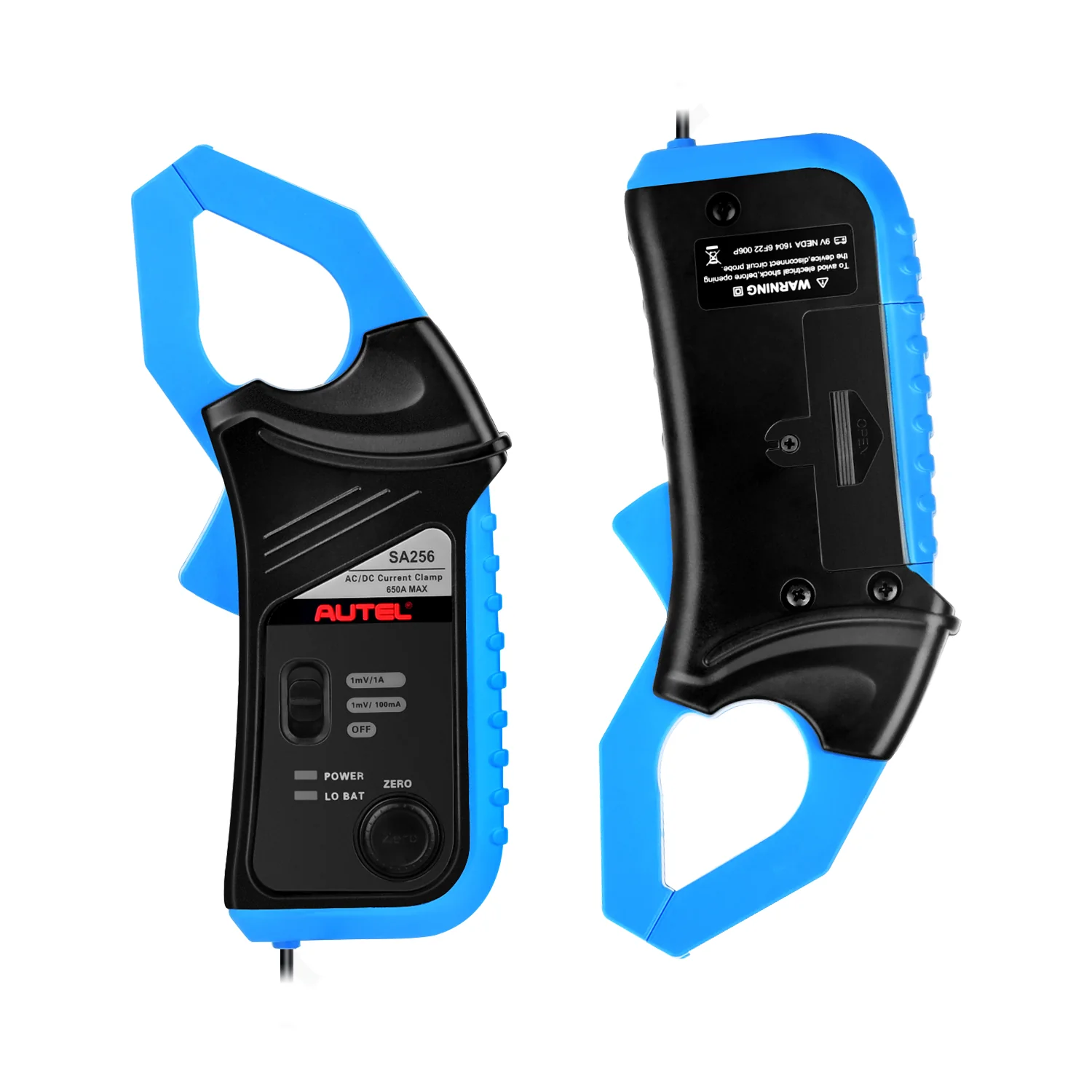

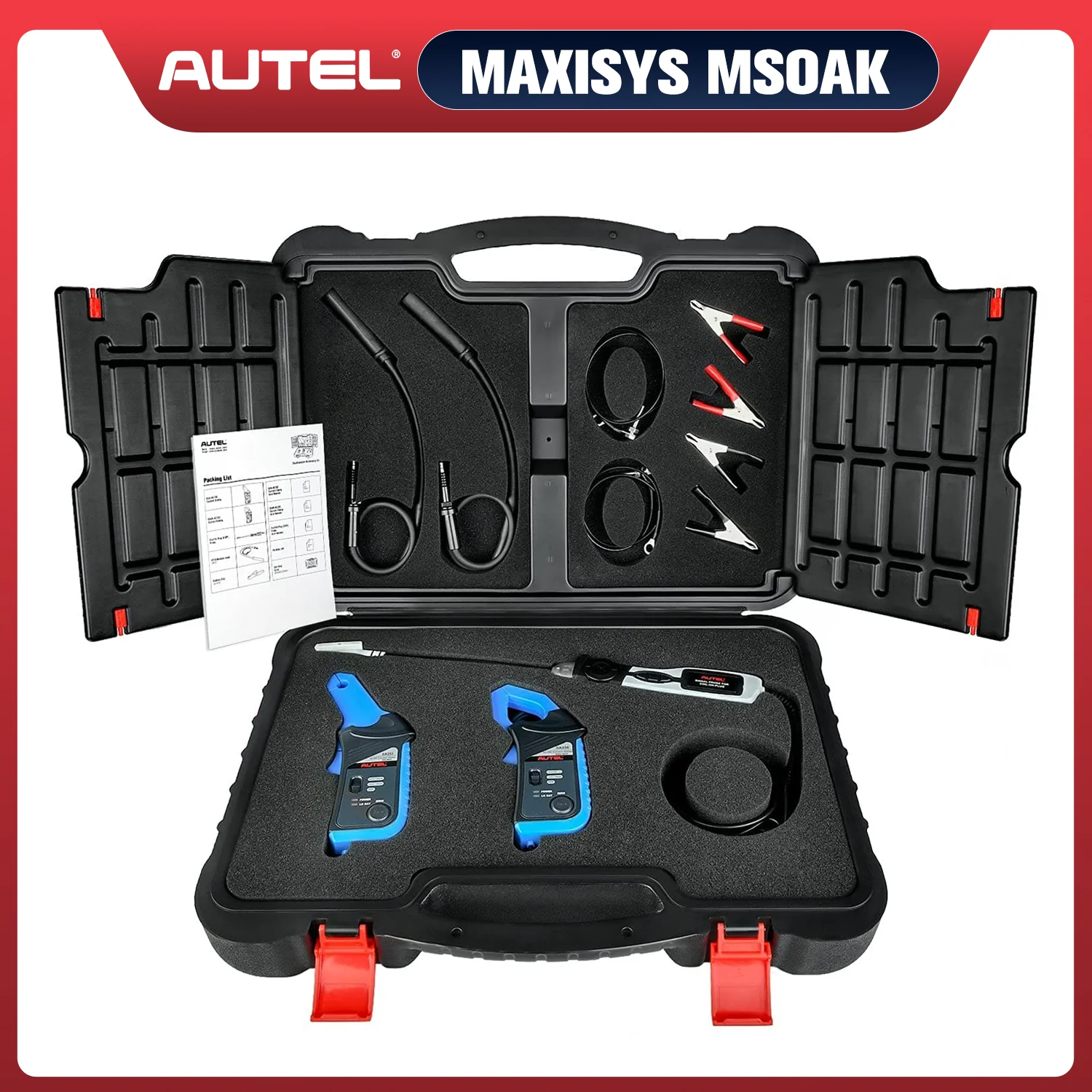

Autel MaxiSYS MSOAK | Oscilloscope Accessory Kit Work with MaxiFlash VCMI Ultra EV, Ultra, MS919 and MP408, 65A/ 650A AC/DC Current Clamp, Coil On Plug Probe, HT Extension Lead, 2*2pcs Battery Clip
